Description
Direct Mill Supply, No Middlemen — Hot-dip galvanized square steel pipes produced and fabricated in-house, with full material traceability from raw coil to finished SHS.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | Galvanized Square Steel Pipe |
| Product Type | Square Steel Tube (Galvanized) |
| Steel Grade | A53 Grade B, A500 Grade A/B/C, STK400, SS400, ST42.2, S355JR, Q235B |
| Standard | ASTM A53, A500, A36, A795; BS1387; EN10255; ISO65; ANSI C80; DIN2440; JIS G3444; GB/T3091, GB/T13793 |
| Section Shape | Square |
| Size Range | 21.3 mm – 660 mm (1/2″ – 26″) |
| Wall Thickness | 6 mm (customizable) |
| Length | 5.8 m / 6 m / 11 m / 12 m / 6.4 m or as required |
| Technique | Hot-dip Galvanized |
| Surface Treatment | Galvanized (Hot-dip) |
| Tolerance | ±1% / ±5% |
| Ends | Plain / Beveled / Threaded / Grooved |
| Processing Service | Punching, Cutting, Bending |
| Application | Municipal water & gas transmission, fluid transportation, construction, structural frames, machinery parts, power, boiler, petrochemical, building industry, hydraulic precision machinery |
| MOQ | 1 Ton |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Municipal Infrastructure | Water transmission mains, gas distribution networks, drainage risers |
| Industrial Construction | Factory frame columns, mezzanine supports, equipment platforms |
| Petrochemical & Power | Pipe rack structures, boiler supports, cooling tower frames |
| Building & Architecture | Structural bracing, canopy frames, load-bearing posts |
When Zinc Coating Thickness Decides Site Acceptance
A 45-micron coating fails third-party inspection when the spec calls for 80 microns — the entire shipment gets stranded at port.
I watched a full container of galvanized square tubes sit in a Jeddah yard for two months because the zinc layer was half of what the municipal water project required. The buyer had sourced from a supplier who subcontracted galvanizing without verifying coating weight. Hot-dip galvanized square steel pipes must meet minimum coating thickness per ASTM A123 or EN ISO 1461, and that number is not negotiable when the project engineer holds a coating thickness gauge. [NEED_CITE: hot-dip galvanized coating thickness requirements per ASTM A123]
Matching Municipal and Industrial Load Requirements
Galvanized square steel pipes in S355JR and A500 Grade C grades carry the yield strength needed for structural frames in warehouse and industrial projects, while the hot-dip zinc layer protects against corrosion in outdoor and underground municipal environments. Side lengths from 21.3 mm to 660 mm cover everything from small-bore gas distribution branches to large structural columns. Our in-house fabrication handles punching, cutting, and bending to project-specific dimensions, so the tubes arrive on site ready to bolt or weld — no secondary processing delays.
Structural Compliance and Corrosion Protection Standards
Engineering specifications for structural hollow sections reference EN 10219 for cold-formed welded profiles and ASTM A500 for cold-formed welded and seamless carbon steel tubing. [NEED_CITE: EN 10219 cold-formed structural hollow section dimensional tolerances] For municipal water and gas pipelines, ASTM A53 Grade B remains the default specification across North American and Middle East tenders. Hot-dip galvanizing provides a metallurgically bonded zinc-iron alloy layer that outperforms pre-galvanized (electro-galvanized) coatings in both thickness and adhesion — critical for pipes buried in aggressive soil or exposed to marine atmospheres. Third-party inspection by SGS or BV verifies coating weight, dimensional accuracy, and weld integrity before shipment. [NEED_CITE: hot-dip vs electro-galvanized coating performance comparison]
Steel Grade Selection and Galvanizing Process Fundamentals
The S-series grades (S355JR, ST42.2) follow the European EN standard system, where the number indicates minimum yield strength in MPa — S355JR delivers higher load capacity than S235JR for the same cross-section. The ASTM system (A53 Grade B, A500 Grade B/C) dominates North American and Middle East specifications, with A500 Grade C offering the highest structural grade for cold-formed hollow sections. Q235B and SS400 serve cost-sensitive applications where extreme yield strength is not required. Hot-dip galvanizing immerses the formed square tube in molten zinc at approximately 450°C, creating a metallurgical bond that produces a coating typically 60–100 microns thick — far exceeding the 15–25 microns achievable through electro-galvanizing. Wall thickness tolerance directly affects theoretical weight and structural load calculations; negative tolerance beyond ±5% reduces actual load-bearing capacity below design assumptions.
The Hidden Cost of Wrong-Grade or Under-Coated Pipes
Specifying A500 Grade B when the structural engineer calculated for Grade C means the frame deflects beyond allowable limits under design load. Ordering pre-galvanized tubes for a coastal municipal water project guarantees premature rust breakthrough and early replacement. Material certificates that cannot be traced to heat numbers trigger customs holds and third-party rejection. [NEED_CITE: structural steel grade equivalence between ASTM and EN standards] These are not theoretical risks — they are the exact failure modes that delay project handover and erode contractor margins.
Why Engineers Source This Galvanized Square Steel Pipe From Us
We operate our own steel production facility with three rolling lines and over 2,800 specifications in raw material inventory, meaning the same facility that produces the black square tube also performs the hot-dip galvanizing and final fabrication. This vertical integration eliminates the material traceability gap that occurs when fabricators source black tube from third parties and outsource galvanizing separately. Every heat number is traceable from coil to finished galvanized square steel pipe. Our welding procedures and welders hold AWS and EN certifications, and we provide complete quality documentation packages including WPS, PQR, weld maps, dimensional inspection reports, and coating thickness reports. Custom lengths, end treatments (threaded, grooved, beveled), and fabrication services (punching, bending) are handled in-house, reducing lead time and eliminating coordination errors between multiple suppliers.
Documentation & Compliance
- Mill Test Certificate documenting A53 Grade B / S355JR chemical composition and mechanical properties per ASTM A53 / EN 10219, traceable by heat number
- CE Certificate confirming compliance with EN 10219 for cold-formed structural hollow sections, required for EU project customs clearance
- ISO 9001 Quality Management System certificate covering the full production process from steelmaking to hot-dip galvanizing
- SGS or BV Third-Party Inspection Report verifying coating thickness, dimensional tolerance, and visual quality before shipment
- Material Traceability Report linking each bundle to its original heat number, test certificate, and galvanizing batch
- Export Documentation Package including commercial invoice, packing list, bill of lading, and certificate of origin
Packaging, Loading & Delivery

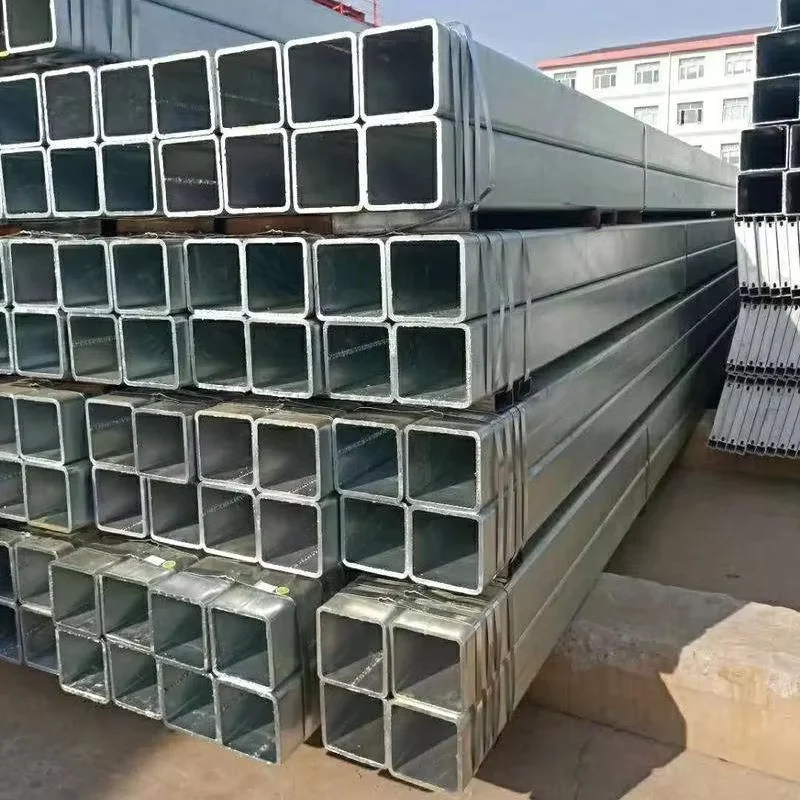

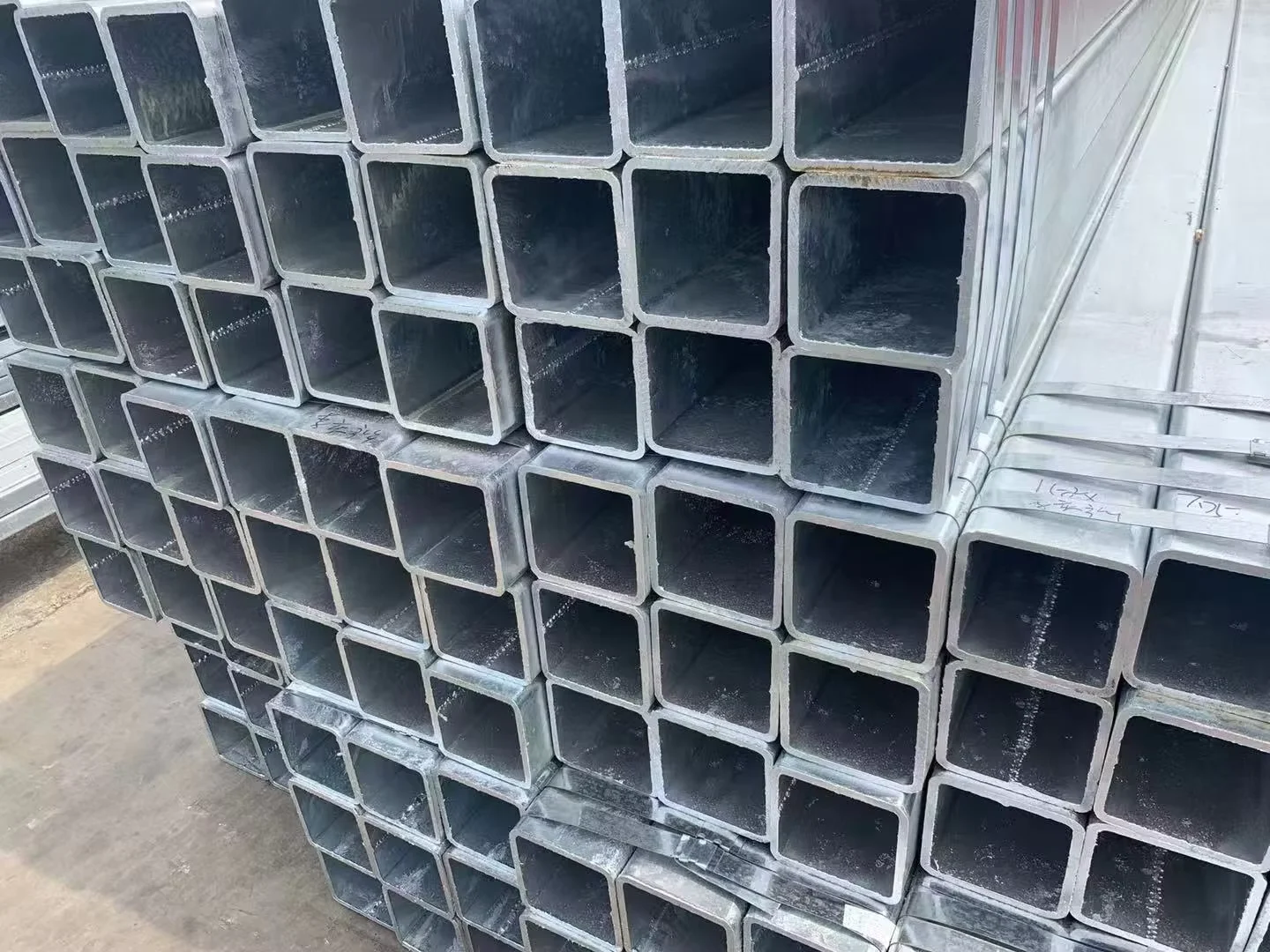

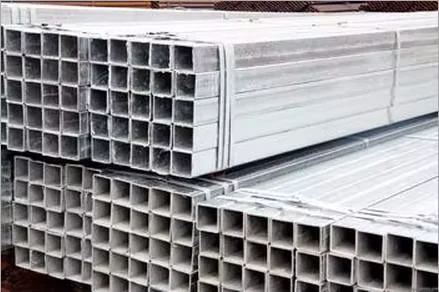

- Galvanized square steel pipes bundled with steel strips and edge protectors to preserve the zinc coating during ocean transit and prevent corner damage
- Plastic caps fitted on both ends of threaded or grooved tubes to protect end finishes and prevent moisture ingress
- Woven bag wrapping applied over each bundle for additional surface protection, especially for hot-dip galvanized finishes requiring scratch prevention
- Custom length tubes (5.8 m, 6 m, 11 m, 12 m, 6.4 m) loaded with optimized container stowage plans to maximize payload and minimize shipping cost per meter
- Heat number and steel grade markings stenciled on each bundle for site identification and traceability verification
- FOB, CIF, and DDP shipping terms available with professional oversized cargo loading and lashing for large-section tubes up to 660 mm
Getting Your Project Quote Started
Send your project drawings (PDF or DWG), required steel grades, coating thickness specifications, and destination port — we respond within 24 hours with a detailed quotation covering material, fabrication, galvanizing, packing, and shipping costs, along with a shop drawing timeline and production schedule.
Request Your Galvanized Square Steel Pipe Quotation
Submit your specifications, steel grade, and quantity to receive pricing and mill test certificates.
Mobile/WhatsApp/WeChat: +86 188 5315 7756 | Email: admin@xjystructure.com
Frequently Asked Questions
Q: What is the difference between hot-dip galvanized and pre-galvanized square steel pipes?
A: Hot-dip galvanizing immerses the formed tube in molten zinc, producing a coating of 60–100 microns with metallurgical bonding. Pre-galvanized (electro-galvanized) tubes are made from pre-coated coil and typically have a zinc layer of 15–25 microns. Hot-dip galvanized square steel pipes are specified for outdoor, underground, and corrosive environments where long-term corrosion resistance is required.
Q: Can you provide material certificates for customs clearance and third-party inspection?
A: Yes. We provide Mill Test Certificates (EN 10204 3.1/3.2) with full chemical composition and mechanical properties, traceable by heat number. Third-party inspection by SGS or BV is available for quantity and quality verification before shipment. CE certificates are provided for EN 10219 compliance when shipping to European markets.
Q: What steel grades are available for galvanized square steel pipes?
A: We supply A53 Grade B, A500 Grade A/B/C, S355JR, STK400, SS400, ST42.2, and Q235B. These grades cover ASTM, EN, JIS, and GB standard systems. Grade equivalence documentation is available upon request to support cross-standard specification matching.
Q: What is the minimum order quantity and can you produce custom lengths?
A: The minimum order quantity is 1 Ton. Standard lengths include 5.8 m, 6 m, 11 m, 12 m, and 6.4 m. Custom lengths are available for project orders. Processing services including punching, cutting, and bending are performed in-house to meet project-specific fabrication requirements.
Q: How do you ensure coating thickness meets project specifications?
A: Hot-dip galvanizing is performed in-house with process controls aligned to ASTM A123 and EN ISO 1461 standards. Coating thickness is measured using magnetic induction gauges at multiple points per tube, and results are documented in the quality inspection report. Third-party verification by SGS or BV can be arranged before shipment.
