Description
Mill-Direct SSAW Pipe Supply — Own steel mill with 3 production lines and 2,800+ raw material specifications ensures full heat-level traceability from slab to finished API 5L L245 SSAW spiral steel pipe.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | API 5L L245 SSAW Spiral Steel Pipe |
| Product Type | Spiral Submerged Arc Welded (SSAW) Steel Pipe |
| Steel Grade | API 5L GR A, GR B, X42, X46, X52, X56, X60, X65, X70; L175, L210, L245, L320; Q235, Q345; S235JR, S275JR, S355JR, S355J0H, S355J2H; SS400; STK400, STK500; J55; P195, P235, P265 |
| Standard | API 5L, API 5CT, ASTM A53, ASTM A252, ASTM A500, EN 10219, EN 10217, EN 10224, EN 10210, BS 4360, GB/T 9711, GB/T 3091, GB/T 13793, SY/T 5037, DIN 1626, DIN 17120, JIS G3444 |
| Section Shape | Round |
| Outer Diameter | 219–3048 mm |
| Wall Thickness | 5–25.4 mm |
| Length | 5.8–12 m (standard); up to 22 m per customer request |
| Technique | SSAW |
| Surface Treatment | Hot Rolled, Oiled / Non-oiled, Bare, Painted, 3PE Coating |
| Tolerance | ±1% |
| Ends | Plain / Beveled / Threaded |
| Application | Oil & gas pipeline, piling foundations, fluid transport, bridge construction, building structural frames, industrial plant piping, casing for oil-gas wells |
| MOQ | 5 Tons |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Oil & Gas | Transmission pipelines, well casing, gathering lines for onshore and offshore fields |
| Infrastructure & Piling | Bridge foundation piles, port wharf piles, highway sound barrier post foundations |
| Industrial Construction | Plant piping racks, conveyor support structures, crane runway beams |
| Water & Utilities | Raw water transmission mains, sewage force mains, stormwater outfall lines |
| Building & Structural | Column sleeves, moment frame connections, mezzanine support columns |
Why Material Traceability Decides Whether Your SSAW Pipe Clears Customs
A missing heat number on an API 5L L245 SSAW spiral steel pipe can halt an entire shipment at the destination port.
When overseas buyers source spiral welded pipes from traders who subcontract to unknown mills, the material certification chain breaks somewhere between the slab and the finished pipe. Third-party inspectors at the discharge port flag inconsistent heat numbers, and customs officials hold the container pending origin verification. I have seen project schedules slip by weeks because a batch of SSAW pipe arrived without traceable mill test certificates linking each pipe to its original heat. [NEED_CITE: API 5L material traceability requirements for pipeline and piling applications]
Matching Large-Diameter SSAW Pipe to Piling and Pipeline Engineering Demands
The 219–3048 mm outer diameter range of API 5L L245 SSAW spiral steel pipe covers virtually every piling and medium-pressure pipeline specification encountered in Middle East, African, and Southeast Asian infrastructure programs. For driven pile applications, the SSAW process produces a continuous helical weld seam that distributes axial compression loads evenly along the pipe length, while the ±1% dimensional tolerance ensures consistent driving shoe fit-up. Our own steel mill produces the hot-rolled coil feedstock in-house, so the chemical composition of every L245 pipe can be traced directly back to the ladle analysis — no gaps, no third-party coil purchases.
Engineering Compliance Across API 5L, EN, and ASTM Frameworks
Structural and pipeline engineers specifying API 5L L245 SSAW spiral steel pipe often need cross-referenced documentation for projects governed by multiple code jurisdictions. The pipe conforms to API 5L for pipeline service, EN 10217 for pressure purposes, and ASTM A252 for piling — all within a single fabrication order. Welding procedures are qualified per AWS and EN standards, with certified welders performing submerged arc welding under controlled parameters. For projects entering the EU market, CE marking documentation and EN 10219 compliance reports are prepared alongside the standard API 5L package. [NEED_CITE: equivalence mapping between API 5L and EN 10217 steel grade designations]
Understanding the SSAW Process and L245 Grade Selection

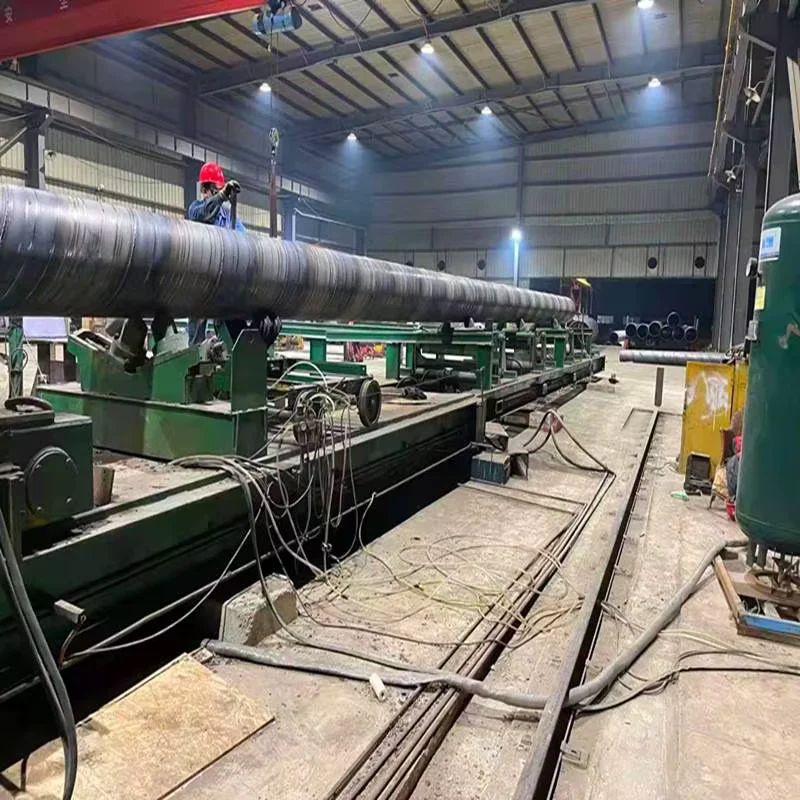

The Spiral Submerged Arc Welded process forms pipe by helically winding hot-rolled steel coil and welding the seam from both inside and outside using submerged arc welding. This method is particularly suited to large diameters above 508 mm where longitudinal welding would require excessive forming force. L245 (equivalent to GR B in older API 5L editions) provides moderate yield strength appropriate for piling, low-pressure fluid transmission, and structural casing applications. The steel grade sits at the entry level of the API 5L pipeline grade family, offering good formability and weldability without the premium cost of higher X-series grades. Surface treatment selection depends on the service environment: bare or oiled pipe suits temporary piling and indoor structural use, while 3PE anti-corrosion coating is specified for buried pipeline and offshore splash zone applications. Wall thickness from 5 mm to 25.4 mm allows engineers to optimize the diameter-to-thickness ratio for buckling resistance in driven pile scenarios.
The Hidden Cost of Sourcing SSAW Pipe Without Verified Certification
Procuring API 5L L245 SSAW spiral steel pipe from a supplier who cannot demonstrate heat-level traceability creates risks that surface only after the material reaches the job site. Pipes with unverified chemical composition may fail ultrasonic testing at the weld seam during field inspection, forcing costly cut-out and re-welding operations. Dimensional tolerance exceeding ±1% causes fit-up problems at pile connections and flange joints, generating rework delays that cascade through the critical path. In the worst scenario, non-conforming material passes initial visual inspection but fails structural load testing, requiring complete replacement of installed sections. [NEED_CITE: consequences of material certification gaps in international steel procurement]
What Sets Our API 5L L245 SSAW Spiral Steel Pipe Supply Apart
We operate our own steel mill with 3 production lines and maintain over 2,800 raw material specifications in inventory, meaning every API 5L L245 SSAW spiral steel pipe we deliver starts from coil we produced and controlled. Our in-house laboratory performs chemical composition analysis and mechanical property testing before any pipe leaves the facility — I personally verify heat numbers against ultrasonic readings on large-diameter orders. The fabrication workshop holds certified welding procedures and qualified welders per AWS and EN standards, with complete quality documentation packages prepared for every shipment. For international projects, we coordinate third-party inspection through SGS, BV, or TÜV at any production stage, and our logistics team handles oversized cargo loading with professional lashing plans. This vertically integrated model — from slab to finished pipe to export documentation — eliminates the fragmentation that causes most quality disputes in overseas steel procurement.
Documentation & Compliance
- Mill Test Certificate documenting L245 chemical composition and mechanical properties per API 5L, traceable to original heat number from our own steel production
- Third-party inspection report from SGS, BV, or TÜV covering dimensional checks, ultrasonic testing, and hydrostatic pressure verification
- CE compliance documentation for EN 10217 pressure pipe and EN 10219 structural hollow section requirements, supporting EU customs clearance
- Welding procedure specification (WPS) and procedure qualification record (PQR) for submerged arc welding per AWS D1.1 and EN 1090
- Complete export documentation package including packing list, bill of lading, certificate of origin, and coating inspection report for 3PE or painted finishes
- ISO 9001 quality management system certificate covering the full production chain from coil rolling to finished pipe dispatch
Packaging, Loading & Delivery
- API 5L L245 SSAW pipes bundled with steel strips and edge protectors, with bundle weight optimized for 20ft and 40ft open-top container loading based on 219–3048 mm diameter range
- Bare or oiled pipe surfaces protected with plastic end caps and waterproof wrapping to prevent corrosion during ocean transit to Middle East and African ports
- 3PE coated pipes loaded with nylon sling separators to preserve the anti-corrosion coating layer during handling and transport
- Standard lengths of 5.8–12 m loaded for full container utilization; custom lengths up to 22 m shipped on flat rack or break-bulk vessels with professional lashing plans
- Heat number, steel grade L245, outer diameter, wall thickness, and length marked on each pipe end with stenciled identification for site traceability
- FOB, CIF, and DDP shipping terms available with door-to-door logistics coordination for project sites across Southeast Asia, the Middle East, and Africa
Start Your API 5L L245 SSAW Pipe Inquiry
Submit your project drawings, required outer diameter and wall thickness, steel grade, applicable standard, and destination port to receive a detailed quotation including material, fabrication, coating, and shipping costs. Our engineering team will review your specifications and provide a preliminary assessment within 24 hours, along with a shop drawing timeline and production schedule.
Request Your API 5L L245 SSAW Spiral Steel Pipe Quotation
Share your project specifications, steel grade requirements, and destination port to receive mill-direct pricing with full MTR documentation. Contact us at admin@xjystructure.com or reach our team via WhatsApp at +86 188 5315 7756.
Frequently Asked Questions
Q: What is the difference between SSAW, LSAW, and ERW pipes — which suits my pipeline or piling project?
A: SSAW (Spiral Submerged Arc Welded) pipe is formed by helically winding steel coil and is ideal for large diameters from 219 mm to 3048 mm, commonly used in piling and medium-pressure pipeline applications. LSAW (Longitudinal Submerged Arc Welded) pipe uses a straight seam and is typically produced in diameters from 323.8 mm to 1420 mm, preferred for high-pressure transmission pipelines. ERW (Electric Resistance Welded) pipe covers smaller diameters from 88.9 mm to 660.4 mm and is suited for structural and low-pressure fluid applications. The choice depends on your project’s diameter requirement, pressure rating, and applicable code.
Q: Can you provide API 5L grade material certificates traceable to the original heat number?
A: Yes. Because we operate our own steel mill, every API 5L L245 SSAW spiral steel pipe we produce is traceable from the original heat number through the complete Mill Test Certificate. The MTR documents chemical composition and mechanical properties, and we can arrange third-party verification through SGS, BV, or TÜV at any production stage.
Q: What surface treatment and anti-corrosion coating options are available for offshore or buried pipeline use?
A: We offer bare, oiled, painted, and 3PE anti-corrosion coating options for API 5L L245 SSAW spiral steel pipe. For buried pipeline applications, 3PE coating provides superior corrosion resistance with a polyethylene outer layer over an epoxy primer. For offshore splash zone or marine piling use, custom painting systems can be applied per project specification. Surface treatment is selected based on the service environment and project design requirements.
Q: How do you handle oversized spiral pipe loading and shipping?
A: Standard length pipes (5.8–12 m) in the 219–1200 mm diameter range are loaded in open-top or standard containers with professional lashing. Pipes exceeding container dimensions or custom lengths up to 22 mm are shipped on flat racks or break-bulk vessels. Our logistics team prepares detailed loading plans and provides complete export documentation including packing list, bill of lading, and certificate of origin.
Q: What is the MOQ and lead time for custom diameter and wall thickness orders?
A: The minimum order quantity is 5 tons. Production lead times depend on the diameter, wall thickness, surface treatment requirements, and order volume. Standard specifications in L245 grade with typical surface treatment are produced within typical production lead times, while custom 3PE coating or non-standard dimensions may require additional scheduling. We provide a detailed production timeline with every quotation.
