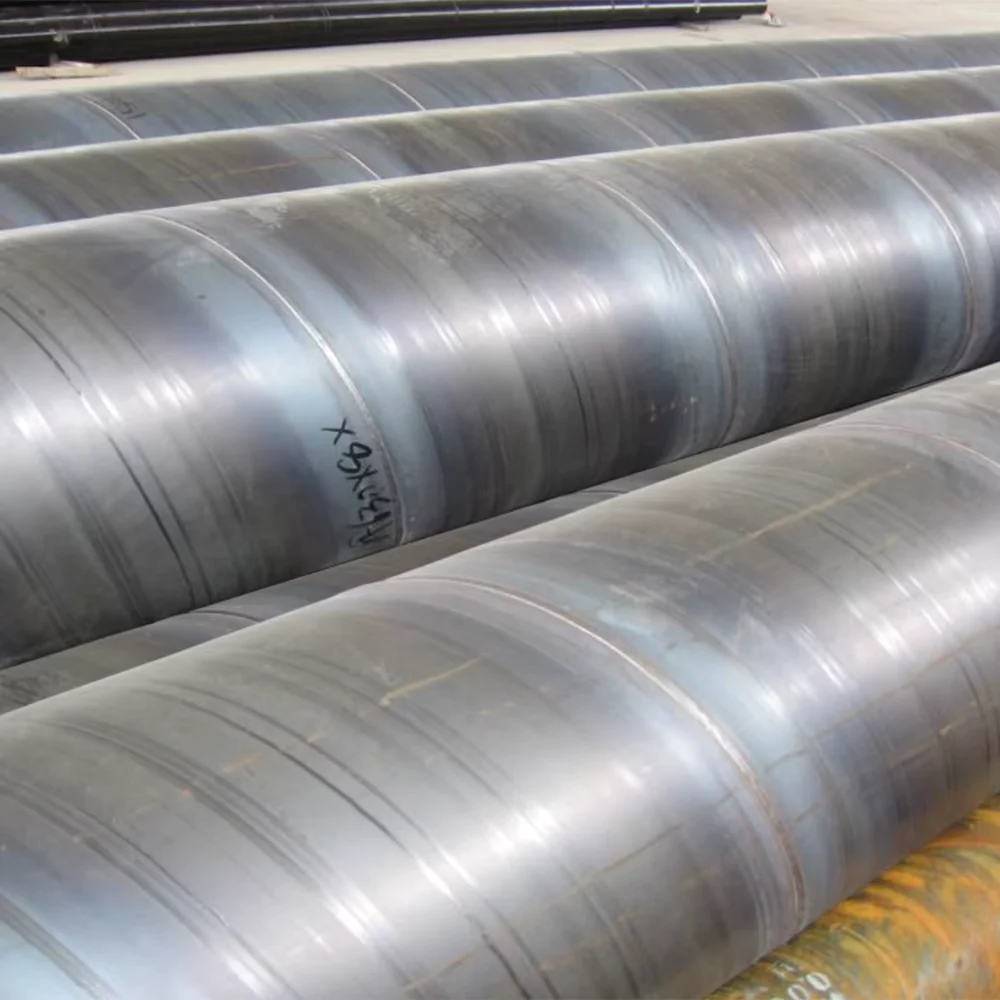

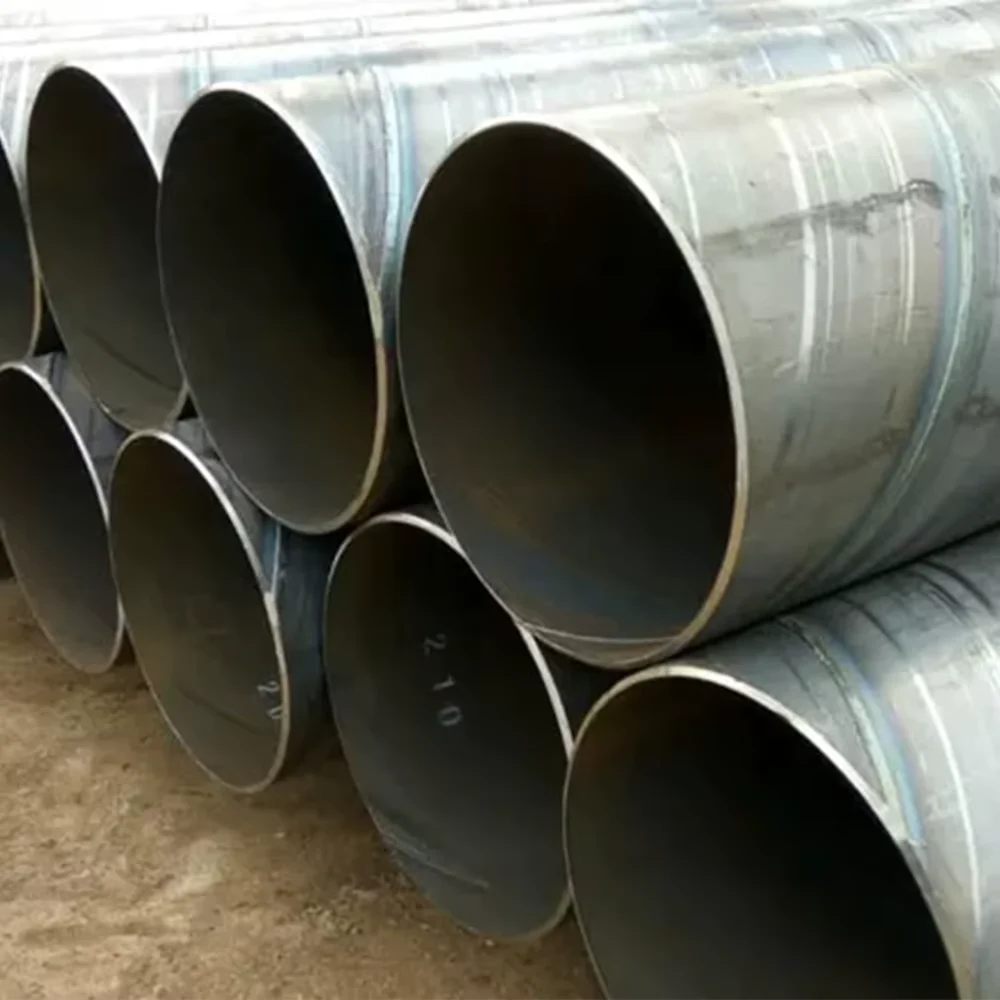

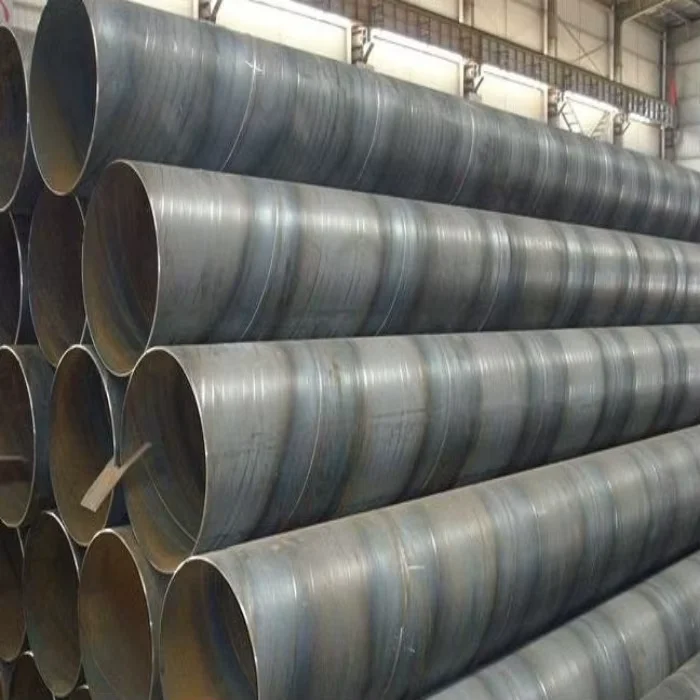

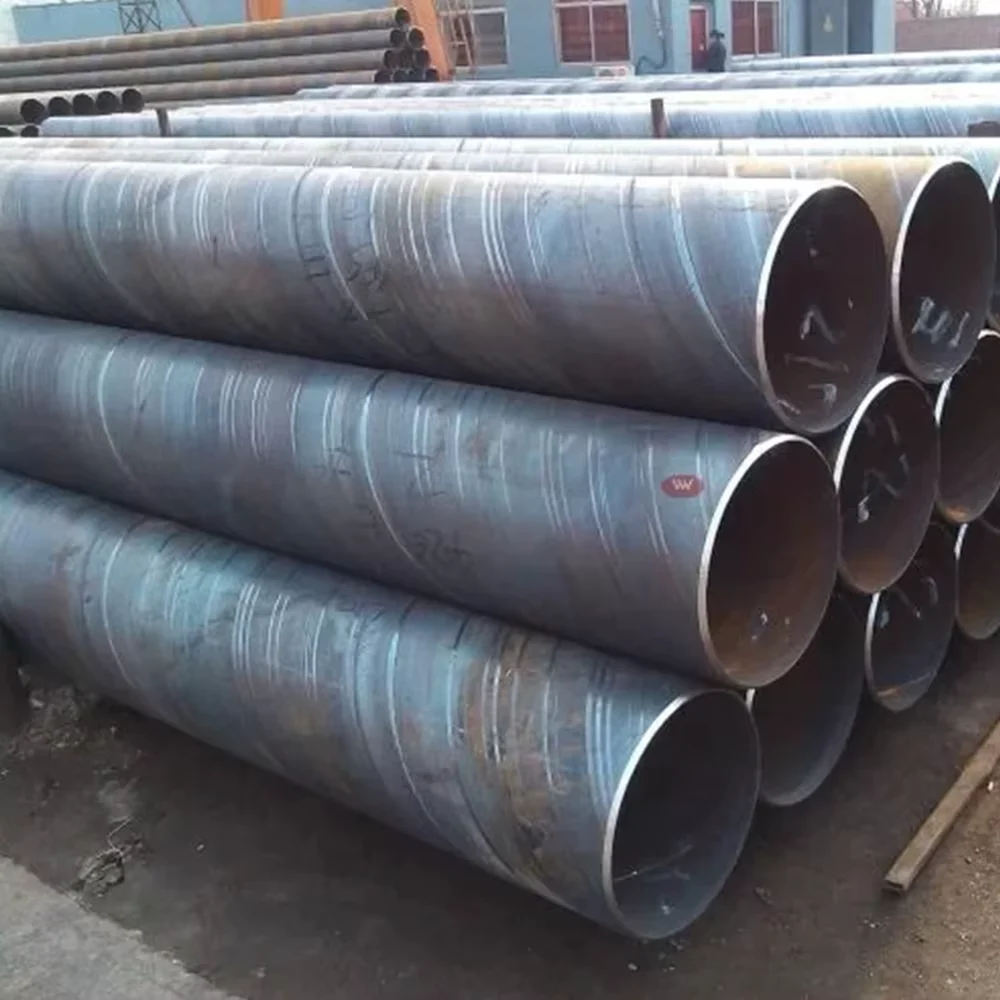

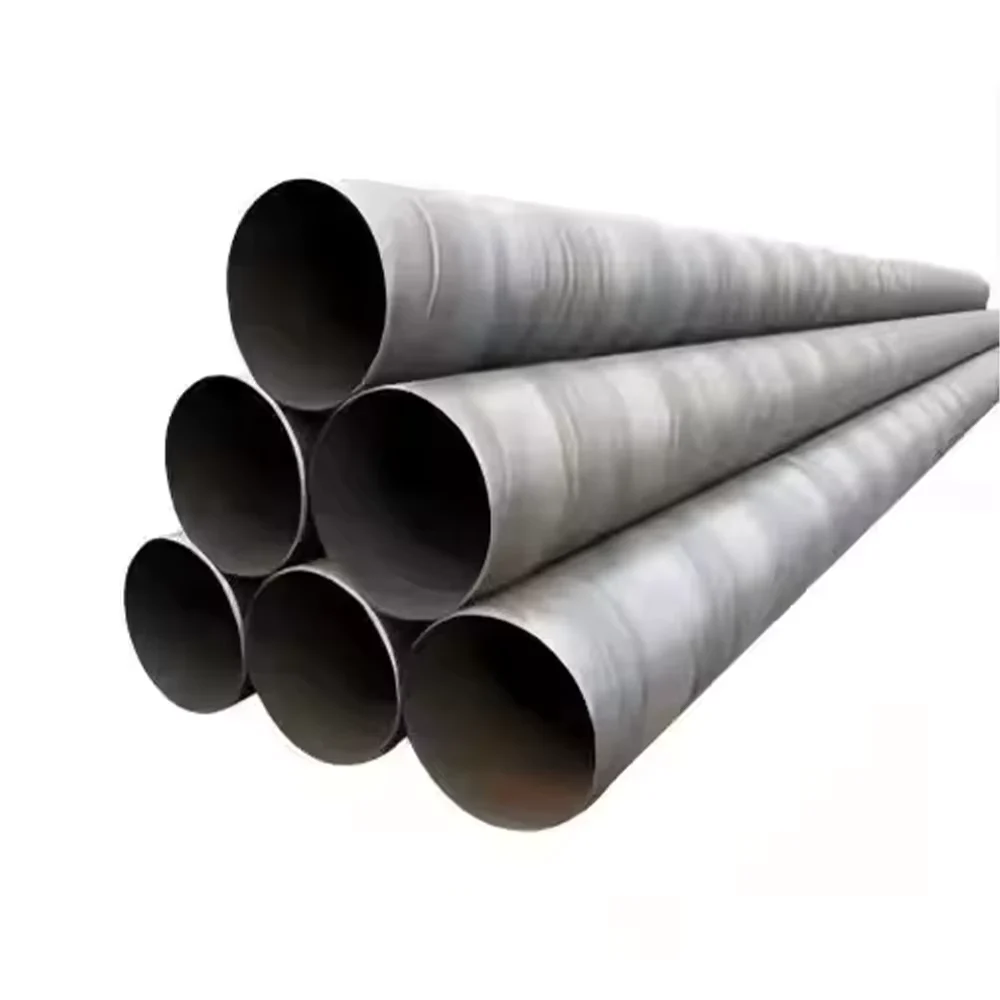

API 5L X42-X70 Spiral Welded Steel Pipe, HDG, OD 219-3000mm Supplier

Description

API 5L X42-X70 Hot Dipped Galvanized Spiral Welded Steel Pipe — vertically integrated mill-to-fabrication supply with full material traceability under one accountability point.

Technical Specifications

Application Suitability

What Material Traceability Gaps Cost on an Overseas Pipeline Order

When the mill test certificate cannot be traced back to the heat number, customs clearance stalls and third-party inspectors reject the entire batch.

Outsourcing spiral welded steel pipe procurement overseas introduces a chain of unknowns: the fabricator sources coils from a third-party mill, the galvanizing subcontractor applies zinc without process records, and the buyer receives a document package with missing chemical composition data. On a Middle East municipal drainage project I supervised, the hot dipped galvanized coating measured only 45 microns against a contractual 80-micron requirement — the entire shipment was rejected at Dubai port, delaying the site schedule by three weeks. [NEED_CITE: hot dipped galvanized coating thickness requirements per GB/T 13912 and BS 1387] When procurement is fragmented across material suppliers, fabricators, and coating shops, no single entity takes accountability for dimensional accuracy, welding quality, or surface treatment compliance.

How OD 219–3000mm SSAW Pipes Match Medium-to-Large Pipeline and Structural Demands

Spiral welded steel pipes in the 219mm to 3000mm outer diameter range fill a critical gap between small-bore ERW tubes and large-diameter seamless pipes. For oil and gas transmission networks operating under API 5L X42 through X70 pressure ratings, the SSAW process allows continuous production of long-length pipes with consistent weld seam integrity — verified through full-length ultrasonic testing and hydrostatic pressure verification. In municipal water supply and chemical plant applications, the hot dipped galvanized surface treatment per GB/T 13912 provides corrosion resistance that extends service life in aggressive soil and atmospheric conditions. Our engineering team reviews shop drawings before fabrication begins, optimizing material utilization and confirming weld joint details match project-specific connection requirements.

Engineering Compliance Across API 5L, EN 10217, and GB/T Standards

Pipeline projects in the Middle East and Southeast Asia typically specify API 5L PSL1 or PSL2 grades, while European EPC contractors require EN 10217 pressure vessel grades such as P235GH and P265GH for high-temperature service. The API 5L X42-X70 hot dipped galvanized spiral welded steel pipe we supply meets these overlapping requirements through certified welding procedures (WPS/PQR) and qualified welders holding AWS and EN certifications. For structural applications including scaffolding and greenhouse frames, the ±1% dimensional tolerance ensures connection fit-up accuracy without costly on-site rework. Third-party inspection by SGS, BV, or TÜV is available at every production stage — from coil edge preparation through final coating thickness measurement — providing the documentation package that international customs authorities and project owners require. [NEED_CITE: API 5L PSL2 additional requirements for impact testing and carbon equivalent limits]

Steel Grade Selection and Spiral Welding Process Fundamentals

The API 5L designation system uses a two-part naming convention: the letter “X” indicates a pipeline steel grade, and the number represents the minimum yield strength in thousands of psi — so X42 corresponds to approximately 290 MPa yield, while X70 reaches roughly 485 MPa. This grade range covers most onshore transmission pipelines and industrial process piping where moderate to high pressure ratings are required. The spiral submerged arc welding (SSAW) technique forms the pipe from a continuously fed steel coil, with the helical weld seam providing superior strength distribution compared to straight-seam ERW pipes in larger diameters above 508mm. Hot dipped galvanization immerses the finished pipe in molten zinc at approximately 450°C, creating a metallurgical bond between the zinc coating and the steel substrate that resists mechanical damage during handling and transport. Wall thickness selection between 6mm and 25mm balances pressure containment requirements against weight constraints for lifting and installation.

The Hidden Costs of Unverified Coating Thickness and Missing Heat Numbers

Specifying API 5L X60 pipe is meaningless if the mill test certificate lists a different heat number than what is stamped on the pipe body — customs inspectors in the EU and GCC countries routinely hold shipments for re-inspection when traceability documentation is incomplete. Similarly, hot dipped galvanized coatings below the minimum thickness specified in GB/T 13912 or BS 1387 fail accelerated salt spray testing, forcing the buyer to either accept accelerated corrosion or pay for on-site recoating at multiples of the original galvanizing cost. [NEED_CITE: consequences of material certification gaps in international steel procurement] Structural engineers designing to EN 1993 or AISC standards require verified yield strength values — substituting a lower grade without notification creates liability exposure that no amount of cost savings can justify.

Why Vertically Integrated Supply Eliminates Procurement Risk

Our own steel mill operates three production lines covering over 2,800 raw material specifications, meaning the coil used to form your API 5L X42-X70 hot dipped galvanized spiral welded steel pipe originates from the same facility that performs the final inspection — there is no gap between material supplier and fabricator. This vertical integration allows us to control carbon equivalent chemistry for weldability, maintain consistent zinc bath composition for coating adhesion, and issue mill test certificates with complete heat-number traceability from slab to finished pipe. Our fabrication workshop holds CE certification under EN 10210 and EN 10219, ISO 9001 quality management registration, and accepts third-party inspection by SGS, BV, and TÜV at any production stage. For non-standard lengths outside the 6m–12m range or custom end preparations including beveled and threaded finishes, our engineering team provides shop drawing review and fabrication sequencing support before contract signing.

Documentation & Compliance

• Mill test certificate documenting API 5L X42-X70 chemical composition and mechanical properties per heat number, with traceability from raw coil to finished pipe
• CE certificate confirming compliance with EN 10217 pressure vessel grades (P235GH, P265GH) for European market access
• ISO 9001 quality management system certificate covering the entire production process from material procurement through final inspection
• SGS or BV third-party inspection report verifying hot dipped galvanized coating thickness per GB/T 13912 and dimensional tolerance per ±1% requirement
• Material traceability sheet linking each pipe to its heat number, welding procedure specification (WPS), and post-weld heat treatment records
• Complete export documentation package including packing list, bill of lading, certificate of origin, and fumigation certificate for customs clearance

Packaging, Loading & Delivery

• Hot dipped galvanized SSAW pipes bundled with steel strips and edge protectors to preserve the zinc coating during ocean transit and prevent mechanical damage at contact points
• Pipe ends capped with plastic protectors for beveled or threaded finishes to prevent thread damage and moisture ingress during storage and transport
• Loading optimization for 20ft and 40ft open-top containers based on OD 219–3000mm diameter and 6m–12m length, with wooden cradles preventing point-load deformation
• Heat number and steel grade stenciled on each pipe body in weather-resistant paint, matching the mill test certificate for on-site verification
• FOB, CIF, and DDP shipping terms available with professional oversized cargo lashing and complete export documentation for destination port clearance
• Custom length cutting available within the 6m–12m range, with cut ends deburred and re-protected before bundling

How to Initiate Your Inquiry for API 5L Spiral Welded Pipe

Submit your project drawings (PDF or DWG format), required steel grades from the API 5L X42-X70 range, surface treatment preference, and destination port — we respond within 24 hours with a preliminary technical assessment and detailed quotation covering material, fabrication, coating, packing, and shipping costs. Our engineering team prepares shop drawings for your review and approval before fabrication begins, ensuring weld joint details and dimensional tolerances match your project specifications.

Start Your API 5L X42-X70 Hot Dipped Galvanized Spiral Welded Steel Pipe Inquiry

Send your project specifications and required quantities to receive a detailed quotation with mill test certificate samples and third-party inspection options.

Company: Shandong Xin Jiyuan Special Steel Tube Co., Ltd

Website: www.xjystructure.com

Tel: +86 531 8573 6315

Mobile/WhatsApp/WeChat: +86 188 5315 7756

Email: admin@xjystructure.com

Address: No.11889, Jingshi West Road, Lulian Group, Jinan City, Shandong Province, China

Frequently Asked Questions

Q: How do API 5L X42, X52, X60, and X70 grades differ in yield strength and application suitability?

A: The API 5L designation system uses numbers representing minimum yield strength in thousands of psi — X42 indicates approximately 290 MPa, X52 around 360 MPa, X60 roughly 415 MPa, and X70 about 485 MPa. Lower grades like X42 suit municipal water and low-pressure gas distribution, while X60 and X70 are specified for high-pressure onshore transmission pipelines and sour service applications requiring enhanced toughness.

Q: What documentation is included to verify material traceability and coating compliance?

A: Each shipment includes a mill test certificate documenting chemical composition and mechanical properties linked to the heat number stamped on each pipe, welding procedure specifications (WPS), post-weld heat treatment records, and hot dipped galvanized coating thickness measurement reports per GB/T 13912. Third-party inspection by SGS, BV, or TÜV is available at any production stage upon request.

Q: How does hot dipped galvanization compare to black painting or 3PE coating for corrosion protection?

A: Hot dipped galvanization creates a metallurgical zinc-iron alloy bond providing superior adhesion and cathodic protection, ideal for buried pipelines and atmospheric exposure in coastal or industrial environments. Black painting offers basic rust prevention for indoor or temporary applications, while 3PE coating combines epoxy primer with polyethylene outer layer for aggressive soil conditions — the choice depends on your specific service environment and design life requirements.

Q: Can you supply non-standard lengths or custom end preparations outside the 6m–12m range?

A: Yes, our fabrication workshop handles custom length cutting within production capabilities, with cut ends deburred and re-protected. End preparations including plain, beveled, and threaded finishes are available per your project specifications, and our engineering team reviews shop drawings to confirm dimensional tolerances and connection details before fabrication begins.

Q: What is the typical production lead time and shipping process for international orders?

A: Production timelines depend on order quantity and specification complexity, with typical lead times confirmed after contract signing and drawing approval. We offer FOB, CIF, and DDP shipping terms with professional oversized cargo packing and loading, complete export documentation for customs clearance, and shipment tracking until site delivery.
