Description
Direct Mill Supply, No Broker Markup — Every DX51D and G550 galvanized square and rectangular steel tube ships from our own production line with full heat-number traceability.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | Galvanized Square and Rectangular Steel Tube |
| Product Type | Square / Rectangular Steel Tube (SHS / RHS) |
| Steel Grade | DX51D, DX52D, DX53D, G550, S350 |
| Standard | ASTM |
| Section Shape | Square / Rectangular |
| Wall Thickness | 1.0–5.0 mm |
| Length | 6 m / 12 m (customizable) |
| Technique | Hot Rolled Based |
| Surface Treatment | Galvanized (Z30–Z40), Slightly Oiled |
| Spangle Type | Zero Spangle |
| Hardness | Hard |
| Skin Pass | Yes |
| Tolerance | ±1% |
| Processing Service | Welding, Punching, Cutting, Bending, Decoiling |
| Application | Steel structures, making pipes, cutting sheets, making small tools, making fences |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Industrial Construction | Portal frame columns and beams for warehouses and logistics centers |
| Infrastructure | Fencing posts and highway guardrail support structures |
| Commercial Building | Mezzanine floor frames and canopy support systems |
| Agricultural Facilities | Greenhouse structural frames and equipment shelters |
| Fabrication Workshops | Base frames for small tools, pipe racks, and conveyor supports |
Where Coating Weight Mismatches Trigger Project Rejections
Z30–Z40 zinc coating on ASTM-grade galvanized square and rectangular steel tube must match the specified corrosion environment — under-coating fails inspection, over-coating wastes budget.
When overseas buyers source galvanized SHS and RHS from fragmented suppliers, the zinc coating weight stated on the purchase order often differs from what arrives at the port. A third-party inspector measuring with an X-ray fluorescence gauge finds 38 micrometers instead of the contracted 65, and the entire batch gets rejected. Rework means re-galvanizing, re-shipping, and weeks of schedule delay — costs that dwarf the original price difference between a reliable mill and a broker. With a vertically integrated galvanized square and rectangular steel tube supplier, the coating process runs under the same quality system that produces the base steel, so the MTC and the physical product always align. [NEED_CITE: zinc coating thickness measurement methods per ASTM A90]
Matching Wall Thickness and Grade to Structural Frame Loads
Galvanized square and rectangular steel tube in DX51D through G550 grades covers a broad structural range — from light-gauge fencing posts at 1.0 mm wall to load-bearing warehouse frame members at 5.0 mm. The zero spangle galvanized finish with slight oiling provides uniform corrosion protection while maintaining excellent paint adhesion for projects requiring additional top-coat systems. Our ±1% dimensional tolerance ensures that connection plates and bolt holes fabricated at the workshop fit accurately on site, eliminating the re-drilling and re-welding that plagues projects using out-of-tolerance tubes. As a galvanized square and rectangular steel tube supplier with in-house cutting, punching, and bending capability, we deliver components ready for assembly rather than raw lengths that require secondary processing.
Engineering Compliance and Certification Requirements
Structural applications demand that galvanized square and rectangular steel tube conforms to recognized standards — ASTM for North American projects, with steel grade equivalence to EN 10346 for European-specification work. The DX51D and G550 grades in our range meet the chemical composition and forming requirements for cold-formed structural hollow sections used in portal frame construction. [NEED_CITE: steel grade equivalence between ASTM A653 and EN 10346] For projects entering the EU market, CE marking under EN 1090 requires full factory production control documentation and traceability from the steel mill through the galvanizing line. Our integrated production chain — from hot-rolled coil to finished galvanized tube — generates a single, unbroken material traceability record that satisfies both customs authorities and project engineers.
Understanding the Steel Grade and Galvanizing Process
The DX51D through DX53D series follows the Chinese GB standard designation for cold-formed galvanized steel, where the D indicates cold-forming suitability and the final digit reflects increasing forming complexity. G550, by contrast, is an ASTM A653 designation indicating a minimum yield strength of 550 MPa — suited for structural members where higher load capacity justifies the reduced formability. S350 sits between these families, offering moderate strength with reasonable forming characteristics for bent connections and curved sections. The hot-rolled based technique means the base steel starts as hot-rolled coil before cold-forming into square or rectangular profile, then passes through the galvanizing line where the Z30–Z40 coating is applied by continuous hot-dip process. Zero spangle finish results from controlled cooling that suppresses zinc crystal formation, producing a smooth uniform surface ideal for architectural applications where appearance matters alongside corrosion protection. The skin pass applied after galvanizing improves surface flatness and ensures consistent coating adhesion during subsequent bending and punching operations.
Hidden Costs of Sourcing from Disconnected Suppliers
When a broker sources base steel from one mill, contracts galvanizing at a separate facility, and arranges shipping through a third party, material traceability breaks at every handoff. The mill test certificate may reference a heat number that the galvanizer cannot verify. Coating thickness reports may come from the galvanizer’s own gauge rather than an independent measurement. If a project engineer requests verification that the G550 tube in a warehouse frame actually meets ASTM A653 requirements, the documentation chain has gaps that delay approval or trigger rejection. [NEED_CITE: material traceability requirements for structural steel per AISC standards] Beyond documentation, disconnected supply chains create tolerance stacking problems — the base tube may meet one tolerance standard, the galvanizing adds coating thickness variation, and the final product fails the ±1% dimensional requirement that the shop drawings specified.
Why Project Teams Specify Our Galvanized Square and Rectangular Steel Tube
Our own steel production facility operates three production lines covering over 2,800 specifications of raw material, meaning the hot-rolled coil that becomes your galvanized square and rectangular steel tube never leaves our quality system. The mill test certificate you receive traces every tube back to its heat number, with chemical composition and mechanical properties verified by our in-house laboratory. Certified welding procedures and qualified welders handle any fabrication work — punching, cutting, bending — so that processed components carry the same documentation as raw tube. Third-party inspection through SGS or BV is available for every shipment, and our export documentation package includes packing lists, bills of lading, and certificates of origin ready for customs clearance in over 50 destination countries.
Documentation & Compliance
- Mill test certificate documenting DX51D and G550 chemical composition and coating weight per ASTM A653
- CE certificate confirming compliance with EN 1090 for structural components entering European markets
- ISO 9001 quality management certificate covering the integrated steel production and galvanizing process
- SGS or BV third-party inspection report verifying coating thickness and dimensional tolerance before shipment
- Full material traceability by heat number from hot-rolled coil through galvanized finished tube
- Export customs documents including packing list, bill of lading, and certificate of origin
Packaging, Loading & Delivery

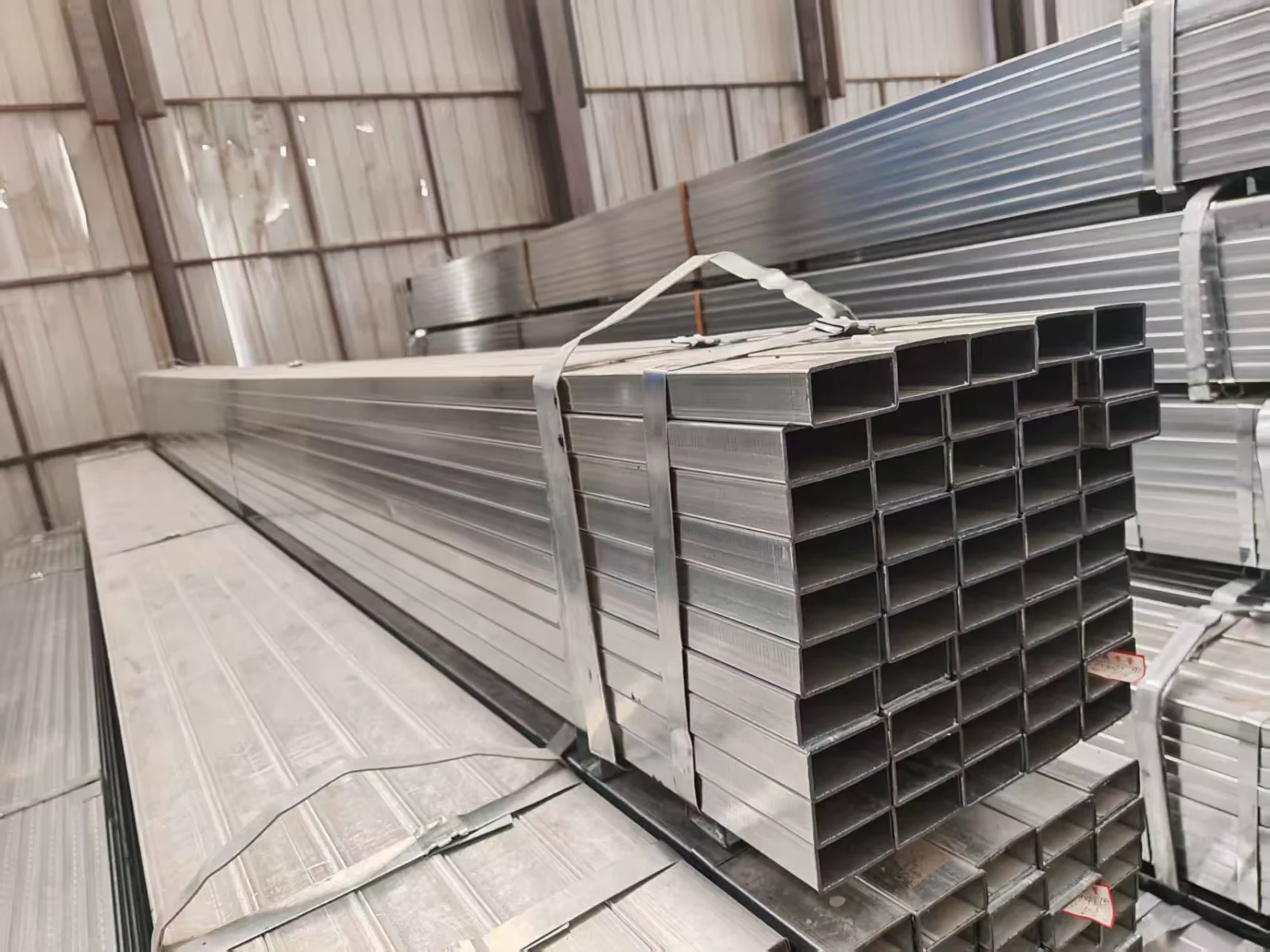

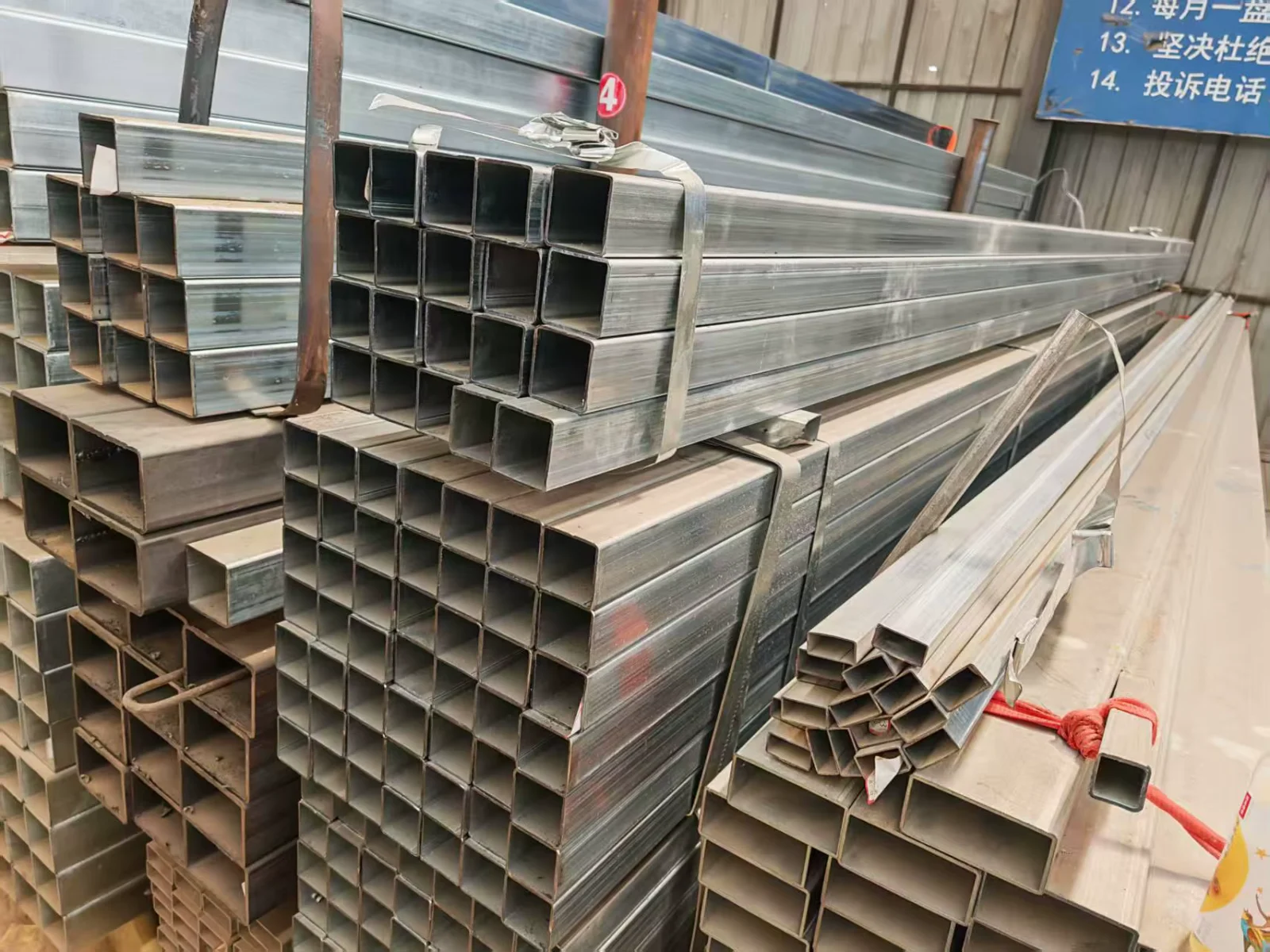

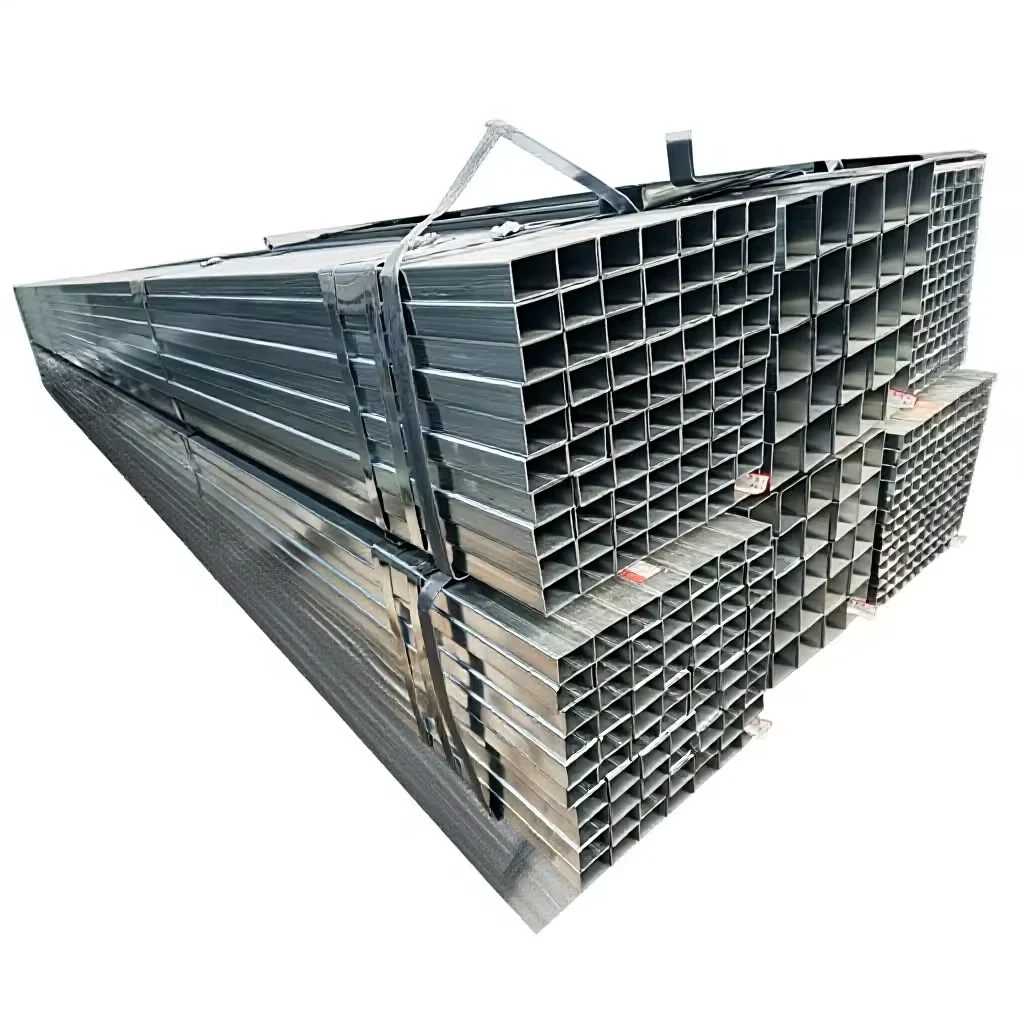

- Galvanized square and rectangular steel tube bundled with steel strips and edge protectors to preserve the zero spangle zinc coating during ocean transit
- Slight oiling applied to all surfaces provides additional corrosion protection during container shipping and open-yard storage at destination
- 6 m and 12 m lengths optimized for 20-foot and 40-foot container loading, maximizing payload while preventing over-length surcharges
- Custom cut-to-length service available for DX51D through G550 grades, reducing on-site cutting waste for warehouse frame projects
- Heat number and steel grade stenciled on each bundle for immediate identification during site receiving inspection
- FOB, CIF, and DDP shipping terms available with professional oversized cargo loading and lashing for heavy wall-thickness tube bundles
Starting Your Procurement Process
Share your project drawings, required steel grades, coating weight specification, and destination port — we respond within 24 hours with a detailed quotation including material, fabrication, coating, and shipping costs. Our engineering team reviews shop drawings before production begins, confirming that the galvanized square and rectangular steel tube dimensions and tolerances match your connection details.
Request Your Galvanized Tube Quotation
Submit your specifications and receive pricing with full mill test certificate documentation.
