Description

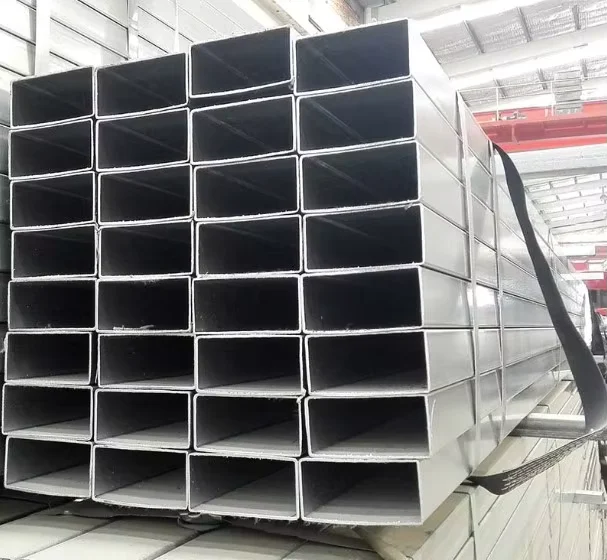

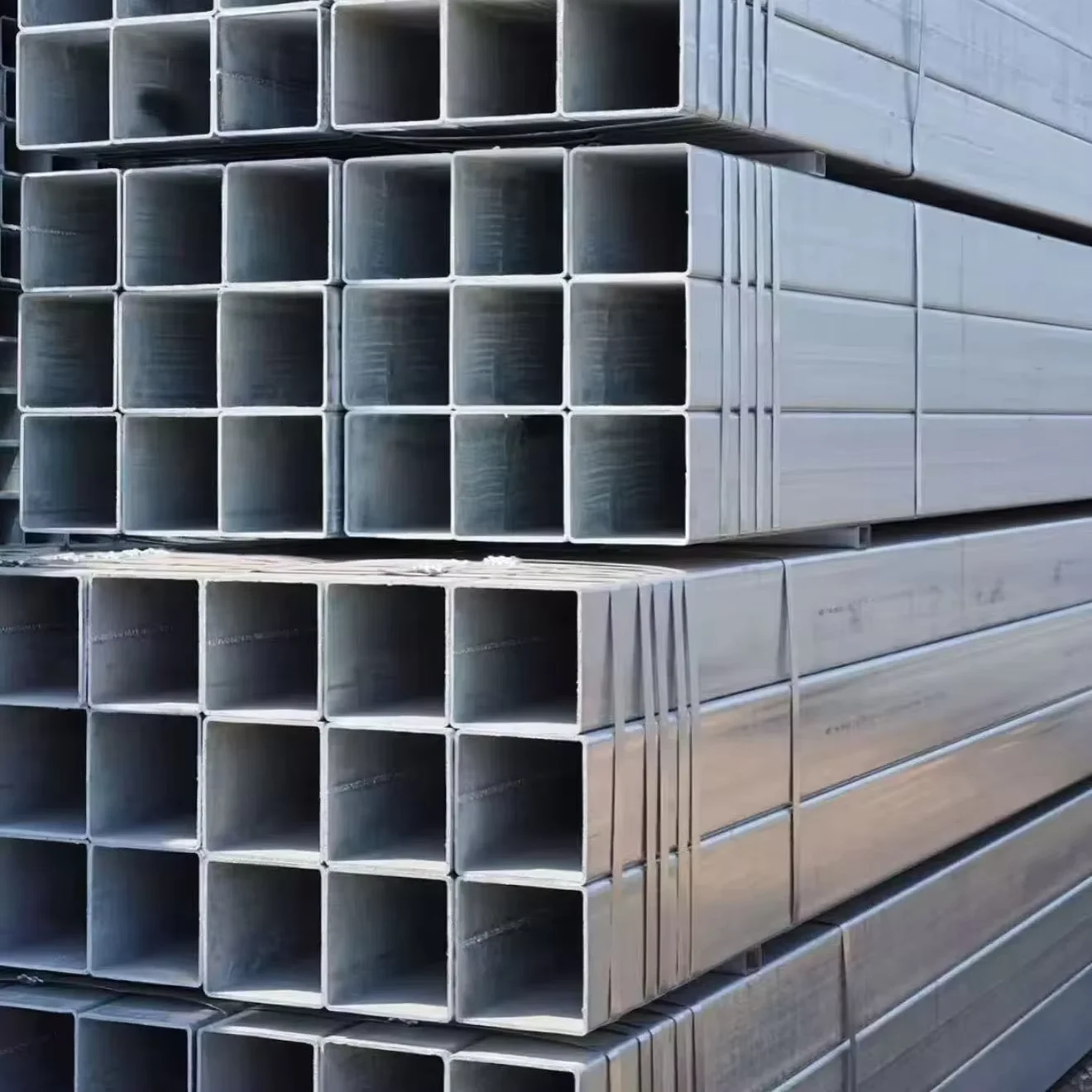

Factory-direct galvanized SHS/RHS sourcing — Hot-dip galvanized square and rectangular steel tubes produced from our own steel mill, covering Q195, Q235, Q345, and A53 grades with full material traceability from raw coil to finished bundle.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | Q195/Q235/Q345/A53 Galvanized Square and Rectangular Steel Tube |
| Product Type | Galvanized Square and Rectangular Steel Tube (SHS/RHS) |
| Steel Grade | Q195, Q235, Q345, ASTM A53, S235, S275, SS400 |
| Standard | ASTM A53, JIS G3466 |
| Section Shape | Square / Rectangular |
| Technique | Welded (ERW) + Hot-dip Galvanizing |
| Surface Treatment | Hot-dip Galvanized |
| Length | 6 m / 12 m (customizable) |
| Tolerance | ±1% |
| Ends | Plain / Beveled / Threaded / Grooved |
| Processing Service | Welding, Punching, Cutting, Bending |
| Application | Steel structures, Construction frames, Machinery parts, Fluid transport, Scaffolding, Furniture |
| MOQ | 1 Ton |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Construction & Infrastructure | Structural frames, column supports, roof trusses, scaffolding systems |
| Industrial & EPC Projects | Platform structures, conveyor supports, pipe rack frameworks |
| Machinery & Equipment | Machine base frames, hydraulic support columns, equipment housings |
| Commercial Building | Curtain wall mullions, mezzanine beams, furniture frames |
What Zinc Coating Consistency Costs on a Galvanized SHS/RHS Order
Inconsistent galvanizing thickness is the single most common reason galvanized tubes fail site acceptance — and it rarely shows up until the material reaches the project.
When buyers source galvanized square and rectangular steel tubes from fragmented supply chains, the ERW black tubes may come from one mill while the galvanizing is subcontracted to a separate facility. This split creates blind spots: coating thickness varies between batches, adhesion differs across weld seams, and no single party takes accountability for the final surface quality. I have seen entire container loads rejected at port because the zinc layer measured below the specified threshold on the inner corners of rectangular sections — a zone where poor drainage during dipping leaves thin spots [NEED_CITE: hot-dip galvanizing drainage effects on rectangular hollow sections].
A Galvanized Square and Rectangular Steel Tube Supplier operating a vertically integrated line controls every stage from steel grade selection through galvanizing parameters, eliminating the handoff gaps that cause coating failures.
How Galvanized SHS/RHS Performs in Structural and Corrosive Environments
Hot-dip galvanizing deposits a metallurgical zinc-iron alloy layer that bonds to the steel substrate, providing barrier and cathodic protection simultaneously. For construction frames and scaffolding exposed to humidity and coastal atmospheres, this dual mechanism extends service life far beyond painted or pre-galvanized alternatives. The Galvanized Square and Rectangular Steel Tube Supplier ensures uniform coating coverage across flat faces and corner radii, which is critical for load-bearing connections where corrosion at joint interfaces compromises structural integrity. Our ERW welding process produces clean, consistent seams that accept galvanizing evenly — a factor that separates mill-direct supply from brokered stock.
Engineering Compliance and Grade Selection for Galvanized Tubes
Structural projects in the EU require EN 10210 or EN 10219 compliance for hot-finished or cold-formed hollow sections, while Middle East and Southeast Asian EPC specifications frequently reference ASTM A53 or JIS G3466. Selecting the correct steel grade — Q235 for general construction, Q345 for higher load requirements, A53 for fluid transport applications — directly affects both structural calculation approval and customs clearance documentation [NEED_CITE: EN 10219 cold-formed structural hollow sections compliance requirements]. The ±1% dimensional tolerance ensures that shop drawings match delivered material, reducing on-site rework. End treatments — plain, beveled, threaded, or grooved — are prepared before galvanizing to maintain coating continuity at connection points.
Steel Grade Systems and Hot-Dip Galvanizing Process Explained
The Q-series (Q195, Q235, Q345) follows the Chinese GB standard system where the number indicates minimum yield strength in MPa. ASTM A53 covers carbon steel tubes for mechanical and pressure applications, while S235 and S275 align with European EN standards. For a Galvanized Square and Rectangular Steel Tube Supplier serving international markets, maintaining equivalence documentation between these systems is essential — a Q235 section generally corresponds to S235JR in European specifications, though chemical composition limits differ slightly [NEED_CITE: steel grade equivalence between GB, EN, and ASTM standards].
The ERW (Electric Resistance Welding) process forms square and rectangular profiles from steel coil through cold forming and high-frequency welding, then the tubes pass through a hot-dip galvanizing bath at approximately 450°C. This sequence produces a zinc coating typically ranging from 45μm to 85μm depending on immersion time and withdrawal speed — parameters we monitor continuously because I learned early that a 10μm shortfall on a 65μm specification means the entire shipment goes back to the zinc kettle.
Hidden Costs of Procuring Galvanized Tubes from Unverified Sources
Material substitution is the most expensive hidden cost: a supplier delivering Q195 tubes labeled as Q235 creates structural safety risks that only surface during load testing or third-party inspection. Missing or falsified Mill Test Certificates trigger customs holds in the EU and Middle East, where CE marking and EN 10204 3.1 documentation are mandatory for structural steel imports [NEED_CITE: EN 10204 inspection document types for steel products]. Negative tolerance abuse — where wall thickness consistently falls at the lower limit — reduces theoretical weight pricing but compromises load capacity and may violate project engineering specifications. These issues compound when the galvanizing source and tube manufacturer are separate entities, leaving buyers without a single accountable party for quality claims.
Why Project Buyers Choose Our Galvanized SHS/RHS Supply
Our own steel mill produces the ERW black tubes that feed directly into our galvanizing line, meaning every Galvanized Square and Rectangular Steel Tube we ship carries material traceability from heat number to finished bundle. We stock over 2,800 specifications across Q195, Q235, Q345, A53, S235, S275, and SS400 grades — eliminating the need for buyers to coordinate between multiple vendors. Our facility holds CE certification for EN 10210/EN 10219 structural hollow sections, and we arrange SGS or BV third-party inspection before shipment for buyers requiring independent verification. Custom lengths from 5.8 m to 12 m, non-standard dimensions, and specialized end treatments are available with a 1 Ton MOQ, supported by professional container loading plans that maximize payload while protecting the galvanized surface during ocean transit.
Documentation & Compliance
- Mill Test Certificate documenting Q235/Q345 chemical composition and mechanical properties per GB/T 13793, with heat number traceability to raw coil
- CE certificate confirming EN 10210/EN 10219 compliance for hot-dip galvanized structural hollow sections exported to EU markets
- ISO 9001 quality management certificate covering the integrated ERW welding and hot-dip galvanizing production process
- SGS or BV third-party inspection report verifying zinc coating thickness, dimensional tolerance, and surface quality before container loading
- Material traceability documentation linking each bundle to its heat number, galvanizing batch, and coating thickness measurement records
- Complete customs documentation including packing list, bill of lading, and certificate of origin for destination port clearance
Packaging, Loading & Delivery

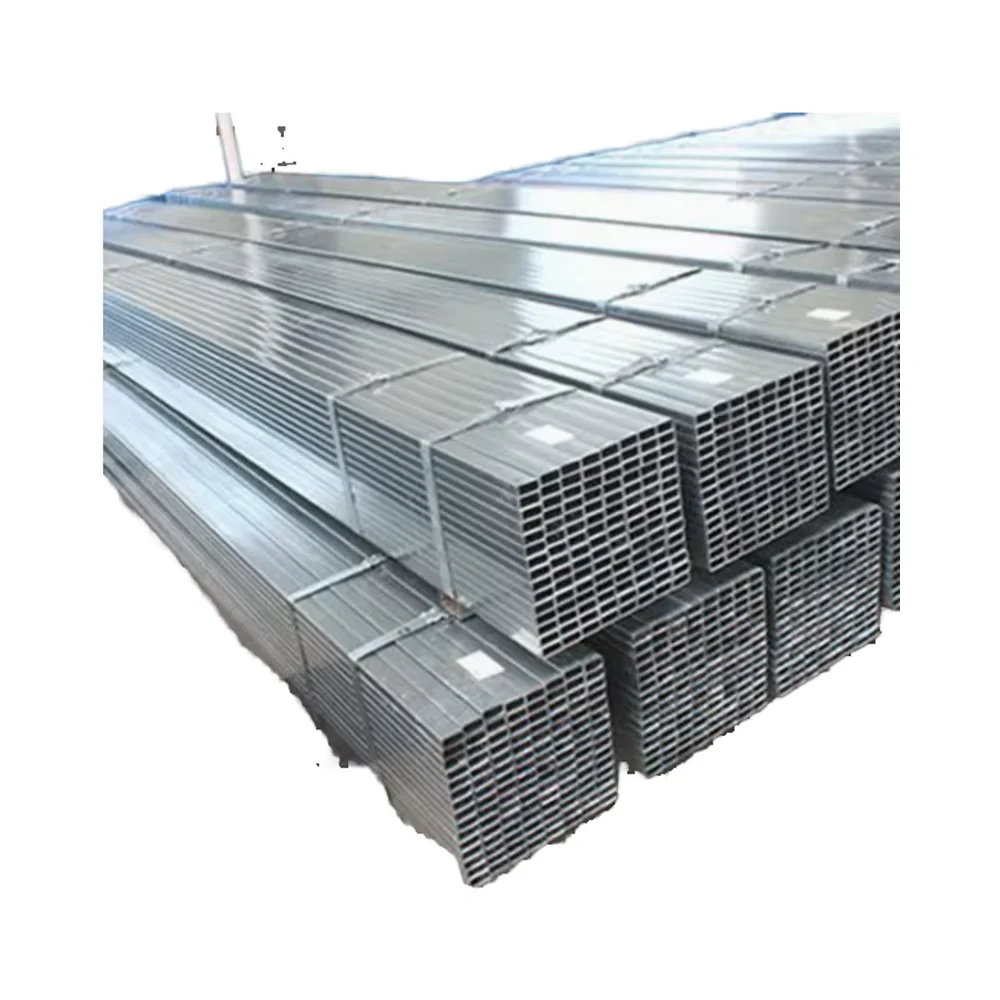

- Galvanized SHS/RHS bundled with steel strips and edge protectors to preserve the zinc coating and prevent surface scratches during handling and ocean transit
- Hexagonal or square bundle configurations optimized for 20ft and 40ft container loading, maximizing payload for 6 m and 12 m lengths
- End caps applied to threaded and grooved ends to protect connection surfaces from moisture and mechanical damage during shipping
- Heat number and steel grade markings stenciled on each bundle for site identification and material verification upon arrival
- FOB Jinan/Qingdao port delivery with CIF and DDP options available, including professional lashing plans for oversized rectangular sections
- Custom cutting to project-specific lengths available before galvanizing to ensure coating continuity on cut surfaces
Start Your Galvanized SHS/RHS Inquiry
Submit your project specifications — including steel grade, section dimensions, wall thickness, quantity, and destination port — to receive a detailed quotation with Mill Test Certificate samples and production lead time. Our engineering team reviews shop drawings for dimensional compatibility and advises on grade equivalence for international standard compliance.
Request a Quotation for Galvanized Square and Rectangular Steel Tubes
Send your specifications and drawings to receive pricing, material certificates, and delivery schedules within 24 hours.
