Description
Factory-Direct Galvanized Tubes — Vertically integrated steel mill and fabrication workshop delivering Q195–Q345 galvanized square steel tubes with full material traceability from raw slab to finished coating.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | Q195-Q345 Galvanized Square Steel Tube |
| Product Type | Square / Rectangular Steel Tube (SHS/RHS) |
| Steel Grade | Q195, Q235, Q345, SGCC, CGCC, TDC51DZM, TDC52DTS350GD, TS550GD, DX51D+Z, A36, A53 Grade B, A500 Grade A/B/C, STK400, SS400, ST42.2, S355JR |
| Standard | ASTM A53, ASTM A500, ASTM A36, ASTM A795, BS1387, EN10255, EN10219, EN10210, ISO65, ANSI C80, DIN2440, JIS G3444, JIS G3466, GB/T3091, GB/T13793, AS1163 |
| Section Shape | Square, Rectangular |
| Size Range | 21.3mm–660mm (1/2″–26″) |
| Wall Thickness | 1.5–33mm |
| Length | 5.8m / 6m / 11m / 12m or as required |
| Technique | Hot Rolled / Cold Rolled |
| Surface Treatment | Hot Dipped Galvanized / Pre-Galvanized |
| Ends | Plain / Beveled / Threaded / Grooved |
| Tolerance | ±1% |
| Application | Steel structures / Construction frames / Machinery / Scaffolding / Furniture / Fluid transport / Hydraulic precision machinery / Power / Boiler / Petrochemical / Building industry |
| MOQ | 1 Ton |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| EPC Contractors & Industrial Builders | Warehouse frame structures, column and beam assemblies, platform supports, pipe rack systems |
| Commercial Construction | Scaffolding uprights and ledger tubes, curtain wall subframes, mezzanine structures |
| Power & Petrochemical | Hydraulic cylinder barrels, conveyor support frames, cable tray structures, boiler support members |
| Infrastructure & Civil Works | Bridge handrail posts, sound barrier frames, lighting pole bases, signage gantry structures |
Where Coating Thickness Gaps Trigger Full-Shipment Rejection
Zinc layer below spec means the entire container fails inspection at site.
I watched a galvanized square steel tube shipment get rejected on a Lagos warehouse job — the inspector’s coating thickness gauge read 40-something microns against a 60-micron minimum requirement. No negotiation, no partial acceptance. The root cause traced back to inconsistent hot-dip parameters at a subcontracted galvanizing line. Buyers sourcing galvanized square steel tube from fragmented supply chains face this exact exposure: coating uncertainty, material certification gaps, and dimensional drift that only surfaces after customs clearance. [NEED_CITE: hot-dip galvanized coating thickness requirements per ASTM A123]
Matching Structural Load Paths and Connection Details
Every galvanized square steel tube in our range carries consistent zinc coating from a vertically integrated galvanizing line, eliminating the material-to-coating traceability gap that causes site rejections. The ±1% wall thickness tolerance and actual-weight invoicing mean structural engineers can rely on published section properties without negative-tolerance surprises. For EPC warehouse and industrial building projects, we supply pre-fabricated connection assemblies — columns, beams, trusses — cut, drilled, and welded per approved shop drawings, so the galvanized square steel tube arrives on site as a ready-to-bolt component rather than raw stock requiring secondary processing.
Engineering Compliance Across EN, ASTM, and JIS Frameworks
Structural applications demand compliance with the governing code: EN 10219 for cold-formed hollow sections in European projects, ASTM A500 for North American structural frames, JIS G3466 for Japanese-spec general structures. Our galvanizing process meets EN 10210 for hot-dip galvanized hollow sections, and we supply CE-marked documentation for EU customs clearance. The multi-standard coverage — spanning EN10219, ASTM A500, JIS G3466, AS1163 — means a single galvanized square steel tube order can serve projects across different regulatory jurisdictions without separate sourcing. [NEED_CITE: EN 10210 hot-dip galvanized structural hollow section requirements]
Steel Grade Selection and Galvanizing Process Fundamentals
The Q-series grades (Q195, Q235, Q345) follow the Chinese GB system where the number indicates minimum yield strength in MPa — Q345 offers higher load-bearing capacity than Q235 for structural columns and heavy-duty frames. The S-series (S355JR) and ASTM grades (A36, A500 Grade B/C) serve equivalent structural roles in European and American spec projects respectively. Hot-dipped galvanizing immerses the formed tube in molten zinc at approximately 450°C, creating a metallurgical zinc-iron alloy bond that provides decades of corrosion protection — fundamentally different from pre-galvanized (electro-galvanized) tubes where the zinc layer is thinner and applied before forming. For outdoor structural frames, scaffolding, and industrial buildings in coastal or high-humidity environments, hot-dipped galvanizing delivers superior edge coverage and cut-end protection. Wall thickness tolerance at ±1% ensures that theoretical weight calculations align with actual delivered weight, preventing the cost disputes that arise from excessive negative tolerance practices.
Hidden Costs of Unverified Coating and Tolerance
Ordering galvanized square steel tube without verified coating thickness documentation risks on-site rejection by project inspectors — the cost of returning a full container far exceeds any per-ton savings from an unverified supplier. Material certification gaps between the steel mill and the galvanizing line create traceability breaks that fail EN 10210 audit requirements for EU projects. Excessive negative tolerance on wall thickness reduces actual load-bearing capacity below engineered specifications, creating structural safety exposure that only surfaces during load testing or inspection. [NEED_CITE: ASTM A500 dimensional tolerance requirements for structural tubing]
Integrated Mill and Fabrication Under One Quality System
Our own steel production facility operates three production lines covering 2,800+ specifications of raw material, feeding directly into our structural steel fabrication workshop — one source, one quality system, one point of accountability for every galvanized square steel tube. We maintain certified welding procedures (WPS/PQR) and qualified welders holding AWS and EN certifications, with complete quality documentation including weld maps, dimensional inspection reports, and coating thickness reports. Third-party inspection through SGS or BV is available for every shipment, verifying coating thickness, dimensional accuracy, and material traceability by heat number before container sealing. Professional loading and lashing planning handles oversized fabricated components, with full export documentation and tracking through to site delivery.
Documentation & Compliance
- Mill Test Certificate documenting Q235/Q345 chemical composition and mechanical properties per GB/T3091, with heat number traceability from our own steel mill
- CE certificate per EN 10210 and EN 10219 for hot-dip galvanized structural hollow sections, enabling EU customs clearance
- ISO 9001 quality management certificate covering the full production chain from raw steel to galvanized finished tube
- SGS or BV third-party inspection report verifying zinc coating thickness, dimensional tolerance, and surface quality per project specification
- Material traceability documentation linking each galvanized square steel tube to its original heat number and galvanizing batch record
- Complete customs documentation package including packing list, bill of lading, and certificate of origin for destination-country clearance
Packaging, Loading & Delivery

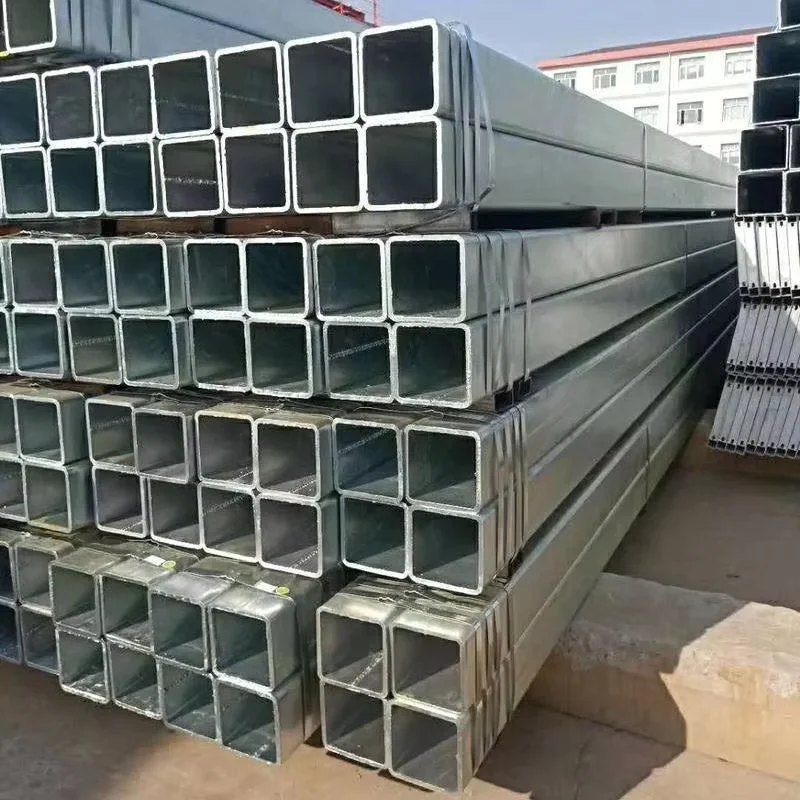

- Hot-dipped galvanized square and rectangular tubes bundled with steel strips and edge protectors to preserve the zinc coating during ocean transit and prevent edge damage
- Surface protection maintained through proper stacking separation and anti-rust treatment at cut ends, critical for Q235 and Q345 grades in humid destination climates
- Container loading optimized for 5.8m and 6m standard lengths in 20ft containers, with 11m and 12m lengths shipped in 40ft open-top or flat-rack configurations for oversized structural sections up to 660mm
- Custom cut-to-length service available per project drawing requirements, with all cut ends re-treated to maintain galvanized square steel tube corrosion protection integrity
- Heat number and steel grade stenciled on each bundle for site identification and inspection traceability, matching mill test certificate documentation
- FOB, CIF, and DDP shipping terms available with professional oversized cargo loading plans and door-to-door tracking for EPC project sites
Start Your Procurement With Verified Specifications
Submit your project drawings, steel grade requirements, coating specification, and destination port — we respond within 24 hours with a detailed quotation including material, fabrication, coating, packing, and shipping costs, along with the shop drawing timeline and production schedule. Confirm your certification requirements for destination-country compliance and we include the complete mill test certificate and third-party inspection documentation in the proposal.
Request Your Galvanized Square Steel Tube Quotation
Send your specifications, steel grade, quantity, and destination port to receive a detailed quotation with mill test certificates and production timeline.
Contact: Shandong Xin Jiyuan Special Steel Tube Co., Ltd
Website: www.xjystructure.com
Tel: +86 531 8573 6315
Mobile/WhatsApp/WeChat: +86 188 5315 7756
Email: admin@xjystructure.com
Address: No.11889, Jingshi West Road, Lulian Group, Jinan City, Shandong Province, China
Frequently Asked Questions
Q: What is the difference between hot-dipped galvanized and pre-galvanized square steel tubes?
A: Hot-dipped galvanizing immerses the finished tube in molten zinc, creating a metallurgical bond with thicker coating (typically 60+ microns) suitable for outdoor structural applications. Pre-galvanized tubes are coated before forming, resulting in thinner zinc coverage at weld seams and cut edges, better suited for indoor or light-corrosion environments.
Q: Which steel grade should I specify for structural frame projects?
A: For European projects, S355JR per EN 10219 is the standard structural grade. For North American projects, ASTM A500 Grade B or C applies. For Chinese-spec projects, Q345 provides higher yield strength than Q235 for heavy-load columns and beams. We supply all these grades from our integrated mill with full certification.
Q: Can you provide third-party inspection for coating thickness verification?
A: Yes, we support SGS or BV third-party inspection for every shipment, verifying zinc coating thickness, dimensional tolerance, and surface quality against your project specification before container sealing. The inspection report is included in the shipping documentation package.
Q: What documentation do you provide for EU customs clearance?
A: We supply CE-marked certification per EN 10210 and EN 10219 for hot-dip galvanized structural hollow sections, along with mill test certificates, packing lists, bills of lading, and certificates of origin — the complete documentation package required for EU customs clearance and project inspection approval.
Q: How does actual-weight invoicing work with ±1% tolerance?
A: We invoice by actual weighed weight at our mill, not theoretical weight. The ±1% wall thickness tolerance ensures minimal deviation from nominal specifications, and you pay only for the steel actually delivered — eliminating the cost disputes common with suppliers using excessive negative tolerance and theoretical-weight billing.
