Description
Vertically integrated galvanized tube production — Own steel mill and fabrication workshop control coating consistency and dimensional tolerance across Q235 and Q345 grades.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | Q235/Q345 Galvanized Square Steel Tube |
| Product Type | Galvanized Square / Rectangular Steel Tube |
| Steel Grade | Q195, Q215, Q235, Q345, GR.A, GR.B, S235, S355 |
| Standard | ASTM A213, DIN EN 10217-1 |
| Section Shape | Square / Rectangular |
| Size Range | Customized Size |
| Wall Thickness | 0.8–30 mm |
| Length | 0.5m–11.8m |
| Technique | Welded (ERW) |

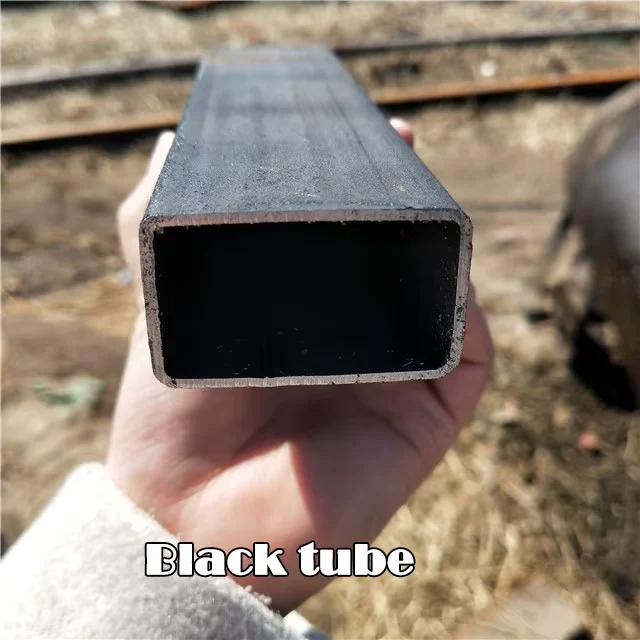

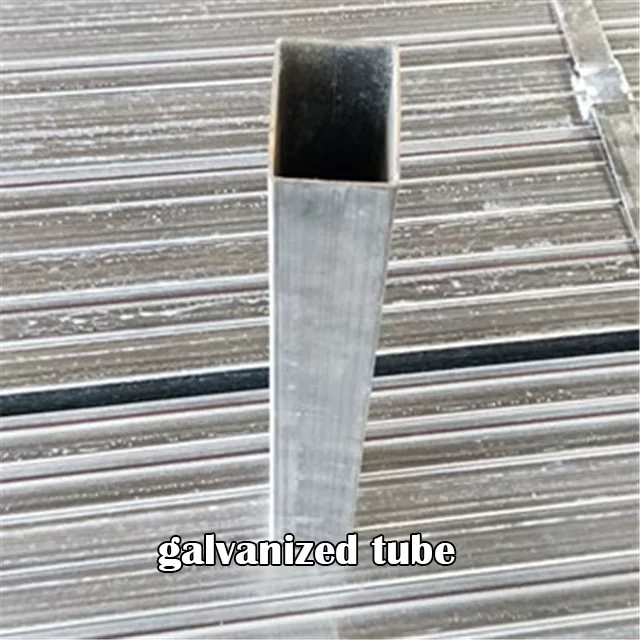

| Surface Treatment | Pre-galvanized / Hot-dip galvanized / Bare / Oiled / Black original steel |
| Tolerance | ±1% |
| Ends | Plain |
| Application | Structure pipe / Steel fence / Steel post / Steel construction / Warehouse construction / Building construction |
| MOQ | 10 Tons |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Warehouse & Industrial Construction | Primary structural columns, roof truss supports, mezzanine framing |
| Infrastructure & Civil Works | Steel fencing posts, highway guardrail supports, utility pole bases |
| Building Construction | Load-bearing frames, stairway handrails, curtain wall sub-structures |
| EPC Project Procurement | Bulk structural hollow sections for modular building packages |
Where Coating Thickness Variance Costs More Than the Tube Itself
A 25μm shortfall on hot-dip galvanized tubes triggers full-container rejection at site inspection.
Overseas buyers sourcing galvanized square steel tubes face three compounding risks: zinc coating inconsistency between batches, material traceability gaps when fabricators source from third-party mills, and dimensional tolerance drift that causes fit-up failures on structural connections. When SGS inspectors measure coating below specification at the destination port, the entire shipment gets flagged — rework, re-galvanizing, or full return becomes the only option, wiping out project margins. [NEED_CITE: hot-dip galvanizing coating thickness standards for structural steel]
How Wall Thickness Tolerance Aligns With Structural Frame Requirements
The 0.8–30 mm wall thickness range with ±1% tolerance covers light-gauge framing for warehouse purlins through heavy structural hollow sections for industrial building columns. Pre-galvanized tubes serve indoor applications where corrosion exposure remains limited, while hot-dip galvanized Galvanized Square Steel Tube units withstand outdoor infrastructure environments where salt spray or industrial atmosphere demands heavier zinc protection. Length customization up to 11.8m allows direct site installation without field cutting, reducing secondary processing waste on EPC project timelines.
Engineering Compliance Across Q235, Q345, and S-Series Grades
Structural frames designed to EN 1993 require hollow sections conforming to EN 10210 or EN 10219, where S235 and S355 grades provide defined yield strength thresholds for load calculations. Projects targeting North American markets specify ASTM A500 equivalents, while domestic Chinese construction standards accept Q235 and Q345 with full mill test documentation. Third-party inspection through SGS or BV before shipment confirms coating thickness, dimensional accuracy, and chemical composition — essential for customs clearance in markets enforcing CE marking or origin certification. [NEED_CITE: EN 10219 cold-formed structural hollow sections compliance requirements]
Steel Grade Selection and ERW Welding Process Fundamentals
Q235 remains the default choice for general construction where moderate strength suffices, while Q345 delivers higher yield capacity for load-bearing columns and crane runway beams. The S-series (S235, S355) follows European normalization, providing direct equivalence for projects specifying EN standards without requiring cross-reference conversion. ERW welding produces consistent seam quality across square and rectangular profiles, with post-weld heat treatment ensuring uniform mechanical properties along the tube length. Hot-dip galvanizing immerses formed tubes in molten zinc, creating metallurgical bonding that outperforms pre-galvanized coating in corrosion resistance — though pre-galvanized offers cost advantages for indoor structural applications where environmental exposure remains controlled.
Hidden Costs When Material Certification Falls Short
Tubes arriving without heat-number traceability or with coating below minimum specification trigger cascading project failures: structural engineers cannot verify load capacity without certified mill test reports, customs authorities hold shipments lacking proper documentation, and site inspectors reject components that fail dimensional or coating audits. The cost of re-procurement, air-freight replacement, or on-site re-galvanizing typically exceeds the original material price differential between certified and uncertified suppliers. [NEED_CITE: structural steel procurement documentation requirements for international projects]
Why Vertically Integrated Production Eliminates Supply Chain Gaps
Owning both the steel mill and fabrication workshop means every Galvanized Square Steel Tube traces back to a single heat number, with chemical composition and mechanical properties verified in-house before galvanizing begins. The facility maintains 2,800+ specifications in stock, allowing mixed-size container loading that optimizes freight cost for warehouse construction packages. Certified welding procedures and qualified welders ensure ERW seam integrity meets EN 10219 requirements, while dedicated galvanizing lines control coating thickness within ±5μm of specification. Third-party inspection reports from SGS or BV accompany each shipment, providing independent verification for project owners and engineers. Custom cutting to 0.5m–11.8m lengths eliminates on-site waste, with professional lashing plans preventing coating damage during ocean transit.
Documentation & Compliance
- Mill test certificate documenting Q235 and Q345 chemical composition, yield strength, and tensile properties per heat number
- CE certificate confirming EN 10210 and EN 10219 compliance for European market structural applications
- ISO 9001 quality management certification covering both steel production and fabrication processes
- SGS or BV third-party inspection report verifying coating thickness, dimensional tolerance, and surface quality
- Material traceability sheet linking each tube bundle to specific heat number and galvanizing batch
- Complete customs documentation including packing list, bill of lading, and certificate of origin
Packaging, Loading & Delivery

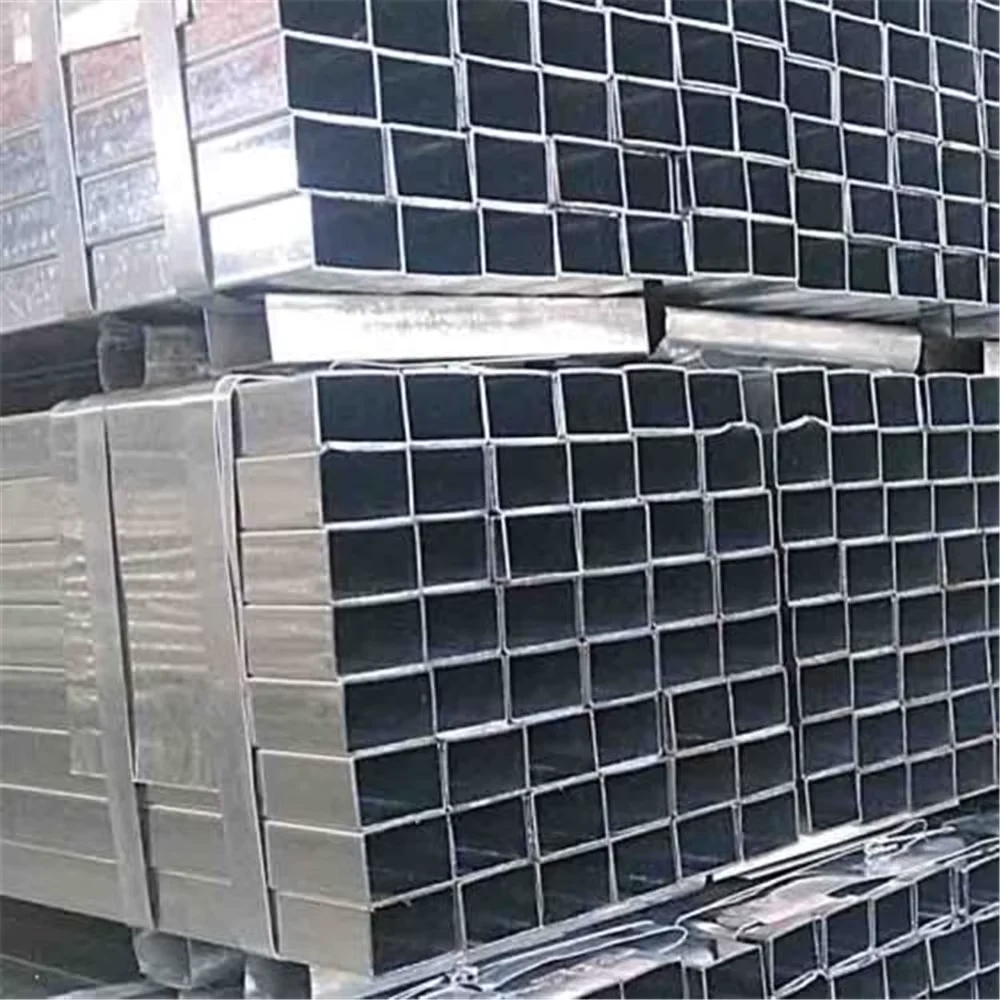

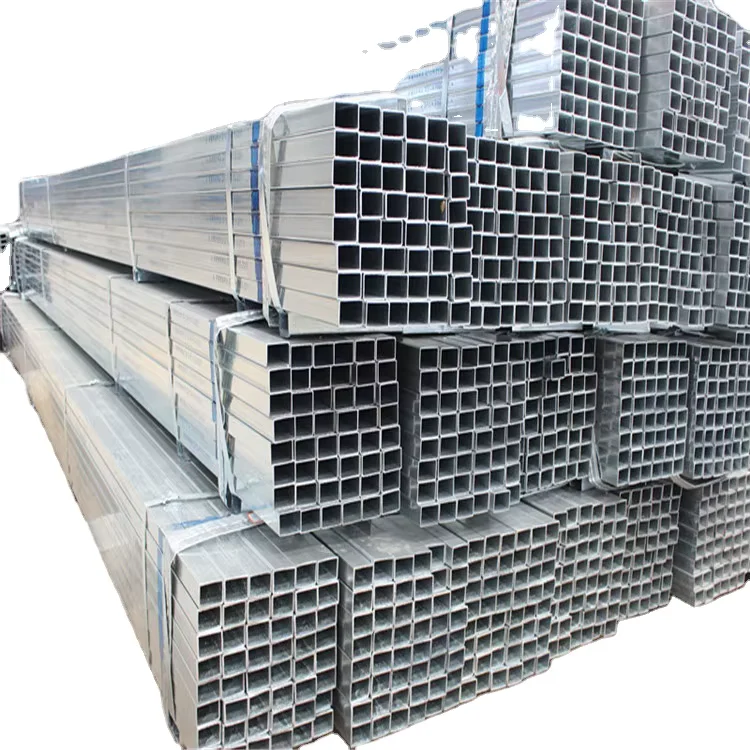

- Hot-dip galvanized tubes bundled with steel strips and edge protectors to preserve zinc coating during ocean transit
- Pre-galvanized and bare tubes wrapped in waterproof cloth with anti-rust oil treatment for surface protection
- Mixed-size loading plans optimizing 20GP and 40HC container capacity for 5.8m and 11.8m lengths
- Custom cutting available from 0.5m to 11.8m with heat number stenciled on each tube end
- FOB, CIF, and DDP shipping terms with professional lashing preventing bundle shift during transit
How to Initiate Your Galvanized Square Steel Tube Inquiry
Submit project drawings or specification sheets listing steel grade, dimensions, wall thickness, surface treatment preference, and destination port to receive detailed quotation including material cost, fabrication charges, coating fees, and shipping estimates. Our engineering team reviews shop drawings within 24 hours, confirming dimensional feasibility and suggesting material optimization for your structural application. Mill test certificates and third-party inspection arrangements are confirmed at contract stage, ensuring full documentation compliance before production begins.
Frequently Asked Questions
Q: What is the difference between hot-dip galvanized and pre-galvanized surface treatment?
A: Hot-dip galvanizing immerses formed tubes in molten zinc at approximately 450°C, creating metallurgical bonding with coating thickness typically 60–80μm, suitable for outdoor and corrosive environments. Pre-galvanizing applies zinc coating to steel strip before tube forming, resulting in thinner coating around 20–30μm, more economical for indoor structural applications with limited corrosion exposure.
Q: Can you produce non-standard sizes like 40×40×1mm square tubes?
A: Yes, customized sizes are available within the 0.8–30mm wall thickness range. The MOQ for non-standard dimensions is 10 tons, with typical production lead times depending on specification complexity and current mill schedule.
Q: What documentation package accompanies each shipment?
A: Each shipment includes mill test certificates with heat number traceability, dimensional inspection reports, coating thickness measurement records, packing lists, bills of lading, and certificates of origin. Third-party inspection reports from SGS or BV are available upon request for projects requiring independent verification.
Q: How do you handle container loading for 11.8m long tubes?
A: Professional loading plans optimize 40HC container capacity for 11.8m lengths, with steel strip bundling and edge protectors preventing coating damage. Lashing systems secure bundles against shift during ocean transit, and mixed-size loading accommodates projects requiring multiple length specifications in single shipments.
Request Your Galvanized Square Steel Tube Quotation Today
Share your project specifications including steel grade, dimensions, surface treatment requirements, and destination port to receive comprehensive pricing with full mill documentation.
