Description
Factory-Direct Q235B Cold Drawn Flat Steel — Vertically integrated from our own steel mill to finished cold drawn sections, ensuring full material traceability from billet to bright-finished product.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | Q235B Cold Drawn Flat Steel |
| Product Type | Cold Drawn Flat Steel |
| Steel Grade | Q235B |
| Standard | GB |
| Section Shape | Flat |
| Size Range | 16×20mm, 18×50mm, 20×30mm, 20×90mm, 22×50mm, 25×35mm |
| Tolerance | ±1% |
| Technique | Cold Drawn |
| Surface Treatment | Bright |
| Technology | Electroslag |
| Application | Security equipment, Sports equipment |
| MOQ | 2 Tons |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Security Equipment Manufacturing | Reinforcement bars for safes, vault frames, security gate structures, anti-theft window frames |
| Sports Equipment Manufacturing | Gym equipment frames, weight rack supports, treadmill side rails, exercise machine structural members |
| Industrial Fabrication | Machine base frames, conveyor guide rails, equipment mounting brackets |
| Infrastructure & Construction | Stair handrail supports, mezzanine edge trim, parapet reinforcement bars |
Where ±1% Tolerance Decides Whether Your Assembly Line Stops
Tight dimensional control on cold drawn flat steel eliminates secondary machining and prevents jig misalignment on production lines.
When buyers source Q235B cold drawn flat steel from China for security or sports equipment manufacturing, even minor width or thickness deviations force re-machining at the receiving factory — adding cost and delaying production schedules. The cold drawn process inherently delivers tighter tolerances than hot rolled alternatives, but only when the drawing dies, lubrication, and reduction passes are properly controlled. [NEED_CITE: cold drawn steel bar tolerance standards and dimensional accuracy requirements] Many fabricators claim tight tolerance but outsource the cold drawing to third-party processors, creating gaps in process control and material certification chains. Our vertically integrated facility handles the entire sequence — from raw Q235B billet through electroslag refining, cold drawing, and final bright finishing — under one quality system, so every heat number traces back to a single mill test certificate.
Precision Matching for Security and Sports Equipment Frames
Security vaults and gym equipment frames demand flat steel that fits precisely into welding jigs and bolt-hole patterns without adjustment. The bright surface finish on our Q235B cold drawn flat steel arrives ready for welding or powder coating — no descaling, no grinding, no surface preparation delays. With thickness and width held within ±1% tolerance across sizes from 16×20mm to 25×35mm, fabrication teams can program CNC cutting and drilling sequences with confidence that incoming material matches the digital model. [NEED_CITE: cold drawn flat bar applications in precision equipment manufacturing]
Engineering Compliance and Certification Requirements
For projects shipping to the EU or Middle East, buyers need documentation that proves material origin and chemical composition — not just a commercial invoice. Our Q235B cold drawn flat steel ships with full mill test certificates covering chemical composition, and we support third-party inspection through SGS or BV for buyers who require independent verification. The electroslag refining process ensures low inclusion content and consistent internal quality, which matters when flat sections will undergo bending or welding in structural applications. [NEED_CITE: material certification requirements for steel exports to European markets] Customs clearance documentation including packing lists, bills of lading, and certificates of origin are prepared as standard — reducing the risk of port delays.
Understanding Q235B Grade and the Cold Drawn Process
Q235B is a Chinese standard carbon structural steel grade widely used for general fabrication where moderate strength and good weldability are required. The “Q” denotes yield strength category, “235” indicates the nominal yield point, and “B” specifies the quality level with impact testing at room temperature. When processed through cold drawing, Q235B gains improved surface finish, tighter dimensional accuracy, and slightly elevated strength compared to its hot rolled condition — making it suitable for applications where appearance and precision matter more than extreme load-bearing capacity.
The electroslag refining technology used in our raw material production removes impurities and homogenizes the steel structure before cold drawing begins. This results in a cleaner internal matrix that responds predictably to subsequent fabrication operations — bending, drilling, and welding all proceed without unexpected cracking or surface defects. The bright finish achieved through cold drawing eliminates the mill scale associated with hot rolled products, reducing preparation time for coating or direct assembly.
Hidden Costs of Sourcing Cold Drawn Flat Steel Without Process Control
Choosing the lowest quote on Q235B cold drawn flat steel often means the supplier has outsourced the drawing operation to an uncontrolled workshop — where die wear goes unchecked, lubrication is inconsistent, and no mill test certificates accompany the finished product. The consequences surface later: dimensional rejections at the receiving factory, failed third-party inspections, customs holds due to missing documentation, or worst-case, structural failures when material chemistry does not match what was specified. [NEED_CITE: quality control failures in outsourced steel processing operations] These hidden costs — rework, air freight for replacements, project delays — routinely exceed the initial price difference between a controlled supplier and an uncontrolled one.
Why Buyers Choose Our Vertically Integrated Facility
We operate our own steel production facility with multiple production lines and over 2,800 raw material specifications in inventory — meaning your Q235B cold drawn flat steel starts from billet we produced, not material bought from a third party. Our fabrication division handles the cold drawing, cutting, and finishing in-house, so one quality system covers the entire chain from melt to shipment. Every order ships with complete documentation: mill test certificates, dimensional inspection reports, and export paperwork prepared by our own trade team. For buyers requiring third-party verification, we coordinate SGS or BV inspections at our facility before loading. Professional packing and loading plans ensure the bright surface finish arrives undamaged after ocean transit.
Documentation & Compliance
- Mill test certificate documenting Q235B chemical composition (C, Si, Mn, P, S) and mechanical properties per GB standard, traceable by heat number
- ISO 9001 quality management certificate covering the full production process from raw material to finished cold drawn flat steel
- SGS or BV third-party inspection report available upon request, covering dimensional checks, surface quality, and material verification
- Certificate of origin and customs documentation (packing list, bill of lading, commercial invoice) prepared for smooth port clearance
- Material traceability report linking each bundle to its production heat number and cold drawing batch record
Packaging, Loading & Delivery

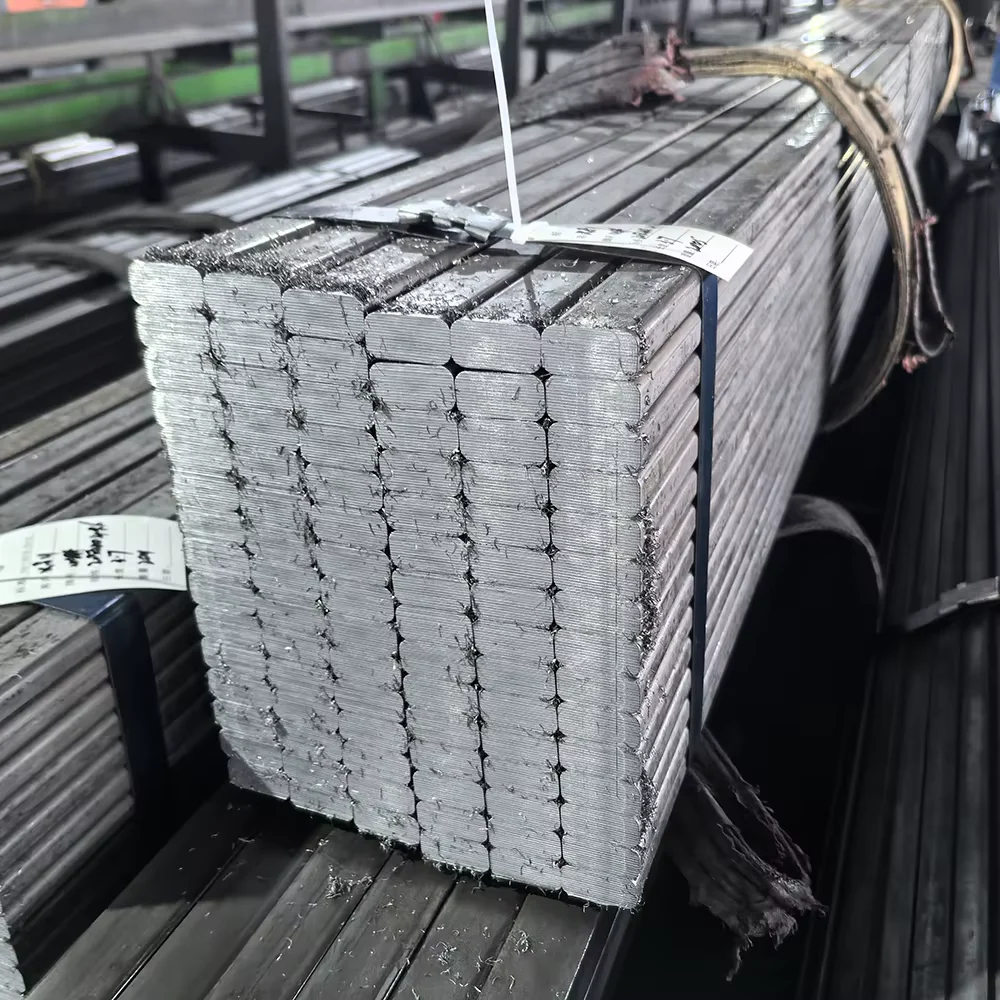

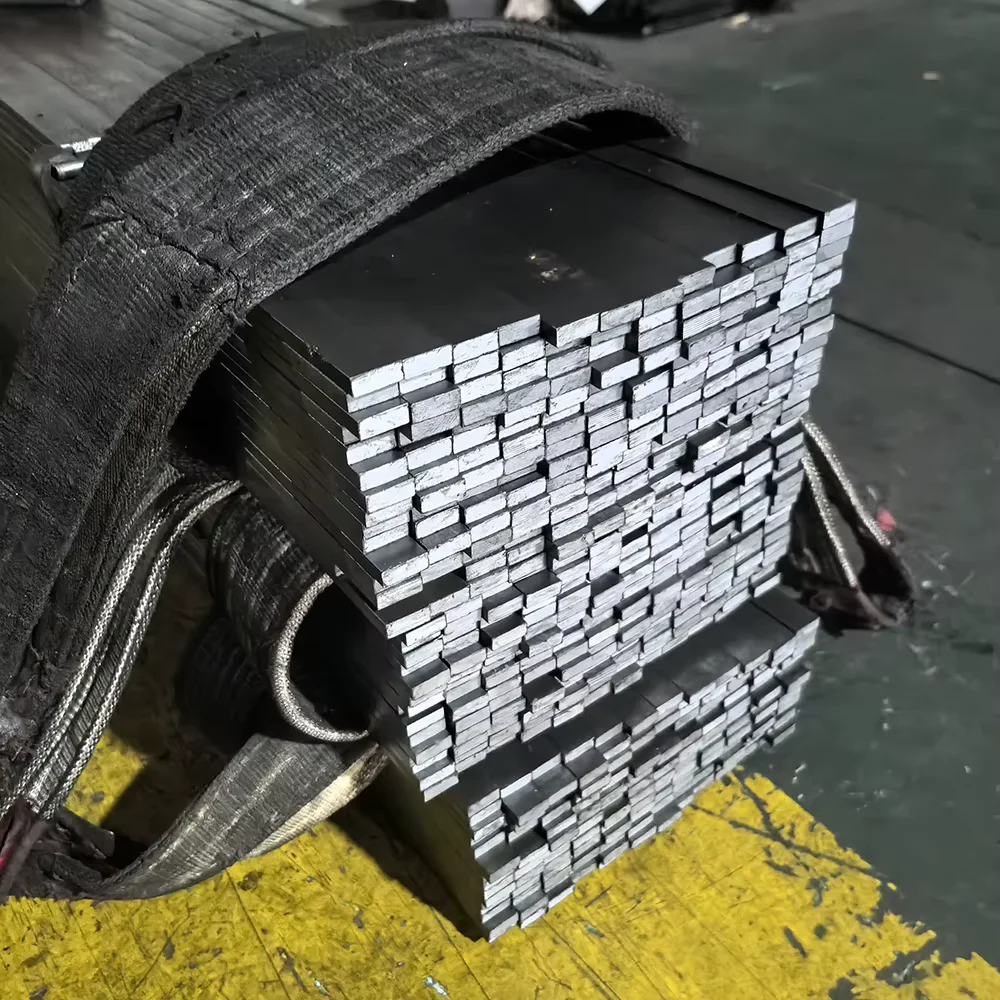

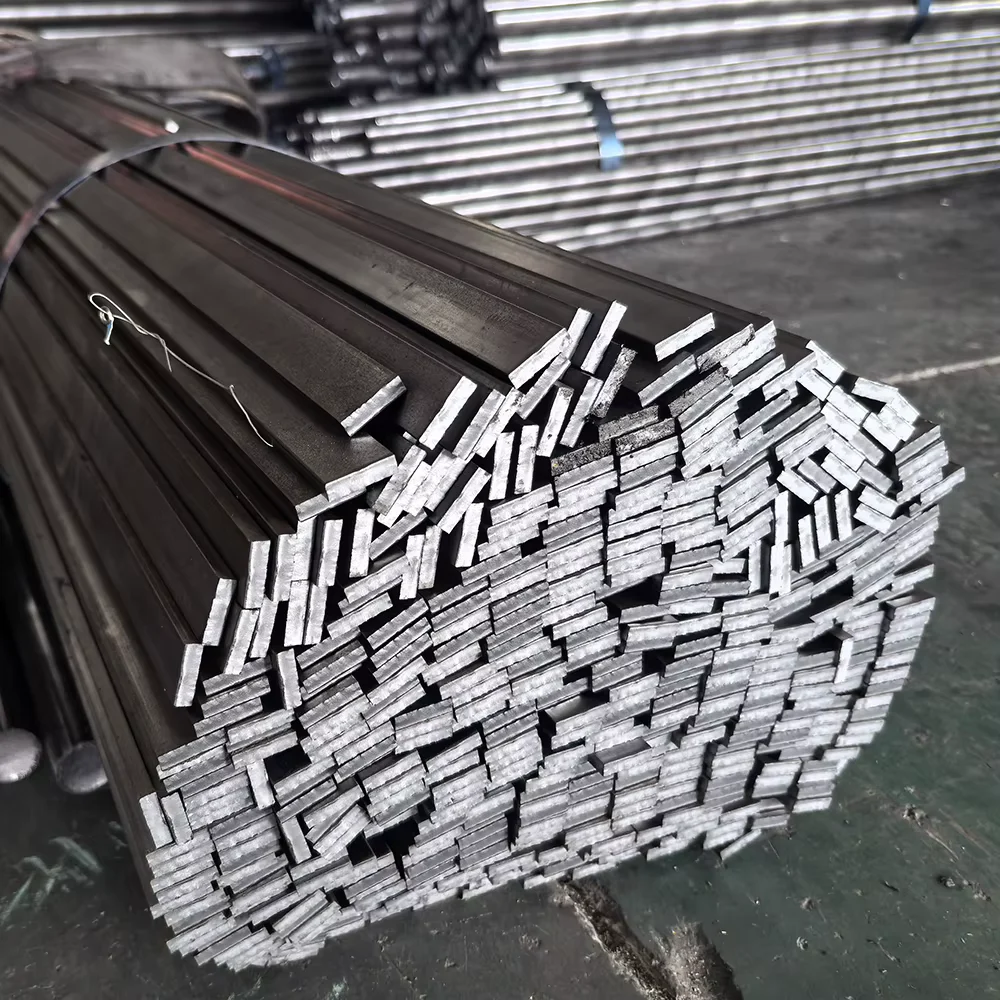

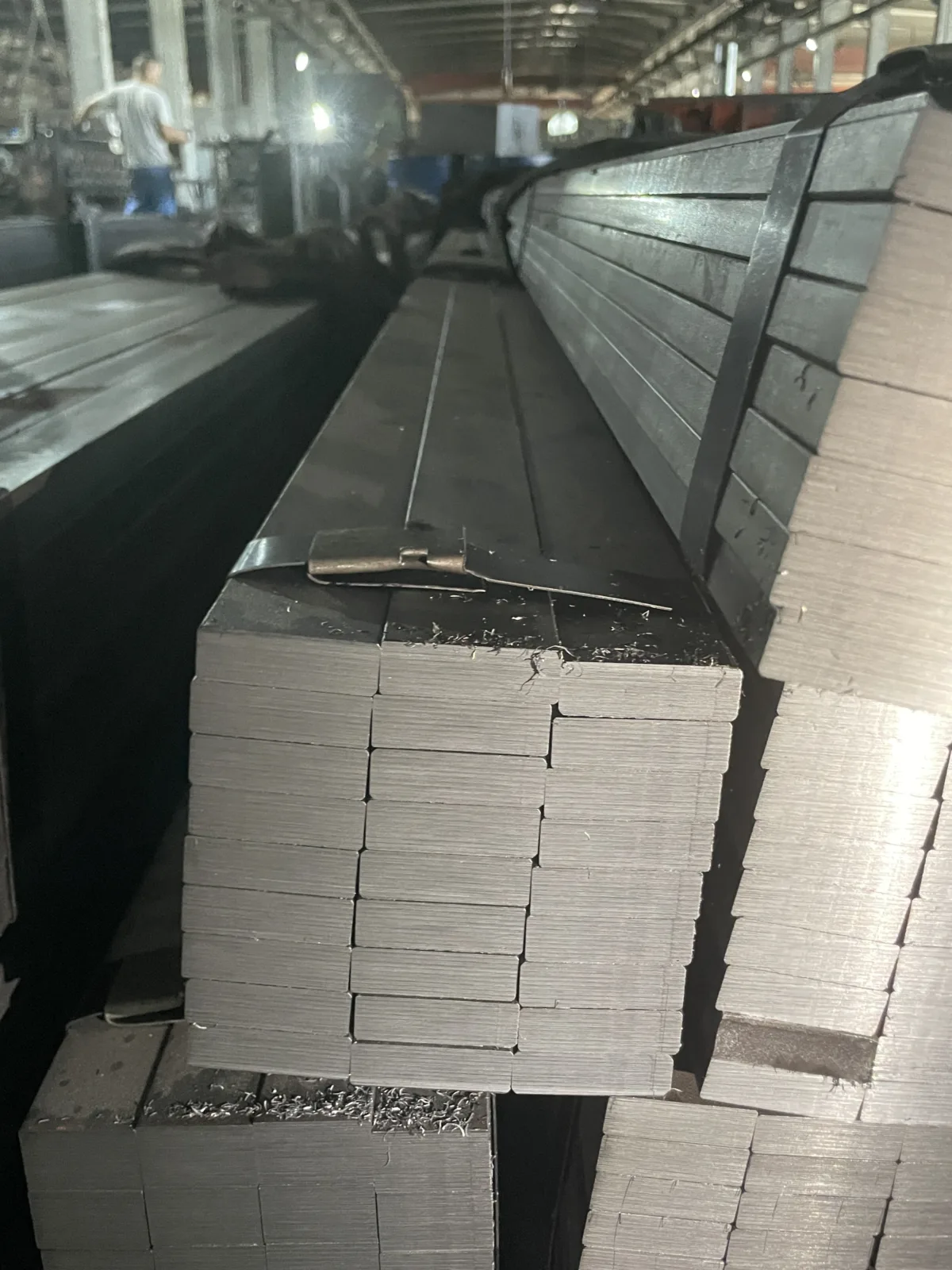

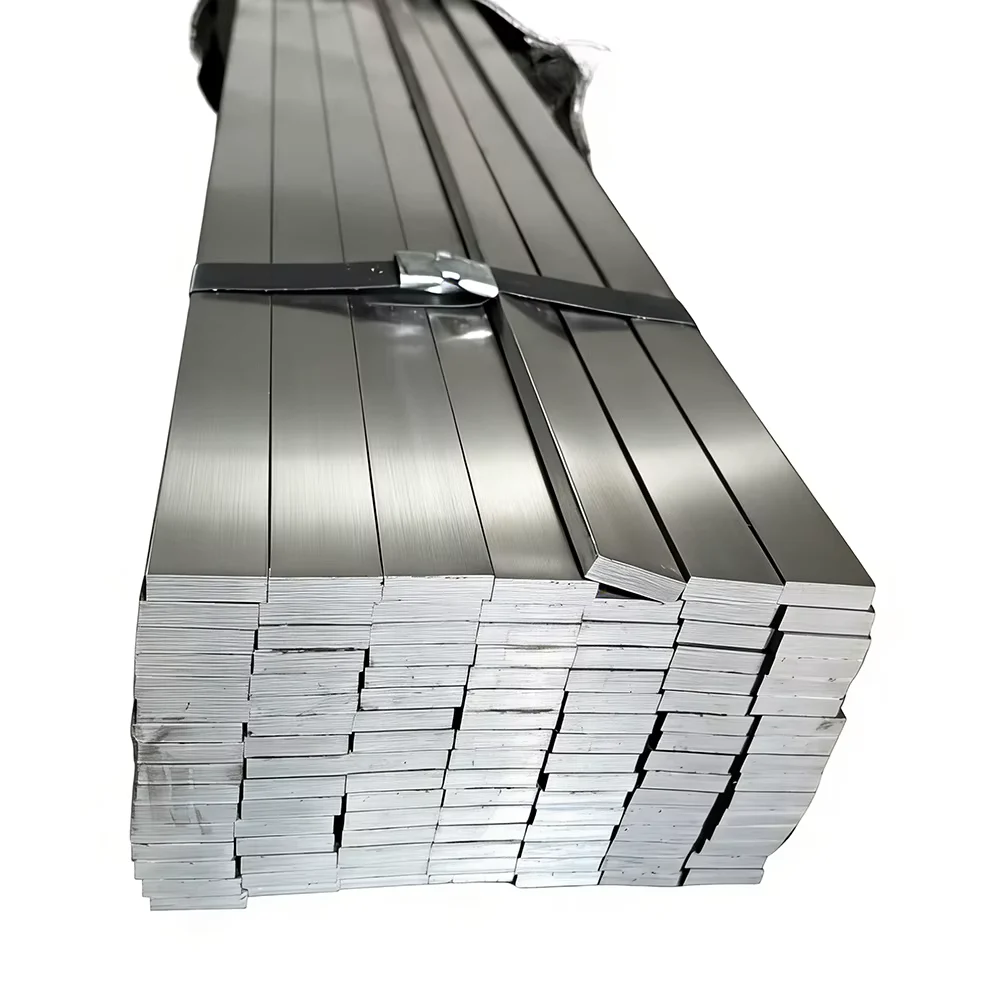

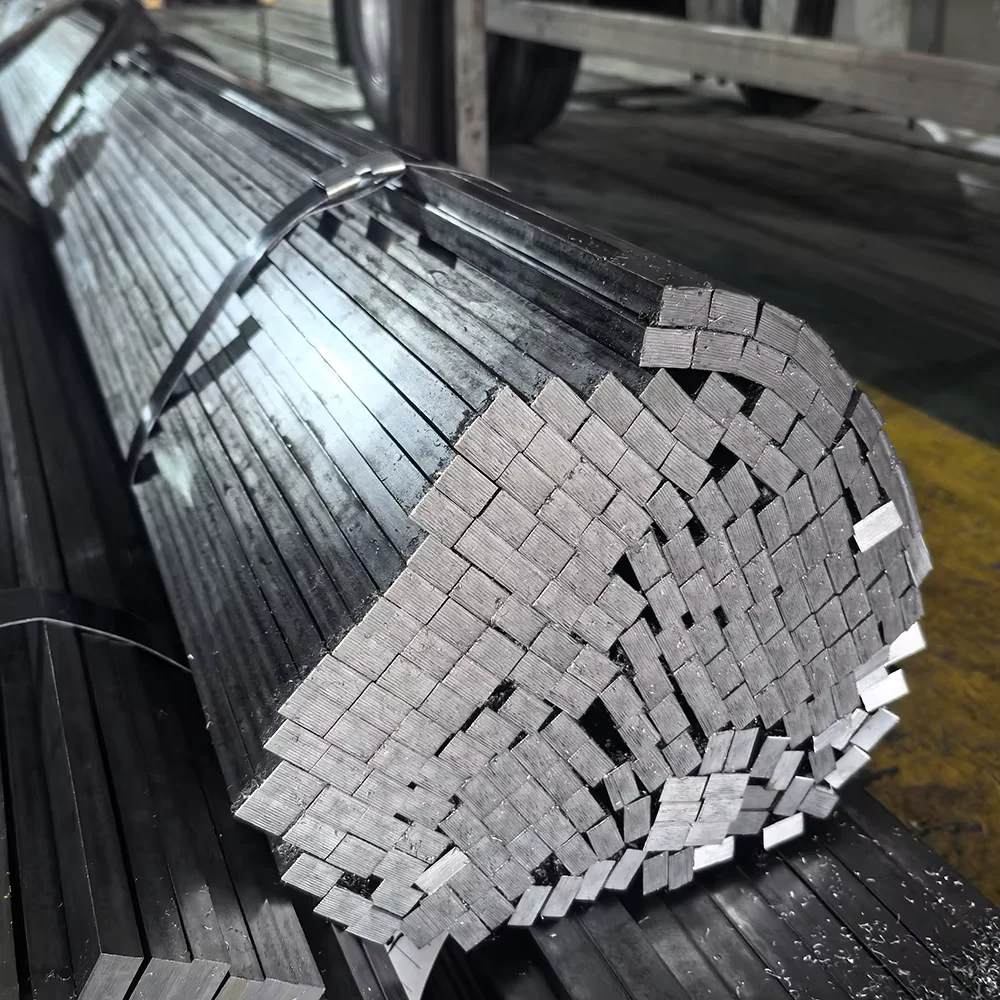

- Q235B cold drawn flat steel bundled with steel strips and edge protectors to preserve the bright surface finish during handling and transit
- Seaworthy packaging with waterproof wrapping for ocean shipment, preventing surface oxidation or moisture damage to the bright finish
- Container loading optimized for flat steel dimensions (16×20mm to 25×35mm sections), maximizing payload per 20ft or 40ft container
- Heat number and steel grade markings stenciled on each bundle for on-site identification and traceability verification
- FOB, CIF, and DDP shipping terms available, with door-to-door logistics coordination for project sites worldwide
Start Your Procurement with Complete Technical Confidence
Share your project specifications — section sizes, quantities, destination port, and required certifications — and receive a detailed quotation including material costs, fabrication charges, and shipping terms within 24 hours. We will confirm mill test certificate availability, third-party inspection options, and production timelines before you commit.
Request Quotation for Q235B Cold Drawn Flat Steel
Submit your drawings or specification list to admin@xjystructure.com or contact us via WhatsApp at +86 188 5315 7756 for pricing, lead times, and sample arrangements.
