Description

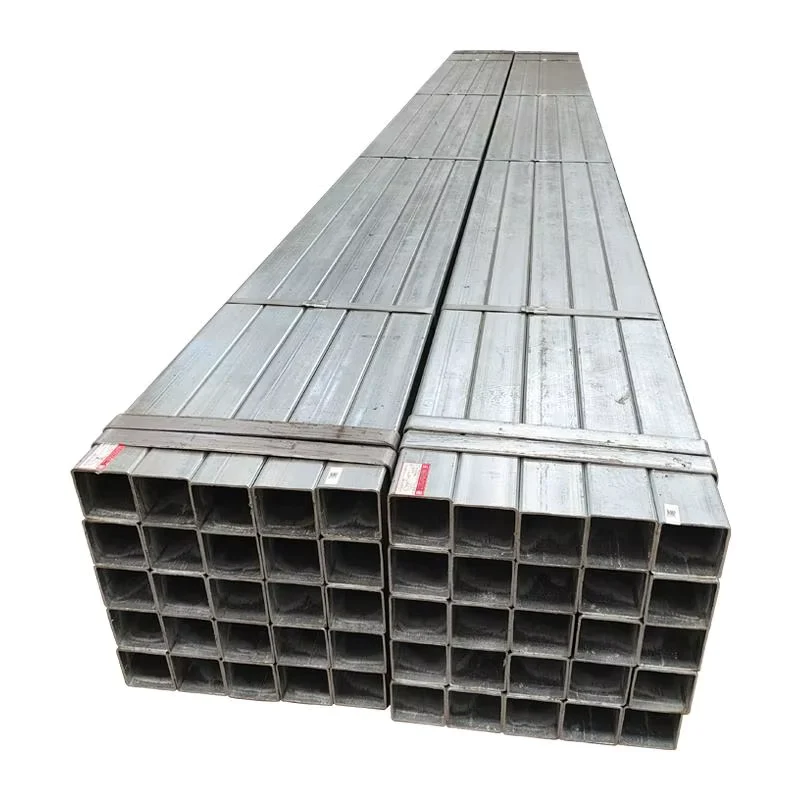

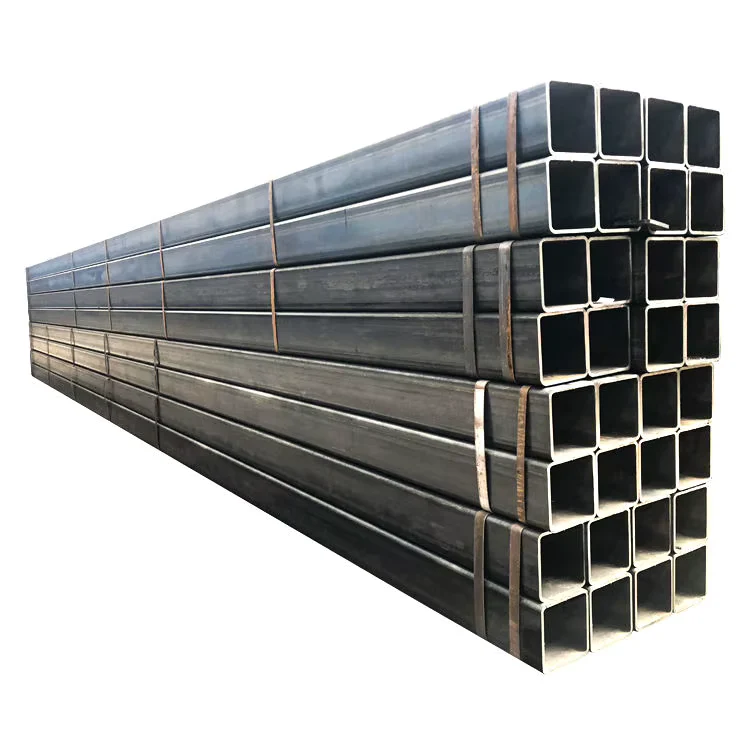

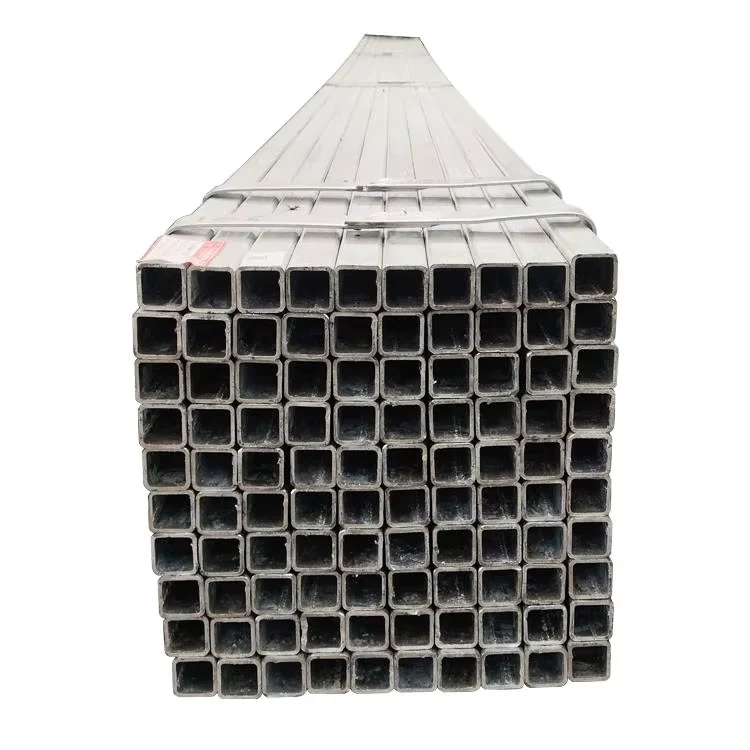

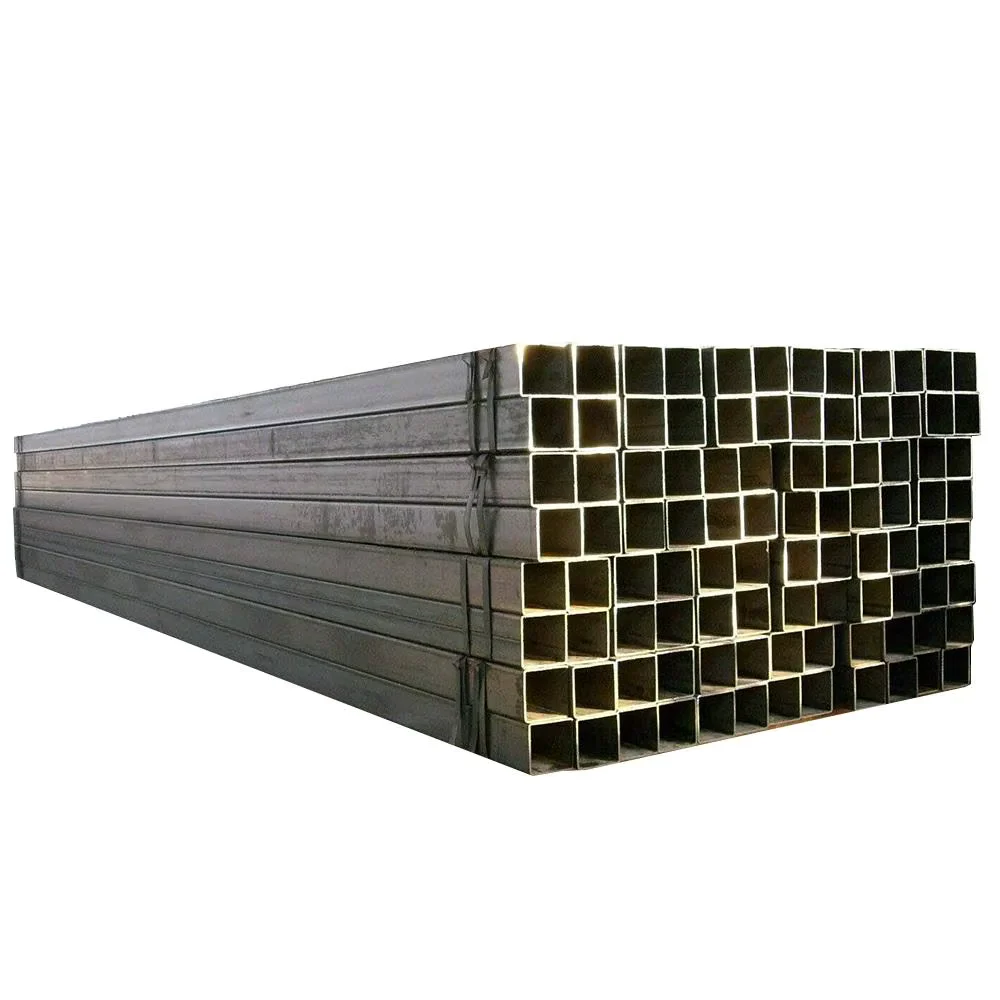

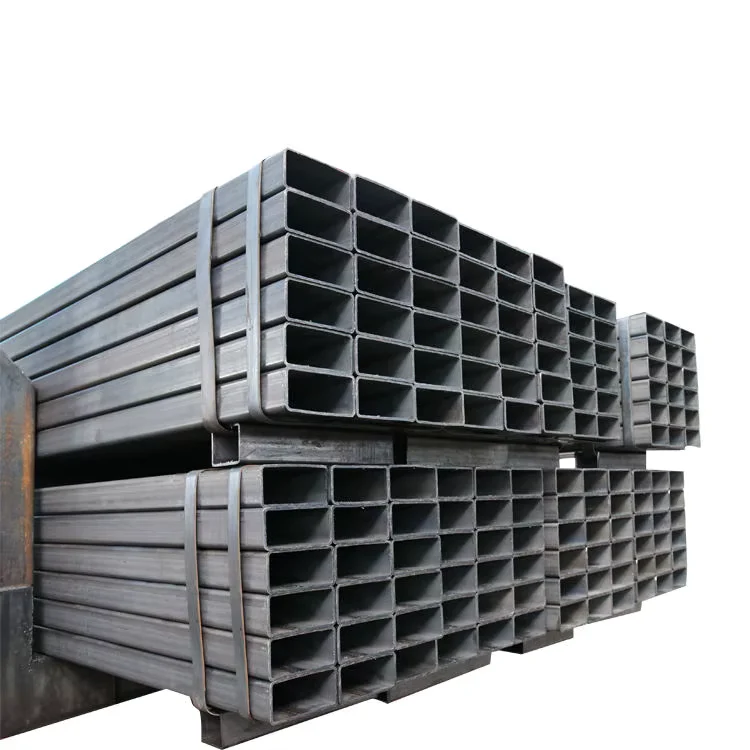

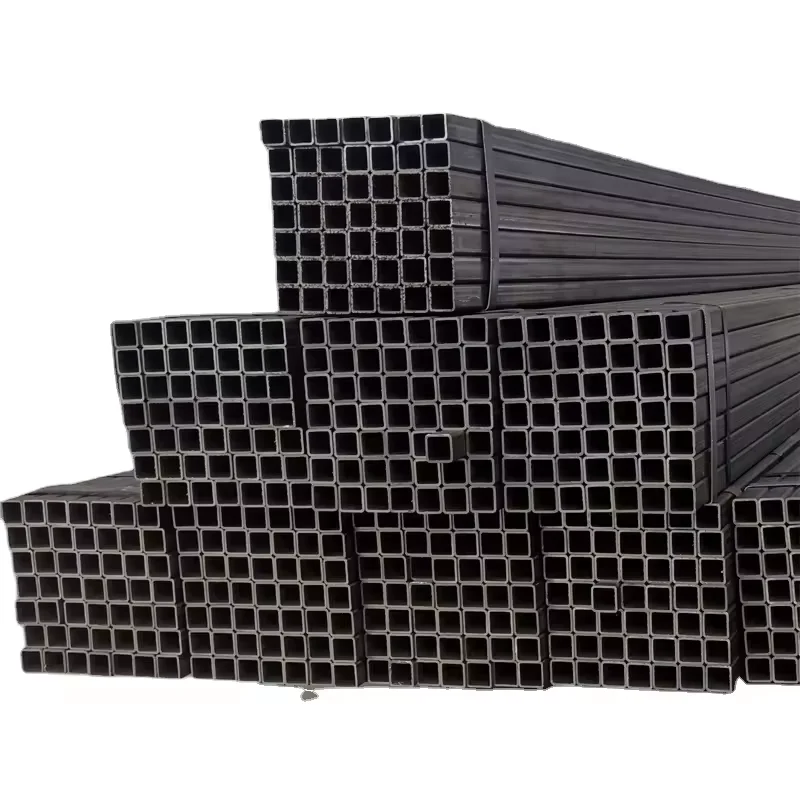

Factory-Direct Mill Pricing — Q235B galvanized square steel tube 30×30mm produced and coated under one roof, eliminating third-party markups and material traceability gaps.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | Q235B Galvanized Square Steel Tube |
| Product Type | Galvanized Square Steel Tube |
| Steel Grade | Q235, Q235B, Q195, Q355, S275, S275JR, A53, ST37 |
| Standard | ASTM, BIS, JIS, CE, ISO 9001, KS, SABS, SNI, SONCAP |
| Section Shape | Square |
| Size Range | 30×30mm |
| Wall Thickness | 1.2–20mm |
| Length | 1–12m or as customer request |
| Technique | Hot Rolled Based |
| Surface Treatment | Galvanized (Zinc Coated Z30–Z180) |
| Spangle Type | Zero Spangle |
| Skin Pass | Yes |
| Oiled or Non-oiled | Non-oiled |
| Tolerance | ±1% |
| Invoicing | By theoretical weight |
| Application | Steel structures, construction frames, fences, containers, corrugated sheets |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Commercial & Industrial Construction | Building frames, column supports, mezzanine structures |
| Infrastructure & Civil Engineering | Fencing systems, scaffolding uprights, highway guardrail posts |
| Logistics & Warehousing | Container frames, racking uprights, warehouse portal frames |
| Manufacturing & Processing Plants | Equipment support structures, platform handrails, conveyor frames |
Where Coating Weight Z30 vs Z180 Decides Site Replacement Cycles
Galvanized zinc mass directly determines service life in corrosive environments — specifying Z30 for a coastal warehouse frame guarantees premature rust and costly replacement.
When EPC firms source Q235B galvanized square steel tube through trading intermediaries, the zinc coating specification stated on paper rarely matches what arrives on site. A Z30 coating (approximately 5–7μm per side) may pass visual inspection at the mill gate but will fail within months in humid or saline atmospheres, while Z180 (approximately 12–18μm per side) provides meaningful corrosion resistance for outdoor structural applications. The fragmentation between steel mill, galvanizing plant, and exporter creates accountability gaps — when coating thickness fails third-party inspection, the trading company blames the galvanizer, the galvanizer blames the substrate, and the buyer absorbs demurrage and re-galvanizing costs. [NEED_CITE: hot-dip galvanized coating thickness measurement standards per ISO 1461]
Matching 30×30mm Square Profile to Light Structural and Framing Applications
The 30×30mm square section with 1.2–20mm wall range positions this Q235B galvanized square steel tube for non-primary structural members, secondary framing, and modular assembly applications where connection geometry matters. The square profile provides four flat bearing surfaces for bolted or welded connections — critical when assembling container corner castings, fence post base plates, or scaffolding ledger connections. Hot rolled base material with skin pass treatment ensures dimensional consistency across 12m lengths, reducing on-site cutting waste and fit-up gaps. For projects spanning Southeast Asian warehousing or Middle Eastern compound fencing, the zero spangle finish delivers uniform appearance across visible structural elements without additional painting.
Structural Compliance and Certification Pathways for International Projects
Engineering specifications for light structural frames typically reference EN 1993-1-1 for steel design or local equivalents, requiring material certification that traces chemical composition and mechanical properties back to the original heat. Q235B conforms broadly to S235JR in European systems and roughly to ASTM A36 in American practice, though exact equivalence depends on project-specific requirements for impact testing and elongation. For EU-bound shipments, CE marking under EN 10210 or EN 10219 is mandatory for structural hollow sections — without it, customs clearance fails and site installation halts. [NEED_CITE: EN 10219 cold formed structural hollow sections certification requirements] The ±1% tolerance on this Q235B galvanized square steel tube, invoiced by theoretical weight, provides transparent cost calculation while maintaining dimensional accuracy for prefabricated assembly.
Steel Grade Selection and Galvanizing Process Fundamentals
Q235B remains the dominant structural carbon steel grade in Chinese mill production, offering adequate yield strength for light to medium framing while maintaining excellent weldability and formability. When projects specify S275JR or A53, the underlying steel chemistry shifts — manganese content increases, and carbon equivalence changes, affecting pre-heat requirements for thicker wall connections. The hot rolled base technique followed by galvanizing produces a metallurgical zinc-iron bond that adheres more reliably than electroplated coatings, particularly on sharp internal corners of square sections. Zero spangle finishing eliminates the visible crystalline pattern typical of standard hot-dip galvanizing, producing a uniform matte surface that accepts powder coating adhesion if aesthetic requirements demand color matching. Wall thickness from 1.2mm to 20mm covers everything from lightweight fence rails to heavy-duty column sleeves, with theoretical weight invoicing ensuring buyers pay for specified dimensions rather than actual rolled variations.
Hidden Costs When Coating Specification and Material Certification Fail
Specifying Q235B but receiving off-grade Q195 with lower carbon content reduces weld strength in moment connections — the failure appears only during structural loading tests after erection. Ordering Z180 coating but accepting Z30 substitution means the galvanized square steel tube arrives on site with insufficient zinc mass for the design service life, forcing either rejection and re-shipment or acceptance of reduced durability. Missing mill test certificates or unverifiable heat numbers trigger customs holds in markets requiring SONCAP, SABS, or BIS certification, stranding containers at port while demurrage accumulates. [NEED_CITE: material traceability requirements for structural steel certification] Negative tolerance abuse — where actual wall thickness falls below the specified minimum — reduces load-bearing capacity and voids structural engineering calculations, creating liability exposure for the specifying engineer.
Vertically Integrated Production from Raw Steel to Finished Galvanized Tube
Our own steel mill produces the hot rolled coil and strip that feeds directly into our tube forming and galvanizing lines — there is no intermediate trader sourcing substrate from unknown mills. Every Q235B galvanized square steel tube carries a heat number traceable to our mill’s chemical analysis and mechanical test records. Our in-house laboratory issues mill test certificates before shipment, and we coordinate third-party inspection through SGS or BV at buyer’s request. With over 2,800 specifications in our inventory system, we consolidate mixed-size orders into single shipments, reducing freight cost per ton for projects requiring multiple square tube dimensions. Professional loading teams plan container stowage for 30×30mm bundles to maximize weight utilization while protecting galvanized surfaces from transport damage.
Documentation & Compliance
- Mill test certificate documenting Q235B chemical composition (C, Mn, Si, P, S limits) and mechanical properties per GB/T 700, with heat number traceability
- CE certificate confirming compliance with EN 10210 or EN 10219 for structural hollow sections, required for EU customs clearance
- ISO 9001 quality management system certificate covering the integrated steel production and tube fabrication process
- SGS or BV third-party inspection report verifying galvanized coating thickness (Z30–Z180), dimensional tolerance (±1%), and surface quality
- Material traceability documentation linking each bundle to its original heat number, steel grade certification, and galvanizing batch record
- Export customs documents including packing list, bill of lading, and certificate of origin formatted for destination country requirements
Packaging, Loading & Delivery
- Q235B galvanized square steel tubes bundled with galvanized steel strips and edge protectors to preserve zero spangle zinc coating during ocean transit
- Seaworthy packaging with waterproof paper wrapping for 1–12m lengths, preventing moisture contact that causes white rust formation on galvanized surfaces
- Container loading optimization for 30×30mm square sections, maximizing weight per 20ft or 40ft container while maintaining bundle integrity
- Custom cut-to-length service available for 1–12m requirements, with cut ends deburred and re-touched with zinc-rich paint to maintain corrosion protection
- Heat number and steel grade stenciled on each bundle tag, enabling site identification and traceability verification upon arrival
- FOB, CIF, and DDP delivery terms available with professional export documentation and container tracking until site delivery
Initiating Your Procurement Inquiry for Galvanized Square Tube
Submit your project specifications including steel grade requirement (Q235B, S275JR, or A53 equivalence), coating weight preference (Z30 for indoor, Z180 for outdoor), total tonnage, and destination port to receive a detailed quotation with mill test certificate commitment. We confirm production scheduling, third-party inspection coordination, and container loading plan within 24 hours of receiving complete inquiry details.
Request Quotation with Full Material Certification
Share your Q235B galvanized square steel tube specifications, coating requirements, and destination port — we respond within 24 hours with pricing, mill test certificate commitment, and production timeline.
