Description
Factory-Direct Plate Cutting — Raw steel slabs from our own mill go straight to CNC cutting lines, eliminating supplier-to-fabricator handoff risks.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | Hot Rolled Carbon Steel Plate Cutting Parts |
| Product Type | Steel Plate (Custom Cut & Machined) |
| Steel Grade | Q235B, Q355B, ASTM A36, A572 Gr.50, S235JR, S355JR, S355J2, SS400, ASTM A53B |
| Standard | ASTM A36, ASTM A53B, ASTM A572, EN 10025, JIS G3101, GB/T 700, GB/T 1591 |
| Cutting Thickness | 10mm – 200mm (up to 300mm+) |
| Cutting Method | CNC Flame (Oxy-fuel), High-definition Plasma, Fiber Laser |
| Machining Services | Drilling, Milling, Tapping, Beveling, Grinding |
| Tolerance | ±0.5mm to ±2.0mm (depending on process) |
| Surface Finish | Shot Blasting, Painting, Oiled, Galvanized, or As-Rolled |
| Drawing Formats | DXF, DWG, STEP, PDF |
| Additional Steel Series | High-Strength (WQ590D–WQ960C), Wear-Resistant (NM360–NM600), Cr-Mo (14Cr1MoR, 12Cr2Mo1R), Low Temperature (3.5Ni), Boiler Drum (13MnNiMoR) |
| Application | Steel structure fabrication, Industrial equipment, Pressure vessels, Petrochemical & power plant components, Heavy machinery, Mining hydraulic supports, Storage tanks |
| MOQ | 10 pcs |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|

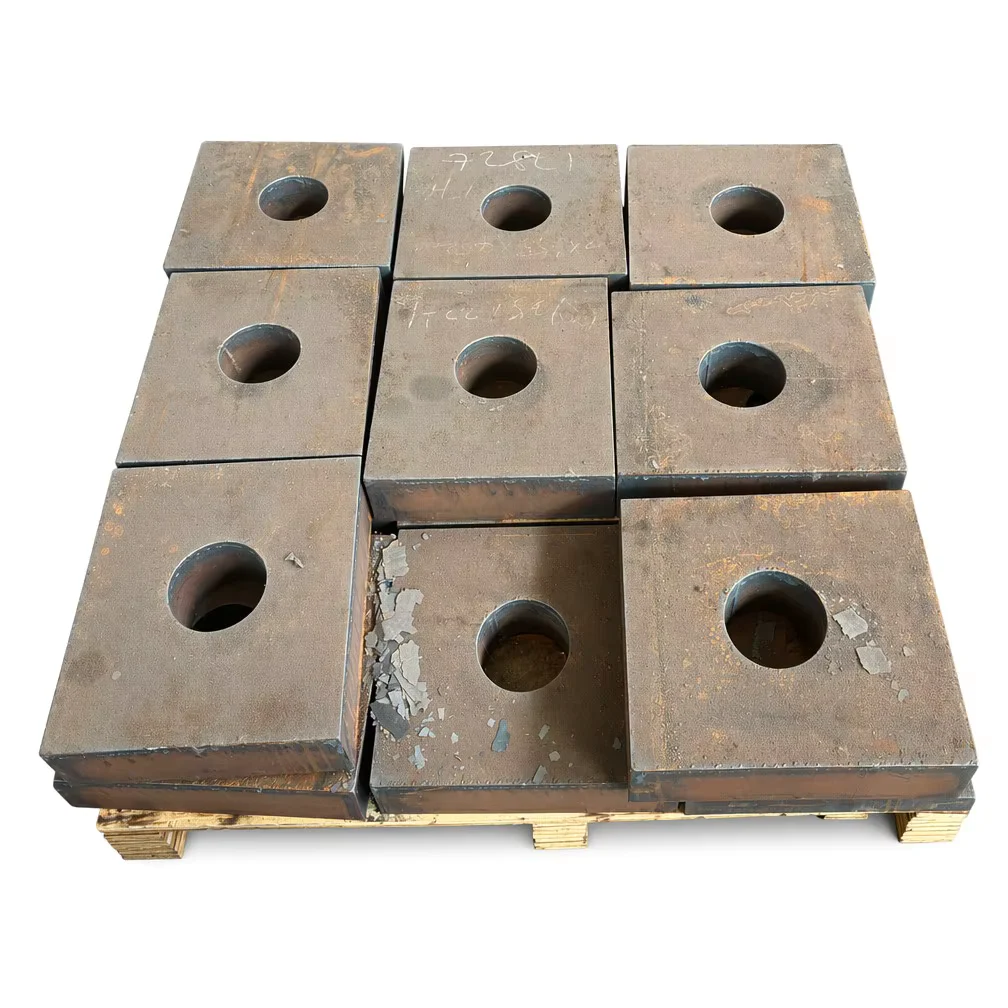

| EPC & Industrial Construction | Column base plates, gusset plates, platform grating supports, process pipe racks |
| Steel Structure Fabrication | Beam end connections, splice plates, bracket assemblies, truss node plates |
| Petrochemical & Power | Pressure vessel end caps, heat exchanger baffles, boiler support brackets |
| Heavy Machinery & Mining | Hydraulic support base plates, crusher frame liners, excavator boom mounting plates |
| Storage & Logistics | Tank floor plates, silo ring beams, conveyor head pulley frames |
When Your Steel Supplier and Cutting Shop Are Two Different Companies
Material traceability breaks at the handoff point — and that is where project delays begin.
Outsourced plate cutting means your steel arrives at a third-party processor with no direct link back to the original heat number. Dimensional tolerance claims rest on the cutter’s calibration, not the mill’s rolling records. When a 200mm S355J2 plate shows up at a Middle East job site with a coating thickness dispute and no matching MTC, the contractor cannot prove whether the problem started at the mill or the cutting shop. We have seen entire batches rejected by third-party inspectors because the cutting facility could not produce a continuous chain of documentation from slab to finished part. [NEED_CITE: material traceability requirements in EN 1090 structural fabrication]
Matching Cut-to-Size Plates to Structural and Pressure Applications
Every plate we cut is traced from the original slab heat number through CNC cutting, machining, and surface treatment — one facility, one quality record. When an EPC contractor orders S355JR base plates for a port crane pedestal, we control the entire chain: raw material certification, cutting tolerance verification, bevel edge preparation per WPS, and shot blasting to Sa 2.5 before painting. The Hot Rolled Carbon Steel Plate Cutting Services Supplier advantage here is simple — no coordination gap between your material purchase order and your fabrication drawing.
Engineering Compliance Across International Standards
Structural plates for EU projects must conform to EN 10025 rolling standards and EN 1090 fabrication execution classes; North American projects reference ASTM A36 or A572 Gr.50 with AISC erection tolerances. Our in-house laboratory re-tests chemical composition and mechanical properties against the specified standard before any plate leaves the facility, so customs clearance documents match the physical material on the truck. For pressure vessel and boiler applications using Cr-Mo grades like 14Cr1MoR or 13MnNiMoR, we provide full MTC packages aligned with ASME Section II material requirements. [NEED_CITE: EN 1090 execution class documentation for structural steel]
Steel Grade Selection and Cutting Process Fundamentals

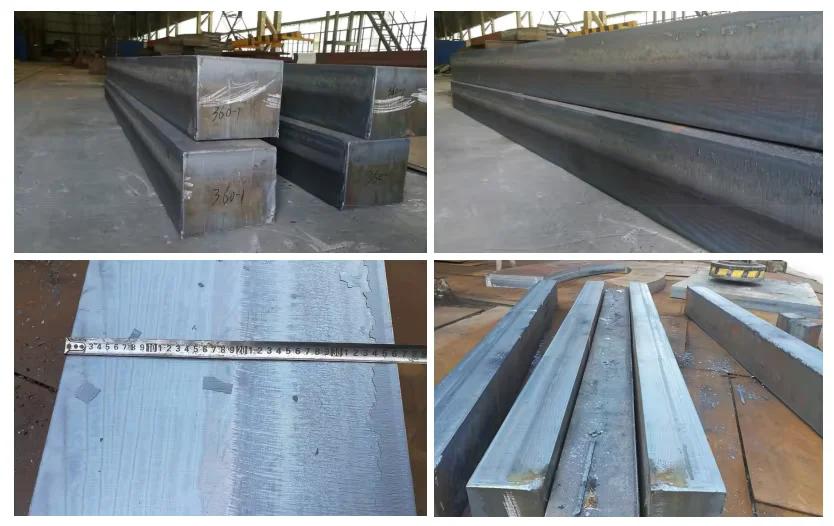

The carbon steel plate grades we stock — Q235B, ASTM A36, S235JR — share similar yield strength ranges and serve general structural framing where weldability and formability matter more than high load capacity. Moving to Q355B, S355JR, or A572 Gr.50 increases yield strength for heavier load-bearing members like crane runway beams and bridge girders. The cutting process selection depends on thickness: fiber laser delivers the tightest tolerance (±0.5mm) for plates under 25mm with clean edges ready for welding; high-definition plasma handles 25mm–100mm efficiently; CNC flame cutting covers 100mm–300mm+ where kerf width is acceptable. Secondary machining — drilling, milling, tapping, beveling — transforms raw cut plates into ready-to-assemble components, reducing your workshop labor. Surface treatment choice follows the service environment: shot blasting plus painting for indoor structural frames, hot-dip galvanizing for outdoor or coastal exposure, and oiled finish for plates that will undergo further welding or machining at your facility.
Hidden Costs of Incorrect Plate Procurement
Ordering the wrong steel grade or accepting plates with undocumented negative tolerance does not show up until the structure reaches the erection stage. A plate specified as S355J2 with guaranteed impact testing at -20°C substituted with S235JR will pass visual inspection but fail third-party NDT and load testing — forcing complete replacement at a cost many times the original material price. Missing or mismatched Mill Test Certificates trigger customs holds on international shipments, and coating thickness below specification means the entire batch must be stripped and recoated on site. [NEED_CITE: consequences of non-conforming structural steel in international construction projects]
Why Procurement Teams Choose Our Facility
We operate both the steel production mill and the fabrication workshop — when you order Hot Rolled Carbon Steel Plate Cutting Services Supplier from us, the material never changes hands between unrelated companies. Our in-house metallurgical laboratory performs chemical analysis, tensile testing, and impact testing on every heat, so MTC data is generated internally rather than forwarded from a trading desk. With over 2,800 raw material specifications in stock, we can consolidate standard carbon steel plates alongside specialized grades like NM400 wear-resistant or WQ690 high-strength in a single shipment. Every cutting program is reviewed against your DXF or DWG file before the first torch fires, and our certified welders (AWS/EN qualified) handle any assembly or welding required after cutting. Professional export packing and oversized cargo loading are planned in-house — we know exactly how a 300mm-thick, 3-meter-wide plate fits into a 40-foot flat rack.
Documentation & Compliance
- Mill Test Certificate documenting S355JR / Q355B / ASTM A36 chemical composition and mechanical properties per EN 10025, GB/T 1591, or ASTM A36 as specified
- CE certificate and EN 1090 Declaration of Performance for structural steel plates destined for European Union markets
- ISO 9001 quality management certificate covering the full process from raw slab inspection to finished cut part dispatch
- SGS or BV third-party inspection reports available for project-specific material verification and dimensional checks
- Full material traceability by heat number from original slab rolling through CNC cutting, machining, and surface treatment
- Export customs documents including packing list, bill of lading, and certificate of origin aligned with destination country requirements
Packaging, Loading & Delivery
- Heavy plates (100mm–300mm+) secured in steel-framed crates with timber dunnage to prevent shifting during ocean transit; edges protected against coating damage
- Shot-blasted and painted plates wrapped in waterproof VCI film with desiccant packs to prevent flash rust during container shipping
- Galvanized plates separated by rubber spacers and bundled with nylon straps to preserve zinc coating integrity
- Cut-to-dimension plates nested for container load optimization — standard 20ft and 40ft containers loaded to maximum weight capacity for 10mm–50mm thickness range
- Each plate marked with heat number, steel grade, and heat-resistant paint stencil for on-site identification and traceability verification
- FOB Jinan/Qingdao, CIF, or DDP delivery available; oversized plate shipments loaded onto flat racks or break-bulk vessels with professional lashing plans
Getting Your Cut Plate Quote Started
Send your project drawings in DXF, DWG, STEP, or PDF format along with steel grade, thickness, quantity, and destination port. We return a detailed quotation covering material, CNC cutting, secondary machining, surface treatment, and export packing within 24 hours — including shop drawing timelines and production scheduling.
Start Your Steel Plate Cutting Inquiry
Upload your drawings and specifications to receive a complete quotation with Mill Test Certificate documentation and production lead time.
Mobile/WhatsApp/WeChat: +86 188 5315 7756 | Email: admin@xjystructure.com | Website: www.xjystructure.com
Frequently Asked Questions
Q: Can you provide steel grade equivalency between GB, EN, ASTM, and JIS standards?
A: Yes. Our engineering team maps grade equivalencies across standards — for example, Q235B corresponds to S235JR and ASTM A36 in yield strength range, while Q355B aligns with S355JR and ASTM A572 Gr.50. We confirm the correct designation on your shop drawings before production begins to avoid specification mismatches.
Q: Is third-party inspection such as SGS or BV available for international projects?
A: Yes. We coordinate SGS, BV, or other nominated third-party inspectors for pre-shipment material verification, dimensional checks, and coating thickness measurement. Inspection reports are included in the export documentation package.
Q: What drawing formats do you accept for custom cutting?
A: We accept DXF, DWG, STEP, and PDF files. Our engineering team reviews each file for cutting feasibility, tolerance achievability, and edge preparation requirements before confirming the production schedule.
Q: How do you handle surface treatment selection for different service environments?
A: For indoor structural applications, shot blasting to Sa 2.5 plus primer painting is standard. Coastal or outdoor exposure calls for hot-dip galvanizing or multi-coat painting systems. Plates destined for further welding or machining at your facility are supplied oiled or as-rolled to preserve surface condition.
Q: What is the typical lead time from drawing approval to delivery?
A: Standard carbon steel plate cutting with shot blasting and painting typically follows typical production lead times after drawing approval. Specialized grades such as Cr-Mo or wear-resistant plates may require additional procurement time. We confirm exact scheduling in the quotation stage.
