Description

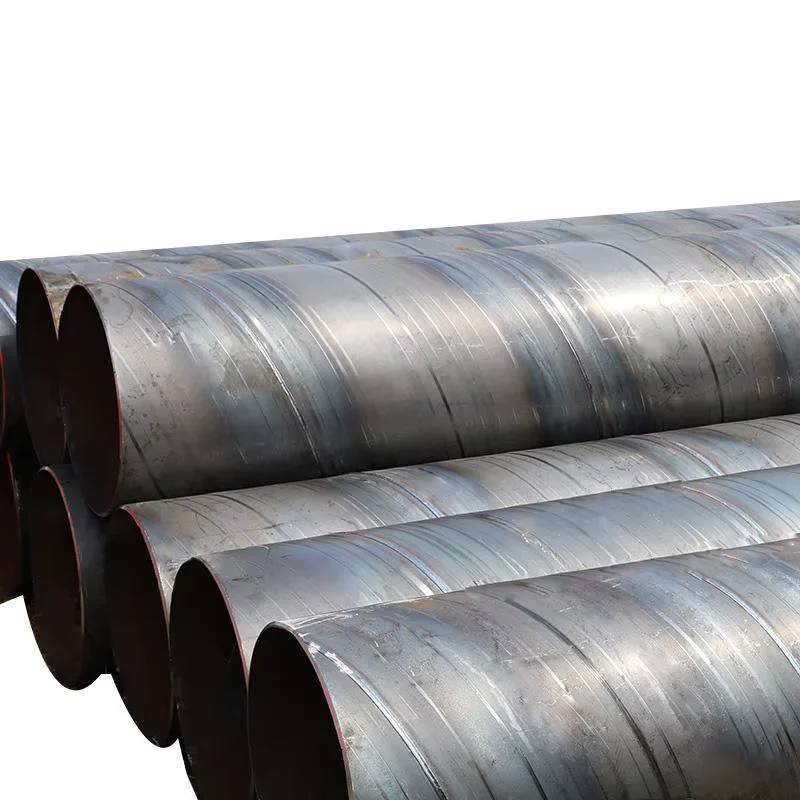

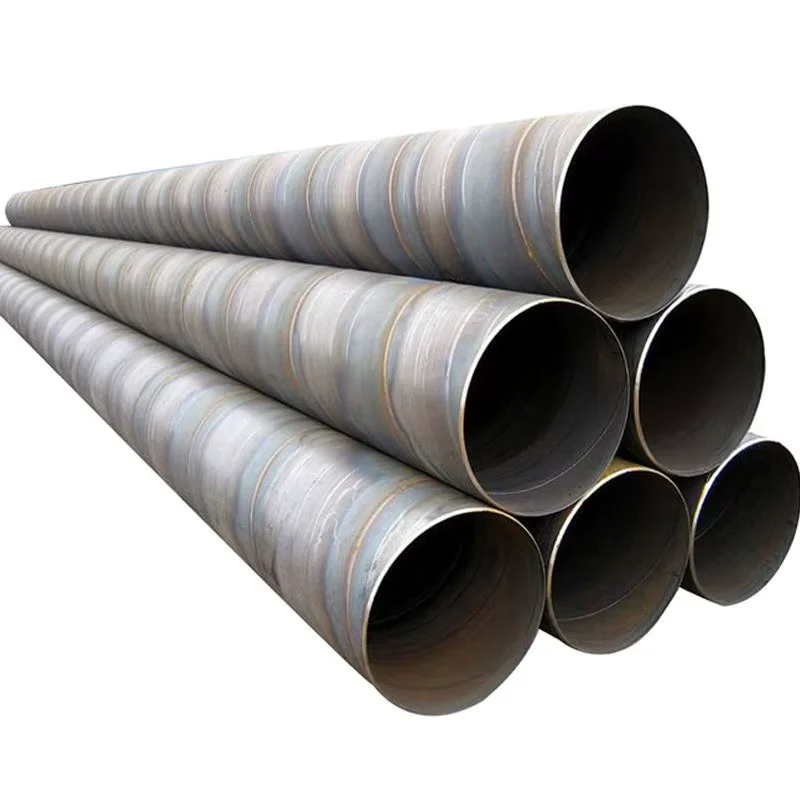

Factory-direct SSAW pipe from raw coil — Shandong Xin Jiyuan operates its own steel mill and fabrication workshop, producing Q235B spiral welded pipe from incoming hot-rolled coil to finished coated product under one quality system.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | Q235B Spiral Carbon Steel Pipe |
| Product Type | Spiral Welded Steel Pipe (SSAW) |
| Steel Grade | Q235B |
| Standard | GB |
| Outer Diameter | 219–2220 mm |
| Wall Thickness | 5–22 mm |
| Length | 5.8–11.8 m (or as required) |
| Technique | SSAW / ERW |
| Surface Treatment | Hot Rolled / Antiseptical |
| Ends | Plain end / Beveled end / Threaded and coupled |
| External Coating | FBE / 2PE / 3PE / 3PP |
| Application | Piling / Water supply / Bridge casing / Pipeline transport / Drainage / Petroleum & natural gas |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Foundation & Piling | Steel pile casing, bridge foundation sleeves, bearing platforms |
| Municipal Infrastructure | Industrial water supply mains, drainage outfall pipes, heat-supply networks |
| Oil & Gas | Petroleum and natural gas transmission pipelines, chemistry industry process lines |
| Power Engineering | Cooling water circulation pipes, cable protection conduits |
What Negative Wall Tolerance Does to a Piling Contractor’s Budget
A pipe that passes visual inspection at the mill can still fail third-party thickness verification at the destination port.
When sourcing Q235B spiral carbon steel pipe for piling or water supply projects overseas, buyers routinely encounter material traceability gaps between the coil supplier and the pipe fabricator — certificates that do not match heat numbers, coating thickness readings that drift below spec after ocean transit, and dimensional reports that conveniently round up wall thickness. [NEED_CITE: third-party inspection failure rates on imported steel pipe] These issues compound when the pipe fabricator sources raw coil from a different mill than the one named on the MTC, breaking the traceability chain before the first weld is made.
Matching Q235B SSAW Pipe to Piling and Pipeline Engineering
Spiral welded pipe in OD 219–2220 mm and WT 5–22 mm covers the full range from small-diameter water supply lines to large-bore piling casings used in bridge foundations. The Q235B grade provides adequate yield strength for structural piling and low-pressure fluid conveyance, while the SSAW process allows continuous production in long joint lengths — reducing field welding seams on site. For aggressive soil or marine environments, the 3PE external coating system delivers corrosion resistance that extends service life without additional cathodic protection in moderate conditions.
Engineering Compliance and Coating Selection for Harsh Environments
Structural piling applications typically require compliance with GB standards for carbon steel pipe, while international EPC projects may request equivalence documentation mapping Q235B to S235JR or ASTM A252 grades. [NEED_CITE: steel grade equivalence between GB Q235B and EN/ASTM standards] External coating selection depends on service environment: FBE suits buried pipelines with moderate soil corrosivity, while 3PE (three-layer polyethylene) provides mechanical damage resistance for rocky backfill or offshore splash zones. Pipe end treatments — plain, beveled, or threaded and coupled — must align with field joining methods specified in project drawings to avoid costly rework during installation.
Understanding Q235B Grade and SSAW Welding Process
Q235B is a Chinese standard carbon structural steel with minimum yield strength of 235 MPa, widely used in general structural and low-pressure fluid applications. The “B” designation indicates room-temperature impact testing requirements, distinguishing it from Q235A which omits impact testing. The SSAW (submerged arc spiral welded) process forms pipe by helically winding steel strip and welding both inner and outer seams using submerged arc welding — this method allows production of large diameters up to 2220 mm from narrower coil widths, offering cost advantages over LSAW for sizes above 508 mm. [NEED_CITE: SSAW vs LSAW manufacturing process comparison] Wall thickness tolerance directly affects theoretical weight calculation and structural load capacity; negative tolerance beyond standard allowances reduces actual bearing capacity while maintaining the same purchase weight cost.
Hidden Costs of Sourcing Unverified Spiral Pipe
Pipes with undocumented negative tolerance or mismatched material certificates create compounding costs: third-party inspection rejection at destination port triggers return shipping or on-site downgrading, coating adhesion failure in corrosive environments accelerates maintenance cycles, and missing heat number traceability blocks customs clearance in markets requiring EN or ASTM certification. [NEED_CITE: customs clearance requirements for imported steel pipe] The initial price saving from an unverified supplier disappears when project timelines extend due to replacement procurement or structural re-engineering.
Why Source Q235B Spiral Pipe from Xin Jiyuan

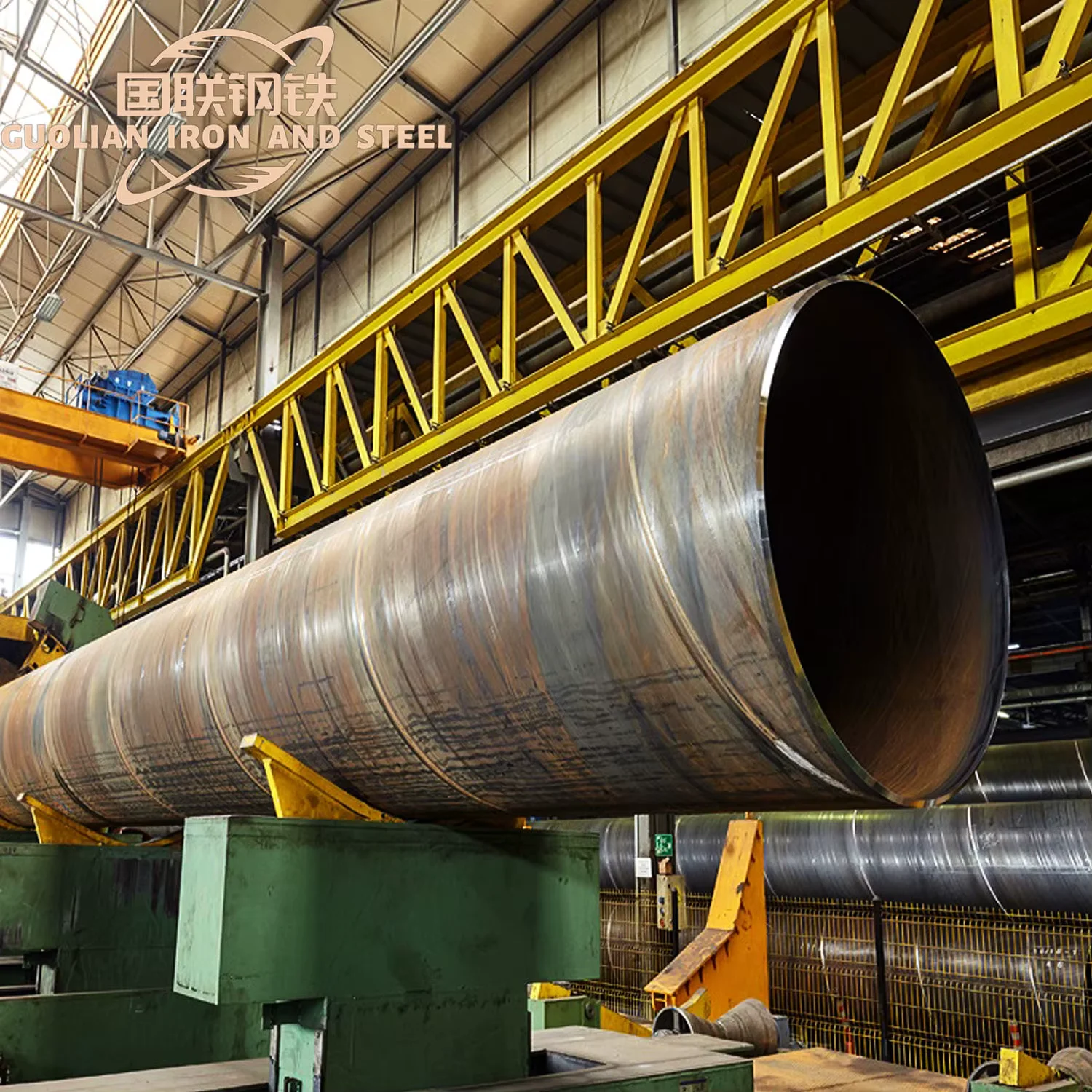

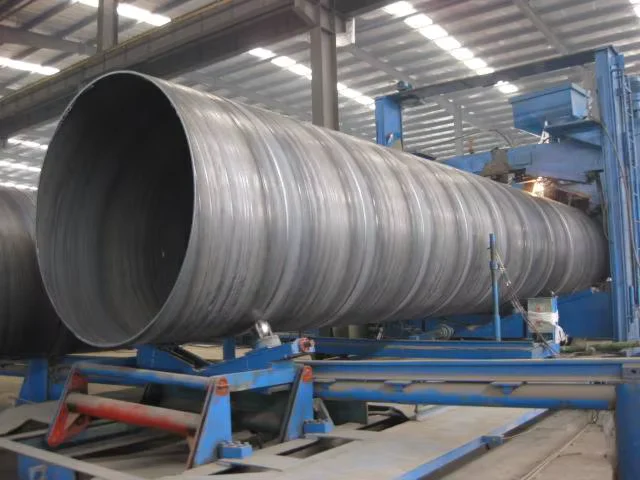

Our vertically integrated operation eliminates the traceability gap — we produce the hot-rolled coil in our own mill and fabricate it into SSAW pipe in the adjacent workshop, maintaining continuous heat number documentation from raw material to finished product. Every batch undergoes in-house dimensional verification using calibrated ultrasonic thickness gauges before coating application, ensuring wall thickness stays within GB standard tolerance bands. Our engineering team reviews shop drawings and provides fabrication sequencing support for complex piling layouts, reducing field-fit issues during installation. We maintain complete quality documentation packages including WPS records, weld maps, and coating thickness reports — the same documentation format required by international EPC auditors.
Documentation & Compliance
- Mill Test Certificate documenting Q235B chemical composition (C, Si, Mn, P, S content) and mechanical properties per GB/T 700 standard
- Material traceability report linking each pipe to specific coil heat number and production date
- Third-party inspection report from SGS or BV covering dimensional verification, coating thickness, and weld quality
- External coating certification confirming FBE or 3PE system application parameters and adhesion test results
- Export customs documentation including packing list, bill of lading, and certificate of origin for destination country clearance
Packaging, Loading & Delivery
- Q235B spiral pipe bundled with steel strips and edge protectors to prevent coating damage during ocean transit
- 3PE coated pipes wrapped with waterproof cloth and separated by rubber pads to preserve coating integrity
- Large diameter pipe (OD >1000 mm) loaded on wooden cradles with lashing points for secure container or breakbulk stowage
- Pipe length customized to 5.8 m or 11.8 m for optimal container loading, reducing shipping cost per meter
- Heat number and Q235B grade stenciled on each pipe end for site identification and traceability verification
- FOB Qingdao or CIF destination port delivery with complete export documentation package
Start Your Q235B Spiral Pipe Inquiry
Share your project drawings specifying outer diameter, wall thickness, length, coating type, and quantity — we respond within 24 hours with pricing, mill test certificate sample, and production timeline. For piling projects requiring large diameter pipe or special coating specifications, our engineering team provides material optimization recommendations based on your soil condition report and design loads.
Request Q235B Spiral Carbon Steel Pipe Quotation
Submit your specifications including OD, WT, length, coating requirement, and destination port to receive pricing with full material traceability documentation.
Shandong Xin Jiyuan Special Steel Tube Co., Ltd
Website: www.xjystructure.com
Tel: +86 531 8573 6315
Mobile/WhatsApp/WeChat: +86 188 5315 7756
Email: admin@xjystructure.com
Address: No.11889, Jingshi West Road, Lulian Group, Jinan City, Shandong Province, China
Frequently Asked Questions
Q: How does Q235B compare to S235JR or ASTM A252 for international piling projects?
A: Q235B meets GB/T 700 standard with minimum yield strength of 235 MPa, chemically and mechanically similar to S235JR per EN 10025. For ASTM A252 Grade 2 projects, we provide equivalence documentation and can arrange third-party certification to confirm compliance with your project specification.
Q: What external coating should I select for buried piling in marine environments?
A: For marine splash zones or highly corrosive soil conditions, 3PE (three-layer polyethylene) coating provides superior mechanical protection and moisture resistance compared to FBE. We apply coating systems per SY/T 0413 standard with thickness verification reports included in the quality documentation package.
Q: Can you produce non-standard lengths or special end treatments for my project?
A: Yes, we offer custom cutting to project-specific lengths beyond standard 5.8 m and 11.8 m, and can provide beveled ends for field welding, threaded and coupled ends for mechanical connection, or plain ends per your drawing requirements.
Q: How do you ensure wall thickness tolerance meets project requirements?
A: Each pipe undergoes ultrasonic thickness testing at multiple points along the length before coating application. We maintain tolerance within GB standard allowances and provide dimensional inspection reports with actual measurements for every heat number in your order.
Q: What is the typical production lead time for coated spiral pipe orders?
A: Standard Q235B SSAW pipe in common sizes ships within typical production lead times after order confirmation. Large diameter pipe with 3PE coating or custom lengths may require extended scheduling — we provide specific timeline after reviewing your order specifications.
