Description
Factory-Direct Supply with Full Certification Support — Vertically integrated steel mill and fabrication workshop delivering cold rolled galvanized steel plates with in-house cutting, welding, and complete mill test documentation for international projects.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | Q235 / SS400 Cold Rolled Galvanized Steel Plate |
| Product Type | Steel Plate |
| Steel Grade | Q235B, SS400, A36 |
| Standard | GB, ASTM, DIN |
| Section Shape | Flat Sheet / Plate |
| Thickness | 1.4mm – 1.45mm |
| Width | 1250mm |
| Length | 2500mm |
| Technique | Cold Rolled |
| Surface Treatment | Galvanized |
| Tolerance | ±1% |
| Processing Services | Bending, Cutting, Decoiling, Punching, Welding |
| Application | Building Construction, Shipbuilding, Boiler, Container, Pipe Making |
| MOQ | 1 Ton |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Building Construction | Roof purlins, wall cladding supports, light structural framing, mezzanine deck plates |
| Shipbuilding | Interior bulkhead panels, cabin partition sheets, non-structural deck overlays |
| Container Manufacturing | Floor support plates, corner casting reinforcement sheets, side wall liners |
| Boiler & Pressure Vessel | Outer casing wraps, insulation support sheets, access panel covers |
| Infrastructure & EPC Projects | Cable tray supports, equipment platform grating bases, conduit mounting plates |
What Dimensional Tolerance Costs When Thin Plates Arrive on Site
±1% tolerance on 1.4mm cold rolled galvanized steel plates means the difference between drop-in fit and costly on-site rework.
When overseas buyers receive thin-gauge plates for precision fabrication, even minor thickness deviation compounds across multiple cut pieces. A 0.02mm variance on a 1.4mm sheet may seem negligible — until welding gaps open up, bolt holes misalign, or coating thickness falls below minimum specification. Buyers who source plates and fabrication separately face fragmented accountability: the material supplier blames the fabricator, the fabricator blames the mill. With Cold Rolled Galvanized Steel Plate Q235 SS400 with Cutting and Welding Services integrated under one roof, dimensional control and welding quality sit within a single quality system — no gaps in the chain. [NEED_CITE: tolerance standards for cold rolled steel sheet per GB/T 708]
How 1.4mm Galvanized Plates Match Precision Fabrication Requirements
Thin-gauge cold rolled galvanized plates demand consistent zinc adhesion and predictable formability. At 1.4mm to 1.45mm thickness, these plates are typically used for non-load-bearing cladding supports, equipment enclosures, and container liner applications where weight reduction matters but corrosion resistance cannot be compromised. The cold rolling process delivers a smooth surface finish that accepts welding spatter control and post-fabrication touch-up coating more effectively than hot rolled alternatives. Our CNC cutting and plasma cutting lines hold the ±1% tolerance across full 1250mm × 2500mm sheets, ensuring that pre-punched holes and bent edges align when assemblies reach the project site. [NEED_CITE: galvanized coating adhesion requirements for cold rolled sheet]
Engineering Compliance and Certification for International Delivery
Structural plates exported to EU markets must comply with EN 1090 execution class requirements, while Middle East and Southeast Asian EPC projects often specify ASTM or GB equivalents. Q235B and SS400 share相近 mechanical properties and are frequently accepted as interchangeable grades under project-specific material approval procedures. The galvanized surface treatment provides baseline corrosion protection suitable for indoor and sheltered outdoor environments. For projects requiring third-party verification, SGS, BV, and TÜV inspections are conducted at our fabrication facility before shipment. Full material traceability from our own steel mill through to finished cut plates ensures that heat numbers on mill test certificates match every delivered bundle. [NEED_CITE: steel grade equivalence between Q235B and SS400]
Understanding Cold Rolled Galvanized Plate Production and Grade Selection
Cold rolling produces plates with tighter dimensional control and smoother surface finish compared to hot rolled products — critical for 1.4mm thin sheets where flatness and edge quality directly affect downstream fabrication. The galvanized coating applied after cold rolling provides uniform zinc coverage that protects cut edges and punched holes from early-stage corrosion during transit and site storage. Q235B, as a Chinese standard carbon structural steel, offers reliable weldability and formability for general fabrication. SS400, the Japanese industrial standard equivalent, is widely specified across Southeast Asian and Middle Eastern projects. A36 serves North American markets with similar yield characteristics. All three grades share comparable carbon content ranges, making MIG/MAG and SAW welding procedures transferable across grade substitutions with appropriate WPS qualification.
Hidden Costs of Sourcing Thin Plates from Disconnected Suppliers
When buyers purchase raw plates from one vendor and contract cutting services from another, material certification chains break. A mill test certificate issued for the original coil cannot be verified against cut pieces that have passed through multiple hands. Dimensional tolerance drifts between suppliers — the plate may meet thickness spec, but the cut pieces may not. For galvanized products, re-cutting or re-welding at the project site exposes bare steel edges that corrode before coating touch-up is applied. Engineering rework delays cascade through project schedules, particularly on EPC contracts where steel fabrication sits on the critical path. [NEED_CITE: material traceability requirements for structural steel per EN 1090]
Why Buyers Consolidate Plate Procurement and Fabrication with Us
Our facility operates three steel production lines with over 2,800 raw material specifications in stock — meaning your Cold Rolled Galvanized Steel Plate Q235 SS400 with Cutting and Welding Services order begins with material already on hand, not waiting for mill allocation. The in-house fabrication workshop handles CNC cutting, plasma cutting, bending, punching, and certified welding under one quality management system. Every plate carries full traceability back to our own steel mill heat numbers. Certified welding procedures per AWS and EN standards, with qualified welders on staff, eliminate the need for buyers to audit separate fabrication subcontractors. Complete documentation packages — WPS, PQR, weld maps, dimensional inspection reports, and coating thickness measurements — ship with every order.
Documentation & Compliance
- Mill Test Certificate documenting Q235B/SS400/A36 chemical composition and mechanical properties per GB/ASTM/DIN standards, with heat number traceability to our own steel mill
- CE certificate confirming EN 1090 execution class compliance for structural steel components exported to European Union markets
- ISO 9001 quality management system certificate covering the full production chain from raw steel to finished fabricated plates
- SGS or BV third-party inspection report available for pre-shipment verification of dimensional tolerance, coating thickness, and surface quality
- Material traceability documentation linking each cut plate to original coil heat number, cold rolling batch, and galvanizing line record
- Customs documents including packing list, bill of lading, and certificate of origin formatted for destination country import requirements
Packaging, Loading & Delivery

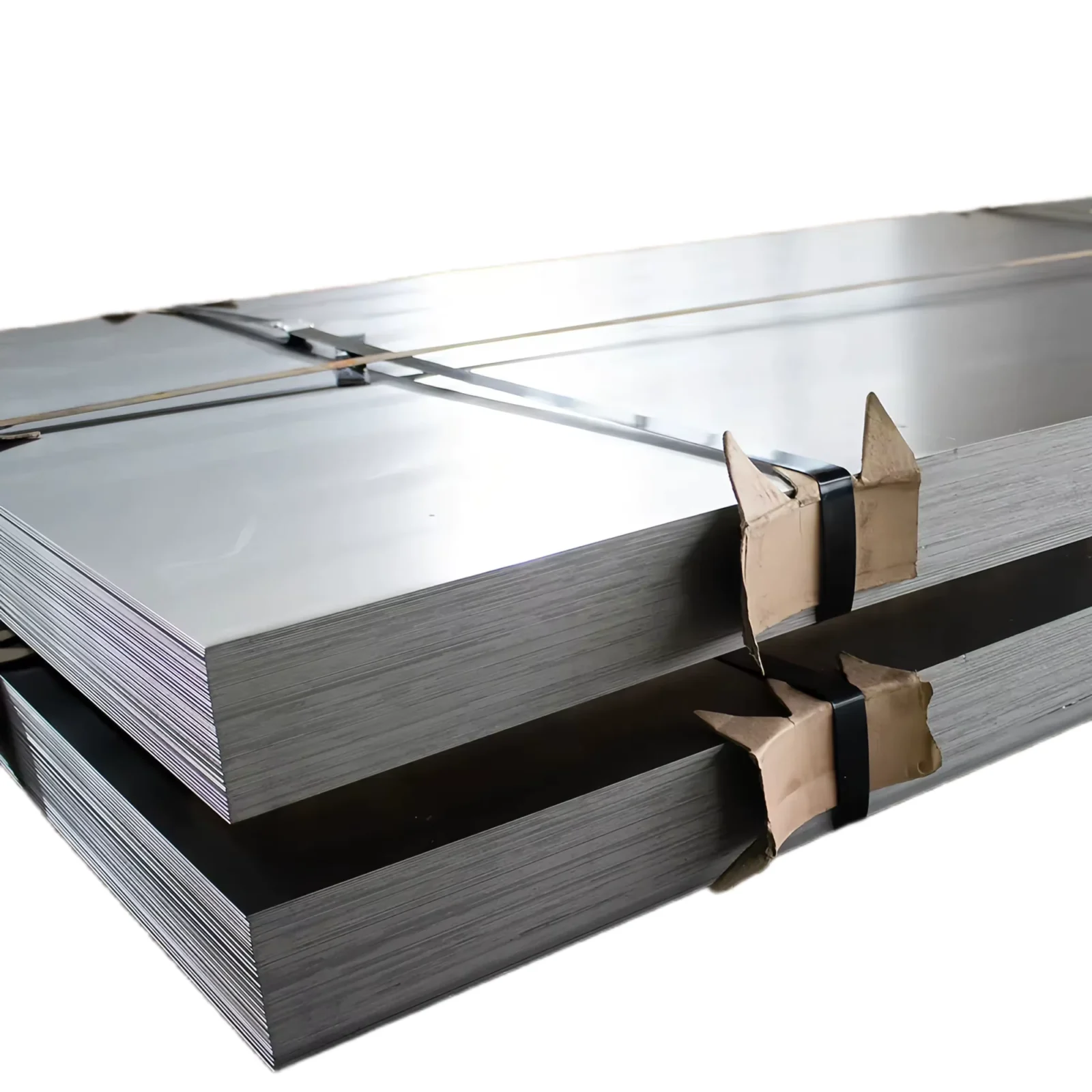

- Cold rolled galvanized plates bundled with steel strips and edge protectors to preserve zinc coating integrity during ocean transit
- Seaworthy packaging with moisture barrier interleave sheets preventing white rust formation on galvanized surfaces during container shipping
- 1250mm × 2500mm sheets optimized for 20ft and 40ft container loading with weight distribution calculated to maximize payload within road transport limits
- Custom cutting to project-specific dimensions available, with cut pieces labeled by heat number and steel grade for site identification
-唛头 marking each bundle with steel grade designation, thickness, heat number, and purchase order reference for receiving inspection verification
- FOB, CIF, and DDP shipping terms supported with professional oversized cargo loading plans and complete export documentation
How to Initiate Your Plate Fabrication Inquiry
Submit your project drawings in PDF or DWG format along with steel grade requirements, thickness specifications, and required international standards. Our engineering team responds within 24 hours with a preliminary assessment including shop drawing timeline, production schedule, and detailed quotation covering material, fabrication, coating, packing, and shipping costs. Confirm certification requirements and third-party inspection needs at the inquiry stage to ensure documentation packages align with your project’s compliance framework.
Frequently Asked Questions
Q: Can Q235B and SS400 plates be used interchangeably on the same project?
A: Q235B and SS400 share similar carbon content and mechanical property ranges, making them frequently accepted as equivalent grades under project-specific material approval. However, final acceptance depends on the engineer of record and the applicable design code. We provide mill test certificates for both grades so your project team can verify compliance before fabrication begins.
Q: What tolerance can be expected on CNC-cut pieces from 1.4mm galvanized plates?
A: Our cold rolled galvanized plates are produced to ±1% thickness tolerance. CNC cutting maintains dimensional accuracy suitable for precision fabrication applications. For projects requiring tighter tolerances on specific dimensions, our engineering team reviews shop drawings before production to confirm capability and advise on any design adjustments.
Q: Is third-party inspection available before shipment?
A: SGS, BV, and TÜV inspections are conducted at our facility. Inspections cover dimensional verification, coating thickness measurement, surface quality assessment, and documentation review. Inspection scheduling is coordinated during the production planning phase to avoid delivery delays.
Q: What is the minimum order quantity for processed plates with cutting and welding?
A: The MOQ is 1 Ton for cold rolled galvanized steel plates. Processed plates with custom cutting, bending, or punching follow the same minimum, though complex fabrication with extensive welding may be quoted by project scope rather than weight.
Q: How is the galvanized coating protected during shipping?
A: Plates are bundled with edge protectors and moisture barrier interleave sheets. Bundles are secured with steel strips and loaded with weight distribution optimized for container transport. This packaging approach prevents zinc coating damage from edge contact and moisture exposure during ocean transit.
Get Your Cold Rolled Galvanized Steel Plate Quote with Full Mill Certification
Share your project specifications, steel grade requirements, and destination port to receive a detailed quotation with mill test certificate preview and production timeline.
