Description

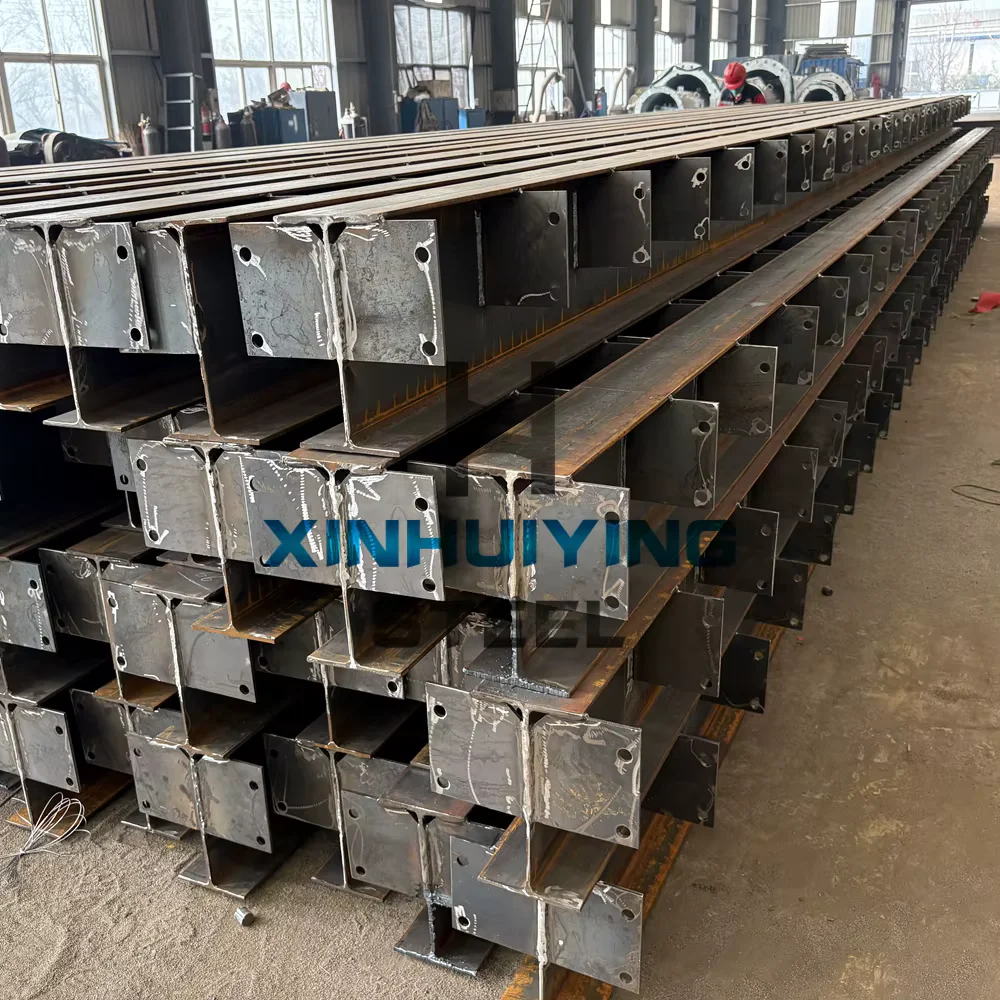

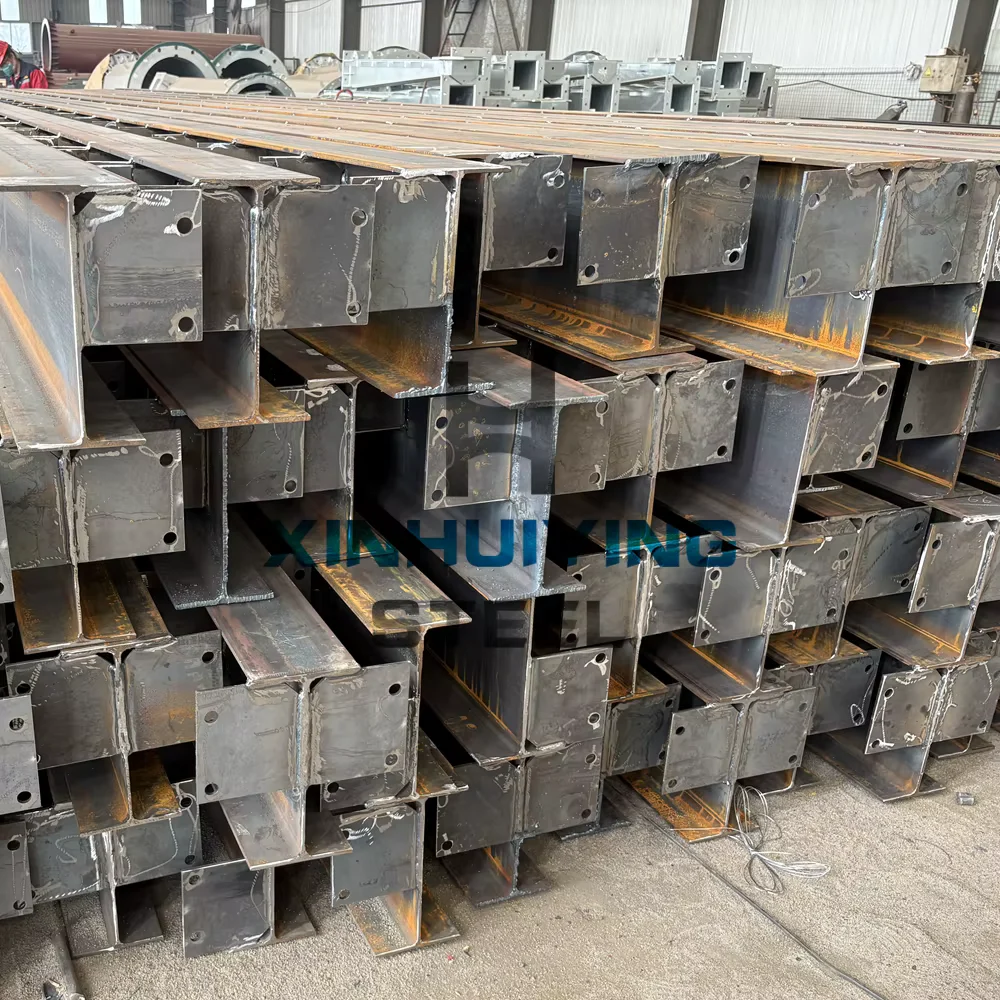

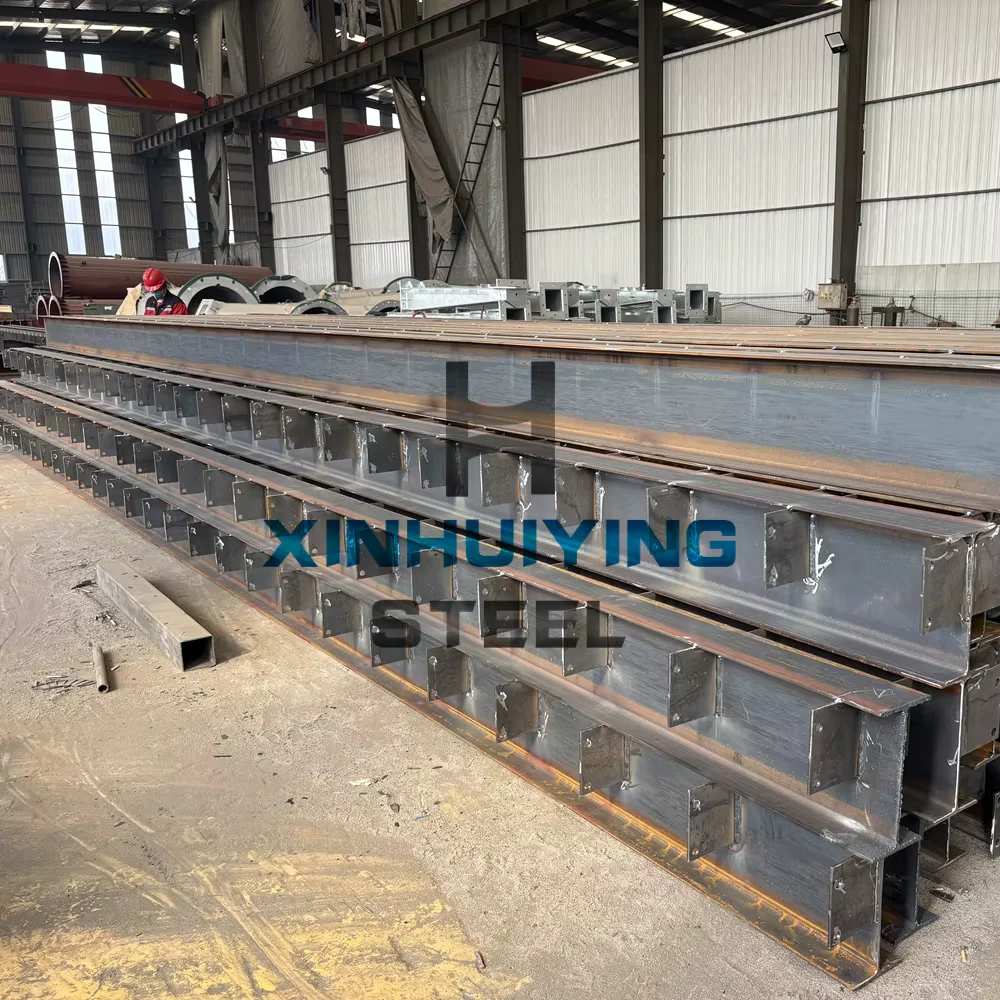

Direct Mill Fabrication — Zero Middlemen — Raw steel from our own production lines flows directly into CNC fabrication, giving you one price, one quality system, and one point of accountability for every Q355B and S355JR fabricated structural steel H-beam and column.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | Q355B / S355JR Fabricated Steel H-Beam & Column |
| Product Type | Fabricated Welded H-Section (Beam / Column) |
| Steel Grade | Q235B, Q355B, S355JR, AS/NZS Grade 300 |
| Standard | GB |
| Section Shape | Fabricated Welded H-Section |
| Length | Custom Length |
| Technique | CNC Cutting, Automatic Welding, Pre-drilling |
| Surface Treatment | Mild Steel / Hot-dip Galvanized / Powder Coating / Painting |
| Tolerance | ±1% |

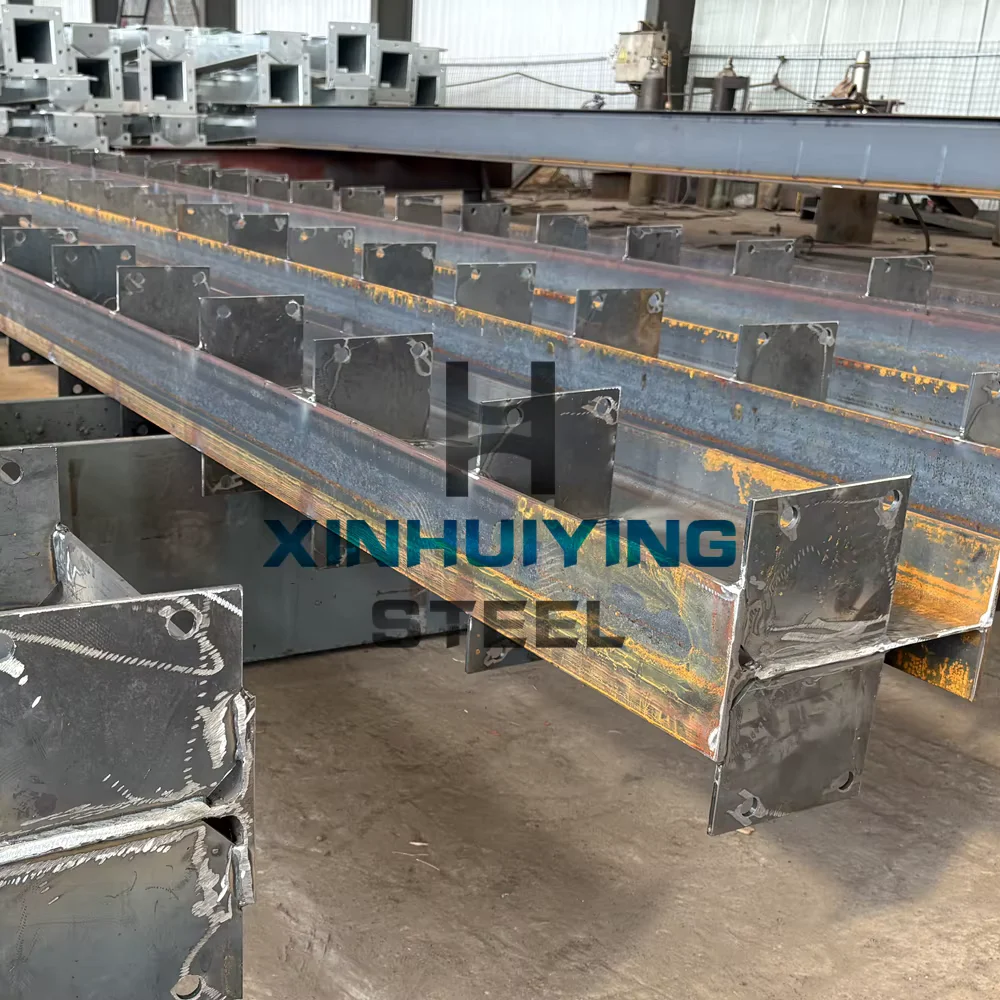

| Connection Preparation | Pre-drilled Holes, Welded Connection Plates / Brackets |
| Processing Service | Cutting, Punching, Welding, Bending, Decoiling, Galvanizing, Coating |
| Application | Steel Structure Bridge, Workshop / Warehouse Structural Frames, Industrial Platform Supports, Factory Building, Modular Buildings, Solar Support Structures |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Industrial Construction | Workshop and warehouse structural frames, factory building columns and rafters |
| Infrastructure | Steel structure bridge girders, cross-beam assemblies, platform supports |
| Renewable Energy | Solar support structures, mounting frame systems |
| Modular Construction | Prefabricated building frames, modular unit connection assemblies |
Why Pre-Drilled Connection Plates Decide Your Erection Schedule on Site
Hole misalignment is the single most expensive fabrication error for overseas steel structure buyers.
I have seen entire container loads of fabricated beams arrive at a Middle East warehouse site only to find that the connection plates were drilled to theoretical shop dimensions without accounting for the installer’s bolt tolerance window. Thirty-plus beams needed on-site reaming, and the project schedule slipped two weeks. When you source a Custom Fabricated Structural Steel H-Beam Supplier that does not lock shop drawing sign-off before cutting, you absorb that risk yourself. The gap between a fabricator who sources steel from third-party mills and one who rolls, welds, and drills in-house is not just cost — it is traceability. When material certificates, weld maps, and dimensional reports come from a single integrated facility, there is no finger-pointing between the steel mill and the welding shop. [NEED_CITE: structural steel fabrication quality control standards for international projects]
Matching Fabricated H-Beams to Warehouse and Bridge Load Requirements
A Custom Fabricated Structural Steel H-Beam Supplier that understands load path continuity will fabricate welded H-sections with flange-to-web penetration welds sized for the specific moment and shear demands of your frame. For warehouse portals spanning 20 to 30 meters, the H-beam depth and flange width are optimized during shop drawing review — not picked from a catalog. Our engineering team checks connection geometry against your erection sequence before any steel is cut, because a column base plate with misaligned anchor bolt holes will halt an entire bay erection.
Engineering Compliance and Surface Protection for Harsh Environments
Structural frames for industrial plants in coastal or high-humidity zones demand surface treatment decisions that go beyond aesthetics. Hot-dip galvanizing provides sacrificial zinc protection for exposed bridge components, while powder coating or multi-layer painting systems suit indoor warehouse frames where appearance matters. Every coating application is documented with thickness measurement reports tied to the specific heat number of the base steel. For projects requiring EN 1090 or AISC compliance, the welding procedures and welder qualifications are prepared and audited before production begins — not assembled retroactively to pass inspection. [NEED_CITE: EN 1090 execution class requirements for fabricated structural steel]
Steel Grade Selection and Welding Process Fundamentals
Q355B and S355JR represent the workhorse grades for fabricated structural steel across Asian, European, and Oceanian markets. Both deliver higher yield strength than Q235B, allowing lighter sections for the same load capacity — a direct cost saving on shipping and erection. The S355JR designation under EN standards and Q355B under GB standards share comparable mechanical profiles, though chemical composition limits differ slightly, which affects weldability parameters. Our automatic submerged arc welding process maintains consistent penetration on H-beam flange-to-web joints across thicknesses, while CNC pre-drilling ensures bolt-hole positioning matches the approved shop drawing within ±1% tolerance. For projects specifying AS/NZS Grade 300, the same fabrication line and quality documentation package applies — the mill test certificate simply references the equivalent standard.
The Hidden Cost of Accepting Unverified Fabrication
When a Custom Fabricated Structural Steel H-Beam Supplier cannot provide mill test certificates traceable to the original heat number, the buyer inherits the risk of unverified chemistry and mechanical properties. A beam that fails third-party NDT on site does not just cost the price of replacement steel — it triggers re-engineering of connected members, re-coating of adjacent components, and schedule delays that cascade through the entire project. Certification gaps also create customs clearance problems: several importing countries now require EN 1090 CE marking or equivalent fabrication certification before releasing structural steel at the port. [NEED_CITE: steel grade equivalence between GB, EN, and ASTM standards]
Why Integrated Mill-and-Fabrication Sourcing Reduces Your Risk
Our facility operates three steel production lines alongside the fabrication workshop, meaning the Q355B and S355JR plate and coil that enters the CNC cutting bay was rolled in-house — not purchased from a spot-market trader. This vertical integration gives you a single Mill Test Certificate covering both the raw material and the finished fabricated component. Every Custom Fabricated Structural Steel H-Beam and column we ship carries a complete documentation package: WPS and PQR records, weld maps linking each joint to a qualified welder, dimensional inspection reports, and coating thickness measurements. For buyers in the EU, Middle East, Southeast Asia, and Africa, we have delivered projects requiring EN 1090, AWS, and AISC compliance — with third-party inspection by SGS or BV available at any production stage.
Documentation & Compliance
- Mill Test Certificate documenting Q355B and S355JR chemical composition and mechanical properties per GB standard, traceable to original heat number
- Welding Procedure Specification (WPS) and Procedure Qualification Record (PQR) for submerged arc welding of fabricated H-sections
- Dimensional inspection report confirming ±1% tolerance on pre-drilled hole positions and overall member length
- Coating thickness measurement report for hot-dip galvanized, powder coated, or painted surface finishes
- Welder qualification certificates per AWS or EN standards for all structural welds
- Third-party inspection report from SGS or BV available upon request

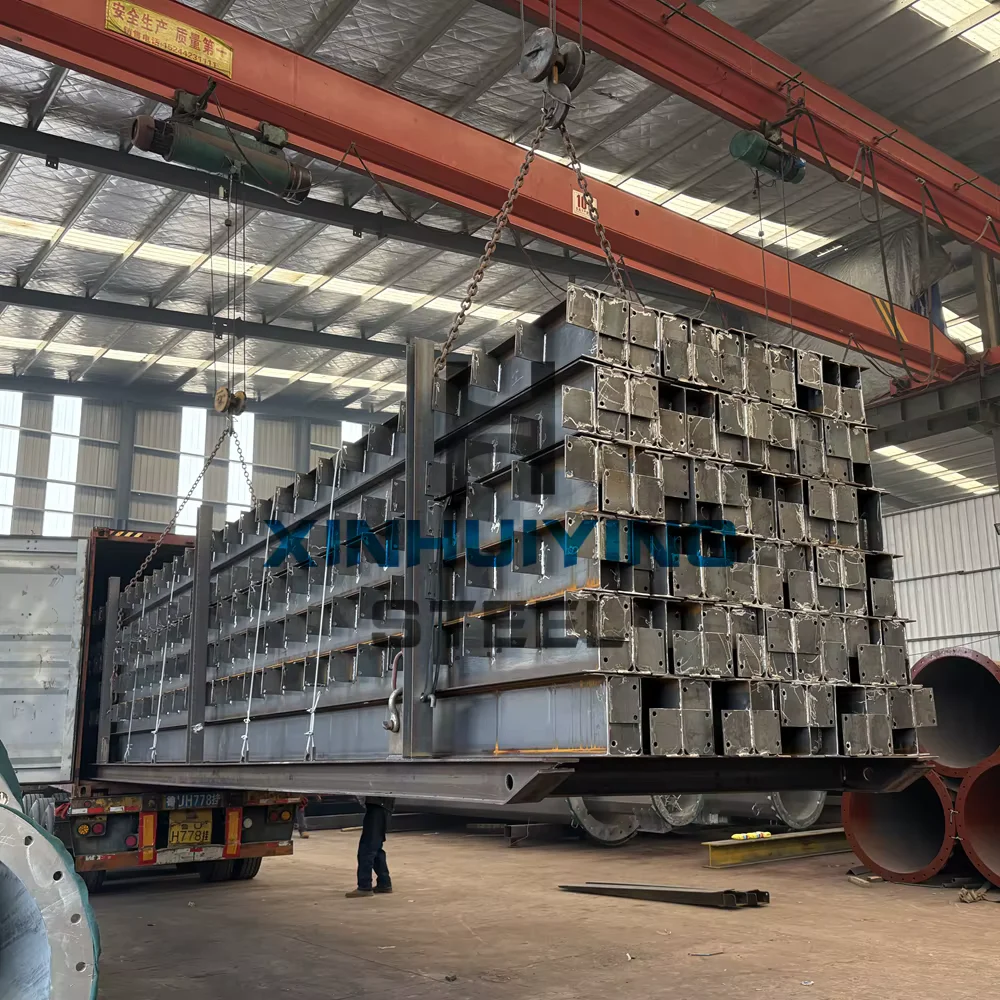

Packaging, Loading & Delivery
- Fabricated H-beams and columns bundled with steel strip bands and edge protectors to prevent coating damage during transit
- Hot-dip galvanized members separated by timber dunnage to preserve zinc layer integrity across ocean shipments
- Custom-length members loaded with specialized bracing for oversized cargo, maximizing container utilization for 20ft and 40ft units
- Heat number and steel grade stenciled on each member for on-site traceability and installation sequencing
- Complete export documentation package including packing list, bill of lading, and certificate of origin prepared before vessel departure
- FOB, CIF, and DDP shipping terms available with door-to-door tracking for project sites
How to Move from Drawing to Fabrication Contract
Send your project drawings in PDF or DWG format along with steel grade requirements, surface treatment preference, and target standards. Our engineering team responds within 24 hours with a preliminary assessment, followed by a detailed quotation covering material, fabrication, coating, packing, and shipping. Shop drawings are prepared for your approval before any steel is cut — eliminating the hole-mismatch problems that cost projects weeks of delay.
Frequently Asked Questions
Q: What is the difference between Q355B and S355JR for fabricated structural steel?
A: Both grades offer comparable yield strength levels suitable for structural frames. Q355B follows the GB standard commonly specified in Asian markets, while S355JR follows EN standards for European and international projects. Chemical composition limits differ slightly, which may affect welding parameters — our engineering team reviews your specification to confirm the appropriate grade before fabrication.
Q: How does the shop drawing approval process work before fabrication begins?
A: After contract signing and deposit receipt, our engineering team prepares detailed shop drawings showing member dimensions, hole positions, connection plate details, and welding symbols. You review and approve these drawings before any material is cut or welded. This sign-off step prevents field-fit problems and ensures every Custom Fabricated Structural Steel H-Beam matches your erection sequence.
Q: Can you fabricate non-standard H-beam sizes and custom connection details?
A: Yes. Our CNC cutting and automatic welding lines handle custom-length members with non-standard flange widths, web depths, and connection plate configurations. There is no minimum order quantity for standard grades — we fabricate to your project drawings regardless of batch size.
Q: What surface treatment options are available for different environments?
A: We offer hot-dip galvanizing for outdoor and corrosive environments, powder coating for aesthetic and moderate protection requirements, and multi-layer painting systems for indoor or controlled environments. Each option is documented with coating thickness reports tied to the specific heat number of the base steel.
Q: What export documentation do you provide for customs clearance?
A: Every shipment includes a complete documentation package: Mill Test Certificates, packing list, bill of lading, certificate of origin, and coating inspection reports. For projects requiring EN 1090 CE marking or third-party inspection, we arrange SGS or BV certification before delivery.
Get Your Fabrication Quote with Full Material Traceability
Submit your project drawings, steel grade, and quantity to receive a detailed quotation and Mill Test Certificate sample within 24 hours.
