Description
Factory-Direct Galvanized Supply — Hot-dip galvanized square tubes produced from our own steel mill raw material through to finished coating, eliminating third-party sourcing gaps for S235 and S275 grades.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | S235 S275 Galvanized Square Steel Tube |
| Product Type | Galvanized Square Steel Tube |
| Steel Grade | S235, S275, 20# |
| Standard | JIS, ASTM A53, API |
| Section Shape | Square |
| Size | Customized |
| Length | 6 m, 12 m (customizable: 5.8 m, 6 m, 11 m) |
| Technique | Hot-dip Galvanizing |
| Surface Treatment | Hot-dip Galvanized |
| Tolerance | ±1% |
| Ends | Plain, Beveled, Threaded, Grooved |
| Application | Construction, Infrastructure, Manufacturing, Fluid transport, Hydraulic systems, Machine parts |
| MOQ | 1 Ton |
| Processing Service | Welding, Punching, Cutting, Bending |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Construction & Infrastructure | Building frames, column supports, roof trusses, stairway structures |
| Manufacturing | Conveyor frames, machine base structures, hydraulic system piping |
| Fluid Transport | Water supply lines, low-pressure fluid delivery systems |
| EPC Projects | Industrial plant structural supports, platform framing, equipment skids |
What Coating Inconsistency Costs on a Galvanized Square Steel Tube Order
Zinc thickness variation is the single most common reason for site rejection on galvanized hollow sections.
When buyers source galvanized tubes from a fabricator who purchases black tubes from one mill and sends them out for galvanizing to another vendor, the coating process is never fully controlled. I have seen entire shipments rejected at port because the zinc layer peeled during transport — the galvanizer had rushed the immersion timing to clear a backlog. With XJY Structure operating as a Galvanized Square Steel Tube Supplier with vertically integrated production, the black tube is galvanized in-house immediately after fabrication, so coating adhesion and thickness stay within spec from the first piece to the last. Material traceability runs continuously from steelmaking heat number through to the final galvanizing bath record. [NEED_CITE: hot-dip galvanizing coating adhesion standards for structural hollow sections]
Matching Galvanized Square Tubes to Structural and Corrosive Environments
Hot-dip galvanizing deposits a metallurgically bonded zinc-iron alloy layer that resists corrosion far longer than paint or electroplating in outdoor and humid conditions. For construction frames and infrastructure supports exposed to weather, S235 and S275 grades provide adequate structural strength while the galvanized coating eliminates the need for on-site repainting. The Galvanized Square Steel Tube Supplier delivers customized lengths — 5.8 m, 6 m, 11 m, or 12 m — so project teams can match standard bay spacings and reduce field cutting waste. Multiple end configurations (plain, beveled, threaded, grooved) allow direct bolted or welded connections without additional machining at the job site.
Engineering Compliance and Certification Requirements
Structural hollow sections used in load-bearing frames must conform to dimensional and material standards recognized by the project’s governing code. For European markets, EN 10219 governs cold-formed welded structural hollow sections, while ASTM A53 applies to galvanized pipe used in fluid transport and light structural roles across North America. Our Galvanized Square Steel Tube production meets JIS, ASTM A53, and API standards, with full Mill Test Certificates documenting chemical composition and mechanical properties per heat number. [NEED_CITE: EN 10219 dimensional tolerance requirements for cold-formed structural hollow sections] Galvanized coatings are inspected for thickness uniformity and adhesion, with reports included in the export documentation package. Third-party inspection through SGS or BV can be arranged before shipment for projects requiring independent verification.
Understanding S235, S275, and 20# Steel Grades in Galvanized Applications
S235 and S275 are European standard structural steel grades where the number indicates minimum yield strength in MPa — S275 offers higher load-bearing capacity than S235, making it suitable for heavier structural frames. The 20# grade is a Chinese standard carbon structural steel commonly used in domestic construction and fluid transport applications, offering good weldability and formability. Hot-dip galvanizing involves immersing the fabricated square tube in a molten zinc bath at approximately 450°C, creating a series of zinc-iron alloy layers that bond metallurgically to the steel substrate. This process provides corrosion protection lasting decades in most atmospheric conditions, far exceeding the service life of painted surfaces. The ±1% dimensional tolerance ensures that fabricated connections fit as designed, while the square section provides uniform strength in all directions — an advantage over angle or channel sections in compression members.
Hidden Costs of Sourcing Galvanized Tubes Without Verified Certification
Purchasing galvanized square tubes without verified Mill Test Certificates creates risk across the entire project lifecycle. Material that fails to meet the specified grade can pass visual inspection but crack during welding or deflect under design loads, triggering structural safety concerns and costly remediation. [NEED_CITE: consequences of non-conforming steel materials in structural applications] Coating thickness below specification leads to premature corrosion, forcing early maintenance or replacement. Customs authorities in many markets now require documented proof of material compliance — shipments without proper certification face delays, re-inspection fees, or outright rejection at the border.
Why Project Teams Source from XJY Structure
XJY Structure operates as a Galvanized Square Steel Tube Supplier with fully integrated production — our own steel mill produces the raw material, our fabrication workshop cuts, welds, and shapes the tubes, and our galvanizing line applies the coating. This vertical integration means one quality system tracks material from steelmaking heat number through to final coating inspection, eliminating the traceability gaps that occur when black tubes are purchased from third parties and sent out for galvanizing. We maintain 2,800+ specifications in raw material inventory, allowing rapid fulfillment of both standard and custom sizes. Our engineering team reviews shop drawings before production begins, catching dimension conflicts early. Certified welding procedures and qualified welders per AWS/EN standards ensure fabrication quality meets international project requirements. Professional packing and loading teams understand the specific handling needs of galvanized coatings — edge protectors and proper lashing prevent zinc damage during ocean transit. Complete export documentation packages include Mill Test Certificates, coating inspection reports, dimensional checks, and customs paperwork.
Documentation & Compliance
- Mill Test Certificate documenting S235 and S275 chemical composition and mechanical properties per heat number, traceable to our own steelmaking facility
- Third-party inspection reports from SGS or BV verifying coating thickness, dimensional accuracy, and material compliance before shipment
- Hot-dip galvanized coating inspection reports confirming zinc layer thickness and adhesion per project specifications
- Complete customs documentation package including packing list, bill of lading, and certificate of origin for smooth border clearance
- Welding procedure specifications (WPS) and procedure qualification records (PQR) for any fabricated connections or welded assemblies
Packaging, Loading & Delivery

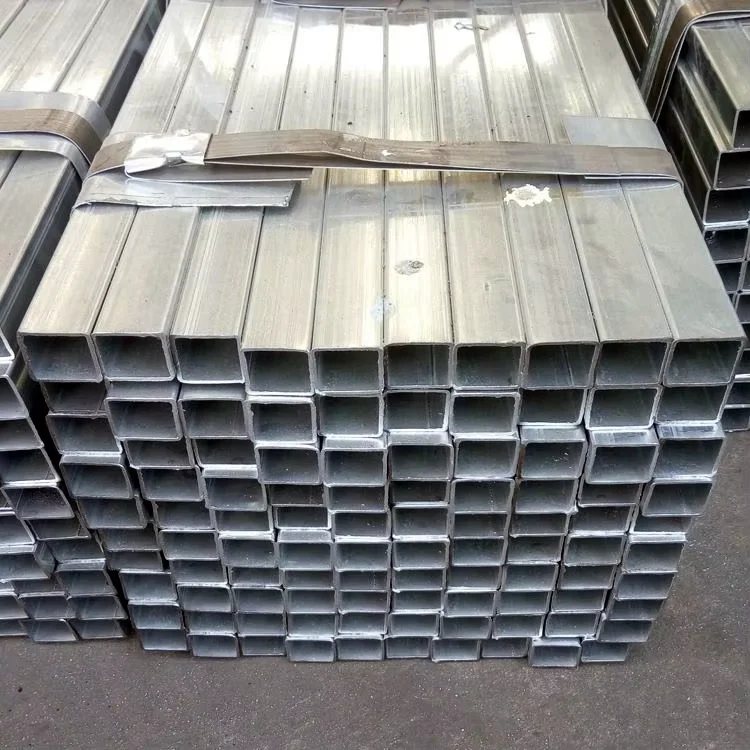

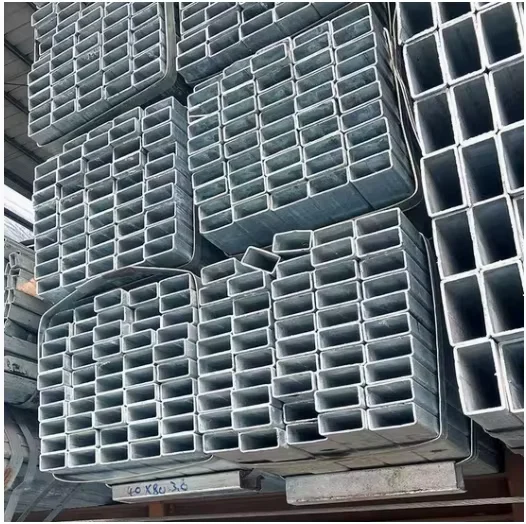

- Galvanized square tubes bundled with steel strips and edge protectors to preserve the zinc coating during handling and ocean transit
- Customized lengths (5.8 m, 6 m, 11 m, 12 m) optimized for container loading to maximize payload while preventing coating damage from shifting
- Heat number and steel grade markings clearly stenciled on each bundle for site identification and traceability verification
- Surface protection maintained through proper separation between tubes and container walls, preventing zinc abrasion during transport
- FOB, CIF, and DDP shipping terms available with professional loading plans for oversized or heavy galvanized tube shipments
Initiating Your Galvanized Square Steel Tube Inquiry
Project teams ready to move forward should submit project drawings or specifications including steel grade (S235, S275, or 20#), required dimensions, lengths, end configurations, and quantity. Our engineering team responds within 24 hours with a preliminary assessment and detailed quotation covering material, fabrication, galvanizing, packing, and shipping costs. We can confirm certification requirements, arrange third-party inspection, and provide shop drawing review before production begins.
Request Your Galvanized Square Steel Tube Quotation
Share your project specifications — steel grade, dimensions, quantities, and destination port — to receive a detailed quotation with Mill Test Certificate documentation and production timeline.
