Description

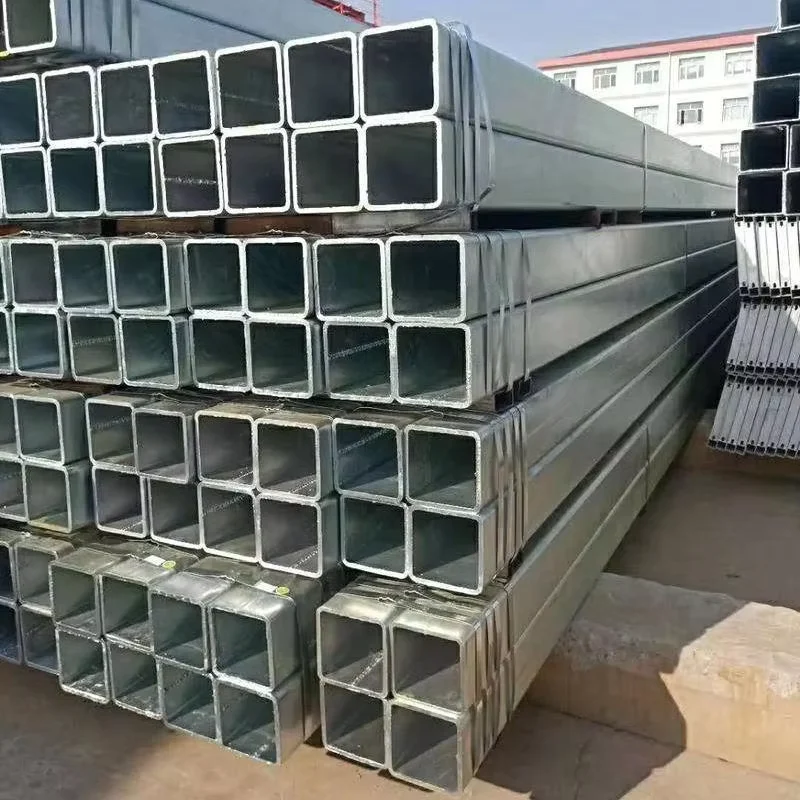

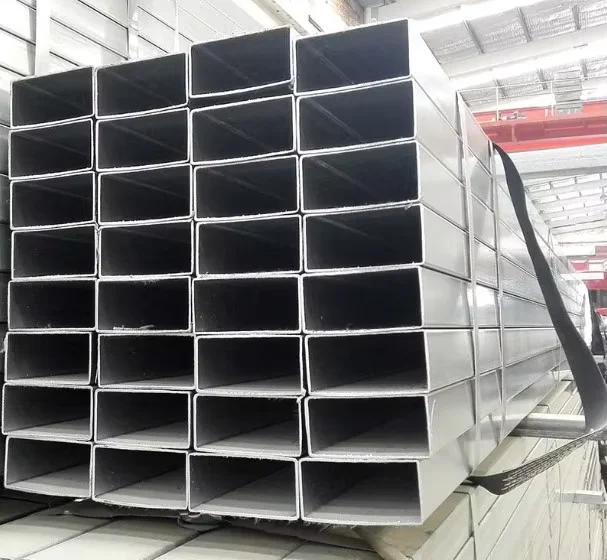

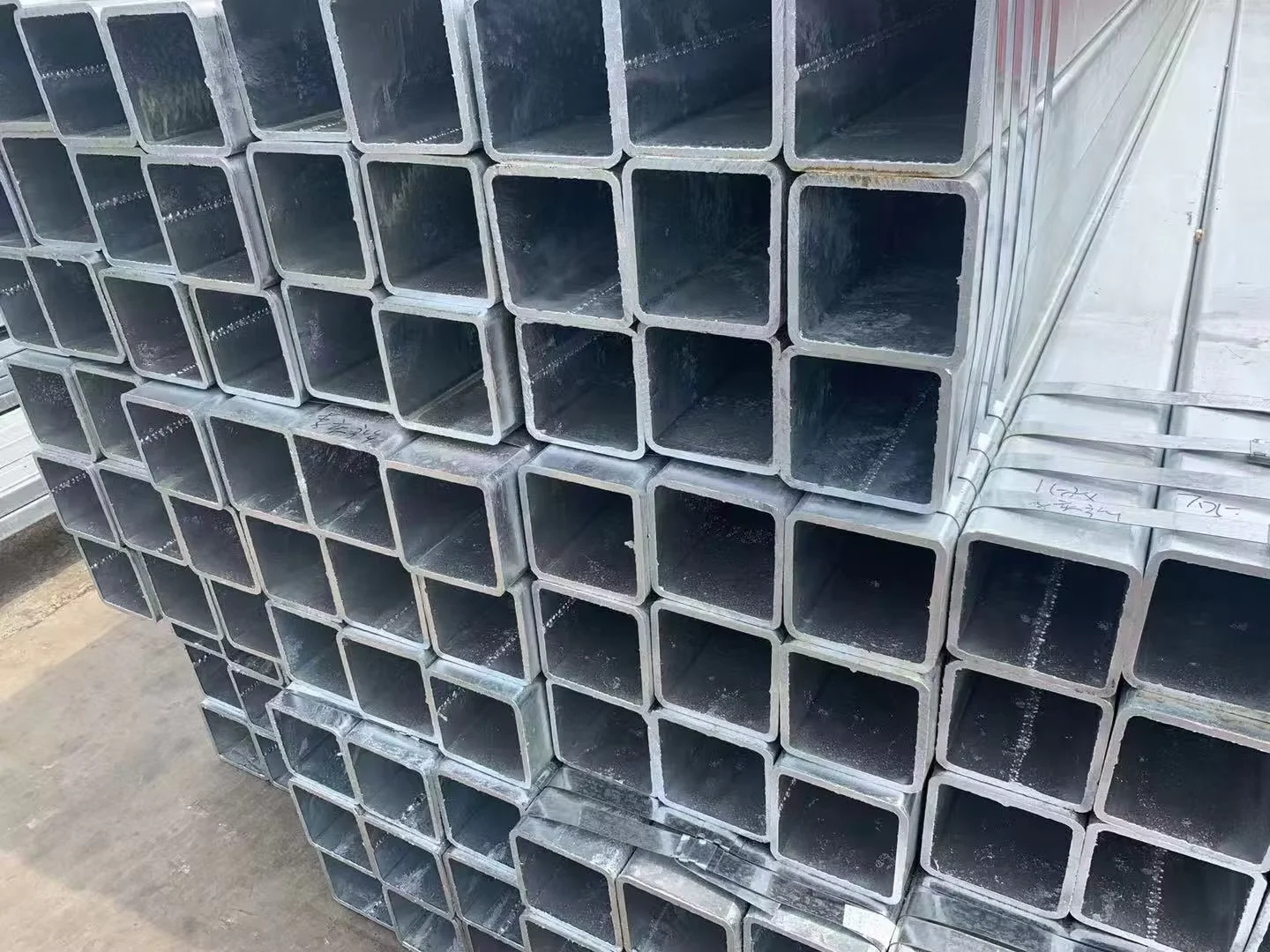

Vertically Integrated Hot-Dip Galvanizing — Own steel mill and galvanizing line ensure full material traceability from billet to finished S235 S275 SS400 Galvanized Square Steel Tube.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | S235 S275 SS400 Galvanized Square Steel Tube |
| Product Type | Galvanized Square Steel Tube |
| Steel Grade | S235, S275, SS400, 20# |
| Standard | JIS, API, ASTM A53 |
| Section Shape | Square |
| Size Range | Customized |
| Length | 6 m / 12 m (Customizable) |
| Technique | Hot-dip galvanizing |
| Surface Treatment | Hot-dip Galvanized |
| Tolerance | ±1% |
| Ends | Plain, Beveled, Threaded, Grooved |
| Processing Service | Welding, Punching, Cutting, Bending |
| Application | Hydraulic systems, Fluid transport, Machine parts, Structural frames, Construction |
| MOQ | 1 Ton |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Construction & EPC | Building frames, column supports, roof truss bracing |
| Infrastructure | Highway guardrail posts, sound barrier frames, bridge handrails |
| Industrial Manufacturing | Machine base frames, conveyor support structures, equipment platforms |
| Fluid & Hydraulic | Hydraulic cylinder barrels, fluid transport manifolds, pump housings |
| Warehouse & Logistics | Racking uprights, mezzanine floor columns, loading dock frames |
What Wall-Thickness Tolerance Costs on a Galvanized Square Steel Tube Order
A ±1% tolerance on a hot-dip galvanized square tube is not a number — it is the difference between passing SGS inspection at destination or facing a full-container return.
Early in my career, I shipped a container of galvanized square tubes to a warehouse project in Monterrey. The buyer’s SGS re-inspection found wall thickness negative tolerance exceeded acceptable limits. Theoretical weight and actual weight diverged significantly. The entire container was rejected and returned for rework. Since then, I write actual measured wall thickness into every contract — even if it means a slightly higher per-ton price. When sourcing a Galvanized Square Steel Tube Supplier, fragmented supply chains where the fabricator buys black tubes from one mill and sends them to a separate galvanizer create gaps in material certification. You cannot verify which heat number produced which tube. Coating adhesion suffers when the substrate chemistry is unknown. Dimensional tolerance compounds across two independent processors. [NEED_CITE: hot-dip galvanizing coating adhesion requirements for structural steel]
Matching Structural Frames and Fluid Systems to Hot-Dip Galvanized Protection
Hot-dip galvanized square steel tubes in S235, S275, and SS400 grades serve dual roles: structural framing where corrosion resistance matters, and fluid transport where internal zinc protection extends service life. The hot-dip process coats all surfaces — external and internal — unlike spray-coated alternatives. For EPC contractors building warehouses in coastal or humid environments, this means the Galvanized Square Steel Tube Supplier must deliver consistent zinc thickness across every length, not just on visible faces. Our vertically integrated production controls the entire chain: steelmaking, tube forming, and hot-dip galvanizing happen under one quality system.
Engineering Compliance and Certification Requirements
Structural frames designed to EN 1993 or AISC standards require documented material properties and consistent geometry. Hot-dip galvanized square tubes must meet coating thickness standards — typically 45–85 μm depending on steel thickness — verified by magnetic gauge testing. For projects entering the EU, EN 10219 compliance for cold-formed hollow sections governs dimensional tolerances and chemical composition limits. ASTM A53 covers our SS400 and 20# grades for fluid transport applications. Third-party inspection by SGS or BV confirms coating weight, adhesion, and dimensional accuracy before shipment. [NEED_CITE: EN 10219 cold-formed structural hollow section tolerance requirements]
Steel Grade Selection and Hot-Dip Galvanizing Process
S235, S275, and SS400 represent different yield strength tiers — S235 for general structural use, S275 for moderately loaded frames, SS400 for Japanese-standard projects requiring higher tensile properties. The 20# grade serves low-pressure fluid applications per ASTM A53. Hot-dip galvanizing immerses formed tubes in molten zinc at approximately 450°C, creating a metallurgical bond with the steel substrate. This produces a coating of zinc-iron alloy layers topped by pure zinc — far more durable than electro-galvanized alternatives for outdoor or corrosive environments. The ±1% dimensional tolerance ensures that cut lengths, welded connections, and bolted joints fit as engineered, without field rework. Negative tolerance beyond specification reduces load-bearing capacity and triggers rejection at project inspection.
Hidden Costs of Incorrect Galvanized Square Tube Procurement
Choosing the lowest per-ton price without verifying actual wall thickness and zinc coating weight leads to predictable failures: customs holds due to missing MTCs, on-site welding failures from excessive zinc on faying surfaces, and structural rejection when load tests reveal undersized sections.
Material traceability gaps — where the galvanizer cannot identify which heat produced which tube — void certification for regulated projects. Coating thickness below specification accelerates corrosion in industrial or marine environments. [NEED_CITE: material traceability requirements for structural steel in construction projects]
Why Project Teams Source Galvanized Square Steel Tubes From Us
We operate our own steel mill with three production lines and over 2,800 specifications in raw material inventory. This means the S235, S275, SS400, and 20# grades in your order come from our own heats — not purchased from third parties with unknown provenance. Our hot-dip galvanizing line processes tubes immediately after forming, eliminating storage corrosion and coating contamination. Every bundle carries heat number markings matching the Mill Test Certificate. We provide shop drawing review, material optimization, and fabrication sequencing support — cutting, welding, punching, and bending services performed in-house with certified welding procedures per AWS and EN standards. Complete quality documentation travels with every shipment: WPS, PQR, weld maps, dimensional inspection reports, and coating thickness reports.
Documentation & Compliance
- Mill Test Certificate documenting S235, S275, SS400, and 20# chemical composition and mechanical properties per JIS, API, and ASTM A53 standards
- CE certificate confirming EN 10219 compliance for structural hollow sections exported to European markets
- ISO 9001 quality management certificate covering steelmaking, tube forming, and hot-dip galvanizing processes
- SGS or BV third-party inspection report verifying zinc coating thickness, adhesion, and dimensional tolerance before shipment
- Full material traceability by heat number from our own steel mill through galvanizing and final inspection
- Complete customs documentation including packing list, bill of lading, and certificate of origin for destination clearance
Packaging, Loading & Delivery
- Hot-dip galvanized square tubes bundled with steel strips and edge protectors to preserve zinc coating during ocean transit and prevent corner damage
- Surface protection maintained through proper stacking separation — galvanized tubes never contact bare steel to avoid bimetallic contamination
- Container loading optimized for 6 m and 12 m customizable lengths, maximizing payload while respecting weight distribution for oversized structural sections
- Custom cut-to-length service available before galvanizing, with dimensional verification documented in inspection reports
- Heat number and steel grade markings stenciled on each bundle for site identification and traceability verification
- FOB, CIF, and DDP shipping terms available with professional export packing and complete tracking until site delivery
Initiating Your Galvanized Square Steel Tube Inquiry
Share your project drawings, required steel grades (S235, S275, SS400, or 20#), dimensions, quantities, and destination port. We respond within 24 hours with a detailed quotation including material, hot-dip galvanizing, processing, packing, and shipping costs — plus shop drawing timeline and production schedule. Confirm your certification requirements (EN 10219, ASTM A53, or JIS) and third-party inspection needs before contract signing.
Frequently Asked Questions
Q: What is the difference between hot-dip galvanized and pre-galvanized square tubes?
A: Hot-dip galvanizing immerses formed tubes in molten zinc, creating a metallurgical bond with coating thickness typically 45–85 μm. Pre-galvanized tubes are made from already-coated steel coil, resulting in thinner zinc at welded seams. Hot-dip provides superior corrosion resistance for structural and outdoor applications.
Q: Can you provide custom sizes and lengths beyond standard dimensions?
A: Yes. We offer customized sizes and lengths with 6 m and 12 m as standard options. Our own steel mill and fabrication workshop allow flexible production to your project specifications, with ±1% dimensional tolerance maintained throughout.
Q: How do you ensure coating thickness and adhesion quality?
A: Our vertically integrated process controls tube forming and hot-dip galvanizing under one quality system. In-process coating thickness is verified by magnetic gauge testing. Adhesion quality is confirmed through bend tests and visual inspection per applicable standards.
Q: What steel grade certificates and traceability documentation do you provide?
A: Every order includes a Mill Test Certificate documenting chemical composition and mechanical properties for S235, S275, SS400, or 20# grades. Full material traceability by heat number runs from our steel mill through galvanizing and final inspection.
Q: What are the loading and shipping options for galvanized square tubes?
A: We offer FOB, CIF, and DDP terms. Tubes are bundled with steel strips and edge protectors, loaded professionally for ocean transit. Complete export documentation and tracking provided until site delivery.
Request Your Galvanized Square Steel Tube Quotation
Submit your specifications, steel grade requirements, quantities, and destination port to receive a detailed quotation with Mill Test Certificate documentation and production timeline.
