Description
Factory-Direct Clad Plate Production — In-house steel mill bonding 200-900 series stainless layers to carbon steel bases eliminates third-party material gaps.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | Stainless Steel Clad Plate Sheet |
| Product Type | Steel Plate (Stainless Steel Clad Plate) |
| Steel Grade | 200/300/400/500/600/900 series (304, 304L, 316, 316L, 310S, 321, 410, 430, 904L, S32304, S32101) |
| Standard | JIS / AISI / ASTM / GB / DIN / EN / BS |
| Section Shape | Flat Sheet |
| Thickness | 0.3-60mm |
| Width | 1000mm / 1219mm / 1500mm / 1800mm / 2000mm |
| Length | 2000mm-6000mm |
| Technique | Cold Rolled / Hot Rolled |
| Surface Treatment | 2B / BA / NO.1 / No.4 / 8K / HL / 2D / 1D |
| Tolerance | ±1% |
| Processing Service | Bending, Welding, Decoiling, Punching, Cutting |
| Application | Architecture / Shipbuilding / Chemical Industry / Construction / Industrial Equipment / Kitchen Accessories / Mechanical Structure / Decoration Engineering |
| MOQ | 1 Ton |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Chemical & Industrial | Storage tanks, pressure vessels, pipelines, processing equipment requiring 316L/904L corrosion resistance |
| Architecture & Construction | Structural frames, wall panels, elevator claddings, decorative facades with 304/316L aesthetic finishes |
| Shipbuilding & Marine | Deck structures, hull components, saltwater-exposed platforms demanding duplex S32304 weldability |
| Mechanical & Equipment | Heat exchangers, mechanical structures, kitchen accessories requiring 310S heat resistance |
When Clad Layer Thickness Variance Triggers On-Site Rejection
Bonded plate quality cannot be verified by mill certificates alone — ultrasonic testing reveals what paperwork conceals.
Back when I was still on the procurement side for a Vietnam chemical plant project, we ordered stainless steel clad plates — thickness range similar to what you see here, 0.01 to 4.0mm. The mill certs looked flawless, but on-site ultrasonic testing showed the stainless clad layer was barely half the specified thickness. The entire batch got rejected, six weeks of schedule delay, and I learned the hard way that bonded plate quality can never be trusted on paper alone.
Buyers sourcing Stainless Steel Clad Plate Sheet from overseas fabricators face material traceability gaps when suppliers rely on third-party steel sources. Inconsistent bonding quality and coating thickness create costly rework when components arrive at site. [NEED_CITE: ultrasonic testing methods for clad plate bond quality verification]
Matching Grade Selection to Corrosive Environments
Chemical storage tanks handling chloride-rich media demand 316L or 904L stainless clad layers for pitting resistance, while architectural claddings in coastal zones require 304 for aesthetic durability without the cost premium of higher alloys. Our vertically integrated production bonds these grades directly to carbon steel bases in-house, eliminating the coordination gap between material supplier and fabricator that causes specification drift. Each Stainless Steel Clad Plate Sheet ships with complete chemical composition documentation traceable to original heat numbers.
Engineering Compliance Across International Standards
Pressure vessels operating under ASME Section VIII require documented material traceability and certified welding procedures that align with ASTM standards, while EU construction projects demand CE marking per EN 1090 with full factory production control documentation. Our fabrication workshop holds AWS and EN certified welding procedures with qualified welders, ensuring Stainless Steel Clad Plate Sheet components meet the specific standard framework of your destination market. Shop drawing review and material optimization services prevent RFI delays that cascade into schedule overruns. [NEED_CITE: EN 1090 structural steel fabrication compliance requirements]
Understanding Clad Plate Metallurgy and Bonding Processes
Hot rolled clad plates achieve metallurgical bonding through explosive or roll-bonding techniques that create a continuous interface between stainless and carbon steel layers, while cold rolled variants offer tighter thickness tolerance for precision applications. The 200-900 series stainless grades provide distinct corrosion resistance profiles — 304 suits general atmospheric exposure, 316L resists chloride pitting in marine environments, 310S maintains oxidation resistance at elevated temperatures, and duplex grades like S32304 combine high strength with improved stress corrosion cracking resistance. Surface finish selection from 2B to 8K determines both aesthetic appearance and cleanability for food-grade or pharmaceutical applications. The ±1% thickness tolerance across 0.3-60mm range accommodates both structural load-bearing requirements and architectural finish specifications.
Hidden Costs of Unverified Material Sources
Specifying 316L stainless clad but receiving 304 substitution creates accelerated corrosion failure in chloride environments that only manifests after installation, triggering warranty disputes and replacement costs that dwarf initial material savings. Missing material traceability documentation blocks customs clearance in regulated markets, while uncertified welding procedures void engineering approvals and force costly on-site requalification. [NEED_CITE: material substitution risks in stainless steel procurement]
Why Procurement Teams Choose Integrated Supply

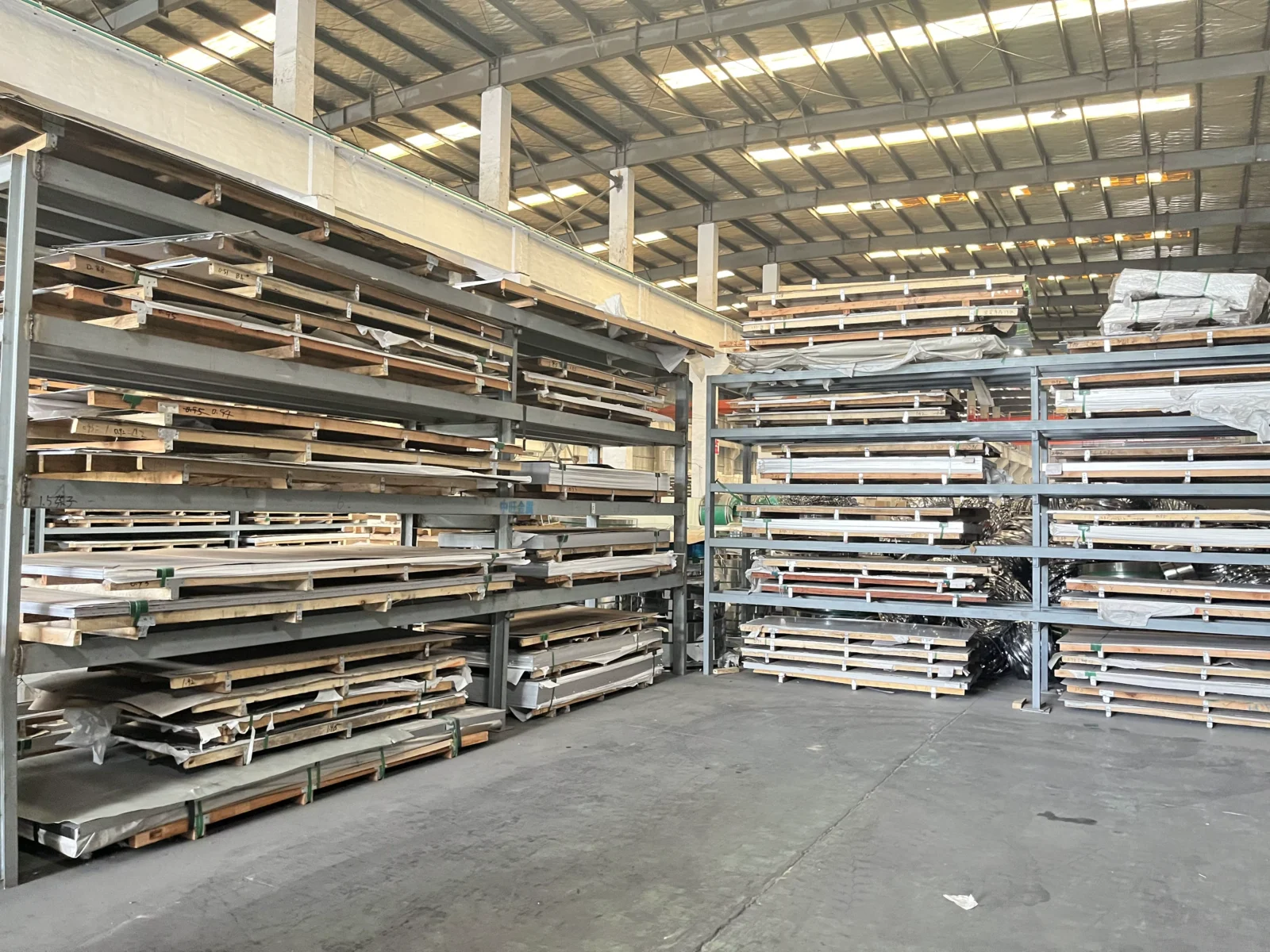

Our own steel production facility with 3 production lines and 2,800+ specifications of raw material stock eliminates the gap between material supplier and fabricator — one source controls quality from slab to finished Stainless Steel Clad Plate Sheet. In-house CNC cutting, plasma/flame cutting, drilling, bending, and certified welding services mean your components are fabricated under the same quality system that produced the base material. Complete documentation packages include WPS, PQR, weld maps, dimensional inspection reports, and coating reports required for international project handover. Engineering support covers shop drawing review and fabrication sequencing to prevent errors before steel is cut. Professional packing and oversized cargo loading experience spans EU, Middle East, Southeast Asia, and African project delivery.
Documentation & Compliance
- Mill test certificate documenting 304/316L/904L chemical composition and mechanical properties per ASTM A240/A480
- Material traceability by heat number linking each Stainless Steel Clad Plate Sheet to original slab certification
- Third-party inspection reports from SGS or BV covering dimensional accuracy and surface quality verification
- Certified welding procedure specifications (WPS) and procedure qualification records (PQR) per AWS D1.6 for stainless steel
- Customs documentation including packing list, bill of lading, and certificate of origin for destination country clearance
- ISO 9001 quality management certification covering the complete fabrication and inspection process
Packaging, Loading & Delivery

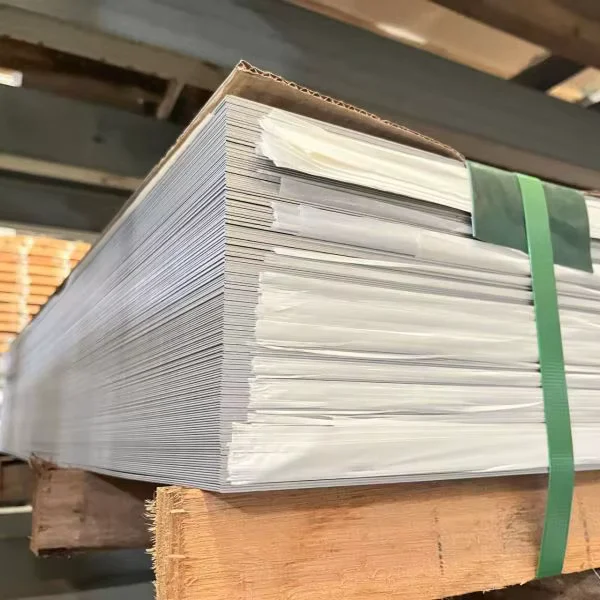

- Stainless Steel Clad Plate Sheet bundled with edge protectors and waterproof paper wrapping to preserve 2B/BA/8K surface finishes during ocean transit
- Fumigation-treated wooden pallets with steel strapping for 1000-2000mm width plates, optimized for 20ft and 40ft container loading
- Heat number and steel grade markings stenciled on each plate for site identification and traceability verification
- Custom cutting to 2000-6000mm lengths with tolerance documentation included in shipment package
- FOB, CIF, and DDP shipping terms available with professional oversized cargo loading and lashing for 60mm thick plates
Initiating Your Clad Plate Procurement
Submit your project drawings with specified stainless grade (304/316L/310S/904L/duplex), thickness range, surface finish, and required standards to receive preliminary assessment within 24 hours. Our engineering team prepares shop drawings for approval before fabrication begins, ensuring your Stainless Steel Clad Plate Sheet components match exact project specifications. Confirm certification requirements and destination port to finalize documentation packages and shipping arrangements.
Frequently Asked Questions
Q: How do I select between 304, 316L, and 904L stainless clad grades for chemical storage applications?
A: 304 provides general corrosion resistance for mild environments, 316L offers superior chloride pitting resistance for marine or chemical processing, while 904L handles aggressive sulfuric acid and phosphate media. Your specific media composition and temperature determine the appropriate grade selection.
Q: What surface finish options are available for architectural versus industrial applications?
A: 2B and BA finishes suit industrial equipment and chemical tanks where cleanability matters, while No.4, 8K, and HL finishes provide aesthetic appearance for architectural claddings and decorative elements. Each finish is available across the full 0.3-60mm thickness range.
Q: Can you provide custom cutting and welding services for the clad plates?
A: Yes, our in-house fabrication capabilities include CNC cutting, plasma/flame cutting, bending, punching, and certified welding per AWS D1.6 for stainless steel. All processing occurs under the same quality system that produced the base material.
Q: What quality documentation accompanies each shipment?
A: Every Stainless Steel Clad Plate Sheet ships with mill test certificates showing chemical composition and mechanical properties, material traceability by heat number, dimensional inspection reports, and third-party inspection certificates from SGS or BV when requested.
Q: How do you ensure clad layer thickness meets specifications?
A: Ultrasonic testing verifies bond quality and clad layer thickness during production, with results documented in inspection reports. Complete material traceability links each plate to original slab certification for full accountability.
Start Your Stainless Steel Clad Plate Sheet Inquiry
Share your project specifications including steel grade, thickness, dimensions, surface finish, and destination port to receive detailed quotation with production schedule and mill test certificate samples.
