Description

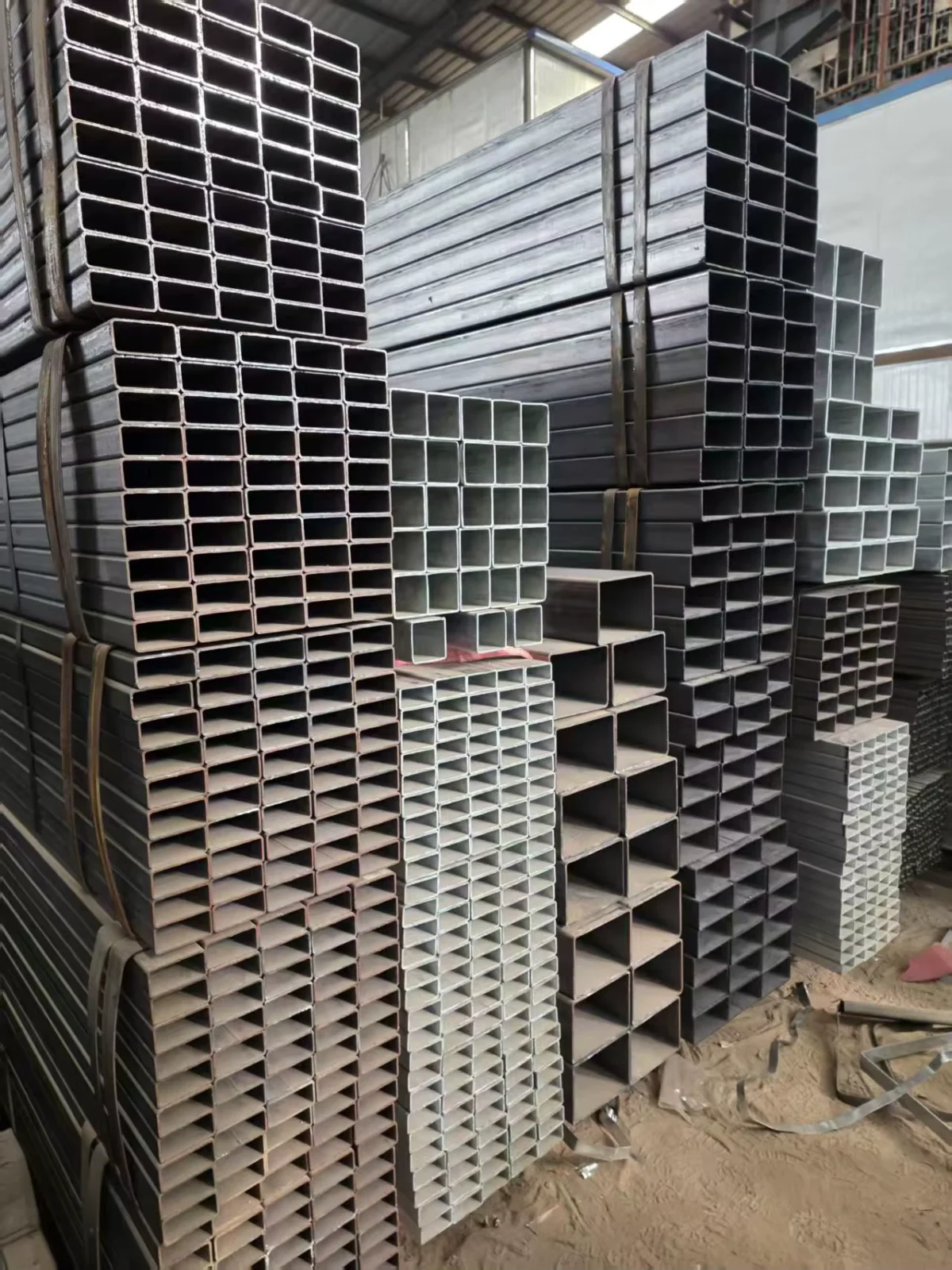

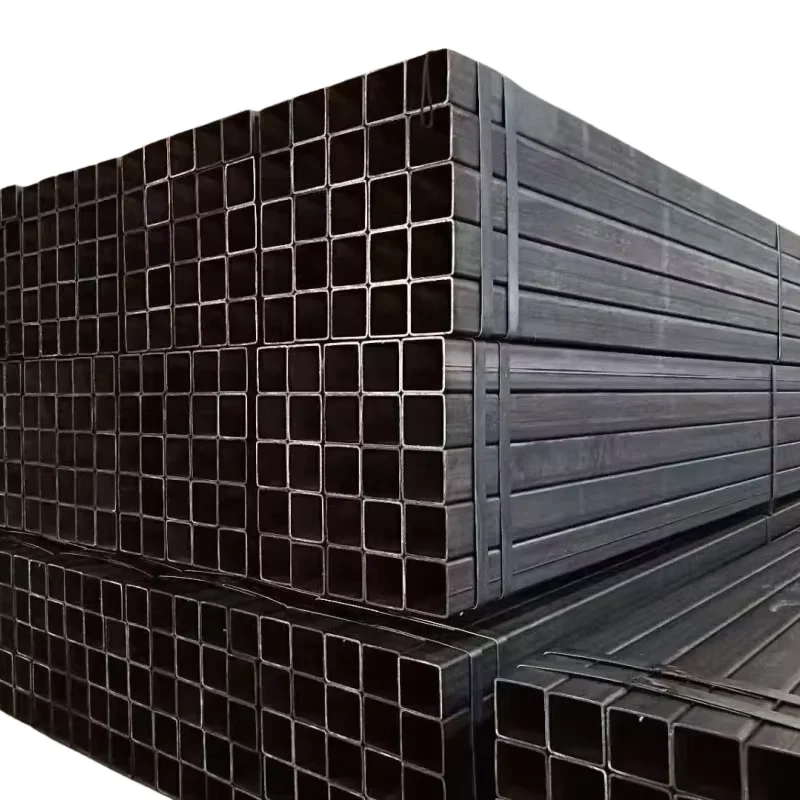

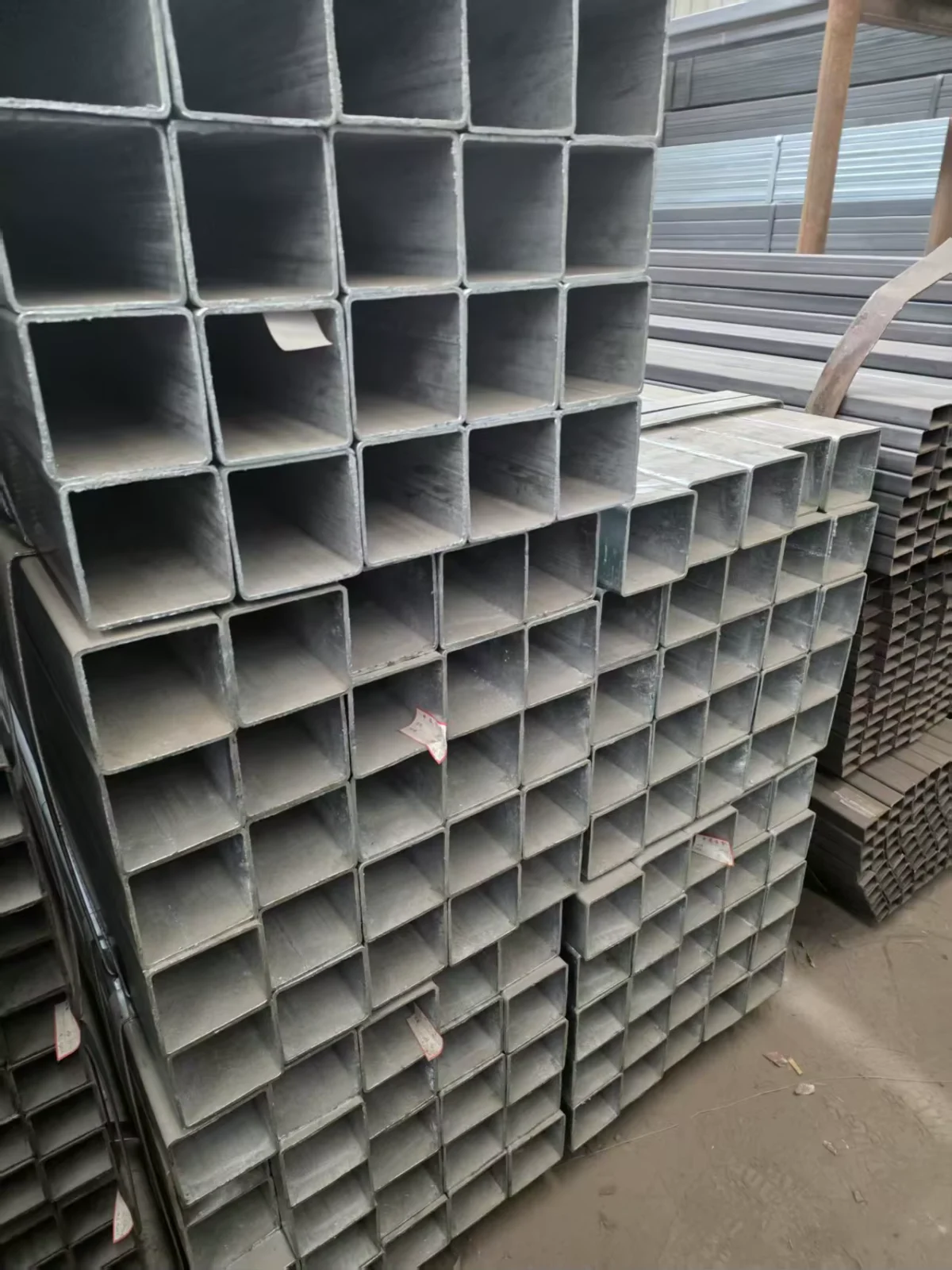

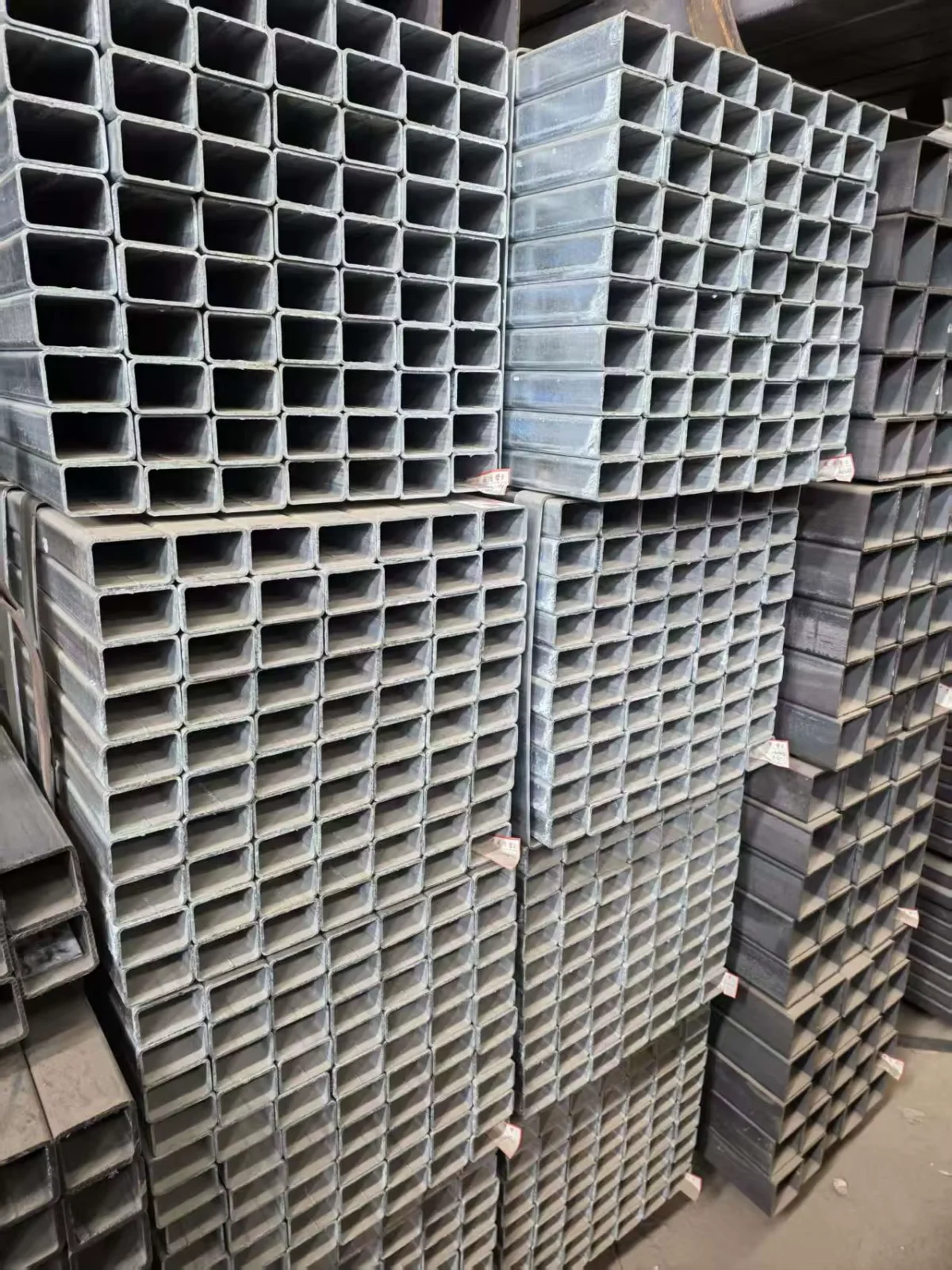

Factory-Direct Galvanized Tubes — Hot-dip galvanized square and rectangular steel tubes produced from our own steel mill, eliminating third-party material sourcing and ensuring full heat-number traceability from raw coil to finished section.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | DX51D/DX52D/DX53D/G550/S350 Galvanized Steel Pipe |
| Product Type | Galvanized Square and Rectangular Steel Tube |
| Steel Grade | DX51D, DX52D, DX53D, G550, S350 |
| Standard | ASTM |
| Section Shape | Square / Rectangular |
| Size Range | Square and rectangular sections per drawing |
| Wall Thickness | 1.0–5.0 mm |
| Length | 6 m / 12 m (customizable) |
| Technique | Hot Rolled Based |
| Surface Treatment | Galvanized (Z30–Z40), Slightly Oiled |
| Spangle Type | Zero Spangle |
| Hardness | Hard |
| Skin Pass | Yes |
| Tolerance | ±1% |
| Ends | Plain (default) |
| Application | Structural frames, scaffolding, fencing, machinery frames |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Industrial Construction | Steel frame structures for warehouses, factory buildings, and equipment platforms |
| Infrastructure | Scaffolding systems, safety barriers, and fencing for construction sites |
| Machinery Manufacturing | Machine frames, conveyor structures, and small tool fabrication |
| Agricultural & Storage | Greenhouse frames, storage rack systems, and livestock enclosure structures |
How Galvanized Coating Thickness Affects Project Acceptance on Site
Z30–Z40 coating with zero spangle finish ensures uniform corrosion protection and paint adhesion across every section.
When overseas buyers receive galvanized square and rectangular steel tubes on site, the first thing inspectors check is coating thickness. A coating below specification triggers rejection of the entire batch — even if the steel itself meets all mechanical requirements. We have seen projects where inconsistent zinc distribution across different production runs caused dimensional disputes and rework delays. [NEED_CITE: hot-dip galvanized coating thickness standards for structural steel]
The zero spangle finish on our galvanized square and rectangular steel tube provides a smooth, uniform surface that accepts paint and powder coating without additional surface preparation. The slight oiling applied after galvanizing prevents white rust formation during ocean transit and storage, which is critical for projects in humid climates.
Precision Tolerance for Structural Frame Assembly
Tight dimensional control matters when galvanized square and rectangular steel tubes are cut, drilled, and welded into structural frames on site. Our ±1% wall thickness tolerance means fabricators can rely on consistent section properties for load calculations and connection design. The skin pass process applied after galvanizing ensures flat surfaces and straight edges, reducing fitting gaps during assembly. For EPC contractors managing multiple fabrication subcontractors, this consistency eliminates the need for on-site re-measurement and adjustment.
Compliance Requirements for International Projects
Galvanized square and rectangular steel tube orders for EU, Middle East, and Southeast Asian projects must meet specific certification and documentation requirements. ASTM compliance documentation is provided with every shipment, and third-party inspection through SGS, BV, or TÜV is available for coating thickness verification, dimensional accuracy checks, and surface quality assessment. [NEED_CITE: ASTM standards for galvanized structural hollow sections] Material traceability from our own steel mill means every heat number is documented from raw material procurement through final inspection, closing the certification gap that fragmented suppliers cannot provide.
Steel Grade Selection: DX51D Through G550
The range from DX51D to G550 covers commercial quality through high-strength structural applications. DX51D and DX52D grades suit light fabrication, fencing, and non-structural framing where formability is prioritized. DX53D offers improved drawing characteristics for complex shapes. G550 provides higher yield strength for structural frames and load-bearing applications where section weight optimization matters. S350 bridges the gap between commercial and high-strength grades for general structural use. The hot rolled based technique ensures consistent mechanical properties across production batches, which is essential for projects requiring uniform performance across multiple delivery lots.
Hidden Costs of Unverified Galvanized Tubes
Purchasing galvanized square and rectangular steel tube from suppliers who source raw material from third-party mills creates material traceability gaps that surface during project inspection. Missing or incomplete mill test certificates delay customs clearance and project acceptance. Coating thickness below specification requires costly re-galvanizing or complete batch replacement. Negative tolerance exceeding contractual limits reduces actual section weight and load-bearing capacity, creating structural safety concerns that only emerge during engineering review. [NEED_CITE: material traceability requirements for structural steel in international construction projects]
Why Source Galvanized Square and Rectangular Steel Tube From XJY Structure
Our vertically integrated operation combines raw steel production with fabrication capability, meaning the galvanized square and rectangular steel tube you order is produced from coil we manufacture, processed in our own facility, and inspected under a single quality management system. Our engineering team reviews shop drawings and provides fabrication sequencing support before production begins, reducing RFI delays and rework. The ISO 9001 certified quality system covers every stage from material procurement to final packaging, with complete documentation packages including WPS, PQR, weld maps, dimensional inspection reports, and coating thickness certificates. We supply general contractors, steel structure companies, and EPC firms across the EU, Middle East, Southeast Asia, and Africa with consistent quality and reliable delivery schedules.
Documentation & Compliance
- Mill test certificate documenting DX51D through G550 chemical composition and mechanical properties per ASTM, with heat number traceability from raw coil to finished tube
- Third-party inspection report from SGS, BV, or TÜV verifying galvanized coating thickness (Z30–Z40), dimensional accuracy (±1% tolerance), and surface quality
- ASTM compliance certificate confirming material grade, coating standard, and dimensional specifications for each production lot
- ISO 9001 quality management certificate covering the integrated production process from steel mill to finished galvanized square and rectangular steel tube
- Complete export documentation package including packing list, bill of lading, certificate of origin, and material traceability records for customs clearance
Packaging, Loading & Delivery

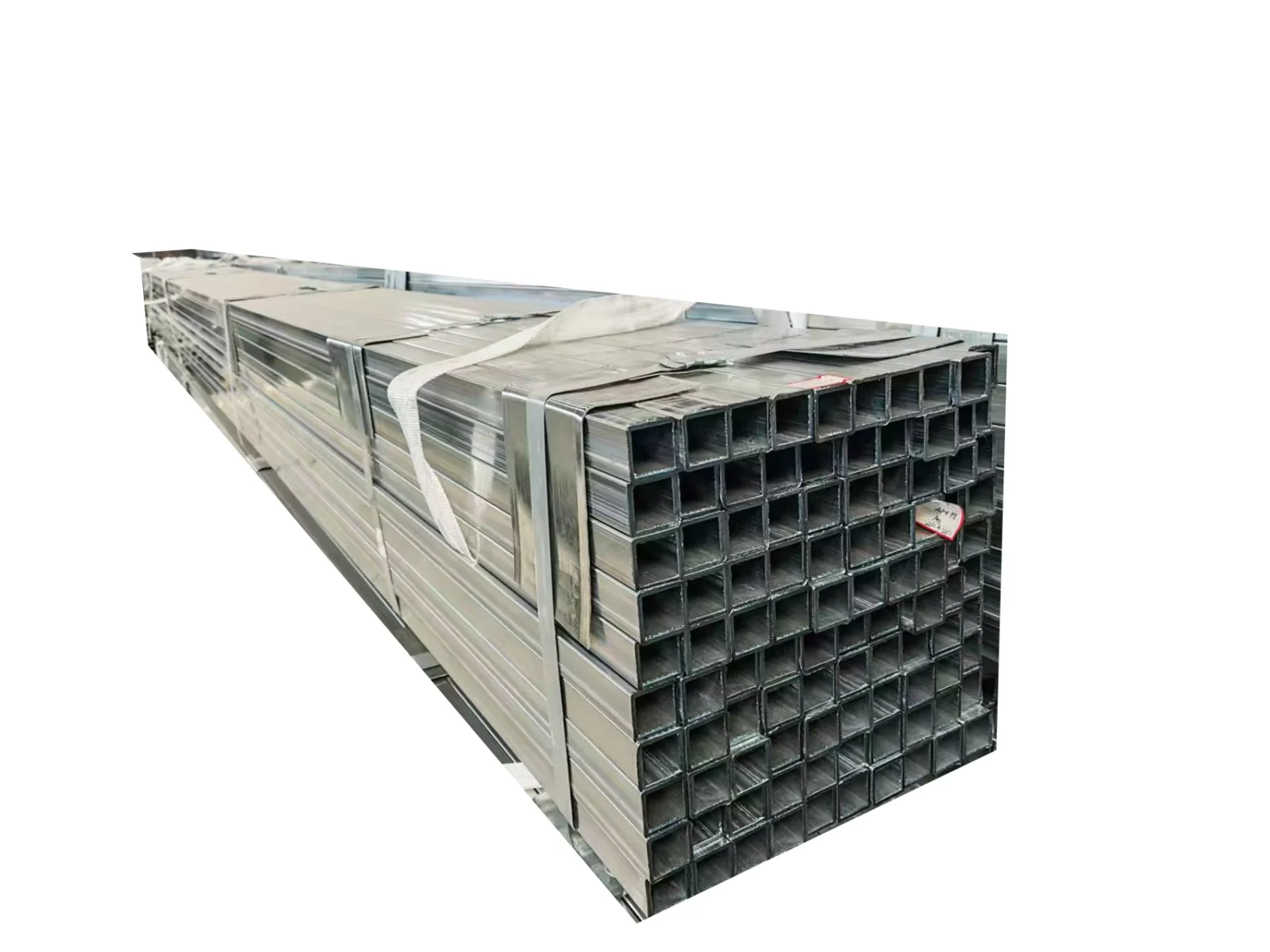

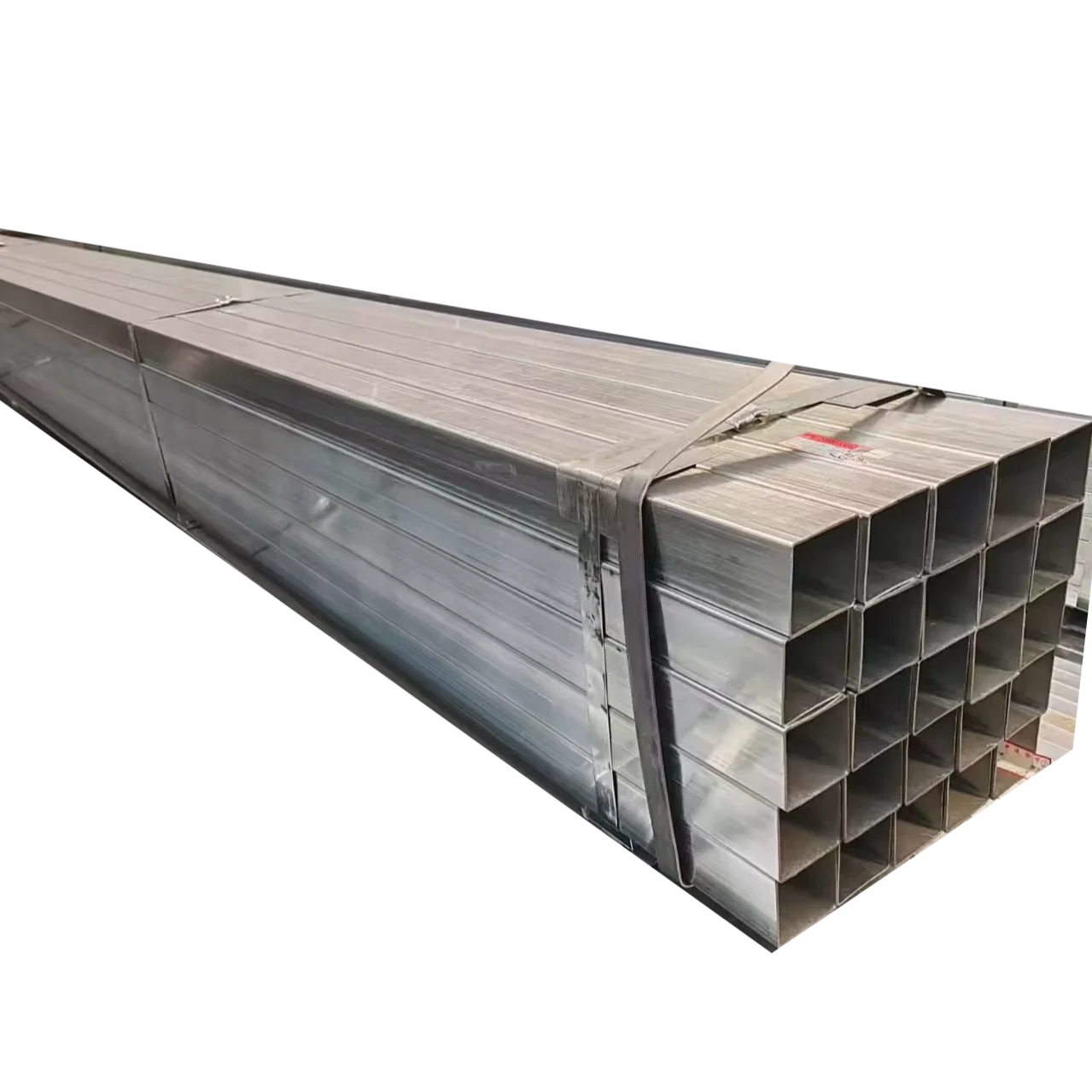

- Galvanized square and rectangular steel tubes bundled with steel strips and edge protectors to preserve the Z30–Z40 zinc coating and prevent surface damage during ocean transit
- Slight oiling applied after galvanizing prevents white rust formation, with protective wrapping available for extended storage or humid climate destinations
- Container loading optimized for 6 m and 12 m lengths, with custom nesting for rectangular sections to maximize container utilization and reduce freight costs per ton
- Custom cutting to project-specific lengths available, with cut ends deburred and coated to maintain corrosion protection at termination points
- Heat number and steel grade标识 marked on each bundle, with packing lists matching physical markings for site receiving and inventory management
- FOB, CIF, and DDP shipping terms available, with professional loading plans for oversized cargo and complete tracking until site delivery
Getting Your Galvanized Square and Rectangular Steel Tube Quote
Submit your project drawings (PDF/DWG format), specify steel grade requirements (DX51D through G550), wall thickness, dimensions, quantities, and destination port. Our engineering team responds within 24 hours with a detailed quotation including material, fabrication, coating, packing, and shipping costs, along with shop drawing timeline and production schedule. Third-party inspection arrangements and certification documentation are confirmed before contract signing.
Request Technical Quotation and Mill Test Certificate
Send your specifications and project requirements to receive a detailed quotation with complete material documentation. Our engineering team provides shop drawing review and fabrication support from inquiry through delivery.
Contact: Shandong Xin Jiyuan Special Steel Tube Co., Ltd
Website: www.xjystructure.com
Tel: +86 531 8573 6315
Mobile/WhatsApp/WeChat: +86 188 5315 7756
Email: admin@xjystructure.com
Address: No.11889, Jingshi West Road, Lulian Group, Jinan City, Shandong Province, China
Frequently Asked Questions
Q: What is the difference between DX51D and G550 grades for galvanized square and rectangular steel tube?
A: DX51D is a commercial quality grade suited for light fabrication, fencing, and non-structural applications where formability is important. G550 provides higher yield strength for structural frames and load-bearing applications where section weight optimization and structural performance are critical. The choice depends on your project’s structural requirements and engineering specifications.
Q: What does Z30–Z40 galvanized coating mean and how is it verified?
A: Z30–Z40 refers to the zinc coating mass per square meter (30–40 grams per square meter on each side). This coating thickness is verified through third-party inspection using coating thickness gauges, with results documented in the inspection report. The zero spangle finish ensures uniform coating distribution across the entire surface.
Q: Can you produce custom lengths and non-standard dimensions for galvanized square and rectangular steel tube?
A: Yes, we offer custom cutting to project-specific lengths beyond the standard 6 m and 12 m options. Non-standard dimensions are available subject to engineering review and production feasibility. Custom orders include shop drawing confirmation before production begins, with typical production lead times confirmed during quotation.
Q: How do you ensure material compliance for EU and Middle East projects?
A: Every shipment includes ASTM compliance documentation, mill test certificates with heat number traceability from our own steel mill, and third-party inspection reports available through SGS, BV, or TÜV. Our ISO 9001 certified quality system covers the entire production process, and we provide complete export documentation packages for customs clearance in international markets.
Q: What is the relationship between theoretical weight and actual weight with ±1% tolerance?
A: The ±1% tolerance applies to wall thickness and dimensional accuracy. This tight tolerance range means actual weight closely matches theoretical weight calculations, reducing disputes over material quantity. We provide detailed weight calculations based on actual measured dimensions in the mill test certificate and packing list for every shipment.
