Description
Direct Mill Supply — Vertically integrated stainless production from raw billet to finished ASTM 316L seamless stainless steel rectangular tube, eliminating third-party sourcing gaps.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | 316L Seamless Stainless Steel Rectangular Tube |
| Product Type | Seamless Stainless Steel Square / Rectangular Tube |
| Steel Grade | 201, 202, 301L, 304, 314, 316, 316L, 904L, S31803, S32750 |
| Standard | ASTM A213, ASTM A312, ASTM A789, ASTM A790 |
| Section Shape | Square / Rectangular |
| Size Range | 0.1 mm – 219.1 mm outer diameter / side length |
| Wall Thickness | 0.05 mm – 20 mm |
| Length | ≤ 12,000 mm or as per customer request |
| Technique | Seamless |
| Surface Treatment | 2B / Satin (180#–320#) / Polish (400#–800# / Mirror) / Pickling |
| Tolerance | Outer Diameter ±0.2 mm; Thickness ±10%; Length ±10 mm |
| Ends | Plain (default) |
| Application | Building materials / Construction structure / Decoration / Medical equipment / Industrial piping / Furniture |
| MOQ | 2 Tons |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Architecture & Decoration | Railing systems, handrails, facade framing, door and window structural profiles |
| Chemical & Petrochemical | Process piping, heat exchanger tubes, corrosive fluid conveyance lines |
| Medical & Food Processing | Equipment frames, sanitary piping, cleanroom support structures |
| Marine & Coastal Construction | Handrails, structural supports, cladding frames in high-chloride environments |
| Industrial Infrastructure | Conveyor frames, platform structures, machine guards |
What Negative Tolerance Overshoot Costs on an ASTM 316L Seamless Stainless Steel Rectangular Tube Order
Wall thickness beyond the ±10% tolerance band triggers rejection at site inspection — and the replacement lead time stalls an entire project schedule.
I have seen entire shipments of 316L stainless tubes returned from Middle East job sites because SGS caliper checks found wall thickness drifting past the ASTM A312 negative tolerance limit. The fabricator on the ground had no backup stock, and the project manager faced a choice: accept non-conforming material and risk structural sign-off failure, or wait weeks for re-rolled replacements. When you source an ASTM 316L seamless stainless steel rectangular tube from a trader rather than a mill with in-house testing, there is no guarantee that the caliper readings on the mill test certificate match what arrives at the port. [NEED_CITE: ASTM A312 dimensional tolerance requirements for seamless austenitic stainless steel tubes]
Precision Framing for Architectural and Corrosive Environments
An ASTM 316L seamless stainless steel rectangular tube with OD tolerance held to ±0.2 mm slots directly into precision-machined connection brackets used in facade systems and railing assemblies — no on-site reaming required. The seamless manufacturing process ensures uniform wall distribution around the rectangular profile, which matters when the tube must resist torsional loads in coastal handrail structures exposed to salt spray. Our mill produces the full 300-series range alongside duplex grades S31803 and S32750, so a single purchase order covers both the decorative satin-finish 316L sections for visible architectural elements and the higher-alloy duplex tubes buried inside chemical plant pipe racks.
Meeting ASTM and Project-Specific Compliance Requirements
ASTM A312 governs seamless austenitic stainless steel tubes for high-temperature and general corrosive service, while ASTM A213 covers seamless ferritic and austenitic boiler and superheater tubes — selecting the correct standard determines the testing frequency and acceptance criteria your inspector will apply. [NEED_CITE: ASTM A312 vs A213 scope and testing requirements] For projects in the EU market, the fabricator must also confirm whether EN 10219 or EN 10210 hollow section standards apply alongside the ASTM material specification, as mixing standards without documented equivalence can delay customs clearance. Our quality team prepares shop drawing reviews and cross-references material certifications against both the purchase specification and the destination country’s import requirements before production begins.
Seamless Process, Grade Selection, and Surface Finish Logic
The seamless extrusion process produces a 316L rectangular tube with no longitudinal weld seam, meaning the entire cross-section carries uniform grain structure and corrosion resistance — critical when the tube functions as a pressure-containing element or when pickled surfaces must resist intergranular attack. The low-carbon 316L chemistry minimizes chromium carbide precipitation at weld zones, making it the default choice for field-welded architectural frames and chemical piping where post-weld heat treatment is impractical. For higher-chloride environments such as offshore platforms or desalination facilities, the duplex grades S31803 and S32750 offer superior pitting resistance through their mixed austenite-ferrite microstructure. Surface finish selection follows function: 2B for concealed industrial framing, satin 180#–320# for interior architectural handrails, mirror 400#–800# for decorative facade columns, and pickling for chemical plant piping where surface oxide must be fully removed before service.
The Hidden Cost of Unverified Material on a Seamless Stainless Tube Order
Accepting a shipment without third-party inspection or heat-level traceability means the first sign of non-conformance — a failed PMI gun reading, a coating adhesion test rejection, a dimensional audit finding — becomes a stop-work event on the job site. [NEED_CITE: consequences of material non-conformance in structural stainless steel procurement] Replacing a full container of ASTM 316L seamless stainless steel rectangular tube after it has cleared customs costs multiples of the original material price in air freight, re-fabrication, and schedule penalties. The risk multiplies when tubes are sourced through intermediaries who consolidate material from multiple unknown mills, breaking the chain of chemical composition verification.
Why Project Buyers Source ASTM 316L Seamless Stainless Steel Rectangular Tube from Our Mill
We operate our own steel production facility with three production lines and maintain over 2,800 specifications of raw material in stock, which means the 316L billet that becomes your seamless rectangular tube never leaves our quality control system. Every heat receives chemical analysis and mechanical testing in our in-house laboratory before the tube is extruded, and the resulting mill test certificate travels with the material through cutting, polishing, and packing. When your order mixes 316L architectural sections with S32750 duplex industrial tubes, both grades roll from our own billet inventory under one production schedule and one set of shipping documents. Our fabrication division handles CNC cutting, drilling, and welding to your shop drawings, so you receive finished assemblies rather than loose tubes requiring a second contractor. Professional loading plans account for the rectangular profile’s stacking geometry, maximizing container utilization for 12-meter lengths while protecting mirror and satin finishes with interlayer separators.
Documentation & Compliance
- Mill Test Certificate per EN 10204 3.1 documenting 316L chemical composition (C, Cr, Ni, Mo content) and mechanical properties per ASTM A312 for each heat number
- Third-party inspection report from SGS, BV, or TÜV covering dimensional verification, surface finish grading, and PMI testing before container sealing
- ISO 9001 certified quality management system documentation available for project quality plan submission
- Material traceability report linking each tube bundle to its heat number, chemical analysis, and production date
- Full export documentation package including commercial invoice, packing list, bill of lading, and certificate of origin formatted for destination country customs requirements
Packaging, Loading & Delivery

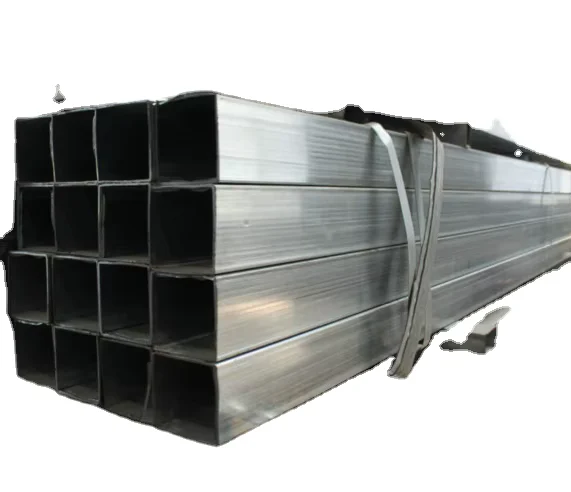

- Seamless 316L rectangular tubes bundled with steel straps and separated by non-metallic spacers to prevent surface scratching on satin and mirror finishes during ocean transit
- Pickled and passivated tubes wrapped in waterproof paper and packed in seaworthy wooden crates to protect the oxide-free surface from chloride contamination before site installation
- Custom cut-to-length service available for tubes up to 12,000 mm, with each piece marked by heat number and steel grade for on-site traceability verification
- Container loading plans optimized for rectangular profile nesting, allowing efficient 20-foot and 40-foot container utilization for mixed-size architectural and industrial orders
- FOB, CIF, and DDP shipping terms available with full export documentation support for projects across the Middle East, Southeast Asia, Europe, and Africa
Getting Your ASTM 316L Seamless Stainless Steel Rectangular Tube Quote Started
Send your project drawings or specification list including steel grade, rectangular dimensions, wall thickness, surface finish, and total quantity — our team responds within 24 hours with pricing, mill test certificate samples, and a production timeline. For custom sizes outside the standard range or fabricated assemblies requiring cutting and welding, we provide shop drawing review and material optimization before confirming the order.
Request Your Quotation and Material Certification Package
Share your specification sheet and destination port to receive pricing, lead time, and mill test certificate documentation for your ASTM 316L seamless stainless steel rectangular tube order.
