Description

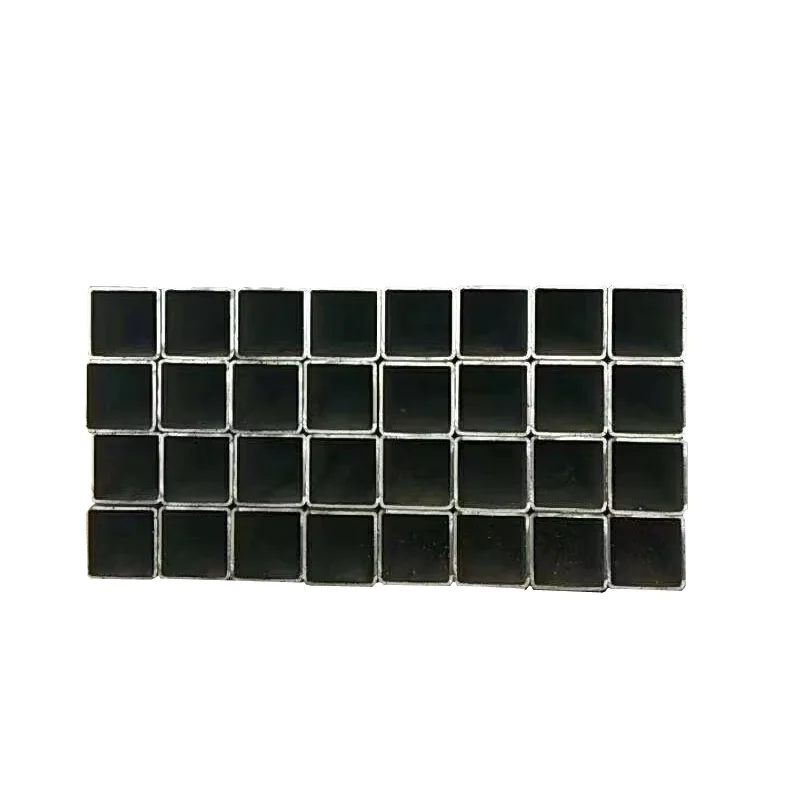

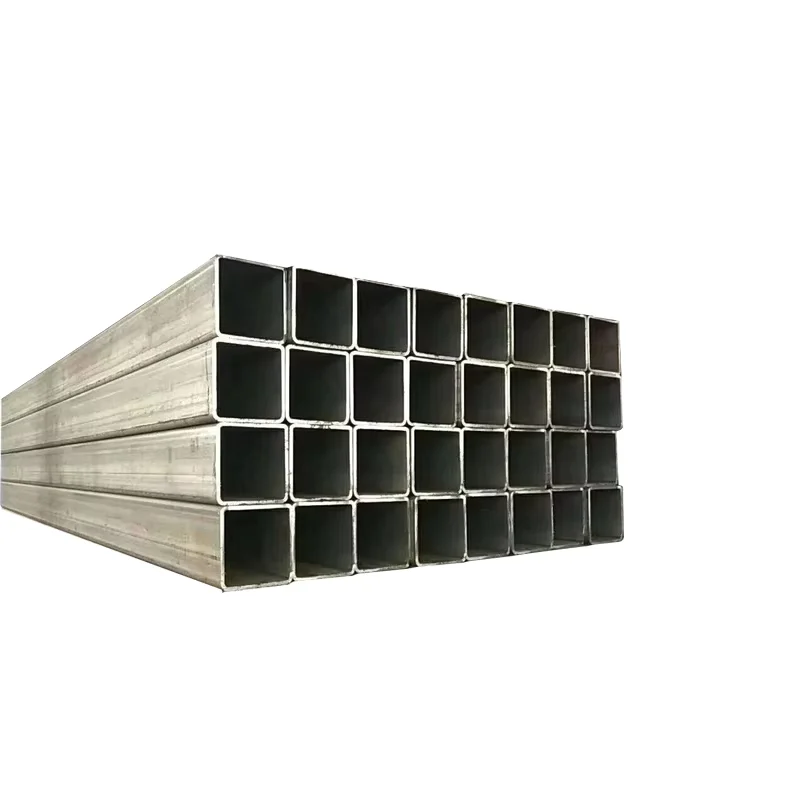

Direct Mill Supply for ASTM A500 GR.B SHS — Every ASTM A500 GR.B square hollow section traces back to our own billet, eliminating third-party material gaps across 19×19mm to 800×800mm ranges.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | ASTM A500 GR.B Square Hollow Structural Section |
| Product Type | Square Steel Tube / Square Hollow Section (SHS) |
| Steel Grade | ASTM A500 GR.B, S235, S275, S355, STK400 |
| Standard | ASTM A500, ASTM A53, GB/T 3091 |
| Section Shape | Square |
| Size Range | 19mm × 19mm – 800mm × 800mm |
| Wall Thickness | 1 – 30 mm |
| Length | 5.8m / 6m / 11.8m / 12m / Random Length |
| Technique | ERW (Welded) / Seamless |
| Surface Treatment | Black Painting / Galvanized / Varnish / Bare |
| Tolerance | ±1% |
| Ends | Plain |
| Application | Construction structures / Building frames / Curtain walls / Support structures / Industrial structures |
| MOQ | 5 Tons |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| EPC & General Contracting | Load-bearing column and beam assemblies for warehouse and logistics center frames |
| Commercial Construction | Curtain wall support grids and facade attachment structures |
| Industrial Facilities | Equipment support platforms, conveyor架 structures, and mezzanine framing |
| Infrastructure Projects | Bridge approach structures, sound barrier frames, and utility support gantries |
Where Negative Wall Tolerance Triggers Rejection at Port Inspection
Dimensional accuracy on SHS wall thickness decides whether a container clears customs or sits in a bonded warehouse for weeks.
I once loaded a full container of ASTM A500 GR.B square tubes for a Middle East project. The wall thickness measured below the minimum allowed by the standard — even though the mill certificate looked fine on paper. The client’s third-party inspector flagged every piece. The entire shipment was held at the port, and the project schedule slipped by weeks. That incident reshaped how we approach tolerance control. [NEED_CITE: ASTM A500 dimensional tolerance requirements for structural hollow sections]
When buyers source ASTM A500 GR.B square hollow section from fragmented suppliers, material traceability breaks down at the billet stage. A fabricator purchasing hot-rolled coil from an unverified trader cannot guarantee that the chemical composition matches the heat number on the test certificate. For EN 1090 or AISC-compliant projects, this gap becomes a structural liability.
How SHS Dimensions Match Structural Frame Requirements
Square hollow sections from 19×19mm to 800×800mm cover the full spectrum from light-gauge curtain wall supports to heavy-load column members. The ±1% tolerance on ASTM A500 GR.B square hollow section ensures that connection plates and bolt-hole patterns align during assembly — a detail that matters when a warehouse frame requires hundreds of bolted joints. Wall thickness options from 1mm to 30mm let engineers balance dead load against bearing capacity without switching suppliers mid-project.
Engineering Compliance Across ASTM, EN, and JIS Frameworks
Structural hollow sections must satisfy the design code governing the project’s jurisdiction. ASTM A500 GR.B applies to North American and Middle Eastern projects, while EN S355 governs European construction under EN 1993. The equivalence between these grades — and their relationship to JIS STK400 — determines customs classification and CE marking eligibility. [NEED_CITE: steel grade equivalence between ASTM A500 and EN 10219 standards] Surface treatment selection between hot-dip galvanized and black painted directly affects corrosion resistance in coastal or industrial atmospheres. Cut-to-length services at the mill reduce on-site waste and welding rework.
Steel Grade Selection and Manufacturing Process Explained
ASTM A500 GR.B specifies minimum yield strength for structural applications in the North American market. The EN equivalent S355 offers higher yield for European projects requiring EN 1090 compliance. STK400 serves Japanese-specification projects across Southeast Asia. ERW welded production suits standard structural dimensions with cost efficiency, while seamless manufacturing handles higher-pressure or critical-load applications where weld-line integrity is a concern. [NEED_CITE: ERW vs seamless hollow section manufacturing process comparison]
Hot-dip galvanizing provides corrosion protection for outdoor and marine environments, extending service life without ongoing maintenance. Black painting suits indoor applications where appearance matters less than budget. Bare tubes serve projects where the buyer handles surface treatment on-site. Wall thickness tolerance of ±1% keeps theoretical weight calculations reliable for structural engineering load analysis.
Hidden Costs of Sourcing the Wrong Grade or Missing Certification
Specifying ASTM A500 GR.B when the project engineer designed to S355 creates a yield strength shortfall that only surfaces during load testing — or worse, during structural failure investigation. Missing mill test certificates delay customs clearance in the EU, where EN 10204 3.1 documentation is mandatory for structural steel imports. [NEED_CITE: EN 10204 inspection document types for steel products] Negative tolerance beyond standard limits reduces actual load-bearing capacity while the invoice charges full theoretical weight — a cost that compounds across multi-ton orders.
Why Procure ASTM A500 GR.B SHS From Our Mill
Our own steel production facility operates three rolling lines covering over 2,800 specifications, meaning every ASTM A500 GR.B square hollow section starts from billet we control. The vertically integrated supply chain from raw steel to finished fabricated component eliminates the material traceability gap that plagues broker-sourced orders. Our in-house laboratory issues mill test certificates with heat number traceability to the original melt. Third-party inspection by SGS, BV, or TÜV is available at every production stage. Certified welding procedures per AWS and EN standards support structural fabrication requirements. Professional loading teams handle oversized SHS bundles with specialized lashing for ocean transit.
Documentation & Compliance
- Mill test certificate documenting ASTM A500 GR.B chemical composition and mechanical properties per heat number
- CE certificate per EN 10219 for cold-formed structural hollow sections exported to European markets
- ISO 9001 quality management certificate covering the full production and inspection workflow
- SGS or BV third-party inspection report verifying dimensional accuracy and coating thickness
- Material traceability linking each ASTM A500 GR.B square hollow section bundle to its original billet heat number
- Complete customs documentation including packing list, bill of lading, and certificate of origin
Packaging, Loading & Delivery
- ASTM A500 GR.B SHS bundled with steel strips and edge protectors to prevent coating damage during ocean transit
- Galvanized square hollow sections wrapped with waterproof paper and plastic film to preserve zinc layer integrity
- Container loading optimized for 6m and 12m lengths to maximize payload per 20ft and 40ft open-top containers
- Cut-to-length services available for 5.8m, 6m, 11.8m, and 12m specifications reducing on-site cutting waste
- Heat number and steel grade stenciled on each bundle for site identification and traceability verification
- FOB, CIF, and DDP delivery options with professional oversized cargo loading and complete export documentation
Start Your ASTM A500 GR.B SHS Inquiry
Share your project drawings, required steel grades, dimensions, and destination port. Our engineering team responds within 24 hours with a detailed quotation including material cost, fabrication pricing, coating options, and shipping terms — along with the mill test certificate format for your review.
Request Your ASTM A500 GR.B Square Hollow Section Quote Today
Submit your specifications and receive a detailed quotation with mill test certification within 24 hours.
Company: Shandong Xin Jiyuan Special Steel Tube Co., Ltd
Website: www.xjystructure.com
Tel: +86 531 8573 6315
Mobile/WhatsApp/WeChat: +86 188 5315 7756
Email: admin@xjystructure.com
Address: No.11889, Jingshi West Road, Lulian Group, Jinan City, Shandong Province, China
Frequently Asked Questions
Q: What is the difference between ASTM A500 GR.B, EN S355, and JIS STK400 for square hollow sections?
A: ASTM A500 GR.B is the standard specification for cold-formed welded and seamless carbon steel structural tubing in North American and Middle Eastern markets. EN S355 applies to European projects requiring EN 1090 compliance and CE marking. JIS STK400 serves Japanese-specification projects common across Southeast Asia. All three grades are available in our ASTM A500 GR.B square hollow section product range, and we provide grade equivalence documentation for your engineering team.
Q: How do you ensure material traceability from billet to finished SHS?
A: Every ASTM A500 GR.B square hollow section traces back to the original billet heat number from our own steel mill. The mill test certificate documents chemical composition and mechanical properties for each heat. Third-party inspection by SGS, BV, or TÜV can verify traceability at any production stage.
Q: Can you provide custom cut-to-length and non-standard dimensions for project-based procurement?
A: Yes. We offer cut-to-length services for 5.8m, 6m, 11.8m, and 12m specifications. Non-standard dimensions outside the 19×19mm to 800×800mm range can be discussed based on project requirements. The MOQ for standard sizes is 5 tons, with flexibility for project-based orders.
Q: What surface treatment options are available for ASTM A500 GR.B SHS?
A: We offer hot-dip galvanized coating for outdoor and corrosive environments, black painting for indoor applications, varnish protection, and bare finish for projects where the buyer handles surface treatment on-site. Each option is documented in the quality inspection report.
Q: What shipping and delivery options do you provide for oversized SHS orders?
A: We provide FOB, CIF, and DDP delivery terms. Professional loading teams handle oversized square hollow section bundles with specialized lashing for ocean transit. Complete export documentation including packing list, bill of lading, and certificate of origin is provided for every shipment.
