Description
Factory-Direct A335-P11 Supply — Own steel mill produces raw billets through to finished seamless pipes, eliminating third-party material sourcing gaps.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | Carbon Steel Seamless Pipe A335-P11 |
| Product Type | Seamless Steel Pipe |
| Steel Grade | 10#, 20#, 35#, 45#, 16Mn, 40Cr, 15CrMo, 45Mn2, Q195, Q235, Q345, A335-P11 |
| Standard | API, ASTM (A53, A106, A178, A335), BS, DIN, GB, JIS, ASME B36.10M |
| Section Shape | Round |
| Outer Diameter | 21.3–1420 mm |
| Wall Thickness | 2.11–300 mm |
| Length | 6 m / 6.4 m / 12 m (or as required) |
| Technique | Seamless |
| Surface Treatment | Cold Rolled / Slightly Oiled |
| Tolerance | ±1% |
| Ends | Beveled (BE) |
| Application | Fluid transport / Boiler / Oil & Gas pipeline / Chemical fertilizer / Structure / Machinery parts / Automobile & tractor stress parts |
| MOQ | 1 Ton |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Power Generation & Boiler | High-temperature superheater tubes, reheater pipelines, steam drums in coal-fired and combined-cycle plants |
| Oil & Gas | Transmission pipelines, process piping in refineries, downhole casing for high-pressure wells |
| Chemical & Fertilizer | Reactor feed lines, heat exchanger tubes, ammonia synthesis piping under elevated temperature |
| Industrial Construction | Structural columns, machinery frames, hydraulic cylinder barrels, crane booms |
| Automotive & Heavy Machinery | Axle housings, drive shafts, tractor stress-bearing components |
What Wall-Thickness Tolerance Costs on a Seamless Pipe Order
A ±1% tolerance on a 300 mm wall is not the same as ±1% on a 2.11 mm wall — and buyers who treat them identically pay twice.
When procurement teams source A335-P11 seamless steel pipe for boiler or high-temperature service, the wall thickness tolerance directly affects pressure rating calculations. A pipe that measures below the minimum specified wall at any point fails hydrostatic testing on site — meaning the entire heat gets rejected, not just the bad section. Overseas buyers cannot send a caliper to the mill floor, so they rely on documentation. When mill test certificates show nominal values but actual measurements drift beyond ASME B36.10M limits, the cost of re-inspection, air-freight replacement, and project delay multiplies quickly. [NEED_CITE: ASME B36.10M welded and seamless wrought steel pipe dimensional tolerances]
Matching A335-P11 to High-Temperature Pressure Service
A335-P11 is a chromium-molybdenum alloy steel designed for sustained service at temperatures up to 600°C, making it the default specification for boiler superheater and reheater circuits. The seamless manufacturing process ensures uniform grain structure around the full circumference — critical when internal pressure and thermal cycling create hoop stress. Our own mill controls the piercing and elongation stages, so wall thickness stays within ±1% across the 21.3–1420 mm OD range. Beveled ends per ASME B36.10M arrive ready for orbital or manual TIG welding in the field, cutting site preparation time.
Engineering Compliance for Boiler and Pressure Piping
Boiler piping specified to ASTM A335 must satisfy both dimensional and metallurgical requirements. The A335-P11 grade demands controlled chromium (1.0–1.5%) and molybdenum (0.44–0.65%) content for creep resistance — deviations show up only in spectrometer analysis, not visual inspection. For projects entering the EU market, additional EN or PED compliance documentation may be required alongside the ASTM certificate. [NEED_CITE: ASTM A335 alloy steel pipe chemical composition requirements] Our quality system covers WPS-qualified welding procedures and third-party inspection coordination (SGS / BV) before shipment, so the documentation package matches the steel inside the pipe.
Understanding the Alloy and Carbon Steel Grade Range
The A335-P11 grade belongs to the chromium-molybdenum family, where chromium provides oxidation resistance and molybdenum strengthens the ferrite matrix at elevated temperature. This differs fundamentally from carbon grades like 20# or Q345, which serve structural and low-temperature fluid transport but lack the creep strength for boiler duty. The seamless process — hot piercing a solid billet followed by elongation — produces a homogeneous wall without the weld seam line that ERW pipes carry. For the 2.11–300 mm wall thickness range, seamless is the only viable method at the heavy-wall end; thin-wall seamless pipes achieve tighter dimensional control than welded alternatives. Cold rolling after hot finishing improves surface finish and holds the ±1% tolerance that pressure calculations depend on.
The Hidden Cost of Unverified Material Traceability
When a fabricator sources A335-P11 from a third-party trader rather than producing in-house, the heat number on the test certificate may not trace back to the actual billet. Spectrometer re-testing at the project site reveals chemistry mismatches — chromium content below specification means the pipe will not survive design-temperature creep life. Customs authorities in the Middle East and Southeast Asia increasingly hold shipments lacking complete MTC packages, regardless of the physical steel quality. [NEED_CITE: material traceability requirements in ASTM A335 supplementary specifications] The cost is never just the pipe — it is the crane time, the welding crew standby, and the liquidated damages for missed commissioning dates.
Why Source A335-P11 Seamless Steel Pipe from XJY Structure
Our vertically integrated operation means the same facility produces the raw steel and fabricates the finished pipe — one heat number, one quality system, one point of accountability. The own steel mill with three production lines covers over 2,800 specifications, so A335-P11 in any OD from 21.3 mm to 1420 mm and wall up to 300 mm rolls from our billets without external sourcing. Every batch carries a full mill test certificate documenting chemical composition and mechanical properties, traceable by heat number from billet to pipe end. We coordinate third-party inspection (SGS / BV) on request and prepare complete export documentation including packing list, bill of lading, and certificate of origin. Professional loading plans handle the 6 m, 6.4 m, and 12 m lengths with proper dunnage and lashing for ocean transit.
Documentation & Compliance
- Mill test certificate documenting A335-P11 chemical composition (Cr, Mo, C, Mn, Si) and mechanical properties per ASTM A335, with heat number traceability from billet to finished pipe
- Third-party inspection report from SGS or BV covering dimensional checks, surface inspection, and witness testing before shipment
- ISO 9001 quality management certificate covering the full production process from steelmaking to final pipe finishing
- Customs documentation package including commercial invoice, packing list, bill of lading, and certificate of origin formatted for destination-country clearance
- Supplementary test reports available per ASTM A335 requirements including hydrostatic testing, flattening tests, and non-destructive examination records
Packaging, Loading & Delivery

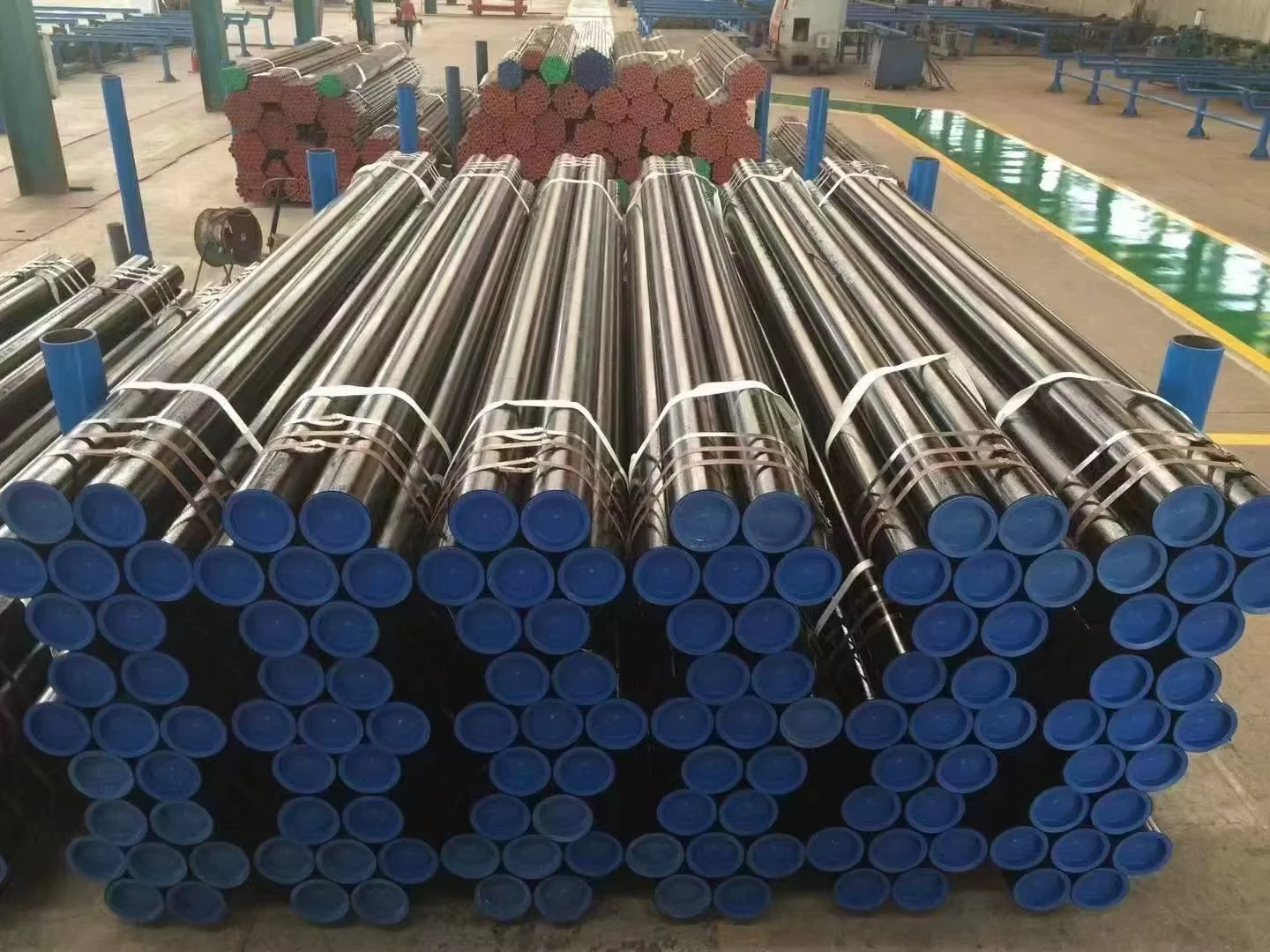

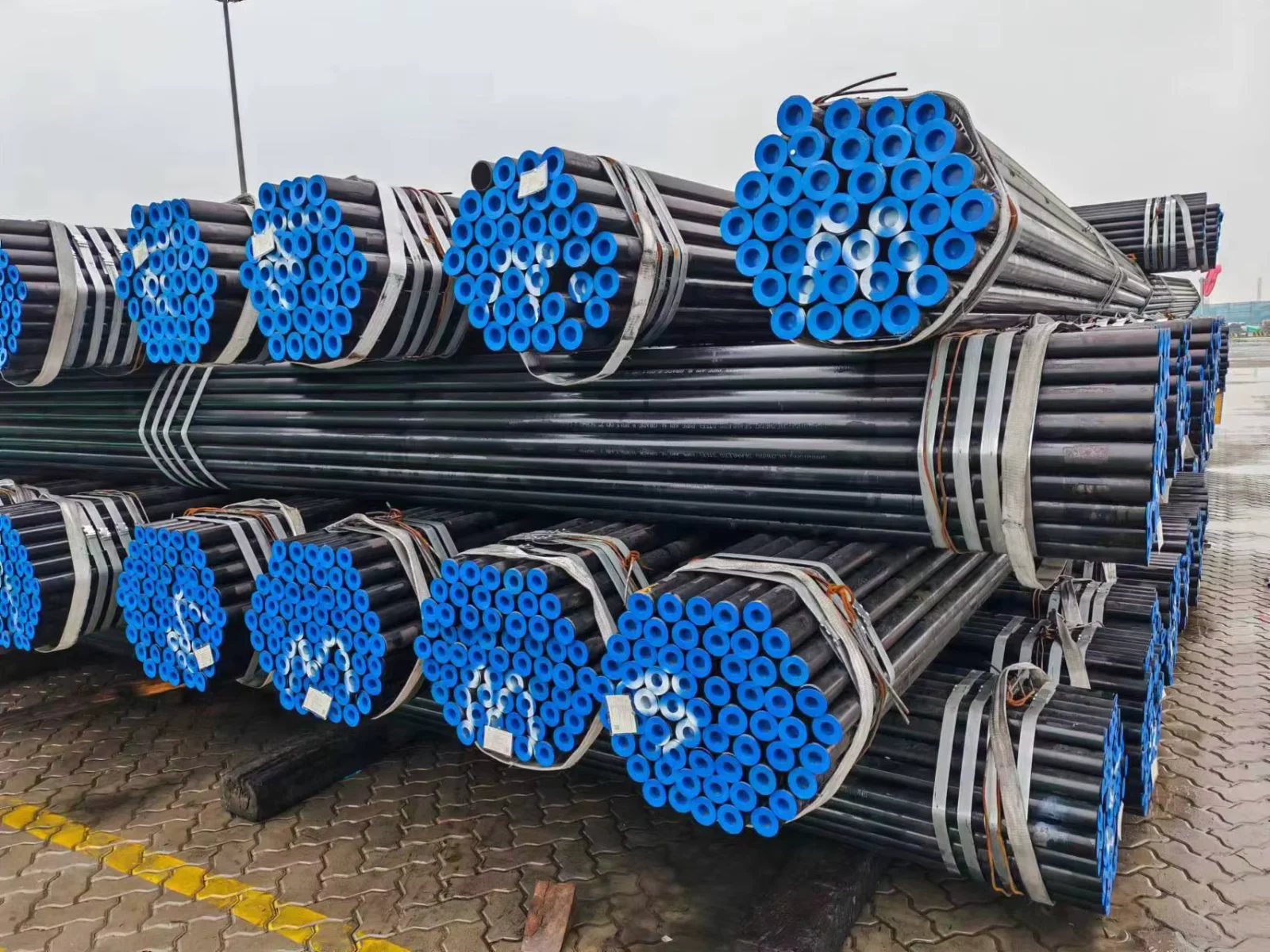

- A335-P11 pipes bundled with galvanized steel strips at intervals matching the 6 m / 6.4 m / 12 m lengths, with end caps protecting beveled edges during transit
- Slight oil coating applied after cold rolling prevents surface oxidation during ocean shipment without interfering with field welding preparation
- Container loading optimized for 21.3–219 mm OD pipes in 20ft or 40ft units; larger OD pipes (300–1420 mm) shipped on flat racks or bulk vessel with wooden cradle supports
- Heat number and steel grade stenciled on each pipe end alongside color-coded banding for A335-P11 identification at the project laydown area
- FOB Jinan or Qingdao port as standard; CIF and DDP terms available to Middle East, Southeast Asia, and African ports with full export documentation
Start Your A335-P11 Procurement
Share your project drawings or pipe schedule with the required OD, wall thickness, length, and quantity — we return a detailed quotation covering material, fabrication, coating, and logistics within one business day, along with the mill test certificate format for your approval.
Request a Quotation with Mill Test Certificate
Send your specifications to admin@xjystructure.com or contact us via WhatsApp at +86 188 5315 7756.
Frequently Asked Questions
Q: What is the difference between A335-P11 and 15CrMo?
A: Both are chromium-molybdenum alloy steels for high-temperature service. A335-P11 follows the ASTM designation with 1.0–1.5% Cr and 0.44–0.65% Mo, while 15CrMo follows the GB standard with similar chemistry. They are largely interchangeable in specification, but the test certificate format and supplementary requirements differ — confirm which standard your project engineer requires before ordering.
Q: Can you provide third-party inspection before shipment?
A: Yes. We coordinate SGS, BV, or other nominated inspection agencies to witness dimensional checks, surface inspection, and testing at our facility before the A335-P11 seamless steel pipe leaves the mill. The inspection report is included in the shipping documentation package.
Q: What is the minimum order quantity for custom lengths?
A: The standard MOQ is 1 Ton. For non-standard lengths outside the 6 m / 6.4 m / 12 m range, we confirm feasibility based on the OD and wall thickness combination — typical production lead times apply once the order is confirmed.
Q: How do you ensure wall thickness tolerance on heavy-wall A335-P11 pipes?
A: Our seamless process uses controlled piercing and elongation with in-line ultrasonic measurement. Each pipe undergoes dimensional inspection at multiple points along the length, and results are recorded in the mill test certificate. The ±1% tolerance is maintained across the full 2.11–300 mm wall thickness range.
Q: What surface treatment options are available for corrosion protection?
A: Standard delivery is cold rolled with slight oil coating for temporary rust prevention during transit. For additional corrosion protection, we can apply black painting, epoxy coating, or other specified finishes — confirm the coating system compatible with your site environment and field welding requirements.
