Description
Mill-Direct Supply, Zero Middlemen — Hot rolled steel plates produced in our own facility and processed in-house, eliminating third-party sourcing gaps from raw material to finished cut-and-welded components.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | A36 / S235JR / S355JR / SS400 Hot Rolled Steel Plate |
| Product Type | Hot Rolled Steel Sheet |
| Steel Grade | A36, S235JR, S355JR, St37-2, Q235, Q345, SS400 |
| Standard | ASTM, DIN, AISI, BS, GB, JIS |
| Technique | Hot Rolled |
| Surface Treatment | Black |
| Length | 6m–12m or as required |
| Width | As required |
| Tolerance | ±1% |
| Processing Services | Bending, Welding, Decoiling, Cutting, Punching |
| Material | Low Carbon Steel |
| Application | Shipbuilding, Construction, Steel Structure Fabrication, Industrial Projects |
| MOQ | 1 Ton |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Shipbuilding | Hull stiffeners, deck plating, bulkhead panels |
| Construction | Column base plates, beam splice connections, floor grating supports |
| Steel Structure Fabrication | Portal frame members, truss gusset plates, bracket assemblies |
| Industrial Projects | Platform decking, equipment support frames, conveyor stringers |
When Negative Tolerance Turns a Plate Order Into a Rework Order
Dimensional accuracy on hot rolled plates decides whether your cutting line produces usable parts or scrap.
I once watched a bridge deck fabrication stall for weeks because the plates arrived with thickness below the allowable negative tolerance — every cut piece failed the inspector’s caliper check. The supplier had blended off-spec coils into the shipment, and no mill test certificate flagged it. [NEED_CITE: EN 10029 tolerance class for hot rolled steel plates] When you source from a trader who pools material from multiple mills, that traceability gap becomes your project’s liability. A Hot Rolled Steel Plate Processing Services Supplier operating under a single roof — from slab to cut-and-welded component — closes that gap entirely.
Matching Plate Grades to Structural Load Paths
Engineering drawings for industrial plants and marine structures specify steel grades based on load-bearing requirements and service environment. Our Hot Rolled Steel Plate Processing Services Supplier capability covers A36 for general structural use in North American-spec projects, S235JR and S355JR for European-standard frames requiring higher yield performance, and SS400 for Japanese-spec industrial facilities. Each grade is processed through CNC plasma cutting, bending, and welding to exact shop drawing dimensions — so the plate that arrives at your site already matches the connection details your engineer approved.
Compliance Requirements Across Export Markets
Structural steel plates shipped to the EU must conform to EN standards with full CE marking documentation, while Middle East and African EPC projects often require ASTM or BS compliance alongside third-party inspection. [NEED_CITE: EN 1090 execution class requirements for steel structures] Our plates carry mill test certificates traceable to heat number, and we coordinate SGS or BV pre-shipment inspection for projects demanding independent verification. The ±1% thickness tolerance on our hot rolled black plates meets standard EN 10029 Class A requirements, ensuring dimensional compliance at customs and on-site acceptance.
Understanding Grade Equivalents and Processing Behavior
A36, S235JR, SS400, and Q235 occupy similar positions across ASTM, EN, JIS, and GB systems — all are mild carbon steels suited for general fabrication. S355JR and Q345 step up in yield strength for heavier load paths. The hot rolling process produces a mill-scale black surface that requires shot blasting before painting or galvanizing. Our in-house processing handles this sequence: decoiling, CNC cutting to shape, edge preparation for welding, bending to angle or radius, and final assembly — all under one quality system. [NEED_CITE: steel grade equivalence tables between ASTM A36 and EN S235JR]
The Hidden Cost of Unverified Plate Sources
Ordering plates from a broker who sources from unknown mills creates three risks: material certificates that don’t match actual chemistry, thickness variations that trigger rejection during NDT inspection, and welding procedure failures when the base metal doesn’t conform to the specified grade. [NEED_CITE: AWS D1.1 base metal qualification requirements] On a recent warehouse project, the contractor discovered that plates labeled S275 actually tested as S235 — forcing a complete redesign of the moment connections. A Hot Rolled Steel Plate Processing Services Supplier with integrated mill production eliminates this uncertainty at the source.
Why Projects Source From Our Facility
Our steel mill produces the slabs, our fabrication shop cuts and welds them — one facility, one quality record, one accountable entity. We hold 2,800+ raw material specifications in inventory, so your S355JR plates for a Middle East industrial project and your A36 base plates for a Southeast Asian warehouse ship from the same certified stock. Every weld follows approved WPS procedures executed by AWS/EN-certified welders, and every shipment includes the full documentation package: mill test certificates, weld maps, dimensional reports, and coating inspection records. Our professional loading team handles oversized fabricated components with specialized lashing, and we coordinate door-to-door logistics to project sites across the EU, Middle East, Southeast Asia, and Africa.
Documentation & Compliance
- Mill test certificate documenting S355JR chemical composition and mechanical properties per EN 10204 3.1, traceable to heat number
- CE certification for structural steel components manufactured under EN 1090 execution class requirements
- ISO 9001 quality management system certificate covering the full fabrication process from plate receipt to final coating
- SGS or BV third-party inspection report available for projects requiring independent pre-shipment verification
- Complete export documentation package including packing list, bill of lading, and certificate of origin for customs clearance
Packaging, Loading & Delivery

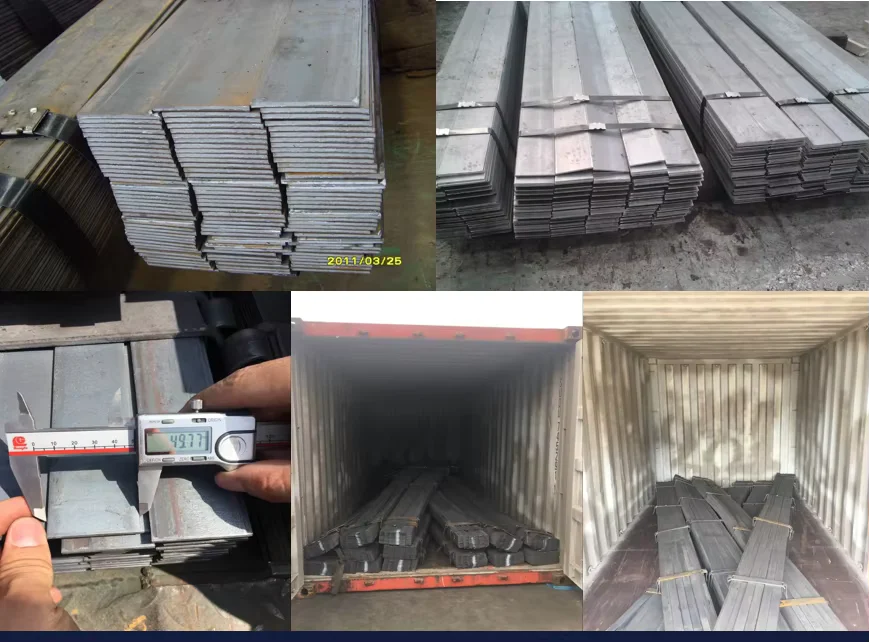

- Hot rolled black surface plates bundled with steel straps and edge protectors to prevent coating damage during ocean transit
- Custom-cut plates nested and strapped by project drawing number for easy site identification and installation sequencing
- 6m–12m length plates loaded in dedicated containers with timber dunnage to prevent shifting and surface scratching
- Heat number and steel grade stenciled on each plate for full material traceability at the project site
- FOB, CIF, or DDP shipping terms available with professional oversized cargo loading for fabricated components
Getting Your Project Quoted and Moving
Send your project drawings in PDF or DWG format along with steel grade specifications, required quantities, and destination port. Our engineering team reviews the shop drawings, prepares a detailed quotation covering material, processing, coating, and logistics, and returns a preliminary assessment within 24 hours. Once drawings are approved and the contract signed, material procurement and production begin immediately.
Start Your Steel Plate Fabrication Inquiry
Submit your specifications, steel grades, and project requirements to receive a detailed quotation with mill test certificate documentation.
