Description

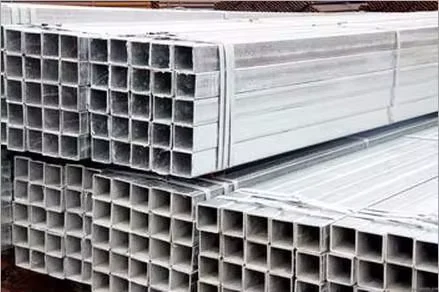

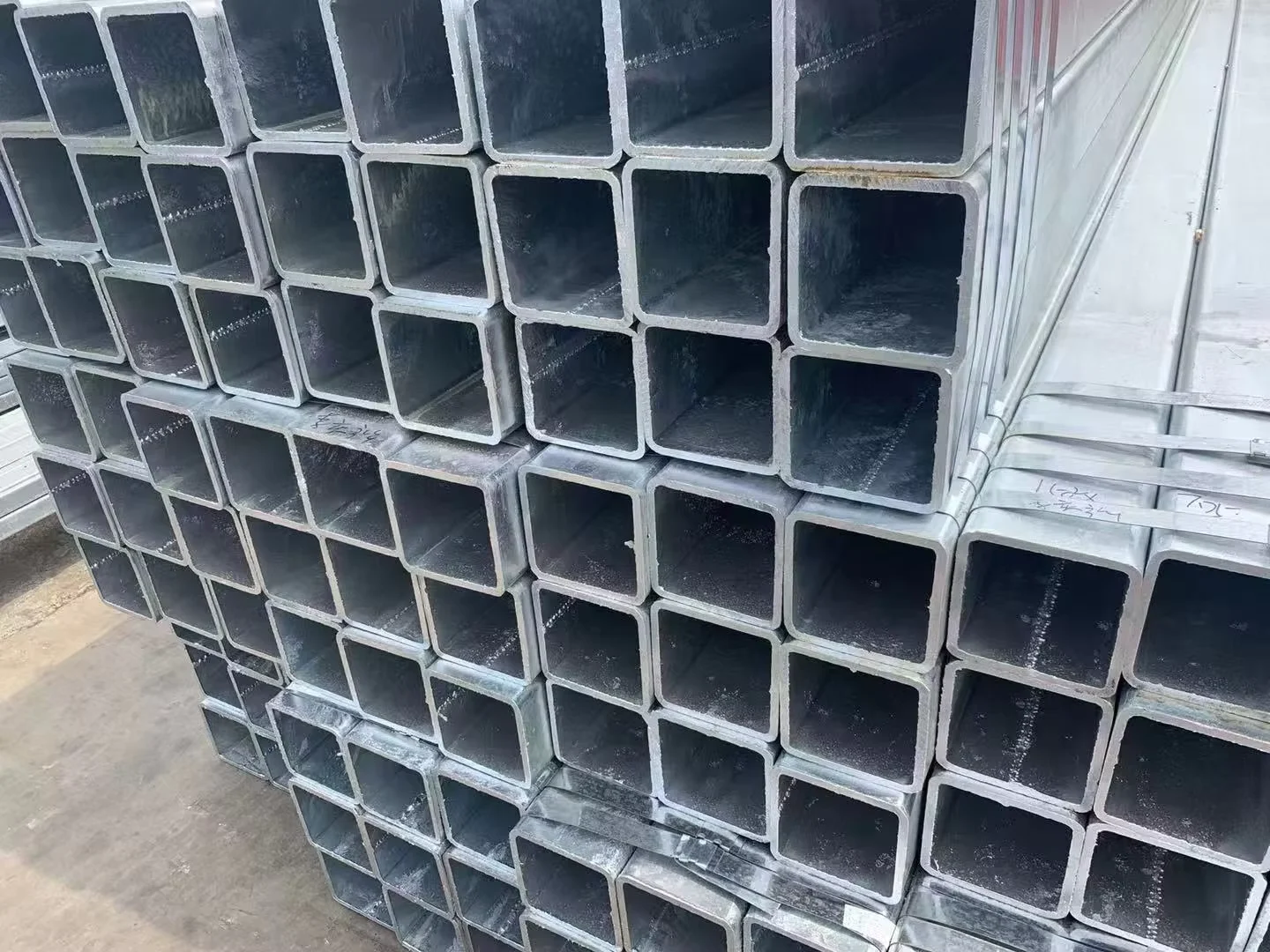

Full-Range Galvanized Square Steel Tube Supply — Hot-dip galvanized SHS in A500 Grade B/C and A53 Grade B, produced from our own steel mill with complete material traceability from billet to finished pipe.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | Galvanized Square Steel Tube |
| Product Type | Square Steel Tube (SHS) |
| Steel Grade | A53 Grade B / A500 Grade A, Grade B, Grade C / STK400 / SS400 / ST42.2 / S355JR / Q235B |
| Standard | ASTM A53, A500, A36, A795; BS1387; EN10255; ISO65; ANSI C80; DIN2440; JIS G3444; GB/T3091, GB/T13793 |
| Section Shape | Square |
| Size Range | 21.3mm–660mm (1/2″–26″) |
| Wall Thickness | 6mm |
| Length | 5.8m / 6m / 11m or as customer needs |
| Technique | Hot-dip Galvanizing |
| Surface Treatment | Galvanized (Hot-dipped / Pre-galvanized) |
| Tolerance | ±1% / ±5% |
| Ends | Plain ends / Beveled ends / Threaded ends / Grooved ends |
| Application | Municipal water & gas transmission / Oil, gas, water fluid transportation / Construction / Hydraulic precision machinery / Power / Boiler / Petrochemical |
| MOQ | 1 Ton |
| Origin | China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Municipal Infrastructure | Underground water mains, gas distribution networks, fire hydrant risers |
| Industrial Construction | Factory building frames, mezzanine supports, conveyor structure columns |
| Petrochemical & Power | Pipe rack supports, structural framing for processing units, boiler house bracing |
| Commercial Building | Column sections for warehouses and logistics centers, canopy frameworks |
What Zinc Coating Thickness Decides for Municipal Pipeline Acceptance
A substandard galvanized layer fails third-party inspection before the first pipe reaches the trench.
When sourcing a Galvanized Square Steel Tube for underground water or gas transmission, the zinc coating is the first line of defense against soil-side corrosion. Buyers who accept suppliers without in-house galvanizing control often discover coating gaps at the weld seams or corners — areas where molten zinc drainage is hardest to manage. I have seen entire container loads held at destination ports because the coating measured below the 80μm threshold specified in the contract, forcing the client to reorder and pushing a municipal pipeline schedule back by weeks. [NEED_CITE: hot-dip galvanizing coating thickness requirements per ISO 1461]
Matching Galvanized SHS to Underground and Structural Service Conditions
A Galvanized Square Steel Tube in A500 Grade B or A53 Grade B serves two distinct demands simultaneously: structural load-bearing for frame applications and long-term corrosion resistance for buried or exposed pipeline runs. The hot-dip galvanizing process coats all four faces and internal corners of the square section, which matters for municipal water and gas lines where external soil contact is continuous. Our own mill produces the base steel, so the chemical composition recorded on the mill test certificate matches exactly what goes into the galvanizing bath — no third-party sourcing gaps that leave buyers unable to trace a heat number back to production records.
Engineering Compliance and Certification Requirements for Galvanized Square Tube
Municipal and industrial projects specifying ASTM A500 or A53 for structural hollow sections require documentation that goes beyond a simple invoice. The Galvanized Square Steel Tube must carry a mill test certificate showing chemical composition and mechanical properties per the designated standard, plus coating thickness measurement reports per ISO 1461 or ASTM A123. For projects in the European market, EN10210 or EN10219 conformity with CE marking becomes the customs clearance gate — without it, the shipment sits at the port regardless of physical quality. [NEED_CITE: EN 10210 hot-finished structural hollow sections certification requirements] End finishing — plain, beveled, threaded, or grooved — must match the field connection method specified in the project’s piping and instrumentation drawings, and our fabrication line handles all four options in-house.
Steel Grade Selection and Hot-Dip Galvanizing Process Explained
The steel grades available for this Galvanized Square Steel Tube — A53 Grade B, A500 Grade B and C, S355JR, Q235B, SS400 — represent three distinct standard systems. ASTM A500 Grade C offers the highest yield strength among the common structural grades, making it suitable for load-bearing columns in warehouse and industrial frames. S355JR is the European equivalent tier, widely specified across Middle East and African infrastructure projects following EN standards. Q235B and SS400 serve general structural and non-critical applications where cost efficiency matters more than high strength. The hot-dip galvanizing process immerses the formed square tube in molten zinc at approximately 450°C, creating a metallurgical bond that produces multiple zinc-iron alloy layers topped by pure zinc — this layered structure is what provides decades of corrosion protection in buried municipal service. Wall thickness tolerance directly affects theoretical weight calculations that buyers use for cost comparison; a tube at the lower end of tolerance weighs less per meter but still meets the standard, which is why transparent tolerance declarations matter in procurement.
Hidden Costs of Procuring Galvanized Square Tube Without Verified Certification
Choosing a cheaper Galvanized Square Steel Tube supplier without verifiable mill test certificates or third-party inspection reports creates costs that surface long after the purchase price is paid. Material substitution — receiving Q235B when A500 Grade C was specified — compromises structural design assumptions and can trigger rejection during engineer-of-record review. Coating thickness below contract minimums leads to accelerated corrosion in aggressive soil conditions, shortening the service life of a municipal water main and creating liability for the installing contractor. Missing or fabricated documentation blocks customs clearance in markets requiring CE marking or SGS pre-shipment inspection, stranding cargo at the port and generating demurrage charges that erase any initial price savings. [NEED_CITE: consequences of non-compliant structural steel in international construction projects]
Why Procure Galvanized Square Steel Tube From Our Vertically Integrated Mill
Our production model starts with our own steel mill operating three production lines and producing over 2,800 specifications of raw steel — the same material that becomes your Galvanized Square Steel Tube. This vertical integration means the mill test certificate you receive traces directly from our billet production through forming, welding, and hot-dip galvanizing, with no third-party material sourcing creating traceability gaps. We maintain certified welding procedures and qualified welders per AWS and EN standards, and our in-house quality lab produces complete documentation packages including WPS, PQR, weld maps, dimensional inspection reports, and coating thickness measurements. For international buyers, we handle CE/EN/ISO certification packages required for EU, Middle East, and African project compliance, and our team manages professional packing and oversized cargo loading for ocean freight. Custom cut-to-length at 5.8m, 6m, 11m, or project-specific dimensions is available with a 1-ton minimum order, and our engineering team provides shop drawing review and material optimization support before production begins.
Documentation & Compliance
- Mill test certificate documenting A500 Grade B/C and A53 Grade B chemical composition and mechanical properties per ASTM standards, with heat number traceability to our own steel production
- CE certificate confirming EN10210/EN10219 conformity for hot-dip galvanized square steel tubes entering European Union markets
- ISO 9001 quality management certificate covering the full production chain from raw steel to galvanized finished product
- SGS or BV third-party inspection report verifying zinc coating thickness per ISO 1461 and dimensional accuracy before shipment
- Material traceability documentation linking each Galvanized Square Steel Tube bundle to its production heat number and galvanizing batch record
- Complete customs documentation including packing list, bill of lading, and certificate of origin for destination-country clearance
Packaging, Loading & Delivery
- Galvanized Square Steel Tube bundles secured with steel strips and edge protectors to preserve the hot-dip zinc coating from abrasion during ocean transit
- Plastic caps on both ends of each tube plus woven bag wrapping to prevent moisture contact and surface damage to the galvanized layer
- Container loading optimization for 5.8m and 6m lengths maximizes 20ft GP and 40ft HC utilization, with 11m lengths shipped via open-top or flat-rack containers
- Custom cut-to-length service at 5.8m, 6m, 11m, or project-specified dimensions reduces on-site cutting waste for municipal pipeline installations
- Heat number and steel grade markings stenciled on each bundle for site identification and inspection verification
- FOB, CIF, and DDP shipping terms available with professional oversized cargo handling and door-to-door logistics coordination
Requesting a Quotation for Your Galvanized Square Steel Tube Project
Submit your project drawings or specification sheet listing the required steel grade, section dimensions, wall thickness, length, quantity, and destination port. We respond within 24 hours with a detailed quotation covering material, hot-dip galvanizing, packing, and shipping costs, along with the mill test certificate format and third-party inspection arrangement for your review.
Get Your Galvanized Square Steel Tube Quote with Full Certification
Send your specifications and steel grade requirements to receive a detailed quotation and mill test certificate sample within 24 hours.
