Description
Factory-Direct Mill Pricing — Vertically integrated steel production and hot-dip galvanizing under one roof eliminates markup layers for every Galvanized Square Steel Pipe order.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | Galvanized Square Steel Pipe |
| Product Type | Square Steel Tube (SHS) |
| Steel Grade | A53 Grade B / A500 Grade A / A500 Grade B / A500 Grade C / STK400 / SS400 / ST42.2 / S355JR / Q235B |
| Standard | ASTM A53 / ASTM A500 / ASTM A36 / ASTM A795 / BS 1387 / EN 10255 / ISO 65 / ANSI C80 / DIN 2440 / JIS G3444 / GB/T 3091 / GB/T 13793 |
| Section Shape | Square |
| Size Range (Side Length) | 21.3 mm – 660 mm (1/2″ – 26″) |
| Wall Thickness | 6 mm |
| Length | 5.8 m / 6 m / 11 m or customized |
| Technique | Hot-dip Galvanized |
| Surface Treatment | Hot-dip Galvanized |
| Tolerance | ±1% / ±5% |
| Ends | Plain ends / Beveled ends / Threaded ends / Grooved ends |
| Processing Service | Punching / Cutting / Bending |
| Application | Municipal water & gas transmission / Oil, gas & water fluid transportation / Construction / Hydraulic precision machinery / Power & boiler / Petrochemical / Building industry |
| MOQ | 1 Ton |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Municipal Infrastructure | Underground water distribution mains, gas transmission pipelines, stormwater drainage columns |
| Industrial Construction | Petrochemical pipe racks, factory structural frames, conveyor support structures |
| Building & Architecture | Scaffolding systems, mezzanine columns, curtain wall support frames |
| Power & Energy | Boiler support structures, substation equipment frames, solar mounting posts |
| Hydraulic & Mechanical | Precision machinery frames, hydraulic cylinder housings, material handling gantries |
What Coating Thickness Variance Costs on Underground Pipeline Projects
A 25-micron shortfall in zinc coating can cut service life in half for buried municipal water lines.
Sourcing a Galvanized Square Steel Pipe for municipal water and gas transmission introduces three compounding risks: inconsistent zinc thickness across bundles, broken material traceability between the raw steel mill and the galvanizing line, and dimensional drift that forces on-site rework before welding even begins. When fabrication is outsourced across borders, buyers cannot walk the floor to verify that the steel going into the galvanizing bath matches the heat numbers on the mill certificate. That gap between paper and reality is where project budgets bleed — through rejected bundles at site inspection, customs holds on missing documentation, and schedule delays while replacement material crosses oceans. [NEED_CITE: hot-dip galvanized coating thickness requirements for buried steel pipelines]
Matching Municipal Pipeline Specs to Hot-Dip Galvanized SHS
Underground water and gas transmission demands corrosion resistance that pre-galvanized or painted alternatives cannot sustain over decades of soil contact and moisture exposure. Hot-dip galvanizing bonds a metallurgical zinc-iron alloy layer to the steel substrate, providing sacrificial protection even at cut edges and threaded joints. A Galvanized Square Steel Pipe with plain or beveled ends integrates directly into flanged and welded pipeline networks, while threaded and grooved end options support mechanical coupling systems common in gas distribution. Our vertically integrated mill processes raw steel through forming and galvanizing in a single facility, so every heat number on the MTC traces back to our own production — no third-party sourcing gaps.
Engineering Compliance Across Multiple Standard Frameworks
Municipal projects spanning different regions require compliance with divergent standard systems: ASTM A53 and A500 for North American specifications, EN 10255 for European pipeline applications, JIS G3444 for Japanese infrastructure projects, and GB/T 3091 for domestic Chinese standards. [NEED_CITE: equivalence mapping between ASTM A53 and EN 10255 for galvanized hollow sections] Selecting the correct steel grade — whether A500 Grade B for structural load requirements or S355JR for higher yield strength in load-bearing frames — directly affects both structural certification and customs clearance at destination ports. The availability of multiple end treatments (plain, beveled, threaded, grooved) ensures the Galvanized Square Steel Pipe meets site joining specifications without secondary machining that could compromise the zinc coating at cut zones. Third-party inspection by SGS, BV, or TÜV validates coating thickness and dimensional accuracy against the specified tolerance band before shipment. [NEED_CITE: third-party inspection protocols for galvanized steel pipe coating adhesion]
Steel Grade Selection and Hot-Dip Galvanizing Process Logic
The steel grades offered — spanning Q235B, S355JR, A53 Grade B, and A500 Grade C — represent different yield strength tiers within their respective standard systems. Q235B and A53 Grade B serve general-purpose fluid transmission where moderate strength suffices, while S355JR and A500 Grade C target structural applications requiring higher load-bearing capacity. The hot-dip galvanizing process immerses formed square tubes in molten zinc at approximately 450°C, creating a metallurgical bond that produces distinct alloy layers (gamma, delta, zeta) topped by pure zinc — this layered structure provides both barrier protection and cathodic sacrifice. Wall thickness at 6 mm across the 21.3 mm to 660 mm size range balances structural rigidity with weight efficiency for pipeline support and structural framing. Tolerance bands of ±1% and ±5% accommodate different precision requirements depending on whether the Galvanized Square Steel Pipe serves as a pressure-containing conduit or a non-pressurized structural member.
The Hidden Cost of Unverified Material Sources
Purchasing a Galvanized Square Steel Pipe from a trader who sources raw tubes from one mill and galvanizes at a separate facility creates a traceability break: the coating report cannot reference the original heat number, and the MTC becomes a document chain rather than a verified record. When site inspectors measure zinc thickness below specification — as happened on a Lagos municipal project where 40-micron readings failed against a 65-micron requirement — the entire bundle faces rejection, and replacement lead times stretch project schedules by weeks. [NEED_CITE: consequences of broken material traceability in galvanized steel procurement] Missing CE marking on EN-specified shipments triggers customs holds; absent weld maps and dimensional inspection reports delay engineering approvals. These are not theoretical risks — they are recurring cost items on projects where procurement prioritizes unit price over supply chain integrity.
Why Procurement Teams Source from Our Integrated Facility
Our operation combines raw steel production with fabrication and galvanizing under one roof, meaning every Galvanized Square Steel Pipe ships with documentation tracing from our own melt shop through final coating inspection. The facility maintains over 2,800 raw material specifications across three production lines, allowing single-source fulfillment of mixed-size orders without consolidating from multiple suppliers. Certified welding procedures (WPS/PQR) and qualified welders hold AWS and EN certifications, while the in-house quality lab generates complete documentation packages — coating thickness reports, dimensional inspection records, and material traceability by heat number. Third-party inspection coordination with SGS, BV, and TÜV is managed internally, and export packing follows project-specific requirements for ocean transit of galvanized bundles. International project experience across the Middle East, Southeast Asia, Africa, and Europe informs our understanding of destination-port documentation requirements and standard compliance expectations.
Documentation & Compliance
- Mill Test Certificate documenting chemical composition and mechanical properties for each heat number of A53 Grade B, A500 Grade B/C, or S355JR steel used in the Galvanized Square Steel Pipe
- Third-party inspection report (SGS/BV/TÜV) verifying hot-dip galvanized coating thickness, adhesion, and dimensional tolerance per ASTM A53 or EN 10255 requirements
- Material traceability sheet linking each bundle’s heat number to raw steel production records and galvanizing batch logs
- Customs documentation package including packing list, bill of lading, and certificate of origin formatted for destination port requirements
- Coating inspection report detailing zinc layer thickness measurements across sampled bundles against project-specified minimums
- ISO 9001 quality management system certificate covering the integrated production and galvanizing process
Packaging, Loading & Delivery

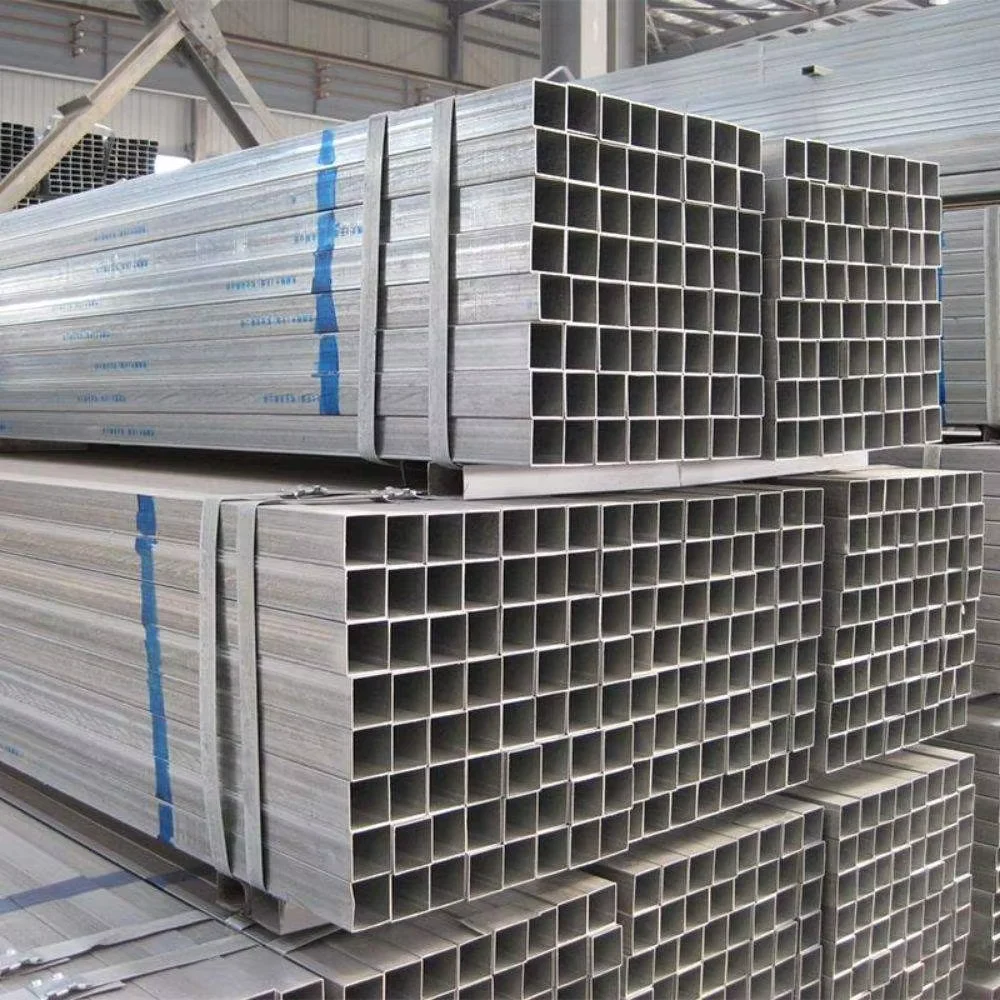

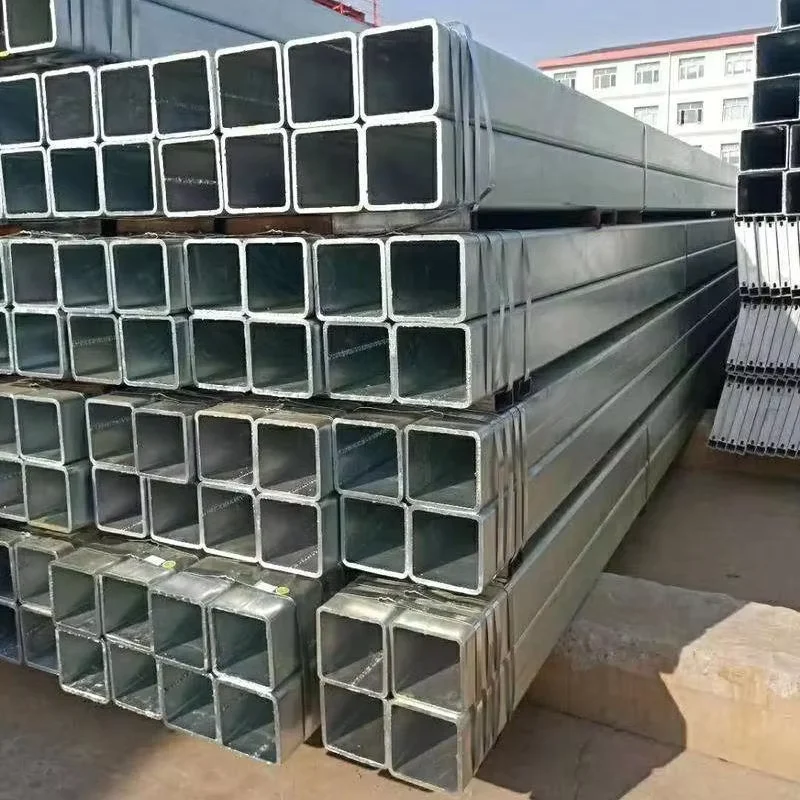

- Hot-dip galvanized square tubes bundled with steel strips and edge protectors to prevent zinc coating damage from strap contact during ocean transit
- Plastic end caps installed on all plain and beveled ends to preserve thread integrity and prevent moisture ingress into the tube interior
- Woven bag wrapping over bundles provides additional surface protection for the galvanized finish during handling and container loading
- Standard seaworthy packing configured for 5.8 m, 6 m, and 11 m lengths, optimized for 20ft and 40ft container payload across the 21.3 mm to 660 mm size range
- Heat number and steel grade markings stenciled on each bundle for site identification and traceability verification upon arrival
- FOB, CIF, and DDP shipping terms available with professional oversized cargo loading plans for heavy galvanized bundles
Initiating Your Galvanized SHS Procurement
Submit project drawings, required steel grades, size specifications, and destination port details to receive a detailed quotation including material, galvanizing, packing, and freight costs. Our engineering team reviews shop drawing requirements and confirms production scheduling against your project timeline, with full MTC and third-party inspection documentation included in the delivery package.
Request Your Galvanized Square Steel Pipe Quotation
Share your specifications, steel grade requirements, and quantity to receive pricing with complete mill test certificates and export documentation.
Shandong Xin Jiyuan Special Steel Tube Co., Ltd
Website: www.xjystructure.com
Tel: +86 531 8573 6315
Mobile/WhatsApp/WeChat: +86 188 5315 7756
Email: admin@xjystructure.com
Address: No.11889, Jingshi West Road, Lulian Group, Jinan City, Shandong Province, China
Frequently Asked Questions
Q: How does hot-dip galvanized coating compare to pre-galvanized for underground water and gas transmission?
A: Hot-dip galvanizing produces a metallurgical zinc-iron alloy bond with thicker coating layers (typically 65+ microns) that provide superior corrosion resistance for buried applications. Pre-galvanized coatings are thinner and lack the alloy layer structure, making them suitable for indoor or above-ground use but insufficient for long-term underground exposure in municipal pipeline networks.
Q: What documentation verifies coating thickness and material traceability for Galvanized Square Steel Pipe orders?
A: Each shipment includes a Mill Test Certificate with heat number traceability from raw steel production through galvanizing, plus a coating inspection report documenting zinc thickness measurements. Third-party inspection by SGS, BV, or TÜV is available to independently verify coating adhesion, thickness uniformity, and dimensional accuracy against ASTM A53 or EN 10255 standards.
Q: Can you supply Galvanized Square Steel Pipe to EN 10255 with CE marking for European municipal projects?
A: Yes. Our integrated facility produces to multiple international standards including EN 10255, ASTM A53, A500, and JIS G3444. CE marking and EN compliance documentation are provided for EU-bound shipments, with full material traceability and third-party inspection reports supporting customs clearance and engineering approval.
Q: What is the MOQ for custom lengths and non-standard sizes?
A: The minimum order quantity is 1 Ton. Custom lengths beyond the standard 5.8 m, 6 m, and 11 m options are available, along with processing services including cutting, punching, and bending to reduce on-site fabrication work.
Q: How do you pack galvanized bundles to prevent coating damage during international shipping?
A: Galvanized Square Steel Pipe bundles are secured with steel strips fitted with edge protectors to prevent strap-induced coating damage. Plastic end caps seal tube openings, woven bag wrapping provides surface protection, and loading plans are optimized for container weight distribution to minimize shifting during ocean transit.
