Description

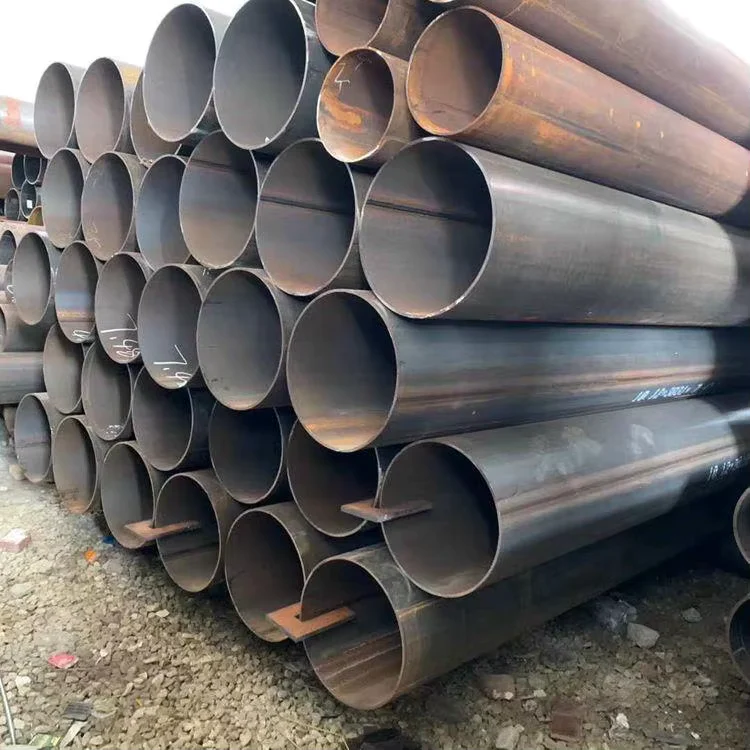

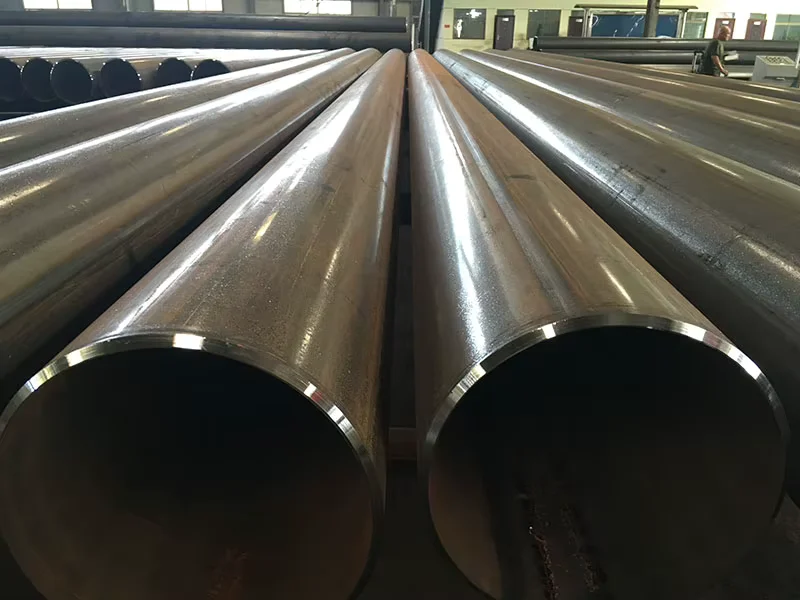

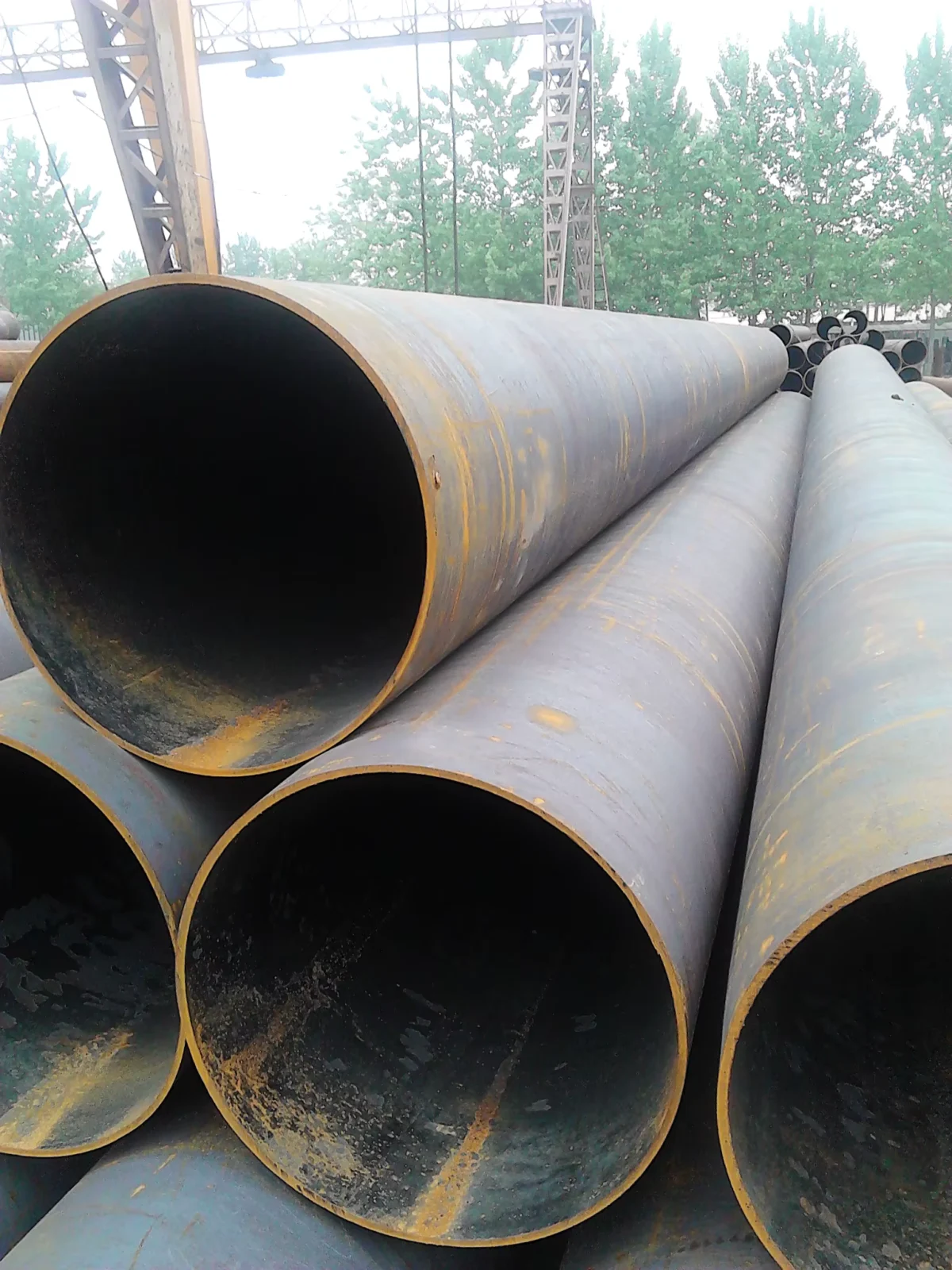

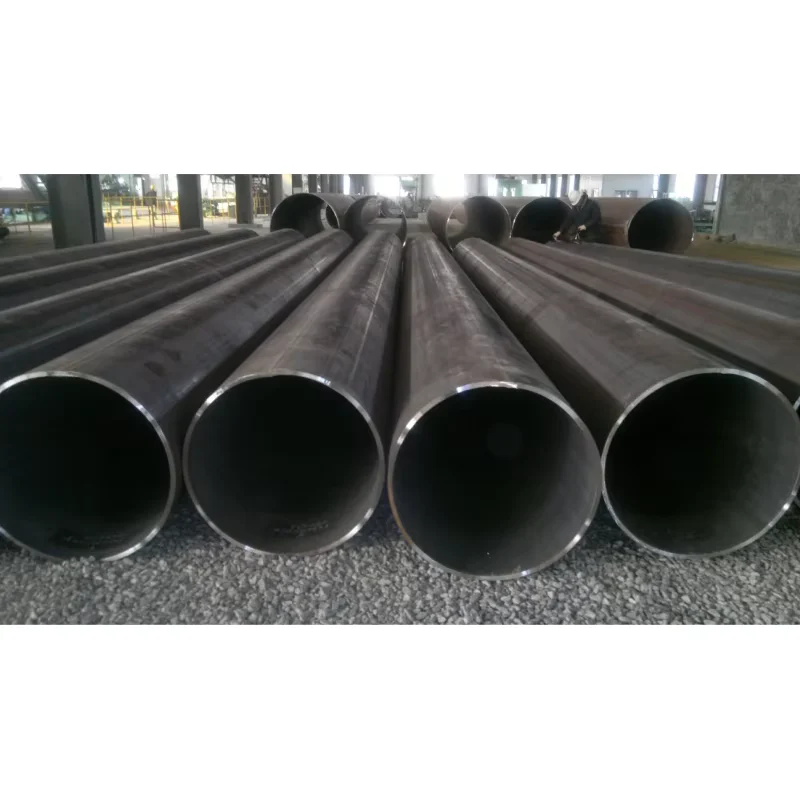

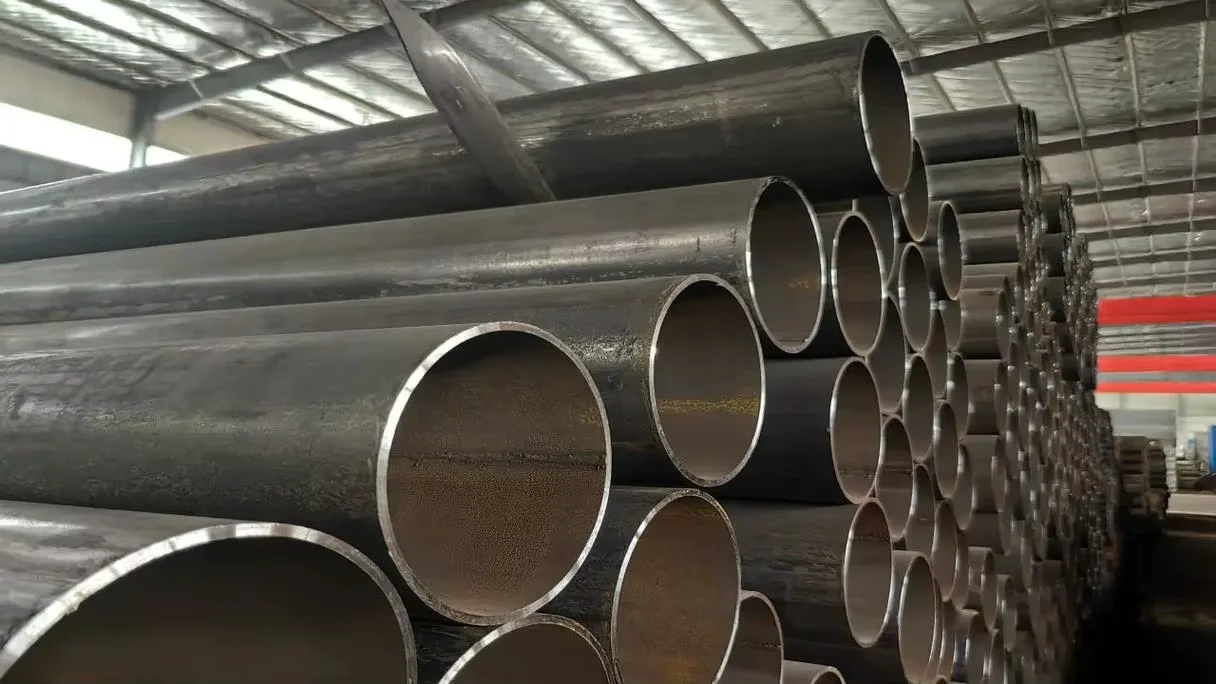

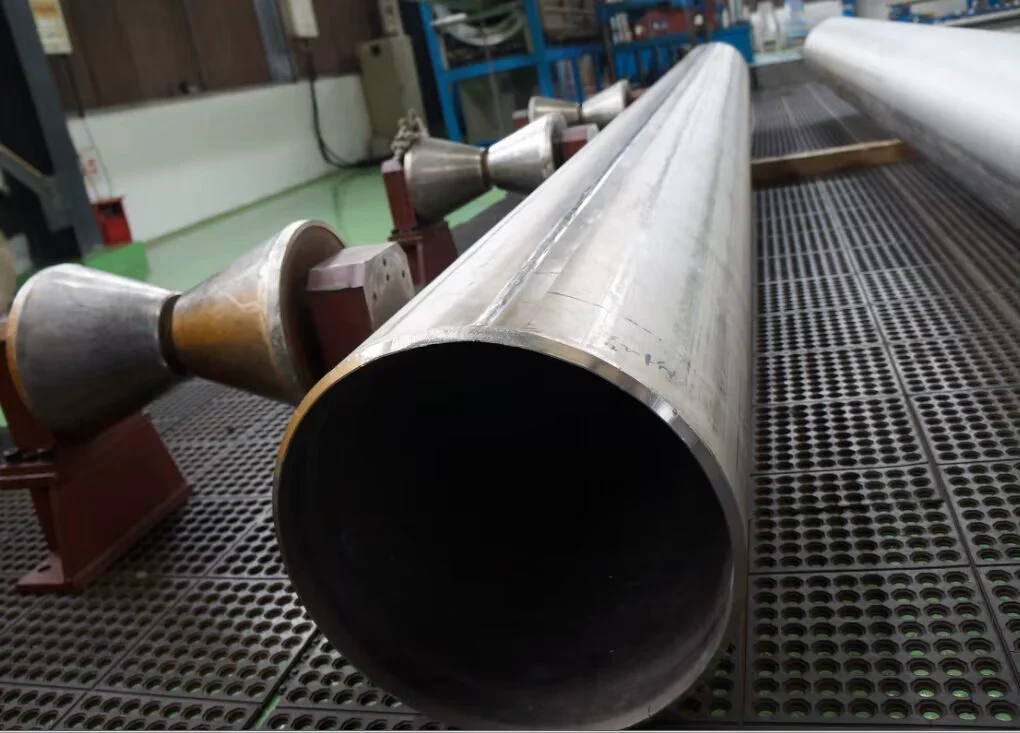

API 5L ERW Steel Pipe direct from integrated mill — Raw steel production and pipe fabrication under one roof ensures full heat-number traceability from slab to finished pipe, eliminating third-party sourcing gaps for pipeline projects.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | API 5L ERW Steel Pipe |
| Product Type | ERW Round Steel Pipe |
| Steel Grade | Q235, Q355, S355JR, API 5L GR A, GR B, X42, X46, X52, X56, X60, X65, X70 |
| Standard | API 5L, ASTM A53, BS |
| Section Shape | Round |
| Outer Diameter | 54–1140 mm |
| Technique | ERW (Electric Resistance Welding) |
| Surface Treatment | Non-oiled (bare) |
| Tolerance | ±5%, ±1% |
| Length | Customer’s Request |
| Application | Fluid Transportation, Gas Pipeline, Oil Pipeline, Structure Pipe, Bridge, Building Construction |
| MOQ | 5 Tons |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Oil & Gas EPC | Onshore gas transmission lines, crude oil gathering pipelines, process piping in refineries |
| Industrial Construction | Fluid conveyance systems, cooling water lines, compressed air distribution in factories |
| Infrastructure & Civil Engineering | Bridge handrails, structural columns, piling supports for elevated walkways |
| Municipal Engineering | Urban water supply networks, drainage systems, fire protection mains |
What Wall-Thickness Tolerance Costs on an API 5L ERW Steel Pipe Order
Negative tolerance beyond specification limits triggers third-party rejection at destination port.
When buyers source API 5L ERW Steel Pipe from China, the most common failure point is not the steel grade itself — it is the wall thickness measured at the weld seam and at the 12 o’clock position. ERW production can drift toward the lower end of tolerance, and if a fabricator allows negative tolerance to run unchecked, pipes that pass factory calipers may fail ultrasonic re-inspection abroad. The consequence is not just a paperwork dispute: entire shipments get flagged, third-party inspectors issue non-conformance reports, and project schedules slip while replacement material is sourced. [NEED_CITE: API 5L wall thickness tolerance requirements for ERW pipe]
How ERW Weld Seam Integrity Matches Pipeline Pressure Demands
API 5L ERW Steel Pipe in grades X42 through X70 is produced using high-frequency electric resistance welding, where the longitudinal seam is forged under heat and pressure without filler metal. For gas transmission and oil gathering lines, the weld seam must pass hydrostatic testing and, for higher grades, mandatory NDT including ultrasonic inspection of the weld zone. The non-oiled bare surface condition leaves the pipe ready for downstream 3PE or FBE coating application at the coating yard, avoiding adhesion issues caused by residual oils. Our integrated mill controls the strip chemistry before forming begins, so the weld seam composition matches the parent metal — a traceability advantage that third-party fabricators sourcing external strip cannot guarantee.
Engineering Compliance and Certification Requirements for Pipeline Use
Pipeline projects governed by API 5L require that each pipe be traceable to its heat number, with certified mill test reports documenting chemical composition and mechanical properties. For projects in the European market, additional compliance with EN 10219 or EN 10210 may apply depending on whether the pipe serves structural or pressure containment functions. [NEED_CITE: API 5L vs EN 10219 compliance differences for pipeline and structural applications] Steel grade selection directly affects design pressure: X42 and X52 are common for medium-pressure gas distribution, while X65 and X70 are specified for long-distance high-pressure transmission. Dimensional tolerance on outer diameter and wall thickness must conform to the standard’s permitted deviations, and third-party inspection agencies such as SGS or BV are routinely engaged to verify compliance before shipment. Custom cut-to-length service ensures pipes arrive at the construction site ready for welding without field cutting that could compromise bevel preparation.
Steel Grade Selection and ERW Process Fundamentals
The API 5L specification covers a wide range of steel grades from GR A and GR B for low-pressure applications up to X70 for high-strength transmission pipelines. The number following “X” indicates the minimum yield strength in ksi — so X52 means a minimum yield of 52 ksi (approximately 358 MPa). ERW pipe is formed from hot-rolled coil or plate, with the longitudinal seam welded by electrical resistance without filler material. This process is cost-effective for medium-to-large diameters (54–1140 mm) and produces a consistent weld profile suitable for most pipeline and structural applications. [NEED_CITE: ERW vs seamless pipe selection criteria for oil and gas pipelines] The non-oiled surface treatment is standard for pipes destined for external coating, as oil residues can interfere with the bonding of epoxy or polyethylene coating layers. Wall thickness tolerance of ±1% on tighter specifications ensures that the actual weight and structural capacity remain within engineering design assumptions.
Hidden Costs of Incorrect Grade or Tolerance on Pipeline Projects
Specifying the wrong API 5L grade — for example, using GR B where X52 is required by the engineering design — may pass visual inspection but will fail pressure testing or third-party audit at destination. Similarly, wall thickness that drifts below the minimum allowed by API 5L tolerance tables creates structural risk and regulatory non-compliance. [NEED_CITE: consequences of wall thickness deviation in API 5L pipeline inspection] Pipes without proper heat-number traceability cannot be verified against the original mill test certificate, which means customs authorities in strict-markets may hold or reject the shipment. The real cost is never the per-ton price difference: it is the project delay, the re-inspection fees, and the potential need to replace material already shipped overseas.
Why Pipeline Contractors Source API 5L ERW Steel Pipe From Our Integrated Facility
Our operation combines raw steel production with pipe fabrication in a single facility in Jinan, Shandong — meaning the hot-rolled coil used to form your API 5L ERW Steel Pipe is produced on our own mill, not purchased from external traders. This vertical integration gives you one point of accountability for chemistry, dimensional accuracy, and documentation. Every heat number is traceable from the steelmaking stage through forming, welding, hydrostatic testing, and final inspection. Our in-house laboratory performs chemical analysis and mechanical testing per API 5L requirements, and we maintain certified welding procedures (WPS/PQR) for all pipeline grades. For projects requiring third-party verification, we coordinate SGS or BV inspection at our facility before loading. With over 2,800 specifications in our inventory system, we can consolidate multiple grades and diameters into a single shipment, reducing your procurement complexity and freight cost.
Documentation & Compliance
- Mill Test Certificate per EN 10204 3.1 documenting API 5L GR B / X42 / X52 / X65 chemical composition, yield strength, tensile strength, and elongation per heat number
- API 5L certification confirming manufacturing process compliance for ERW pipe in grades up to X70
- ISO 9001 quality management certificate covering the full production chain from steelmaking to pipe finishing
- SGS or BV third-party inspection report available upon request, covering dimensional checks, hydrostatic testing, and NDT of weld seams
- Material traceability report linking each pipe to its heat number, coil identification, and production date
- Export documentation package including commercial invoice, packing list, bill of lading, and certificate of origin for customs clearance
Packaging, Loading & Delivery
- API 5L ERW Steel Pipe bundled with steel strips in seaworthy packaging, with end caps to protect bevel preparation during ocean transit
- Non-oiled bare surface protected by waterproof wrapping to prevent surface rust formation during storage and shipping
- Loading optimization for 54–600 mm OD pipes in 20ft and 40ft containers, with wooden cradles to prevent deformation of thin-wall sections
- Cut-to-length service available per customer request, with pipes tagged by heat number, steel grade, and size for site identification
- Heat number and grade stenciled on each pipe end for traceability verification at destination
- Delivery terms FOB, CIF, or DDP available, with typical production lead times of 15–21 days after order confirmation and drawing approval
How to Initiate Your API 5L ERW Steel Pipe Inquiry
Submit your project specifications including steel grade, outer diameter, wall thickness, total quantity, and destination port. Our engineering team will respond within 24 hours with a detailed quotation covering material cost, fabrication, coating compatibility, packing, and shipping — along with a preliminary mill test certificate format for your approval. For projects requiring third-party inspection or specific certification documentation, confirm these requirements at the inquiry stage so we can coordinate SGS or BV scheduling alongside production.
Frequently Asked Questions
Q: What is the difference between API 5L GR B and X42 for pipeline applications?
A: API 5L GR B and X42 have similar chemical compositions, but X42 requires higher minimum yield strength and more stringent testing including Charpy impact testing at specified temperatures. GR B is suitable for low-pressure water and gas lines, while X42 is specified for medium-pressure transmission pipelines where higher strength and toughness are required.
Q: Can you provide third-party inspection before shipment?
A: Yes, we coordinate SGS, BV, or other internationally recognized inspection agencies to perform dimensional checks, hydrostatic testing, ultrasonic testing of weld seams, and visual inspection at our facility before loading. The inspection scope and acceptance criteria are agreed upon in advance based on your project specification.
Q: What surface treatment options are available for API 5L ERW Steel Pipe?
A: Our standard delivery condition is non-oiled bare pipe, which is suitable for downstream coating application (3PE, FBE, or epoxy). We can also supply oiled pipe for temporary corrosion protection during storage and transit. External coating services can be coordinated through partner coating yards if required for your project.
Q: How do you ensure wall thickness tolerance meets API 5L requirements?
A: Every pipe undergoes ultrasonic thickness measurement at multiple positions around the circumference and along the length, with particular attention to the weld seam area. Results are documented in the mill test certificate and compared against API 5L tolerance tables. Pipes outside the permitted tolerance range are rejected before packing.
Q: What is the minimum order quantity for API 5L ERW Steel Pipe?
A: The minimum order quantity is 5 tons per size and grade combination. For project procurement involving multiple sizes or grades, we can consolidate shipments to optimize container loading and freight cost.
Get Your API 5L ERW Steel Pipe Quotation With Full Mill Test Certification
Send your project drawings, steel grade requirements, and quantity to receive a detailed quotation with material traceability documentation within 24 hours.
