Description

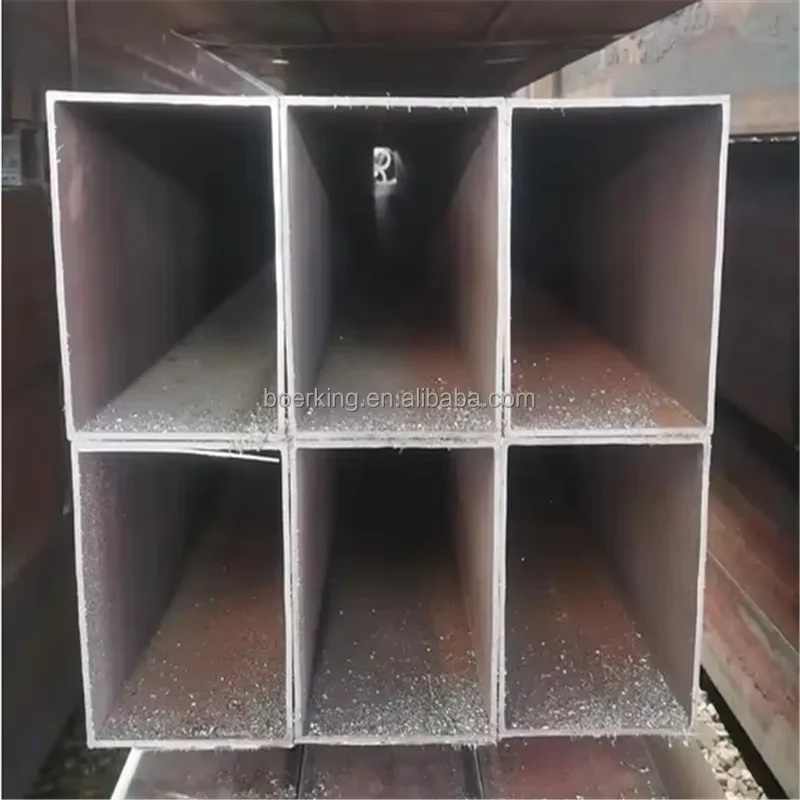

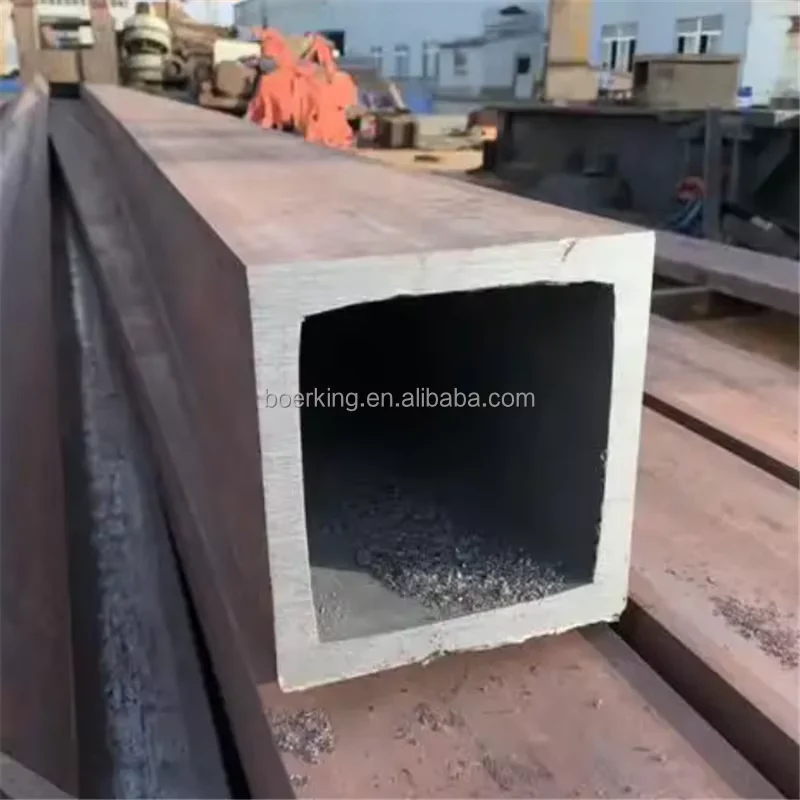

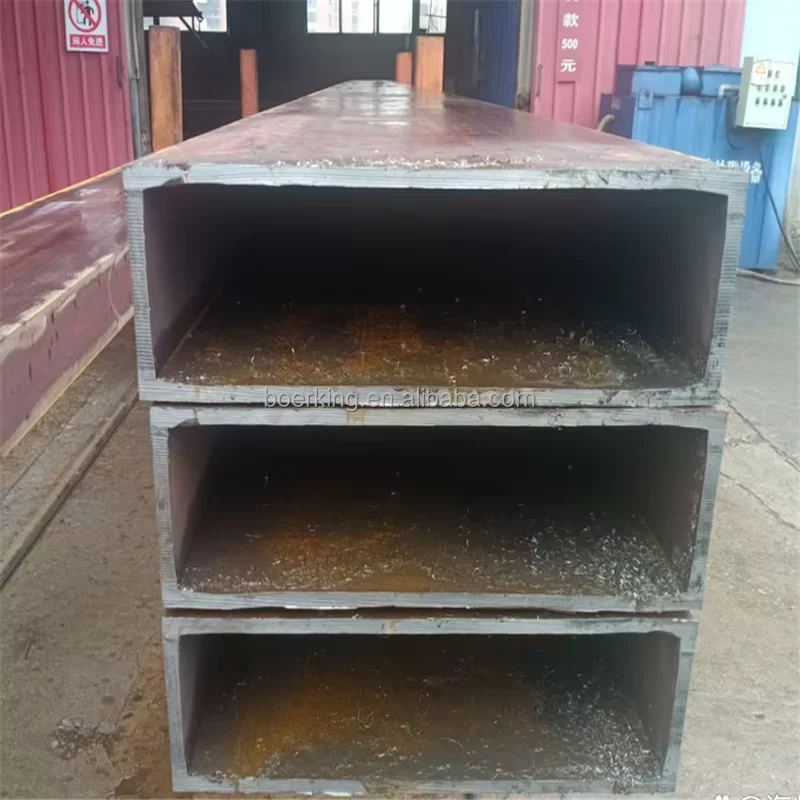

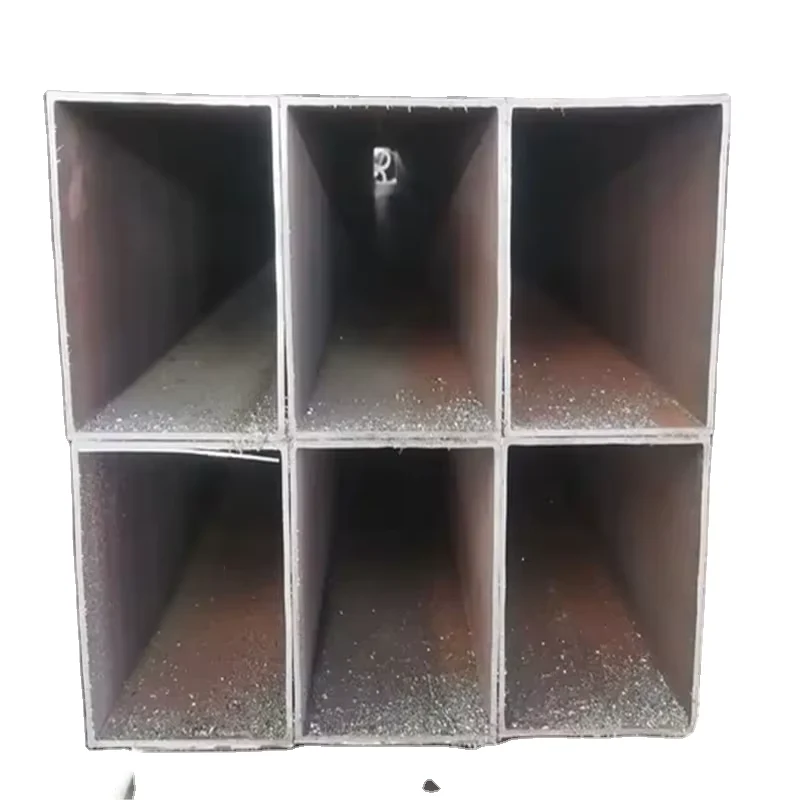

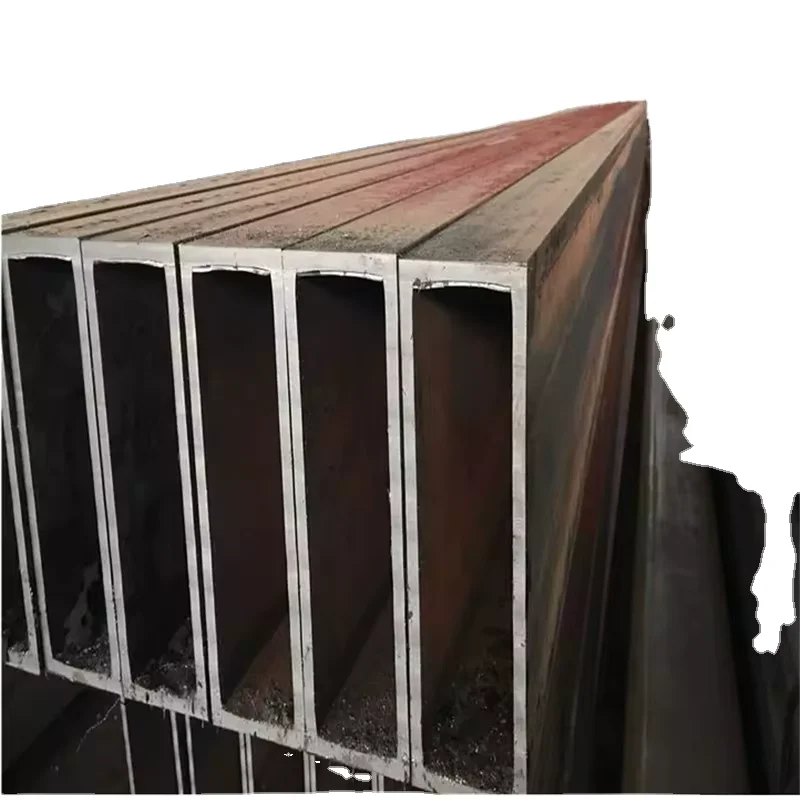

Direct Mill Supply for Sharp Corner Sections — Own steel mill producing 2,800+ raw material specifications feeds directly into the fabrication workshop, eliminating the gap between material supplier and fabricator for every S355JR sharp corner square steel tube manufacturer order.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | S355JR Square Steel Tube |
| Product Type | Square and Rectangular Steel Tube (Sharp Corner) |
| Steel Grade | S235JR, S275JR, S355JR, S355J0, S355J2H, ASTM A53 GR.B, Q460, A36, SS400 |
| Standard | EN 10210, EN 10219, ASTM A53, ASTM A500, JIS G3466, GB/T 6728 |
| Section Shape | Square / Rectangular (Sharp Corner 90°) |
| Size Range | 15×15 mm – 1000×1000 mm (Square); 20×30 mm – 600×800 mm (Rectangular) |
| Wall Thickness | 0.5 mm – 50 mm |
| Length | 5.8 m – 14 m (or custom cut-to-length) |
| Technique | ERW (Electric Resistance Welded) / Hot Rolled |
| Surface Treatment | Bare / Oiled / Painted / Galvanized / 3PE / Varnish |
| Tolerance | ±1% |
| Ends | Plain / Cut / Beveled / Flange |
| Application | Steel structures / Construction frames / Machinery structures / Scaffolding / Building materials / Greenhouse structures / Furniture / Low-pressure fluid transport |
| MOQ | 1 Ton |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| EPC / General Contractors | Structural steel frames for commercial buildings and industrial warehouses |
| Steel Structure Companies | Scaffolding systems and construction support structures |
| Industrial Project Developers | Machinery structures and equipment platforms |
| Infrastructure Builders | Bridge support columns and transport terminal frameworks |
What Wall-Thickness Tolerance Costs on a Structural Frame Order
Tolerance drift on sharp corner square steel tube turns a clean bill of materials into a site-wide rework bill.
I once watched a batch of S355JR square tubes arrive at a Dubai warehouse where the wall thickness had been pushed to the absolute negative limit. Theoretical weight and actual weighbridge reading differed by over two tons per container. The client’s third-party inspector rejected the entire lot. Demurrage fines, air-freighted replacements, and a rewritten welding sequence wiped out the margin and then some. Since that day I check tolerance sheets before I check loading plans. When you source a S355JR sharp corner square steel tube manufacturer from China, fragmented procurement means the mill certificate you receive may not match the tubes sitting on the dock. Material traceability gaps between the raw-steel supplier and the fabrication shop create exactly this kind of exposure — one party blames the other, and your project schedule pays the price [NEED_CITE: EN 10219 cold-formed hollow section dimensional tolerance requirements].
How Sharp Corner Geometry Matches Structural Connection Design
A true 90-degree sharp corner produced through the hot-rolled ERW process sits flush against gusset plates and moment-connection brackets, removing the shim-packing that cold-formed rounded corners demand on site. That direct bearing contact matters when a structural engineer specifies S355JR sharp corner square steel tube sections for warehouse portal frames or machinery platforms — every millimeter of gap at a bolted node shifts load paths and invites fatigue cracking under cyclic loading. Our vertically integrated supply chain means the same quality system that produced the raw S355JR coil also controls the forming, welding, and dimensional inspection of the finished tube, so corner geometry stays within EN 10210 profile tolerances from first piece to last.
Meeting Structural Codes and Corrosion Demands Across Markets
European projects require CE marking under EN 10210 or EN 10219, and customs authorities increasingly reject hollow sections without valid Declaration of Performance documentation [NEED_CITE: CE marking requirements for structural steel hollow sections under EU Construction Products Regulation]. Middle East and Southeast Asian industrial projects often specify ASTM A500 or A53 equivalents, meaning the S355JR sharp corner square steel tube manufacturer must supply cross-standard equivalence data on the mill test certificate. For corrosive or marine environments, surface treatment selection — hot-dip galvanized, 3PE coating, or painted systems — must align with the design service life stated in the project specification. Wall thickness up to 50 mm covers both light-gauge bracing members and heavy-wall load-bearing columns, while ±1% dimensional tolerance keeps shop drawings and site fits aligned. Cut-to-length capability between 5.8 m and 14 m reduces on-site welding and secondary cutting waste [NEED_CITE: steel grade equivalence mapping between EN 10210 and ASTM A500 standards].
Steel Grade Selection and the Sharp Corner Forming Process
S235JR, S275JR, and S355JR represent incrementally higher minimum yield strength within the EN 10025 non-alloy structural steel family — moving from S235JR to S355JR allows designers to reduce section size while maintaining load capacity, which directly affects connection detailing and overall structure weight. The J0 and J2H suffixes indicate Charpy impact testing at 0°C and −20°C respectively, essential for structures exposed to sub-zero climates. The hot-rolled ERW process used to produce these sharp corner sections differs fundamentally from cold-forming: the steel is formed at elevated temperature and welded inline, producing a true 90-degree corner with uniform mechanical properties around the entire perimeter — unlike cold-formed tubes where corner radius and work-hardening create property variation. Surface treatment options range from bare or oiled for indoor fabrication, through galvanized for outdoor structural work, to 3PE for buried or submerged applications. Wall thickness tolerance of ±1% across the 0.5 mm to 50 mm range ensures that theoretical weight calculations used in cost estimation remain reliable for procurement planning.
Hidden Costs When Material Certification Does Not Match the Purchase Order
Ordering S355JR sharp corner square steel tube from a supplier who sources raw material from third-party traders creates a chain where the mill test certificate may reference a different heat number than the tubes actually delivered. When the client’s inspector pulls a random piece for spectrometer analysis and finds the chemistry does not match the certificate, the entire batch fails — regardless of whether the mechanical properties are actually acceptable. Structural engineers specifying EN 10210 sections expect full traceability back to the steelmaking heat; missing documentation triggers rejection under most international construction quality standards [NEED_CITE: material traceability requirements for structural steel under EN 1090 execution classes]. Negative tolerance abuse compounds the problem: tubes that pass dimensional checks individually may still underweight the theoretical bill of quantities, creating disputes at final account stage.
Why Sourcing from an Integrated Mill-Fabricator Reduces Procurement Risk
Our own steel mill produces over 2,800 raw material specifications that feed directly into the fabrication workshop — there is no intermediary trader between the steelmaking furnace and the tube forming line. Every S355JR sharp corner square steel tube manufacturer order ships with a mill test certificate generated from our own laboratory, traceable by heat number from slab to finished section. We hold CE certification for EN 10210 and EN 10219, ISO 9001 quality management registration, and accept third-party inspection from SGS, BV, or TÜV at any production stage. Non-standard dimensions outside the listed size range can be engineered to order, and our welding procedure specifications are qualified to AWS and EN standards with certified welders on staff. Professional loading plans for oversized sections up to 1000×1000 mm ensure container utilization and protect sharp corner edges during ocean transit.
Documentation & Compliance
- Mill test certificate documenting S355JR chemical composition and mechanical properties per EN 10219, traceable by heat number from steelmaking to finished tube
- CE certificate of conformity for EN 10210 hot-finished and EN 10219 cold-formed structural hollow sections, required for European market customs clearance
- ISO 9001 quality management system certificate covering the full production chain from raw material procurement through fabrication and surface treatment
- SGS or BV third-party inspection report available at any hold point — dimensional checks, coating thickness measurement, and weld seam examination
- Material traceability report linking each bundle to its original heat number, with full chemical analysis and tensile test results
- Export customs documentation including packing list, bill of lading, and certificate of origin formatted for destination-country clearance requirements
Packaging, Loading & Delivery
- S355JR sharp corner square tubes bundled with high-tensile steel strips and edge protectors to preserve the 90-degree corner geometry and any galvanized or painted coating during ocean transit
- Bare or oiled tubes wrapped in waterproof cloth with desiccant packs inside the bundle to prevent condensation staining on the mill surface
- Cut-to-length sections between 5.8 m and 14 m loaded with optimized container stowage plans that maximize payload while preventing corner damage from shifting
- Heat number and steel grade stenciled on each bundle tag and on the tube ends for site identification before installation
- FOB, CIF, and DDP shipping terms available with professional oversized cargo loading plans for sections up to 1000×1000 mm side length
- Full export documentation package prepared alongside production so customs clearance documents arrive before the vessel
Getting a Quote That Reflects Your Actual Project Requirements
Send your project drawings in PDF or DWG format along with the required steel grade, section dimensions, wall thickness, surface treatment preference, and total tonnage — we respond within 24 hours with a detailed quotation covering material, fabrication, coating, packing, and shipping costs. If your project calls for non-standard dimensions or specific EN 10210 / ASTM A500 compliance documentation, flag this in the inquiry so our engineering team can confirm shop drawing feasibility and certification availability before you commit.
Start Your S355JR Sharp Corner Square Steel Tube Inquiry
Submit your specifications, steel grade, quantity, and destination port to receive a detailed quotation with mill test certificate preview.
Shandong Xin Jiyuan Special Steel Tube Co., Ltd
Website: www.xjystructure.com
Tel: +86 531 8573 6315
Mobile/WhatsApp/WeChat: +86 188 5315 7756
Email: admin@xjystructure.com
Address: No.11889, Jingshi West Road, Lulian Group, Jinan City, Shandong Province, China
Frequently Asked Questions
Q: How does S355JR compare to ASTM A572 Gr.50 and Q345B for structural applications?
A: S355JR conforms to EN 10025-2 and is the European equivalent grade to ASTM A572 Gr.50 and Chinese Q345B in terms of minimum yield strength classification. All three belong to the 355 MPa yield family, but chemical composition limits and impact testing requirements differ by standard. We supply mill test certificates showing full compliance with whichever standard your project specification calls for, and can provide cross-reference equivalence data for engineering approval.
Q: Can you produce sharp corner square tubes in non-standard dimensions outside the listed size range?
A: Yes. Our own steel mill and fabrication workshop allow us to engineer custom sections beyond the standard 15×15 mm to 1000×1000 mm range. Send your required dimensions and we will confirm feasibility, tooling availability, and minimum order quantity for the non-standard profile.
Q: What third-party inspection arrangements are available for S355JR orders?
A: We accept SGS, BV, or TÜV inspection at any production hold point — including raw material verification, in-process dimensional checks, weld seam examination, coating thickness measurement, and final bundle inspection. The inspection scope and hold points are agreed before production begins and documented in the quality plan.
Q: How are oversized sharp corner square tubes up to 1000×1000 mm packed and shipped?
A: Sections in the larger size range are loaded on professional stowage plans that account for weight distribution and corner protection. Bundles are secured with high-tensile steel strips and edge protectors, and waterproof wrapping is applied for surface treatments that require moisture protection during ocean transit. FOB, CIF, and DDP terms are all available.
Q: What is the difference between hot-rolled ERW sharp corner tubes and cold-formed tubes?
A: Hot-rolled ERW sharp corner tubes are formed at elevated temperature with inline welding, producing a true 90-degree corner with uniform mechanical properties around the perimeter. Cold-formed tubes are shaped at ambient temperature from coil, which creates work-hardening at the corners and typically produces a rounded corner radius. For structural connections requiring flat bearing surfaces, hot-rolled sharp corner geometry is the preferred choice.
