Description
Full-Range Hot Rolled Coil Supply — Stocking Q195 through Q345B and A36 in thicknesses from 0.75mm to 200mm across 3 production lines with 2,800+ specifications ready for immediate processing.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | A36/Q235/Q345 Hot Rolled Steel Coil |
| Product Type | Steel Coil |
| Steel Grade | Q195, Q235, Q235B, Q345, Q345B, A36, SS400, St37, St42, St37-2, St35.4, St52.4, St35 |
| Standard | AISI, ASTM, BS, DIN, GB, JIS |
| Section Shape | Coil / Sheet (upon decoiling and cutting) |
| Thickness | 0.75–200mm |
| Width | 600–2000mm |
| Length | Customized per coil weight or sheet requirement |
| Technique | Hot Rolled |
| Surface Treatment | Hot Rolled / Coated |
| Coil ID | 508mm / 610mm |
| Tolerance | ±1% |
| Application | Shipbuilding, Automotive, Bridges, Construction, Machinery, Pressure Vessels |
| MOQ | 10 Tons |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Construction & Infrastructure | Building frames, column base plates, bridge gusset plates, platform flooring |
| Industrial Fabrication | Pressure vessel shells, storage tank bodies, machinery frames, conveyor structures |
| Shipbuilding & Marine | Hull plates, deck panels, bulkhead stiffeners |
| Automotive & Transport | Chassis components, trailer floor plates, structural brackets |
| EPC & Energy Projects | Support structures for renewable energy installations, pipe rack frameworks |
Thickness Tolerance Stacks Up Faster Than You Think on a Fabrication Order
A ±1% tolerance on a 200mm plate means 2mm of deviation — on a 3.54mm coil, it means the difference between passing a dimensional inspection and scrapping an entire batch.
When procurement teams order an A36 Q235 Q345 Hot Rolled Steel Coil Supplier for structural fabrication projects, the tolerance conversation rarely happens before the contract is signed. I have seen 4.5mm chequered coil arrive on a Middle East warehouse site where the pattern height consumed nearly 0.6mm of base metal, leaving the substrate at 3.9mm — below the engineer’s minimum for platform load calculations. The entire shipment was rejected. On thinner gauges like 3.54mm or 3.8mm, even the permitted ±1% band can push material outside the acceptable range for precision CNC cutting and welding joint preparation. The cost is not just the replacement steel; it is the idle crane, the rescheduled welding crew, and the RFI cycle that follows. [NEED_CITE: hot rolled steel coil thickness tolerance standards per ASTM A568]
Matching Coil Grades to Structural Fabrication Demands
An A36 Q235 Q345 Hot Rolled Steel Coil Supplier serving EPC firms and general contractors must understand that the grade selection is not arbitrary — it follows the structural engineer’s load calculations and the governing building code. Q235B serves general construction frames where moderate yield strength suffices, while Q345B steps into heavier industrial structures, bridge components, and pressure vessel applications demanding higher load-bearing capacity. A36 covers the North American specification market, and SS400 addresses JIS-governed projects across Southeast Asia. Our integrated mill and fabrication operation holds all these grades in continuous production, meaning a single purchase order covering mixed-grade requirements for a multi-building warehouse complex can be fulfilled from one quality system with unified mill test documentation.
Engineering Compliance and Certification Pathways
Structural steel fabrication for international projects requires documentation that satisfies the importing country’s regulatory framework. EN 1090 compliance governs European construction steelwork, while AISC certification applies to North American structural projects. Our hot rolled coils carry full chemical composition and mechanical property records traceable by heat number, supporting third-party inspection through SGS or BV before shipment. For pressure vessel applications, the material must conform to specific standard requirements with impact testing at designated temperatures. [NEED_CITE: EN 1090 structural steel fabrication certification requirements] Width ranges from 600mm to 2000mm accommodate both standard plate cutting and custom slitting for narrow structural profiles, with coil IDs of 508mm and 610mm compatible with most decoiling equipment used by fabrication shops worldwide.
Understanding Hot Rolled Coil Grade Systems and Processing
The Q-series (Q195, Q235, Q235B, Q345, Q345B) follows the Chinese GB standard system where the number after “Q” indicates minimum yield strength in MPa — Q235 yields at approximately 235 MPa, while Q345 provides roughly 345 MPa, making it suitable for heavier structural members. The A36 grade follows ASTM specifications common in American-designed projects, and SS400 conforms to JIS G3101 for general structural use across Japanese-standard projects. European equivalent designations like St37, St42, St37-2, and St52.4 follow the DIN system, where higher numbers indicate increased tensile and yield properties. Hot rolling produces a mill scale surface that provides baseline corrosion resistance during storage and transit; for aggressive environments, additional coated surface treatment options are available. The hot rolling process also allows thickness ranges from 0.75mm to 200mm — covering everything from light-gauge sheet metal forming to heavy plate for pressure vessel and bridge applications. Negative tolerance practices in the market mean some suppliers deliver material at the lower edge of the permitted band; our integrated production maintains consistent thickness control verified through in-line gauging. [NEED_CITE: steel grade equivalence mapping between GB Q-series and ASTM/EN standards]
Hidden Costs of Sourcing from Unverified Coil Suppliers
Purchasing hot rolled coil without verified mill test certificates creates a cascade of downstream failures. Material that does not conform to the specified grade — say, Q235B shipped where Q345B was ordered — will fail structural inspection at the fabrication stage, forcing complete rework of cut and welded assemblies. Missing or falsified chemical composition reports trigger customs holds in markets requiring EN 10204 3.1 or 3.2 certification documentation. Excessive negative tolerance means the theoretical weight billed does not match the actual structural capacity delivered, creating both financial loss and engineering safety concerns. For projects governed by AISC or EN 1090 standards, the absence of traceable heat number documentation invalidates the entire fabrication quality file. [NEED_CITE: consequences of non-conforming steel material in structural fabrication projects]
Why Source Your A36 Q235 Q345 Hot Rolled Steel Coil Supplier from Our Integrated Mill
Our operation eliminates the traditional gap between raw material supplier and fabricator by operating both the steel production facility and the structural steel fabrication workshop under one management system. Three dedicated production lines maintain inventory across 2,800+ specifications, meaning your coil order does not depend on third-party material sourcing that introduces traceability gaps. Every batch carries mill test certificates documenting chemical composition and mechanical properties per the ordered standard — A36, Q235B, Q345B, SS400, or any grade within our range. Our in-house CNC cutting, plasma cutting, drilling, and slitting services allow you to receive coils pre-processed to your fabrication drawing requirements, reducing handling and secondary processing costs at your site. Certified welding procedures (WPS/PQR) and qualified welders holding AWS and EN certifications ensure that any fabrication work performed on our supplied material maintains full compliance documentation. Third-party inspection through SGS or BV is available for every shipment, and our export documentation package includes complete customs clearance support for projects across the EU, Middle East, Southeast Asia, and Africa.
Documentation & Compliance
- Mill test certificate documenting Q235B/Q345B/A36 chemical composition and mechanical properties per GB/ASTM standards, traceable by heat number
- CE certification supporting EN 1090 structural steelwork compliance for European market projects
- ISO 9001 quality management system certificate covering the integrated mill-to-fabrication production chain
- SGS or BV third-party inspection report available for pre-shipment verification of dimensions, surface quality, and coating thickness
- Material traceability documentation linking each coil to its original heat number, rolling schedule, and test results
- Complete customs document package including packing list, bill of lading, and certificate of origin for destination-country clearance
Packaging, Loading & Delivery

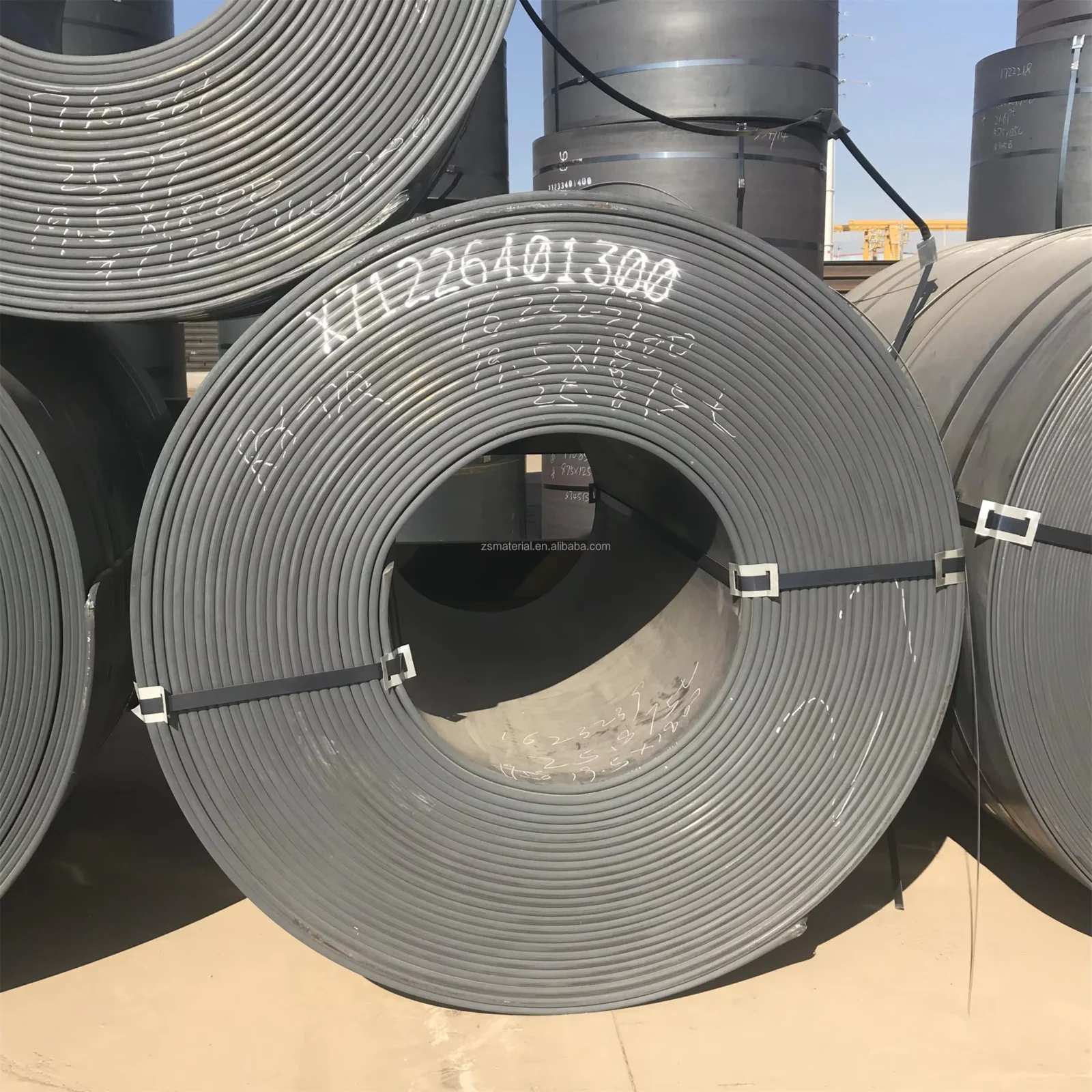

- Hot rolled coils secured with minimum three steel straps per coil, with edge protectors preventing damage to coated surface treatments during ocean transit
- Coil ID options of 508mm and 610mm accommodated with purpose-built cradle supports in container loading, optimizing weight distribution for 20ft and 40ft shipments
- Surface protection through mill oil coating on hot rolled finishes to prevent oxidation during extended sea freight to Middle East and African ports
- Custom slitting and sheet cutting available before packaging, allowing delivery of pre-sized blanks that reduce on-site processing waste for construction and machinery applications
- Heat number and steel grade clearly marked on each coil ID tag and outer wrapping, supporting site receiving inspection and material traceability requirements
- FOB, CIF, and DDP shipping terms available with professional oversized cargo loading plans for heavy-gauge coils exceeding standard container weight limits
Starting Your Coil Procurement Process
Submit your project specifications including required steel grade, thickness, width, total tonnage, and destination port to receive a detailed quotation covering material, processing, coating, and shipping costs within 24 hours. Our engineering team will review your requirements and confirm shop drawing compatibility if downstream fabrication services are needed. Certification requirements and third-party inspection preferences should be stated at inquiry stage to ensure documentation aligns with your project’s compliance framework.
Frequently Asked Questions
Q: Can you provide Mill Test Certificates for international projects requiring EN 10204 3.1 or 3.2 documentation?
A: Yes. Every coil shipment includes mill test certificates documenting chemical composition and mechanical properties per the ordered standard (GB, ASTM, JIS, or DIN), with full heat number traceability. EN 10204 3.1 certificates are standard; 3.2 third-party witnessed certificates are available through SGS or BV upon request.
Q: Do you offer slitting and cutting services for the coils before delivery?
A: Yes. Our integrated fabrication facility provides in-house CNC cutting, plasma cutting, slitting, and decoiling services. Coils can be delivered as slit strips to your required width or cut to specific sheet lengths, reducing secondary processing at your site.
Q: What is the material traceability process from mill to delivery?
A: Each coil is assigned a unique heat number at the steel production stage. This number is carried through all processing stages — rolling, slitting, cutting, coating — and appears on the mill test certificate, coil tag, and shipping documentation, providing end-to-end traceability for project quality files.
Q: How do you handle quality claims or dimensional tolerance issues?
A: Our integrated quality system covers raw material production through finished coil processing. If dimensional inspection reveals tolerance deviations outside the specified ±1% range, our quality team coordinates replacement material production and expedited shipment. Full dimensional inspection reports are included in the documentation package for pre-shipment verification.
Q: What are the standard packaging and loading options for export?
A: Coils are packaged with steel strap bundling, edge protectors, and mill oil coating for surface protection. Loading plans are prepared for both standard container shipments and breakbulk for heavy-gauge or oversized coils. Shipping terms include FOB, CIF, and DDP with complete export documentation.
Request Your Hot Rolled Coil Quotation with Full Mill Documentation
Send your steel grade, thickness, width, quantity, and destination port details to receive a comprehensive quotation including material costs, processing services, and shipping within 24 hours.
