Description

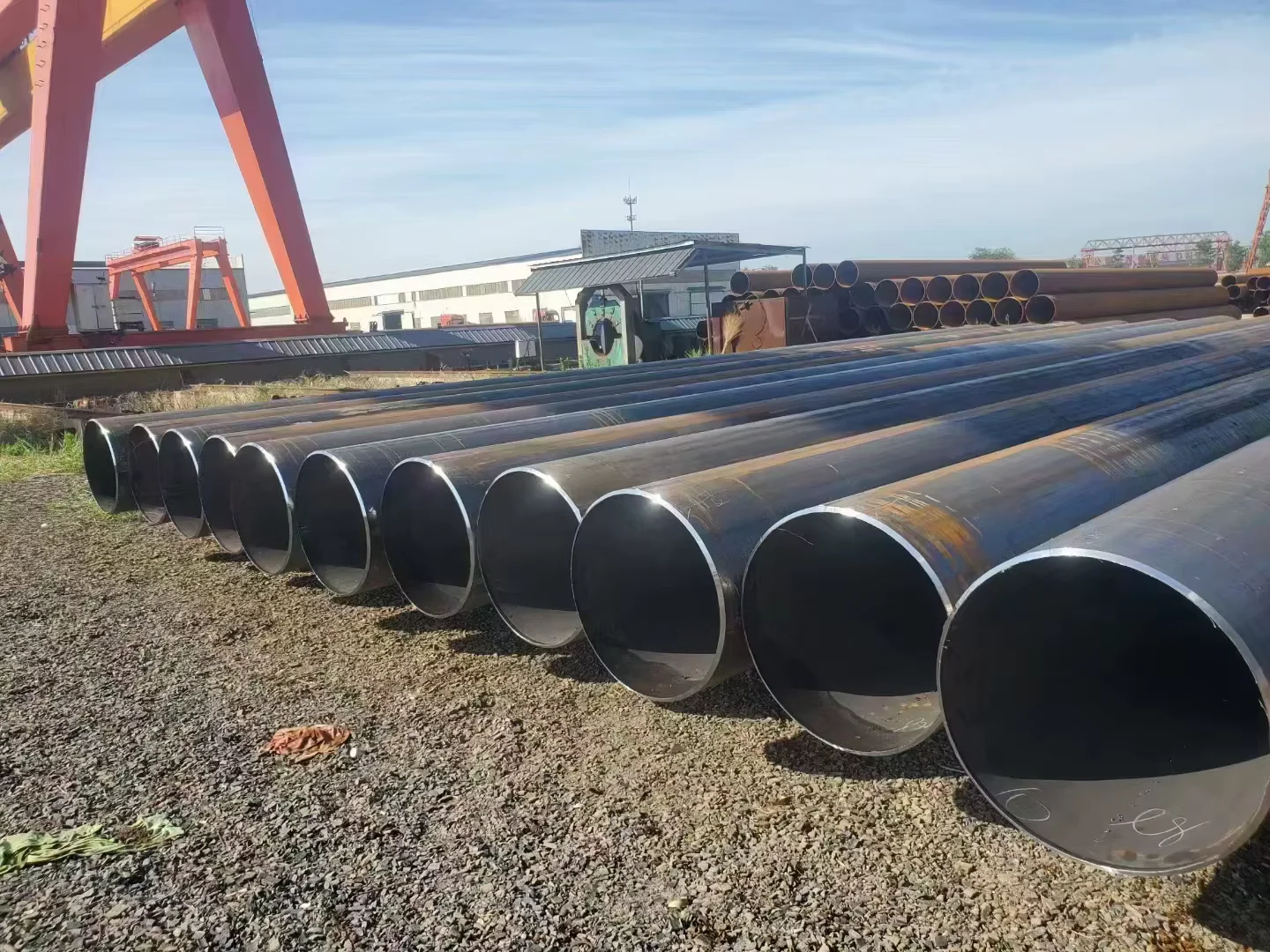

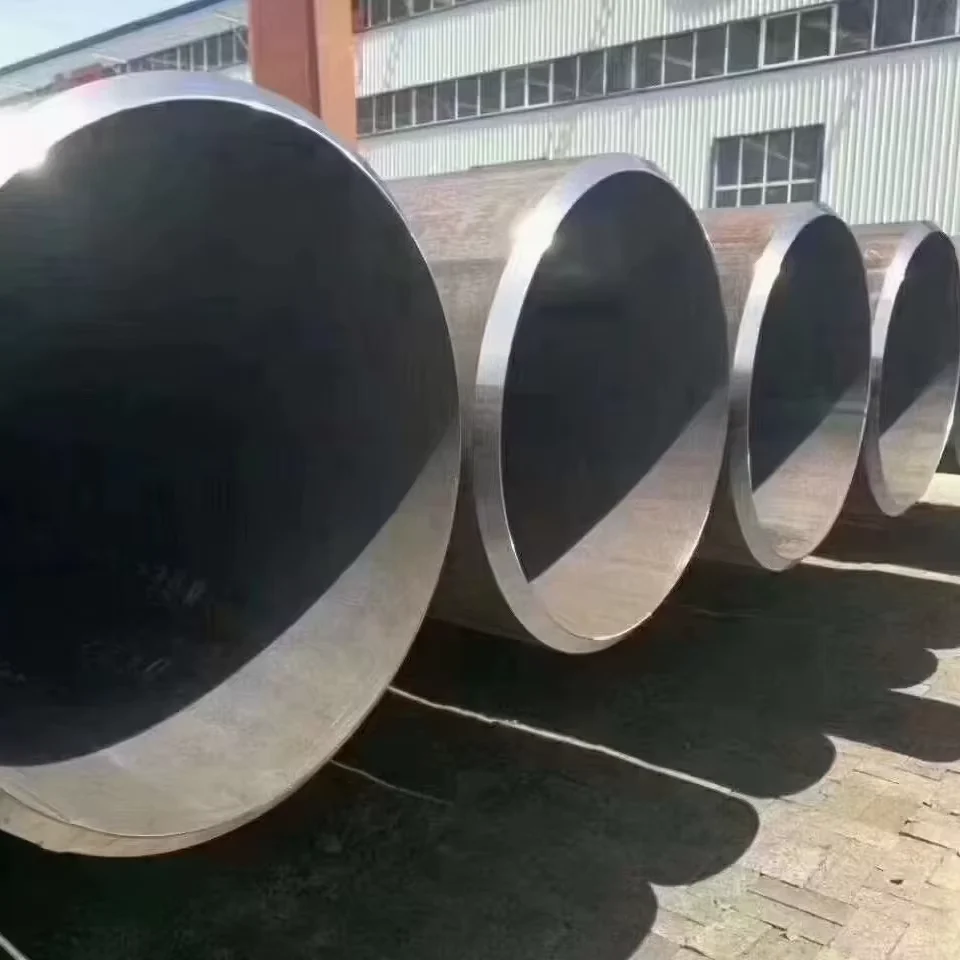

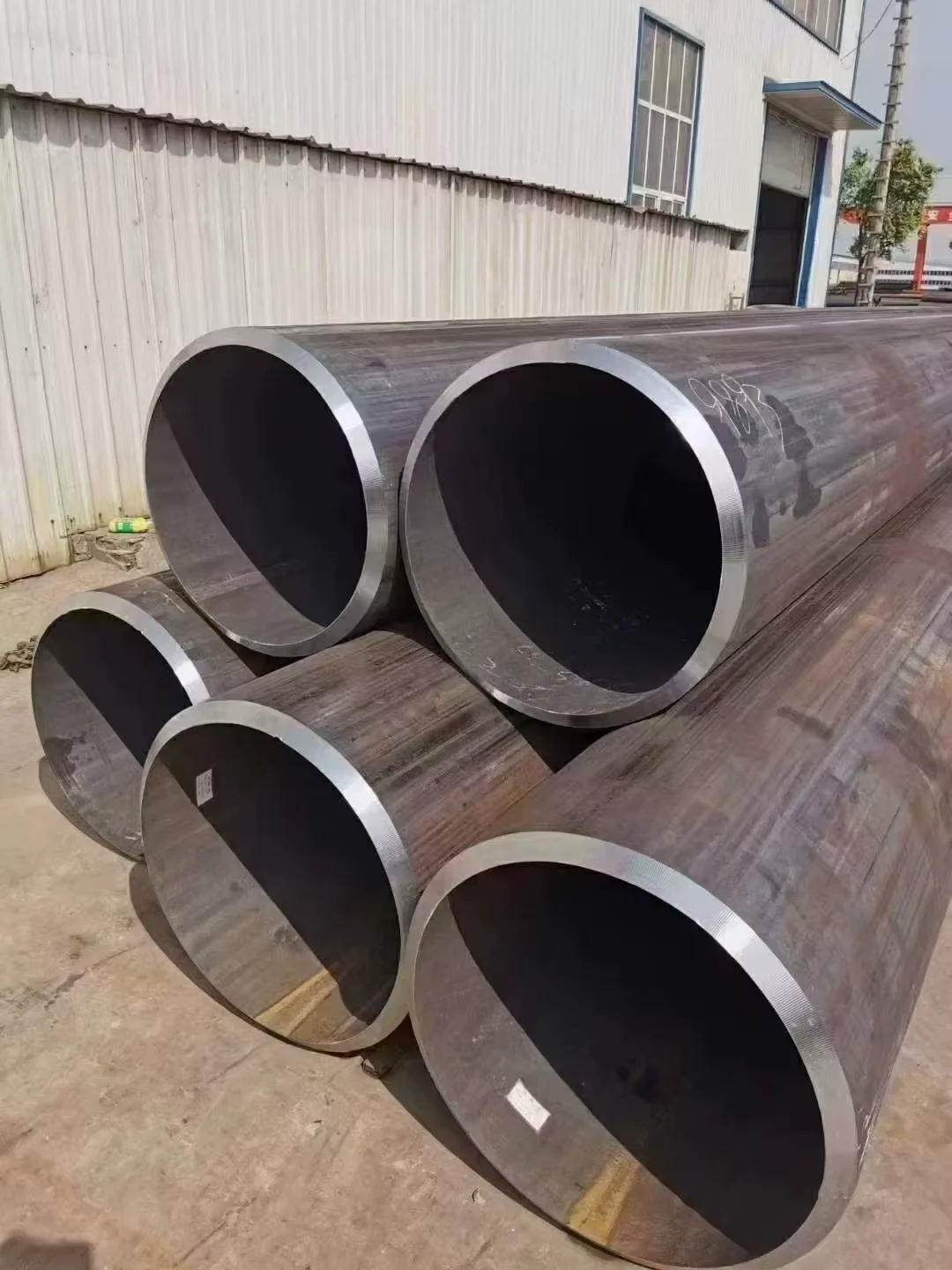

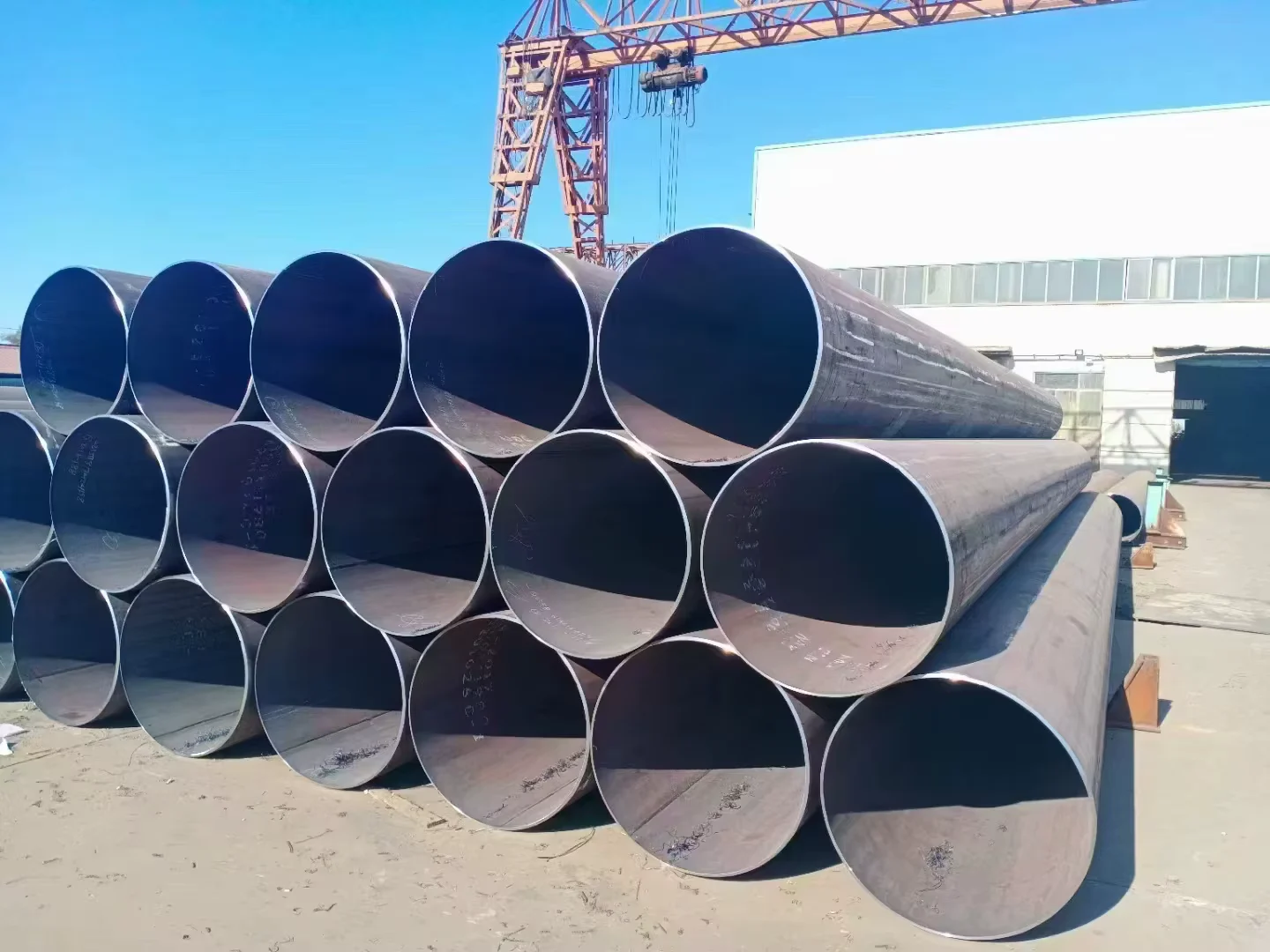

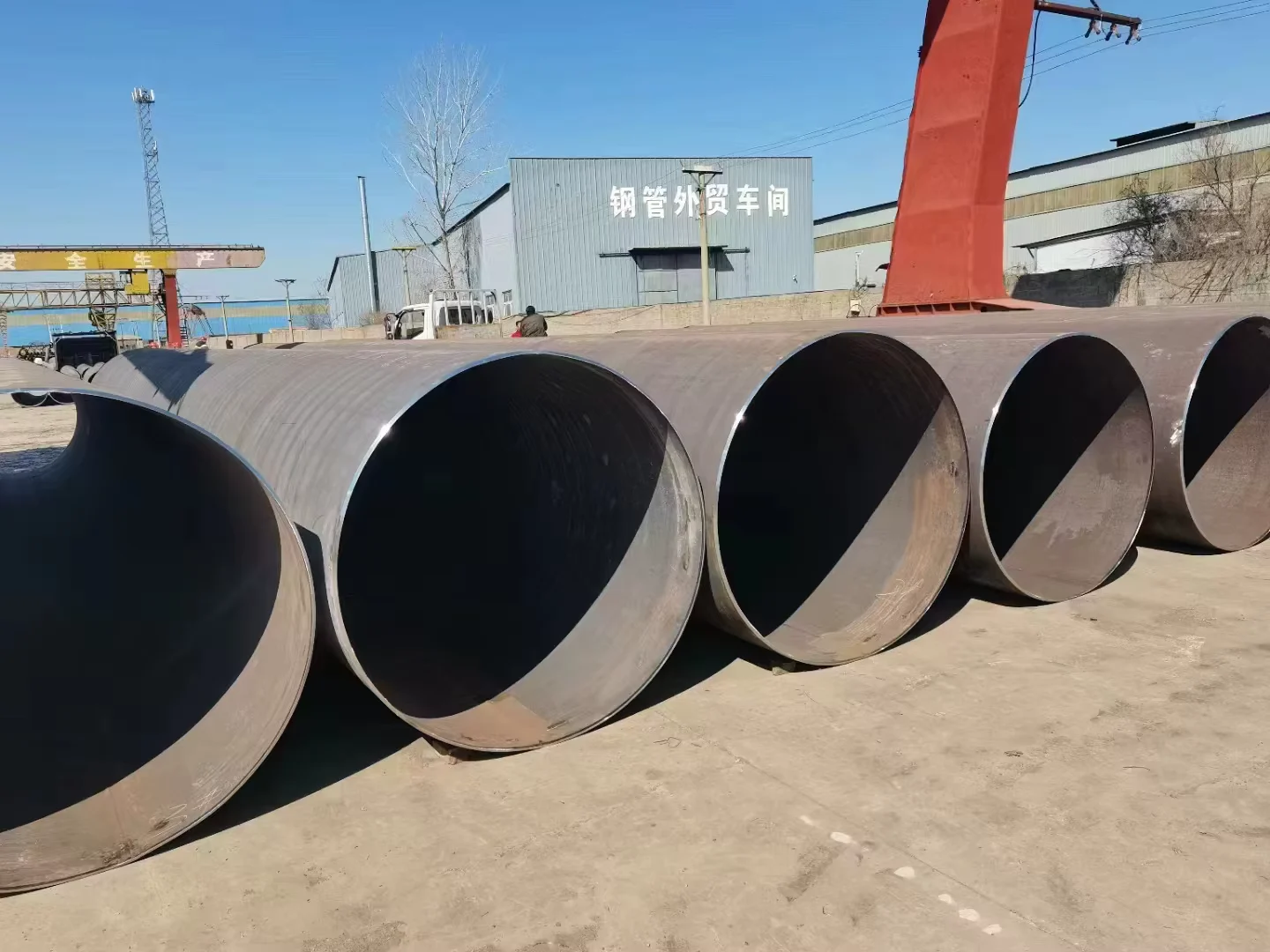

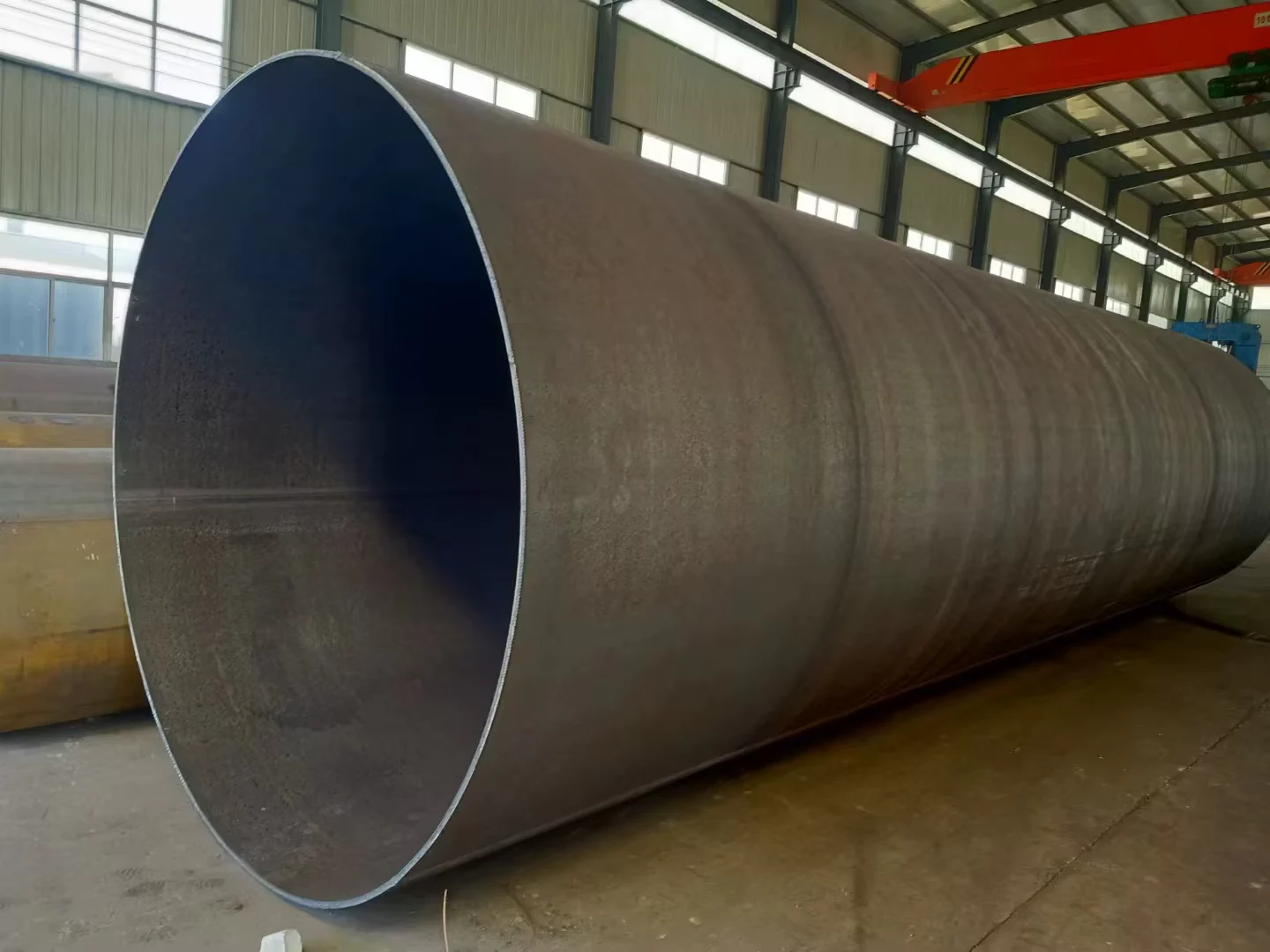

Direct Mill Supply — API 5L / ASTM A53 ERW welded steel pipes produced in-house with full heat-number traceability from raw plate to finished pipe.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | API Certified Carbon Welded Steel Pipe |
| Product Type | ERW Welded Steel Pipe |
| Steel Grade | 10#, 20#, 35#, 45#, Q195, Q215, Q235, Q345, Q345A, Q345C, 16Mn, 40Cr, 15CrMo, 45Mn2 |
| Standard | API 5L, ASTM A53A / A53B, A178C, A106B, BS, DIN, GB, JIS |
| Section Shape | Round |
| Size Range | OD 21.3–1420 mm |
| Wall Thickness | 2.11–300 mm (customizable) |
| Length | 6 m / 6.4 m / 12 m |
| Technique | ERW (Electric Resistance Welded) |
| Surface Treatment | Cold Rolled, Slightly Oiled |
| Tolerance | ±1% |
| Ends | Plain / Beveled (as required) |
| Application | Fluid transport / Oil & gas pipeline / Boiler / Drill pipe / Hydraulic system / Chemical fertilizer plant / Structural applications / Machinery parts / Automobile & tractor stress components |
| MOQ | 1 Ton |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Oil & Gas EPC | Transmission pipelines, gathering lines, flowlines, wellhead piping |
| Industrial Plant | Boiler tubes, hydraulic manifolds, chemical fertilizer process piping |
| Structural & Infrastructure | Building frames, machinery supports, piling, bridge handrails |
| Machinery & Automotive | Hydraulic cylinders, tractor stress components, conveyor rollers |
What Wall-Thickness Tolerance Costs on a Pipeline Order
A ±1% tolerance on a 1420 mm OD API 5L pipe is the difference between passing hydrostatic test and scrapping a container at port.
On overseas oil field jobs, I have seen wall-thickness deviations flagged by third-party inspectors push pipeline schedules back weeks and trigger penalty clauses. When ERW welded steel pipe is sourced through traders rather than the mill itself, the material certificate often reflects “nominal” values — not actual ultrasonic measurements. For API 5L and ASTM A106 applications, every heat number must match real dimensional and chemical data, or the entire batch becomes unusable on-site. [NEED_CITE: API 5L dimensional tolerance requirements for line pipe]
Matching OD and Wall Thickness to Pipeline Pressure Ratings
For oil and gas transmission, the API 5L ERW welded steel pipe range from 21.3 mm to 1420 mm OD covers everything from instrument lines to main trunk pipelines. Wall thickness up to 300 mm allows heavy-wall spools for high-pressure manifolds without switching to seamless. Beveled ends cut to API 5L bevel profiles reduce on-site welding prep time, while the slightly oiled cold-rolled surface protects against transit corrosion without interfering with field coating systems like 3PE or FBE.
Engineering Compliance Across Global Standards
API 5L Grade B through X-series coverage meets Middle East and West African pipeline specifications, while ASTM A53 and A106 serve North American boiler and process piping. For structural applications, Q235 and Q345 grades align with GB and EN equivalent requirements. Third-party inspection by SGS or BV before shipment confirms dimensional accuracy and weld seam integrity — a requirement that [NEED_CITE: EN 10217 and API 5L inspection protocols for ERW pipe] increasingly demand from EPC procurement teams.
Steel Grade Selection and ERW Process Fundamentals
Carbon grades 10# and 20# offer excellent weldability for low-pressure fluid transport, while 35# and 45# provide higher tensile strength for machinery components and hydraulic systems. Low-alloy grades 16Mn and 15CrMo deliver improved high-temperature performance for boiler and chemical plant service. The ERW process produces a longitudinal weld seam through electric resistance heating — no filler metal — resulting in a consistent weld zone that, when properly normalized, matches base metal properties. For structural applications, Q195–Q235 grades provide cost-effective framing material, while Q345 and 40Cr serve heavier load-bearing roles.
Hidden Costs of Unverified Material Certificates
Sourcing API 5L ERW welded steel pipe without mill-direct traceability creates three failure points: chemical composition that does not match the heat number, wall thickness below minimum tolerance, and weld seam defects hidden by surface oiling. Each triggers re-inspection, rework, or outright rejection at the destination port. International standards require full MTC documentation with actual test values — not “typical” ranges — and [NEED_CITE: material traceability requirements under API 5L and ASTM A53] makes this non-negotiable for pipeline and pressure applications.
Why Procurement Teams Choose Mill-Integrated Supply
Our own steel mill operates three production lines with over 2,800 raw material specifications in stock, eliminating the gap between material supplier and fabricator. Every API 5L ERW welded steel pipe order ships with mill test certificates reflecting actual measurements, not paperwork assumptions. Certified welding procedures (WPS/PQR), in-process NDT testing, and full dimensional inspection reports accompany every heat. For projects requiring ASTM, API, or EN compliance, we provide CE marking, ISO 9001 certification, and SONCAP / PVOC documentation for African and Southeast Asian customs clearance. Professional loading plans handle oversized 1420 mm OD pipes in standard containers or breakbulk, with tracking from mill to site.
Documentation & Compliance
- Mill Test Certificate documenting chemical composition and actual wall thickness for each API 5L / ASTM A53 heat number
- API 5L certification with PSL level designation and third-party inspection endorsement
- CE / ISO 9001 quality system certificate for European and global project compliance
- SGS or BV inspection report covering dimensional checks, NDT, and coating thickness
- Full material traceability from slab heat number to finished pipe bundle
- Export documentation: packing list, bill of lading, certificate of origin, SONCAP / PVOC as required
Packaging, Loading & Delivery
- API 5L ERW welded steel pipe bundled with steel strips and edge protectors to preserve oiled surface during ocean transit
- Beveled ends fitted with plastic caps to prevent damage and contamination before field welding
- 6 m and 12 m lengths optimized for 20ft and 40ft open-top containers; 1420 mm OD pipes shipped breakbulk with professional lashing
- Heat number and steel grade stenciled on each pipe for on-site traceability verification
- FOB / CIF / DDP terms available with door-to-door logistics coordination for project sites
Start Your Procurement With Verified Data
Share your project drawings, API 5L / ASTM grade requirements, OD and wall thickness specifications, and destination port — we respond within 24 hours with pricing, mill test certificate samples, and a production schedule. For non-standard lengths or custom end finishes, our engineering team provides shop drawing review and material optimization before contract signing.
Request Quotation and Mill Test Certificate
Submit your specifications to receive a detailed quote with full MTC documentation and third-party inspection options.
Tel: +86 531 8573 6315 | Mobile/WhatsApp/WeChat: +86 188 5315 7756 | Email: admin@xjystructure.com
Frequently Asked Questions
Q: What is the difference between API 5L and ASTM A53 for welded steel pipes, and which should I specify?
A: API 5L governs line pipe for oil and gas transmission with PSL 1 and PSL 2 quality levels, while ASTM A53 covers general piping for steam, water, and air under standard pressure. API 5L requires stricter dimensional tolerance and weld seam inspection. Your project specification or engineering drawing determines which standard applies.
Q: Can you provide Mill Test Certificates and arrange third-party inspection before loading?
A: Yes. Every API 5L ERW welded steel pipe order includes EN 10204 3.1 MTC with actual chemical and mechanical test values. SGS, BV, or Lloyd’s third-party inspection is available at our facility before shipment, covering dimensional checks, NDT, and visual inspection.
Q: What surface treatments and end finishes are available for ERW pipes?
A: Standard delivery is cold-rolled with slight oiling for transit protection. Beveled or plain ends are available per your welding procedure requirements. Additional coatings such as 3PE, FBE, or painting can be arranged through our fabrication division for corrosion protection in aggressive environments.
Q: How do you handle oversized pipe packaging and loading for ocean shipment?
A: Pipes up to 12 m length are loaded in open-top or flat-rack containers with steel strip bundling and wooden cradles. For 1420 mm OD and heavy-wall pipes, breakbulk vessels with professional lashing and chocking are arranged. Loading plans are shared before shipment for client approval.
Q: What is the production lead time for standard and custom-length ERW welded pipes?
A: Standard sizes in stock ship within typical production lead times. Custom lengths, non-standard wall thickness, or specific steel grades require raw material scheduling — we confirm exact timelines upon receipt of your inquiry and specifications.
