Description
Mill-Direct SSAW Pipe Production — All API 5L and ASTM A53 grades produced in-house with full material traceability from slab to finished pipe.
Technical Specifications
| Parameter | Value |
|---|---|

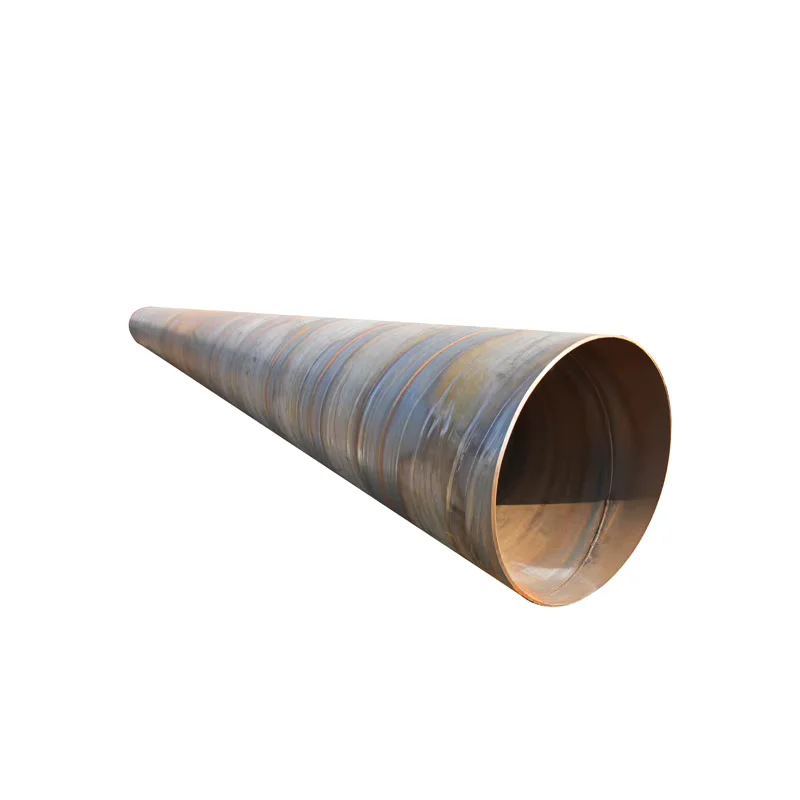

| Designation | SSAW Spiral Submerged Arc Welded Steel Pipe |
| Product Type | SSAW Welded Steel Pipe |
| Steel Grade | Q195, Q215, Q235, Q345, X42, X46, L242, L450 |
| Standard | API 5L, GB9711.1/9711.2, ASTM A53, BS, EN, DIN, JIS, AISI |
| Section Shape | Round |
| Size Range | 168.3–609.6 mm (8–56 inch) |
| Wall Thickness | 3–26 mm (SSAW range: 4.0–26 mm) |
| Length | 5.8–12.0 m (or customized) |
| Technique | SSAW / HSAW (Spiral Submerged Arc Welded) |
| Surface Treatment | Bared, Oiled, Color Paint, 3LPE / 3PE Anti-Corrosion Coating |
| Ends | Plain / Beveled |
| Tolerance | ±5% |
| Application | Oil and gas transmission pipelines / Water transportation / Fluid transport / Structural applications / Construction projects |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Oil & Gas | Onshore and offshore transmission pipelines, gathering lines, distribution networks |
| Municipal Infrastructure | Urban water supply mains, drainage systems, sewage outfall pipelines |
| Industrial Construction | Process piping in chemical plants, cooling water circulation systems |
| EPC Projects | Cross-country fluid transport, industrial plant feed lines, pump station connections |
What Negative Tolerance Costs on a Pipeline Order
Wall thickness deviation directly affects hydrostatic test pass rates and long-term corrosion allowance.
When buyers source SSAW spiral welded steel pipe from trading companies rather than mills, the material traceability chain breaks at the slab stage. Third-party inspectors flag heat number mismatches. Coating adhesion fails because surface prep was rushed. And when a 12-meter pipe arrives at site with actual wall thickness below the minimum specified in API 5L, the entire batch gets rejected — not just the non-conforming pieces. [NEED_CITE: API 5L dimensional tolerance requirements for spiral welded pipe]
Matching Pressure Ratings to Steel Grade Selection
API 5L X42 and X46 grades serve high-pressure transmission pipelines where hydrostatic strength matters most. The spiral welding geometry distributes stress along the helical seam, making SSAW spiral welded steel pipe suitable for diameters up to 609.6 mm at wall thicknesses reaching 26 mm. For municipal water projects, Q235 and L242 provide adequate strength at lower cost. Our mill produces both grades on the same production lines, so procurement teams can consolidate orders without splitting shipments across multiple suppliers.
Compliance Requirements for Cross-Border Pipeline Projects
Pipeline projects crossing international borders require documentation that satisfies both origin-country standards and destination regulations. API 5L certification covers North American and Middle East markets, while EN and DIN standards apply to European infrastructure. CE marking under EN 10219 or equivalent pressure equipment directives determines whether customs clearance proceeds smoothly or stalls at port. [NEED_CITE: EN 10219 cold-formed hollow section requirements] Our engineering team reviews shop drawings against both API and EN requirements before production begins, eliminating RFI delays during fabrication.
Understanding SSAW Welding Process and Grade Equivalence
Spiral submerged arc welding uses a continuous helical seam formed by submerged arc process, allowing larger diameters from narrower coil stock compared to straight-seam ERW. This makes SSAW spiral welded steel pipe cost-effective for projects requiring 8-inch to 56-inch diameters. The weld seam undergoes 100% ultrasonic inspection per API 5L requirements. Steel grade equivalence matters when projects specify ASTM A53 but local mills produce GB9711 or EN equivalents — X42 maps to L290, X46 to L317, while Q235 approximates S235JR in yield characteristics. Surface treatment selection depends on service environment: bare or oiled pipes suit indoor structural use, 3LPE coating extends service life in buried or submerged conditions by providing mechanical protection plus moisture barrier. [NEED_CITE: steel grade equivalence between API 5L and ASTM standards]
Hidden Costs of Unverified Material Sources
Purchasing SSAW spiral welded steel pipe without mill test certificates creates downstream risks that dwarf initial price savings. Coating thickness below specification accelerates corrosion in aggressive soils. Weld seams lacking proper NDT documentation fail third-party inspection, triggering costly re-tests or replacement. Negative tolerance beyond ±5% reduces actual weight versus theoretical invoicing, meaning buyers pay for steel they never receive. [NEED_CITE: ISO 3183 petroleum and natural gas industries steel pipe manufacturing requirements]
Why Project Teams Source from Our Mill
Our facility operates three SSAW production lines with in-house steelmaking capability, eliminating the gap between raw material supplier and fabricator. Every heat of steel receives chemical analysis in our own laboratory before rolling begins. The mill test certificate traces from slab chemistry through final dimensional inspection. We stock over 2,800 raw material specifications, so non-standard diameters or wall thicknesses don’t require minimum order quantities that delay projects. Certified welding procedures per AWS and EN standards, qualified welders, and complete QC documentation packages — WPS, PQR, weld maps, coating reports — ship with every order. Professional loading teams handle oversized cargo planning for 12-meter pipes, ensuring containers maximize payload without exceeding weight limits.
Documentation & Compliance
- Mill test certificate documenting X42/X46 chemical composition and mechanical properties per API 5L requirements
- CE certificate confirming compliance with EN 10219 for European market customs clearance
- ISO 9001 quality management system certificate covering SSAW production processes
- SGS or BV third-party inspection reports available for pre-shipment verification
- Material traceability by heat number from slab to finished pipe with full coating documentation
- Export customs documents including packing list, bill of lading, and certificate of origin
Packaging, Loading & Delivery
- SSAW pipes bundled with steel strips at intervals matching 5.8–12 meter lengths, with edge protectors preserving 3PE coating integrity during ocean transit
- Bare or oiled pipes receive end caps to prevent moisture ingress and thread damage on beveled ends
- Container loading optimized for 168.3–609.6 mm diameter range, with nested configurations maximizing payload for smaller diameters
- Heat number stenciled on each pipe end alongside steel grade marking for site identification
- FOB, CIF, and DDP terms available with door-to-door logistics coordination for project sites
How to Initiate Your SSAW Pipe Inquiry
Submit project specifications including outer diameter, wall thickness, steel grade, required standard, surface treatment, and destination port. We respond within 24 hours with preliminary pricing, production schedule, and mill test certificate sample. Our engineering team reviews shop drawings and confirms compliance with API 5L, ASTM A53, or EN standards before contract signing.
Request Your SSAW Pipe Quotation
Send your project drawings and specifications to receive pricing with complete mill test documentation.
Company: Shandong Xin Jiyuan Special Steel Tube Co., Ltd
Website: www.xjystructure.com
Tel: +86 531 8573 6315
Mobile/WhatsApp/WeChat: +86 188 5315 7756
Email: admin@xjystructure.com
Address: No.11889, Jingshi West Road, Lulian Group, Jinan City, Shandong Province, China
Frequently Asked Questions
Q: How do API 5L X42 and X46 grades compare to ASTM A53 specifications?
A: API 5L X42 corresponds to L290 grade with minimum yield strength suitable for medium-pressure transmission pipelines. X46 maps to L317 for higher-pressure applications. ASTM A53 Grade B approximates X42 characteristics. Our mill produces all these grades and provides cross-reference documentation for international projects.
Q: Can you provide third-party inspection for SSAW spiral welded steel pipe orders?
A: Yes, we coordinate SGS, BV, or other internationally recognized inspection agencies for pre-shipment verification. Inspection covers dimensional checks, weld seam NDT, coating thickness measurement, and hydrostatic testing. Complete inspection reports ship with mill test certificates.
Q: What surface treatment options work best for buried pipeline applications?
A: 3LPE or 3PE anti-corrosion coating provides three-layer protection: epoxy primer for adhesion, copolymer adhesive for bonding, and polyethylene outer layer for mechanical protection and moisture barrier. This system suits buried pipelines in aggressive soil conditions. Bare or oiled pipes serve indoor structural applications where corrosion risk is minimal.
Q: How do you ensure material traceability from raw steel to finished pipe?
A: Each heat of steel receives unique identification from slab production through rolling, welding, and coating. Mill test certificates document chemical composition and mechanical properties by heat number. Our vertically integrated facility controls the entire process, eliminating gaps from third-party material sourcing.
Q: What documentation do you provide for EU and Middle East customs clearance?
A: We supply CE certificates for European markets, API 5L certification for Middle East projects, mill test certificates per required standards, certificates of origin, and complete export documentation. Our engineering team confirms compliance with destination-country regulations before production begins.
