Description

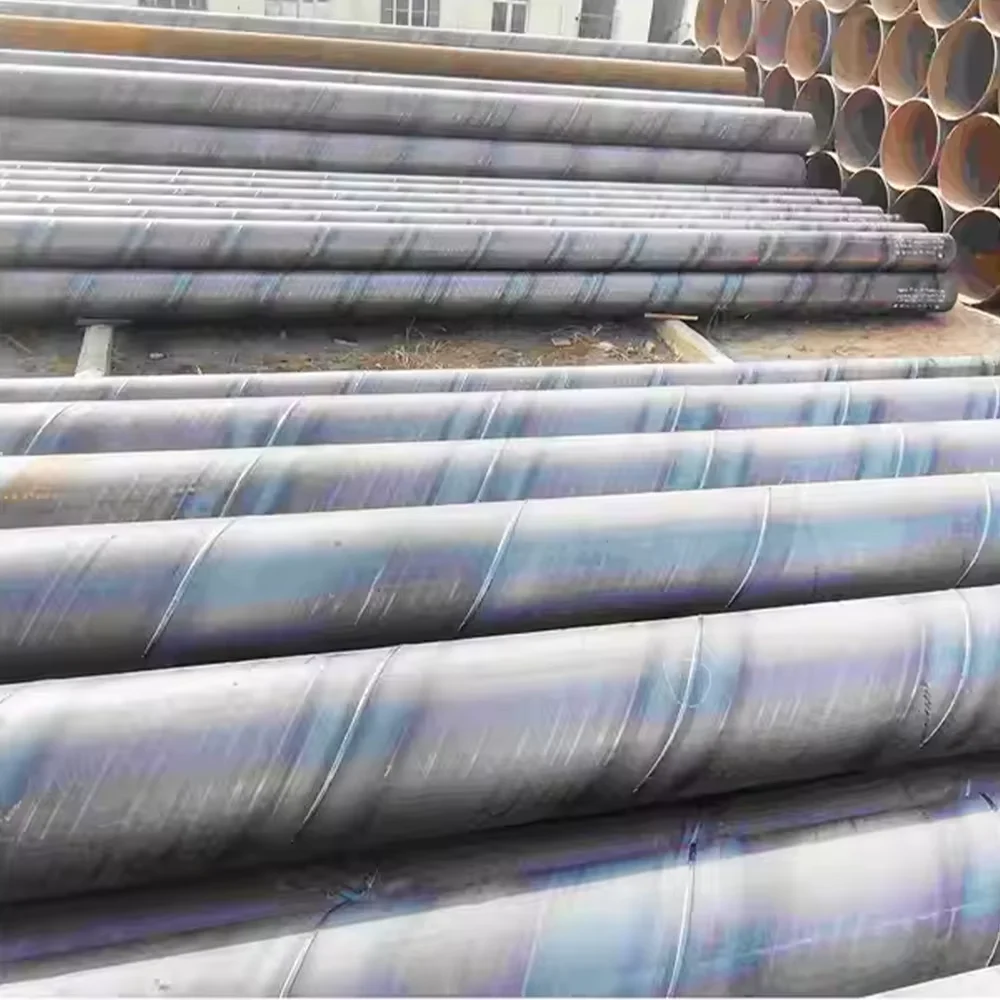

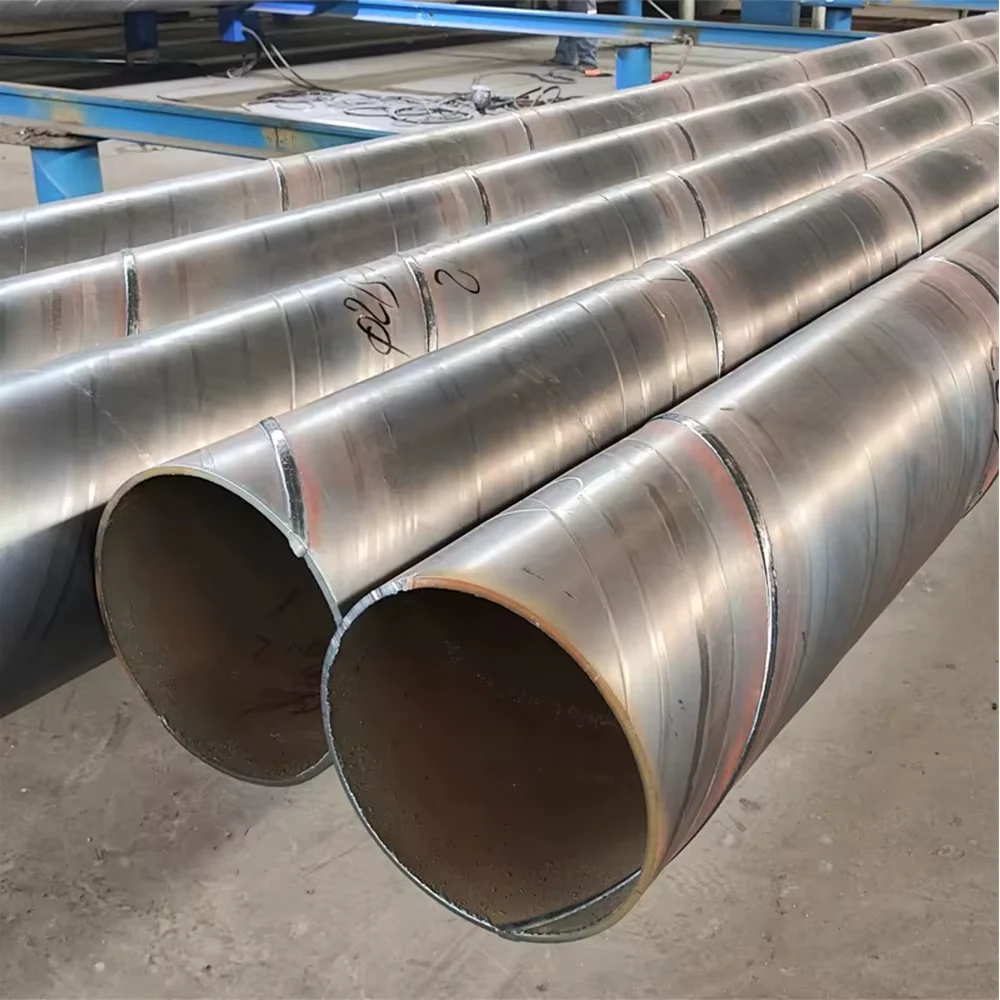

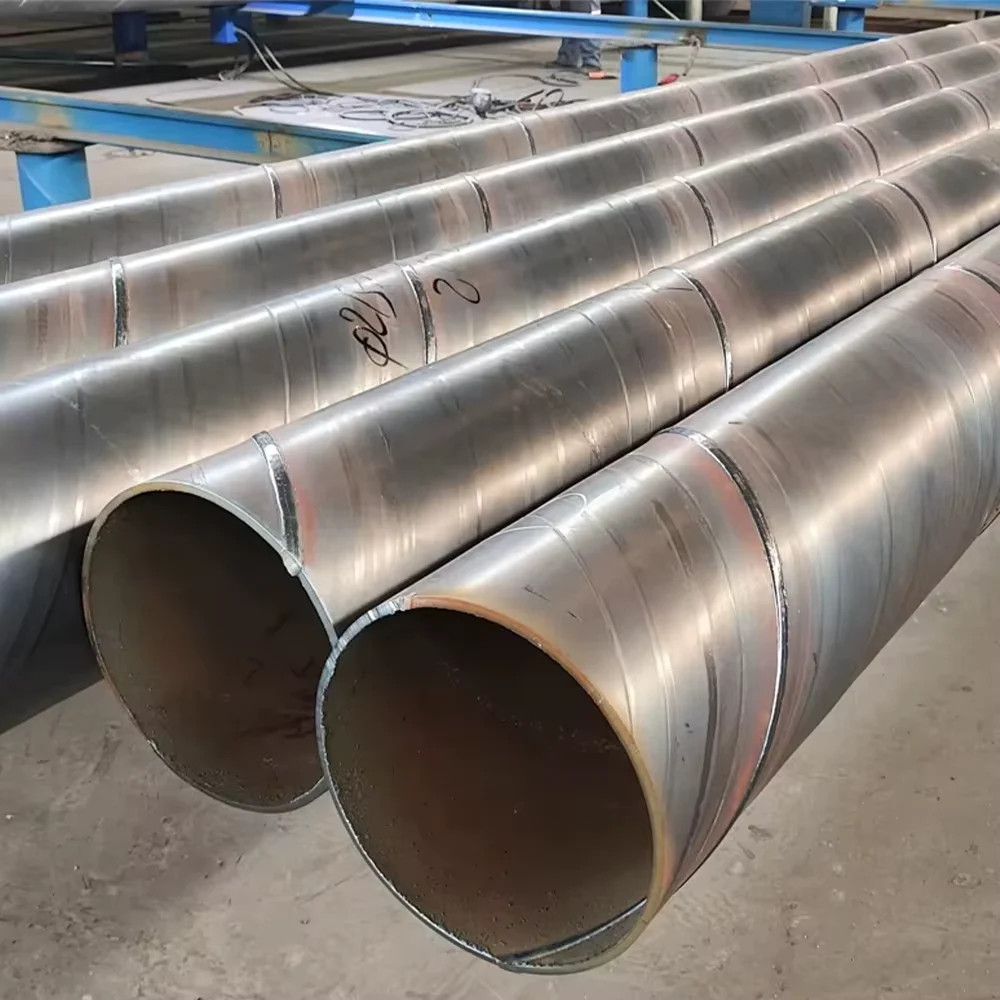

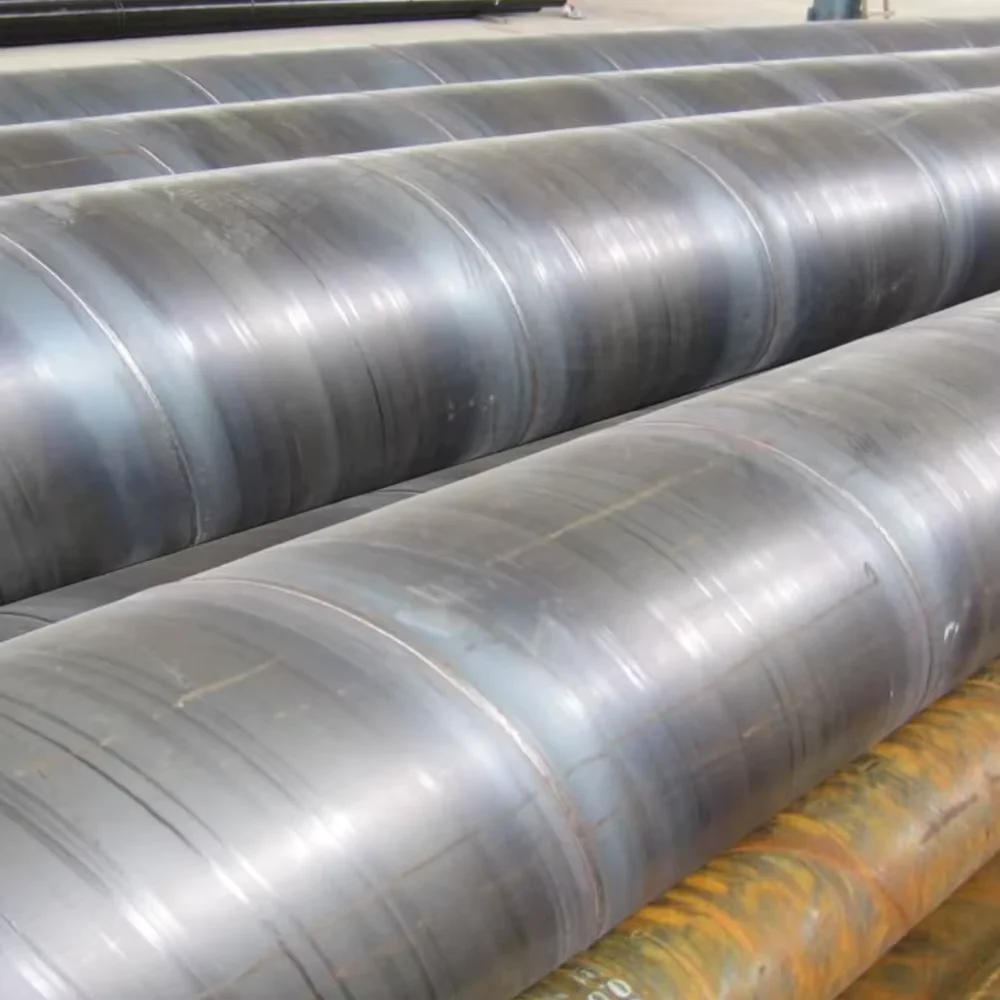

Direct Mill Supply for API 5L Pipeline Projects — XJY Structure integrates raw steel coil production with SSAW pipe fabrication, delivering API 5L X42 X52 X60 spiral welded steel pipe with full heat-number traceability from mill to job site.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | API 5L X42/X52/X60 Spiral Welded Steel Pipe |
| Product Type | Spiral Welded Steel Pipe (SSAW) |
| Steel Grade | API 5L X42, X52, X60, X70 / L245, L290, L360, L390, L415 / Q195, Q235, Q345 / ASTM A53, A106, A500 / SS400, St37, St52, S235JR, S355JR |
| Standard | API 5L (PSL1 / PSL2), ASTM A53, ASTM A106, ASTM A500, GB/T 3091, GB/T 13912, BS 1387, ASTM F1083 |
| Section Shape | Round |
| Size Range | Outer Diameter 10–1000 mm |
| Wall Thickness | 1–80 mm |
| Length | 6–12 m (or customized) |
| Technique | Hot Rolled / Spiral Welded (SSAW) |
| Surface Treatment | Black Painting / Oiled / Non-oiled |
| Tolerance | ±1% |
| Ends | Plain / Beveled (as per standard) |
| Application | Oil and gas transmission pipeline / Industrial sewage transportation / Fluid transport / Construction structural pipe / Machinery parts / Greenhouse structure / Fence post / Curtain wall |
| MOQ | 5 Tons |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Oil & Gas EPC | Onshore and offshore transmission pipelines for crude oil, natural gas, and refined products |
| Municipal Infrastructure | Industrial sewage conveyance, water distribution mains, and pump well casings |
| Industrial Construction | Structural columns, pipe rack supports, and platform framing for petrochemical plants |
| Agricultural Engineering | Greenhouse frame structures, irrigation pipelines, and fence post systems |
Where PSL2 Certification Determines Whether Your Pipeline Shipment Clears Customs
API 5L X42 X52 X60 SSAW spiral welded steel pipe must carry complete PSL2 documentation — chemical composition, mechanical test results, and heat-by-heat traceability — or the entire container gets held at destination port.
I remember a PSL2 X52 shipment to Jebel Ali where the wall thickness negative tolerance was pushed too tight. SGS re-inspection nearly rejected the batch. Since then, every pipe leaving our mill goes through dimensional复核 and理化检验 before release, with PSL1 and PSL2 certificates matched to each heat number. When you source SSAW pipe from a trader who buys from a third-party mill, that traceability chain breaks — and customs officers in the Middle East and Southeast Asia know exactly what to look for. [NEED_CITE: API 5L PSL2 documentation requirements for pipeline steel imports]
How SSAW Pipe Geometry Matches High-Pressure Transmission Line Requirements
Spiral welded steel pipe covers outer diameters from 10 mm to 1000 mm with wall thickness up to 80 mm, making API 5L X42 X52 X60 SSAW spiral welded steel pipe suitable for both small-distribution lines and large-bore transmission mains. The helical weld seam distributes stress more evenly across the pipe body compared to straight-seam alternatives, which matters when internal pressure fluctuates during pump start-up and shut-down cycles. Our own steel mill produces the raw coil, so we control chemistry from ladle to finished pipe — no guessing whether the X52 you receive matches the X52 on the certificate.
Engineering Compliance Across API, ASTM, and GB Standards for Pipeline Projects
Pipeline projects in different regions demand different certification frameworks. API 5L PSL2 governs most oil and gas transmission work globally, while ASTM A53 and A106 apply to North American industrial piping, and GB/T 3091 serves domestic Chinese water and gas distribution. Each standard defines its own chemical composition limits, mechanical property thresholds, and inspection frequency. [NEED_CITE: equivalence mapping between API 5L and ASTM A53 grade requirements] Our engineering team reviews your project specification against the correct standard before fabrication begins, ensuring shop drawings, weld procedures, and test plans align with the compliance regime your inspector will enforce. For EU-bound projects, we also prepare EN 1090 documentation packages alongside API certificates.
Steel Grade Selection and Spiral Welding Process: What Engineers Need to Know
API 5L grade designations from X42 through X70 indicate minimum yield strength in ksi — X42 means 42 ksi, X52 means 52 ksi — and the number after the slash (PSL1 vs PSL2) defines the rigor of testing and documentation required. PSL2 adds mandatory Charpy impact testing, tighter chemical composition controls, and full traceability to each heat of steel. The spiral welding process (SSAW) forms pipe from coiled steel plate by helically winding and submerged-arc welding, which allows large diameters from relatively narrow coil stock. This makes SSAW cost-effective for diameters above 500 mm where seamless pipe becomes prohibitively expensive. Surface treatment choices — black painting for indoor or buried service, oiled for temporary corrosion protection during transit, or custom coating per project spec — depend on the installation environment and the design life the engineer has specified.
The Hidden Cost of Buying SSAW Pipe Without Verified Material Traceability
When a pipeline contractor purchases API 5L X42 X52 X60 SSAW spiral welded steel pipe from a supplier who cannot trace each pipe back to its original heat number, the risks compound. Material test certificates may not match the physical product. Weld seams may not have been inspected to the frequency the standard demands. At destination, the third-party inspector flags discrepancies, the shipment gets quarantined, and the project schedule slips — while the contractor absorbs demurrage, re-inspection fees, and potentially replacement costs. [NEED_CITE: consequences of non-conforming pipeline steel in international construction projects] These are not theoretical scenarios; they happen regularly when buyers prioritize unit price over documentation integrity.
Why Engineering Procurement Teams Source API 5L Pipe Directly from Our Integrated Mill
XJY Structure operates its own steel production facility with three production lines and over 2,800 raw material specifications in inventory, meaning the coil that becomes your API 5L X42 X52 X60 SSAW spiral welded steel pipe is produced, tested, and certified under one roof. We do not broker pipe from unknown mills and re-stamp certificates. Our fabrication workshop handles CNC cutting, beveling, welding, shot blasting, and painting in-house, so dimensional accuracy and coating quality stay under a single quality management system. We accept third-party inspection from SGS, BV, and TÜV at any production stage. Complete documentation packages — including WPS, PQR, weld maps, dimensional reports, and coating thickness records — ship with every order. Our logistics team specializes in oversized cargo loading and export documentation for Middle East, Southeast Asian, and African project sites.
Documentation & Compliance
- Mill Test Certificate documenting API 5L X42, X52, or X60 chemical composition and mechanical properties per PSL1 or PSL2 requirements, with heat number traceability to our own steel production
- API 5L certification confirming compliance with PSL1 or PSL2 service levels for spiral welded steel pipe
- ISO 9001 quality management system certificate covering the full scope from raw material procurement through finished pipe fabrication
- SGS or BV third-party inspection report available for pre-shipment verification of dimensions, weld quality, and coating thickness
- Material traceability report linking each pipe to its original heat number, coil identity, and production date
- Complete export documentation package including packing list, bill of lading, certificate of origin, and customs clearance support for destination port requirements
Packaging, Loading & Delivery
- API 5L SSAW pipes bundled with steel strip ties and edge protectors, sized to match the 6–12 m standard length or custom cut lengths for container optimization
- Black painted or oiled surface treatment preserved during ocean transit through waterproof wrapping and separation layers between pipe tiers
- Large-diameter pipes (above 500 mm OD) loaded on specialized cradles or flat racks to prevent deformation during handling and shipping
- Heat number and steel grade stenciled on each pipe end for on-site identification and traceability verification by receiving inspectors
- Beveled-end pipes protected with plastic caps to prevent damage to welding preparation during transport and site storage
- FOB, CIF, and DDP shipping terms available with professional oversized cargo loading plans and door-to-door logistics coordination for project sites
Start Your API 5L Pipe Inquiry with Drawings and Specifications
Submit your project drawings in PDF or DWG format along with the required steel grade, PSL level, quantity, and destination port, and our engineering team responds within 24 hours with a preliminary assessment and detailed quotation covering material, fabrication, coating, packing, and freight. We prepare shop drawings for your approval before production begins, and we confirm all certification and inspection requirements upfront so there are no surprises at customs or on-site inspection.
Request API 5L X42 X52 X60 SSAW Spiral Welded Steel Pipe Quotation
Share your project specifications, steel grade, PSL level, and destination port to receive a detailed quotation with mill test certificate documentation and production timeline.
