Description
Factory-Direct SSAW Pipe Supply — Vertically integrated production from raw steel plate to finished API 5L and ASTM A252 spiral welded pipes with full coating and documentation.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | API 5L / ASTM A252 SSAW Spiral Welded Steel Pipe |
| Product Type | SSAW Spiral Welded Steel Pipe |
| Steel Grade | API 5L (X42, X60), ASTM A252, EN1029 |
| Standard | API 5L, ASTM A252, EN1029, EN, BS, JIS |
| Section Shape | Round |
| Outer Diameter | 1800 mm |
| Length | 6m, 12m, Customized |
| Technique | SSAW (Spiral Submerged Arc Welded) |
| Surface Treatment | Galvanized, 3LPP, 3LPE, FBE, Customized |
| Tolerance | Within ±1% – ±20% (varies by parameter) |
| Ends | Plain / Beveled |
| Application | Oil & Gas Pipeline Transport, Gas Distribution, Boiler Systems, Drill Pipe, Structural Pipe |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Oil & Gas | Transmission pipelines, gas distribution networks, flow lines with 3LPE/FBE coating |
| Infrastructure & Piling | Foundation piling, bridge support columns, retaining wall structures per ASTM A252 |
| Industrial Plants | Process piping, boiler systems, slurry transport lines in mining and chemical facilities |
| EPC Mega-Projects | Water conveyance, drainage culverts, and structural supports for Middle East and African developments |
Material Traceability Gaps That Derail Pipeline Projects
When the mill test certificate does not match the heat number stamped on the pipe, customs holds the entire shipment.
Sourcing SSAW spiral welded steel pipe from fragmented suppliers means the steel plate, welding consumables, and coating materials often come from different origins. Buyers on EPC projects in the Middle East and Southeast Asia repeatedly face rejection at third-party inspection because the chemical composition on the MTC does not align with the actual pipe delivered. [NEED_CITE: API 5L material traceability and heat number requirements] This is not a paperwork problem — it is a supply chain structure problem. When fabrication and raw material production sit under one roof, every heat of steel plate is tracked from rolling through welding, coating, and final bundling.
Matching Large-Diameter SSAW Pipe to Pipeline and Piling Environments
An 1800 mm SSAW spiral welded steel pipe serves two fundamentally different engineering roles. In oil and gas transmission, API 5L X42 and X60 grades with 3LPE or FBE coating resist soil-side corrosion and internal pressure over decades of buried service. In infrastructure piling, ASTM A252 grade pipes function as structural columns driven into soil, where wall thickness and weld seam integrity matter more than internal pressure rating. Our production lines handle both specifications on the same facility, meaning the welding procedure specification (WPS) and qualified procedure records (PQR) are developed and verified in-house rather than outsourced to a third-party welding shop.
Engineering Compliance Across API, ASTM, and EN Frameworks
Large-diameter spiral welded pipes crossing international borders must satisfy the standard framework of the destination market. API 5L governs pipeline transport with strict requirements on hydrostatic testing, chemical composition limits, and non-destructive testing coverage of the spiral and seam welds. ASTM A252 applies to piling applications where dimensional tolerance and weld seam quality determine load-bearing capacity. [NEED_CITE: ASTM A252 dimensional tolerance requirements for steel pipe piling] For projects in European-influenced markets, EN1029 provides an alternative specification path. The coating system — whether 3LPE per DIN 30670, FBE per AWWA C210, or hot-dip galvanized — must be selected based on the corrosion environment, soil resistivity, and design life of the project. Beveled ends are standard for pipeline welding, while plain ends serve piling and structural connections.
Understanding SSAW Welding, Steel Grades, and Coating Selection
Spiral submerged arc welding (SSAW) forms the pipe by helically winding steel plate and welding both the inner and outer seams simultaneously. This process allows production of large diameters — up to 1800 mm and beyond — from relatively narrow plate, making it cost-effective for long-distance pipeline and piling projects where straight-seam (LSAW) alternatives require wider and more expensive plate. API 5L X42 provides adequate strength for medium-pressure gas distribution, while X60 serves higher-pressure transmission lines requiring greater hoop stress resistance. The choice between 3LPE and FBE coating depends on operating temperature and soil conditions: 3LPE offers superior mechanical protection against rock impingement during backfilling, while FBE delivers excellent adhesion and cathodic disbondment resistance in high-temperature service. Wall thickness tolerance directly affects theoretical weight calculations and, more importantly, the actual load-bearing capacity of piling applications where every millimeter of wall matters for driving stress resistance.
The Hidden Cost of Unverified Pipe Specifications
Ordering SSAW spiral welded steel pipe based on price alone, without verified material traceability and third-party inspection, creates costs that surface only at the project site. Pipes with wall thickness at the extreme negative tolerance end may pass factory inspection but fail dimensional checks during EPC acceptance, triggering re-measurement of every joint and potential rejection of entire heat lots. Coating applied without proper surface preparation — missing shot blasting Sa 2.5 or incorrect anchor profile — leads to premature disbondment underground, where repair costs dwarf the original pipe price. [NEED_CITE: coating adbondment failure modes in buried pipeline systems] Certification gaps become customs clearance obstacles: without proper CE marking, EN compliance documentation, or API monogram licensing records, shipments sit at port while demurrage charges accumulate.
Why Project Teams Source SSAW Pipe From Our Facility
Our operation integrates three production lines for steel plate rolling with a dedicated SSAW pipe fabrication workshop, eliminating the gap between material supplier and pipe manufacturer. Every coil of steel plate is produced in-house across 2,800+ specifications, so the heat number on the MTC corresponds directly to the plate we rolled — no third-party sourcing gaps. Certified welding procedures (WPS/PQR) and qualified welders (AWS/EN certified) ensure every spiral and seam weld meets API 5L and ASTM A252 requirements. Our engineering team reviews shop drawings, optimizes material utilization, and prepares complete quality documentation packages including weld maps, NDT reports, and coating inspection records before shipment. For oversized 1800 mm pipes, our loading team designs custom cradle supports and lashing schemes to prevent ovality deformation during ocean transit — a lesson learned from early shipments where inadequate bracing caused out-of-roundness at destination.
Documentation & Compliance
- Mill Test Certificate documenting API 5L X42/X60 chemical composition, tensile properties, and Charpy impact results per heat number
- Third-party inspection reports from SGS, BV, or TUV covering dimensional checks, NDT (UT/PT), and coating thickness verification
- Welding Procedure Specification (WPS) and Procedure Qualification Record (PQR) for spiral submerged arc welding per API 5L and AWS standards
- Coating inspection report confirming 3LPE/FBE/galvanized thickness, adhesion test results, and holiday detection per DIN 30670 or AWWA C210
- Complete export documentation: packing list, commercial invoice, bill of lading, and certificate of origin for customs clearance
- Material traceability matrix linking each pipe to its heat number, rolling record, welding log, and coating batch

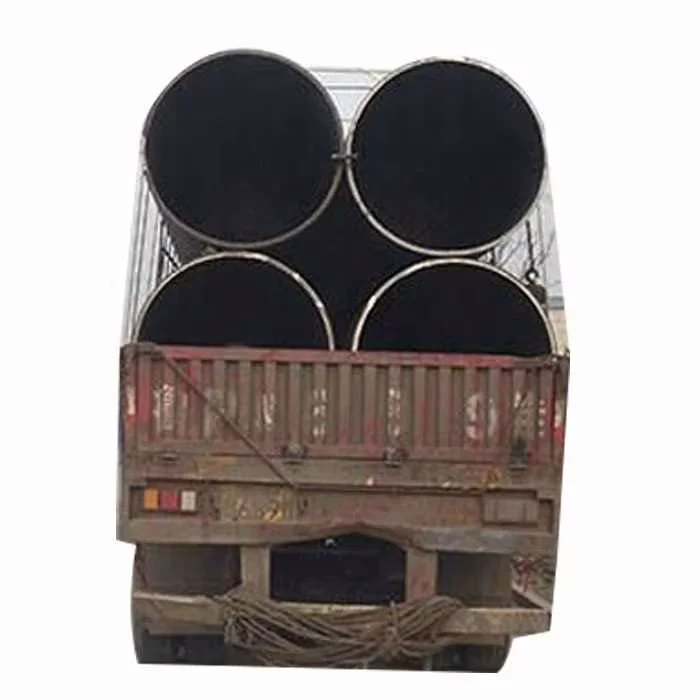

Packaging, Loading & Delivery
- 1800 mm SSAW pipes bundled with steel strip bands and fitted with wooden cradle supports to maintain roundness during container and breakbulk loading
- 3LPE/FBE coated pipes wrapped with protective film and separated by rubber spacers to prevent coating damage from metal-to-metal contact during transit
- Beveled-end pipes fitted with plastic end caps to protect weld preparation geometry from moisture and mechanical damage during ocean shipping
- Heat number, steel grade (API 5L X42/X60 or ASTM A252), and wall thickness stenciled on each pipe for site identification and traceability verification
- Breakbulk and open-top container loading plans prepared for 12m and customized lengths, with lashing calculations submitted for buyer approval before stuffing
- FOB, CIF, and DDP delivery terms available with door-to-door logistics coordination for project sites in the Middle East, Southeast Asia, and Africa
Initiating Your SSAW Pipe Procurement
Submit your project drawings, pipe specifications (diameter, wall thickness, length), steel grade requirements (API 5L X42/X60 or ASTM A252), coating standard, and destination port to receive a detailed quotation including material, fabrication, coating, packing, and shipping costs. Our engineering team will review your specifications, prepare shop drawings for approval, and confirm the production schedule and third-party inspection arrangement before contract signing.
Request Your SSAW Pipe Quotation with Full Documentation Package
Share your project specifications, steel grade, coating requirements, and destination port — we respond within 24 hours with pricing, shop drawing timeline, and mill test certificate samples.
Tel: +86 531 8573 6315 | Mobile/WhatsApp/WeChat: +86 188 5315 7756 | Email: admin@xjystructure.com
Frequently Asked Questions
Q: What is the difference between SSAW and LSAW, and which is suitable for my project?
A: SSAW (Spiral Submerged Arc Welded) pipe is formed by helically winding steel plate, allowing large diameters like 1800 mm from narrower plate at lower cost. LSAW (Longitudinal Submerged Arc Welded) uses a single straight seam and is typically preferred for high-pressure applications requiring thicker walls. For gas distribution, water conveyance, and piling projects, SSAW offers cost efficiency with full API 5L and ASTM A252 compliance.
Q: Can you provide 3LPE/FBE coating per project specification such as DIN 30670 or AWWA C210?
A: Yes. We apply 3LPE, 3LPP, FBE, and galvanized coatings in-house per DIN 30670, ISO 21809, AWWA C210, and other project-specified standards. Coating thickness, adhesion, and holiday detection are verified during production and documented in the coating inspection report included in the shipment documentation package.
Q: What quality documentation do you provide for API 5L pipes?
A: Each shipment includes Mill Test Certificates with chemical composition and mechanical properties per heat number, WPS/PQR welding records, NDT reports (UT, PT, PMI), dimensional inspection reports, coating inspection reports, and material traceability matrices. Third-party inspection by SGS, BV, or TUV is available at any production stage.
Q: What is the typical production lead time for SSAW pipes with coating?
A: Lead time depends on order quantity, steel grade availability, coating type, and current production scheduling. After drawing approval and deposit receipt, we provide a detailed production timeline covering material procurement, welding, NDT, coating, and packing stages.
Q: Do you support third-party inspection before shipment?
A: Yes. We welcome SGS, BV, TUV, or buyer-nominated inspectors at any stage — from raw material inspection through welding, NDT, coating, dimensional checks, and final loading. Inspection coordination is included in our project management process at no additional administrative cost.
