API 5L X70 X52 SSAW Spiral Welded Steel Pipe OD 219-4064mm Manufacturer

Description

Direct Mill Supply — API 5L X70 SSAW pipes produced and tested under one roof, from raw coil to finished spiral welded pipe.

Technical Specifications

Application Suitability

What Fragmented Procurement Costs on a Spiral Pipe Order

Splitting coil supply from fabrication creates material traceability gaps that surface only at site inspection.

When buyers source SSAW spiral welded steel pipe from a fabricator who purchases coils from a separate mill, heat number chains break. Third-party inspectors at destination ports frequently flag missing MTC linkage between raw material and finished weld seams. I have seen entire shipments held because the fabricator could not prove which coil heat produced which pipe joint — a problem that only exists when material sourcing and welding happen under different roofs.

Beyond traceability, inconsistent welding quality emerges when fabricators lack certified WPS/PQR procedures for higher steel grades like X65 and X70. [NEED_CITE: API 5L PSL2 requirements for sour service HIC testing] Without integrated quality control from coil to coating, dimensional tolerance drifts and coating adhesion failures become common rejection points.

Matching Large-Diameter Spiral Pipe to Transmission and Piling Demands

For oil and gas transmission pipelines requiring API 5L X52 through X70 in PSL2 condition, the SSAW process delivers continuous spiral seams suitable for high-pressure hydrocarbon conveyance across OD 219–4064 mm. The spiral weld geometry distributes hoop stress more evenly than longitudinal seams, making it the preferred choice for large-diameter water and gas mains where LSAW becomes cost-prohibitive. Our SSAW spiral welded steel pipe production integrates coil slitting, forming, submerged arc welding, and hydrostatic testing in sequential bays — so every heat number traces directly from coil certificate to finished pipe end.

Engineering Compliance Across API, ASTM, and EN Frameworks

Spiral welded pipes serving EU infrastructure projects must conform to EN10217-1 or EN10208 dimensional and chemical requirements, while North American piling contracts specify ASTM A252 Grade 2 or 3. [NEED_CITE: EN 10219 cold-formed hollow section requirements] The SSAW process accommodates both metric and imperial tolerance stacks within ±1% OD/WT, enabling single-source supply for multi-region EPC portfolios. For buried pipeline applications, 3PE yellow jacket coating applied per DIN 30670 or CAN/CSA Z245.21 provides cathodic disbondment resistance exceeding 1.5 mV — critical for 30-year design life in aggressive soil conditions.

Steel Grade Selection and Submerged Arc Welding Metallurgy

API 5L X70 represents a high-strength low-alloy grade requiring controlled rolling and microalloying with niobium/vanadium to achieve yield strength targets without sacrificing weldability. The SSAW submerged arc welding process uses continuous flux-covered wire, producing deep penetration fusion zones with low hydrogen content — essential for avoiding cold cracking in thick-wall X65 and X70 pipes. Wall thickness up to 40 mm demands multi-pass welding with interpass temperature control; our WPS procedures specify preheat minimums and heat input ranges per AWS D1.1 to prevent hydrogen-induced cracking in the heat-affected zone.

For sour service applications (H2S environments), X52 and X60 grades require HIC/SSC testing per NACE TM0284, with acceptance criteria limiting crack sensitivity ratio below defined thresholds. [NEED_CITE: NACE MR0175 material requirements for sour service] The integrated mill-fabricator model ensures coil chemistry — particularly sulfur and phosphorus limits — aligns with PSL2 supplementary requirements before forming begins.

Hidden Costs of Negative Tolerance and Missing Certification

Purchasing SSAW spiral welded steel pipe at theoretical weight while accepting negative wall thickness tolerance creates a false economy: actual load-bearing capacity drops, and third-party ultrasonic testing at destination reveals under-thickness joints requiring replacement. When MTC documentation omits charpy impact values or fails to reference specific heat numbers, customs authorities in EU and Middle East markets reject shipments outright — regardless of physical quality. [NEED_CITE: EN 10204 inspection document types 3.1 vs 3.2]

Structural engineers specifying X70 for high-pressure gas transmission rely on certified yield and tensile values; substituting lower-grade material without notification compromises safety factors and voids design liability coverage. Re-work costs — cutting out defective joints, welding replacement spools, re-testing, and re-coating — typically exceed the original price premium of certified supply.

Why Integrated Mill-Fabricator Supply Reduces Risk

Our facility operates three SSAW production lines with in-house coil slitting, edge milling, and forming stations — eliminating the material handoff between independent coil suppliers and pipe fabricators. Every coil heat number received is logged against incoming chemistry certificates, then carried through forming, welding, NDT, and coating as a continuous digital thread. This vertical integration means when you order API 5L X70 PSL2 pipe, the mill test certificate you receive references the same heat that fed the forming rolls — no intermediate trading company, no document reconstruction.

For projects requiring 2800+ specification combinations across OD, wall thickness, and coating type, single-source procurement consolidates quality accountability. Our ISO 9001-certified quality management system generates complete documentation packages — dimensional reports, NDT maps, coating thickness logs, hydrostatic test records — as a unified deliverable rather than fragmented supplier submissions.

Documentation & Compliance

• Mill Test Certificate documenting API 5L X52/X70 chemical composition (C, Mn, Si, P, S, CEV) and mechanical properties (yield, tensile, elongation, charpy) per heat number
• Third-party inspection reports from SGS/BV/Lloyd’s covering dimensional checks, NDT results, and coating adhesion at defined hold points
• Welding procedure specifications (WPS) and procedure qualification records (PQR) per AWS D1.1 and API 5L for submerged arc welding of X60–X70 grades
• Coating inspection certificates confirming 3PE/2PE yellow jacket thickness, holiday detection, and cathodic disbondment resistance per DIN 30670
• Material traceability matrix linking finished pipe joint numbers to incoming coil heat certificates and production date codes
• Export customs documentation including packing lists, ocean bills of lading, and certificates of origin for preferential tariff claims

Packaging, Loading & Delivery

• SSAW pipes bundled with galvanized steel strips at 1.5 m intervals, with rubber edge protectors preventing black paint or 3PE coating abrasion during ocean transit

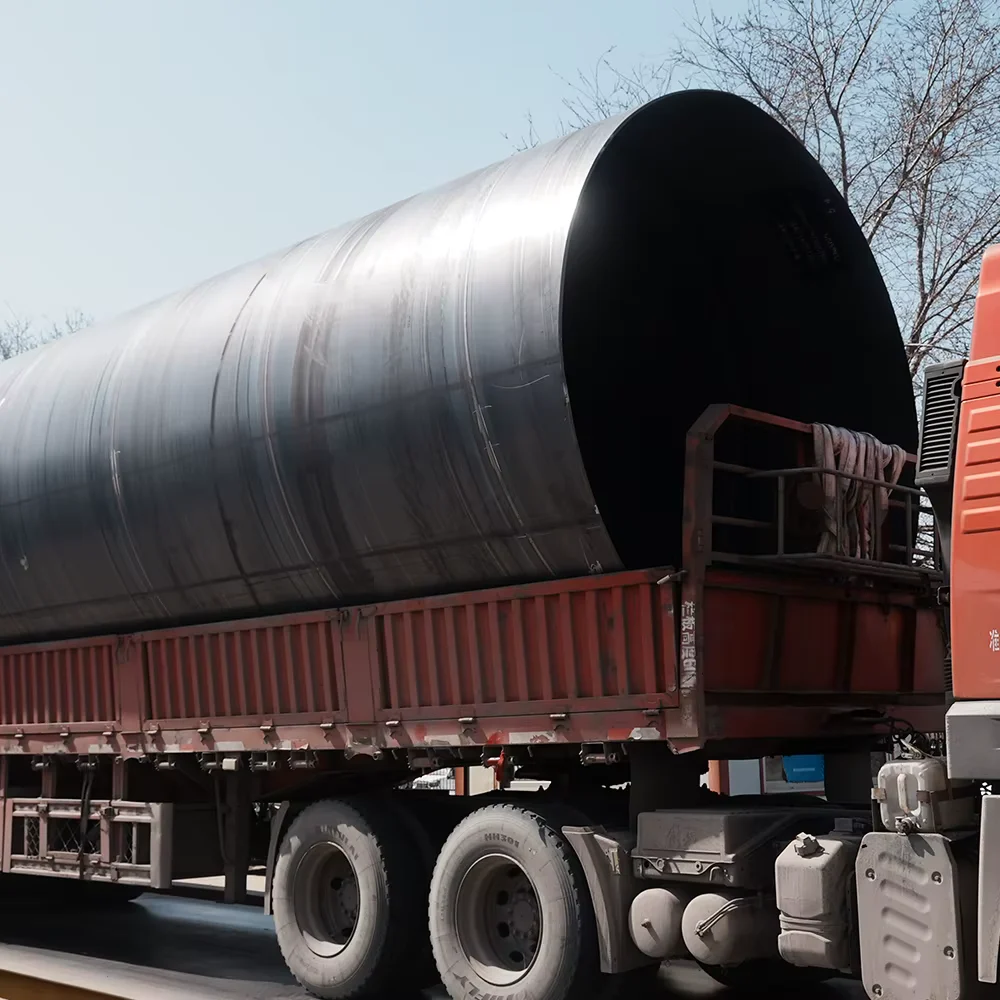

• OD 219–610 mm pipes loaded nested in 20ft containers to maximize payload; OD 820–4064 mm pipes shipped break bulk on flat racks or in open-top containers with steel cradle supports
• 11.8 m and 12 m standard lengths secured with timber chocks and wire lashings to prevent longitudinal shifting; 5.8 m lengths double-stacked with interlayer separators

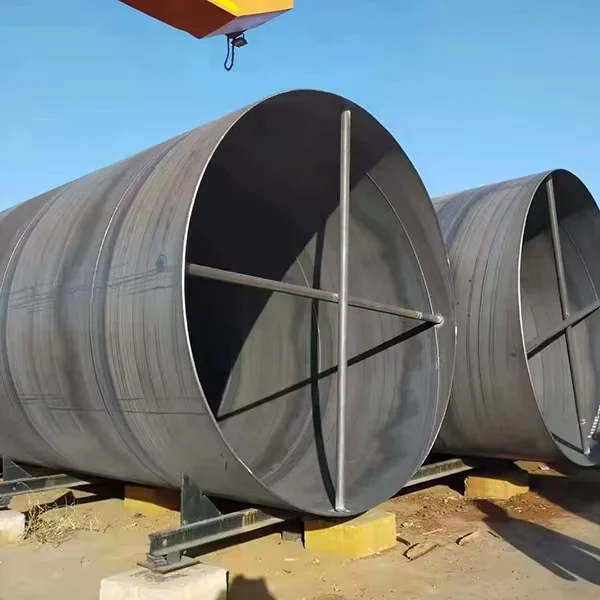

• Plastic end caps fitted on all pipes under 1219 mm OD; steel ring protectors welded on larger diameters to prevent ovality damage at crane contact points
• Heat number, steel grade (X52/X70), and PO number stenciled on each pipe surface in weather-resistant paint for site identification
• FOB/CIF/DDP terms available with professional oversize cargo planning for OD 2000+ mm pipes requiring special trailer permits at destination

Requesting a Fabrication Quote with Full Material Traceability

Submit your project drawings (PDF/DWG), specifying API 5L or ASTM steel grade, OD and wall thickness, required length, coating type, and destination port. We respond within 24 hours with a detailed quotation covering material, fabrication, coating, packing, and shipping — including shop drawing timeline and production schedule. Mill test certificates, third-party inspection coordination, and export documentation are confirmed in the contract before deposit payment.

Start Your SSAW Pipe Procurement with Certified Material Traceability

Send your specifications and steel grade requirements to receive a detailed fabrication quotation with complete mill test documentation.
