Description

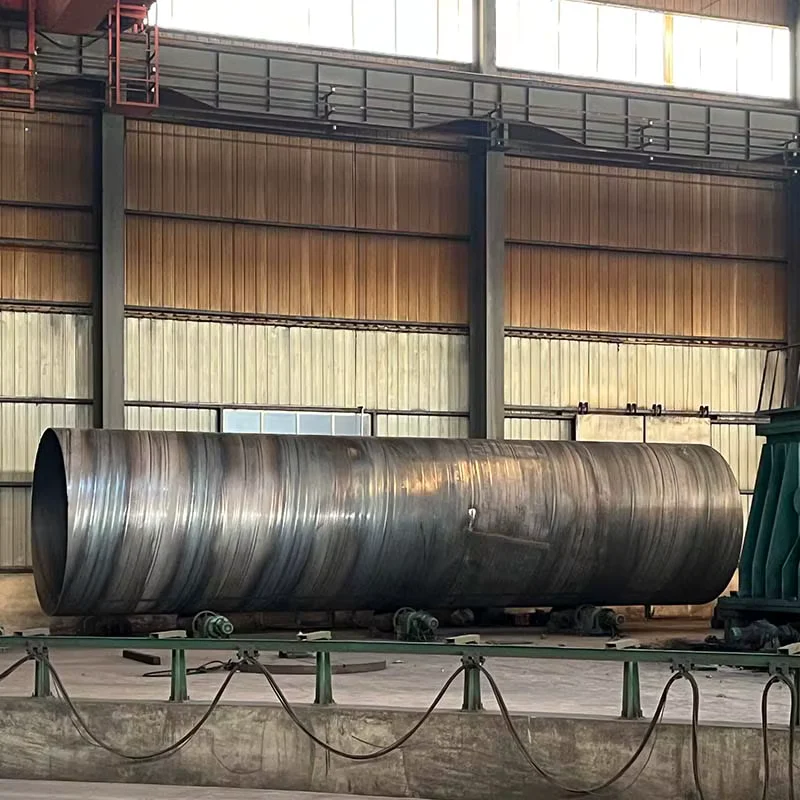

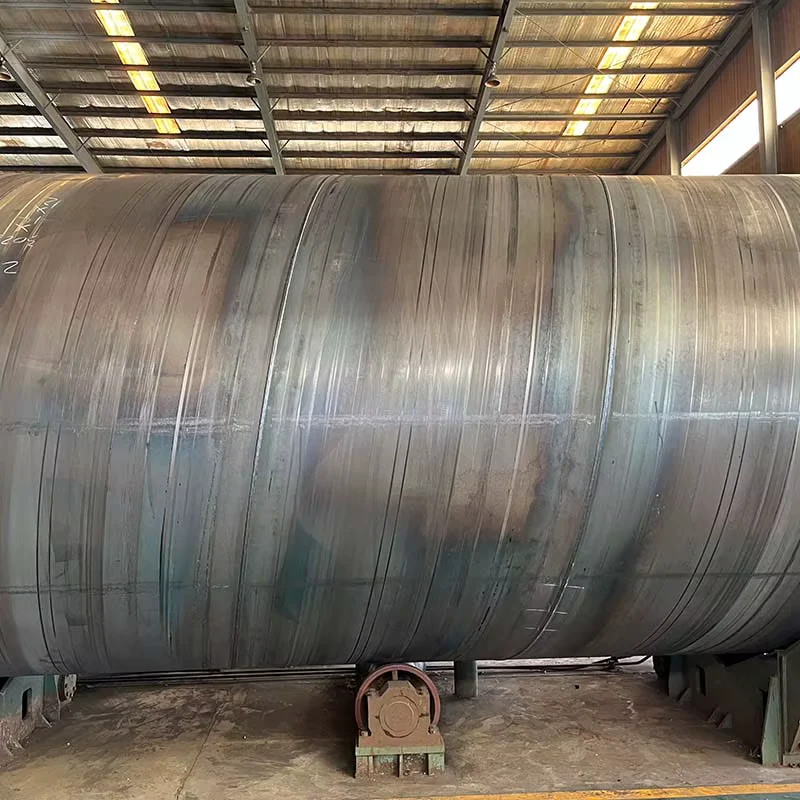

Factory-Direct SSAW Pipe Production — Own steel mill feeds raw coils directly into spirally welded pipe lines, eliminating third-party material gaps for ASTM A106/A53 Gr.B orders.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | ASTM A106/A53 Gr.B SSAW Steel Pipe |
| Product Type | SSAW Steel Pipe (Spirally Submerged Arc Welded Pipe) |
| Steel Grade | Q195, Q215, X42, X46, L242, L450, ASTM A106/A53 Gr.B |
| Standard | API, ASTM A106/A53, APL, CE, JIS |
| Section Shape | Round |
| Size Range | Outer Diameter 400–3000 mm (15.75–118.11 in) |
| Technique | SSAW (Spirally Submerged Arc Welding) |
| Surface Treatment | Black Painted / Oiled / Anti-corrosion coating |
| Tolerance | ±1% |
| Length | 6m / 12m (customizable) |
| Ends | Plain / Beveled |
| Application | Gas pipeline / Oil pipeline / Fluid transport / Structural piling / Water conveyance |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Oil & Gas EPC | Onshore and offshore transmission pipelines for crude oil and natural gas conveyance |
| Infrastructure & Piling | Foundation piling for bridges, port terminals, and high-rise building substructures |
| Municipal Engineering | Large-diameter water intake, drainage, and industrial cooling water systems |
| Industrial Plant Construction | Process piping racks, pipe bridge supports, and plant utility headers |
Material Traceability Gaps Cost More Than Price Differences on Large-Diameter Pipe Orders
When a 3000 mm SSAW pipe fails third-party inspection at destination port, the real expense is not the pipe — it is two weeks of demurrage, re-inspection fees, and a halted piling schedule.
Sourcing large-diameter spirally welded pipes from traders who buy coils from one mill and subcontract welding to another shop creates breaks in the certification chain. Heat numbers on the mill test certificate no longer match the actual slab. Buyers discover this only when SGS or BV arrives for pre-shipment inspection and finds discrepancies between the declared grade and the weld seam chemistry. As a SSAW steel pipe manufacturer with vertically integrated coil-to-pipe production, XJY Structure keeps the entire material chain under one quality system — from slab casting through forming, submerged arc welding, and final NDT. [NEED_CITE: material traceability requirements for pipeline steel per API 5L]
Matching 400–3000 mm SSAW Pipe to Pipeline and Piling Engineering Demands
Spirally submerged arc welded pipe in the 400–3000 mm outer diameter range serves projects where LSAW tooling limits make large diameters economically unviable. The helical weld seam distributes stress across a longer fusion line, which benefits piling applications subject to lateral soil pressure and bending moments. For oil and gas transmission, grades X42 through X46 meet API pipeline requirements while ASTM A106/A53 Gr.B covers high-temperature fluid service. As a SSAW steel pipe manufacturer, we produce these grades on dedicated lines with certified WPS procedures, ensuring the weld metal chemistry stays within the narrow carbon equivalent window that prevents hydrogen cracking in field girth welds.
Engineering Compliance Across API, ASTM, and CE Frameworks
Pipeline projects targeting API certification require documented welding procedure specifications and qualified welder performance records for every heat of steel. Structural piling works in European markets demand CE marking under applicable harmonized standards, which means the SSAW steel pipe manufacturer must provide factory production control documentation and third-party audit reports. ASTM A106/A53 Gr.B pipe for high-temperature service needs chemical composition limits on carbon, manganese, and sulfur to maintain weldability at elevated operating temperatures. Surface treatment selection — black painted for temporary protection, oiled for indoor storage, or anti-corrosion coating for buried service — directly affects field coating adhesion and cathodic protection design. [NEED_CITE: API 5L welding procedure qualification requirements]
Steel Grade Selection and SSAW Process Fundamentals
The grade range from Q195/Q215 through X42/X46 and L242/L450 reflects two distinct specification systems: Chinese GB/T grades for domestic infrastructure projects, and API/ASTM grades for international pipeline and process piping work. X42 and X46 denote minimum yield strength in ksi under the API system, commonly specified for onshore gas transmission where internal pressure and external loading both apply. The SSAW process forms flat coil into a cylindrical shape along a helical angle, then welds both inside and outside seams using submerged arc welding with flux coverage — this produces a long continuous weld with deep penetration suitable for wall thicknesses common in piling and pipeline work. The ±1% dimensional tolerance on outer diameter ensures that field jointing with flanges, slip-on collars, or telescoping connections maintains alignment without excessive gap filling. Anti-corrosion coating options including 3PE and FBE are available on request for buried pipeline service where soil resistivity and moisture content drive coating system selection.
Hidden Costs When Pipe Specifications Do Not Match Site Requirements
Ordering SSAW pipe without confirming that the mill test certificate covers the full chemical and mechanical scope required by the project specification leads to rejection at pre-commissioning inspection. A pipe stamped X46 but tested only to X42 yield levels will fail API 5L audit checks. Missing heat number traceability between the coil certificate and the finished pipe creates documentation gaps that delay customs clearance in markets requiring EN 10204 3.2 certification. Wall thickness deviations beyond the stated ±1% tolerance reduce pressure rating margins and may trigger engineering change orders that cost more than the original pipe price difference. [NEED_CITE: EN 10204 inspection document types for steel products]
Why Source from a Vertically Integrated SSAW Steel Pipe Manufacturer
XJY Structure operates its own steel production facility feeding three dedicated SSAW lines, which means coil chemistry and rolling temperature are controlled before the pipe forming stage begins — not adjusted after the fact. Our internal laboratory issues mill test certificates covering every heat, and we maintain full WPS/PQR documentation packages for API and ASTM welding procedures. The facility covers over 2,800 steel specifications across product types, so when a project calls for mixed-grade shipments — X46 for the main line and Q235 for branch connections — both come from the same quality system with consistent documentation formatting. Professional loading teams plan container and break-bulk stowage for pipes up to 3000 mm diameter, using cradle supports and lashing that prevent ovality deformation during ocean transit. Third-party inspection by SGS, BV, or Lloyd’s is coordinated on-site before shipment, so the inspection report matches the actual production batch.
Documentation & Compliance
- Mill test certificate per EN 10204 3.1 documenting chemical composition and tensile properties for ASTM A106/A53 Gr.B and API pipeline grades X42/X46
- Welding procedure specification (WPS) and procedure qualification record (PQR) for submerged arc welding of each steel grade supplied
- Dimensional inspection report covering outer diameter, wall thickness, and length measurements per ±1% tolerance requirement
- Coating thickness and adhesion test report for black painted, oiled, or anti-corrosion surface treatment applied
- Material traceability sheet linking each pipe to its heat number, coil certificate, and production date
- Export documentation package including packing list, bill of lading, and certificate of origin for destination customs clearance
Packaging, Loading & Delivery
- SSAW pipes bundled with galvanized steel strips at intervals preventing ovality, with end protectors on beveled ends to preserve weld prep geometry during transit
- Black painted or oiled surface treatment preserved by interleaving separators that prevent coating adhesion between stacked pipes
- Loading plans optimized for 40ft open-top containers or break-bulk vessels based on 6m/12m standard lengths and 400–3000 mm diameter range
- Heat number and steel grade stenciled on each pipe end for site identification and traceability verification upon arrival
- FOB, CIF, and DDP shipping terms available with door-to-door logistics coordination for project sites in the Middle East, Southeast Asia, and Africa
- Custom cutting to non-standard lengths available upon request, with cut ends deburred and re-protected against corrosion
Getting Your SSAW Pipe Inquiry Moving Forward
Submit your project drawings or bill of materials specifying outer diameter, wall thickness, steel grade, quantity, and destination port. We return a detailed quotation covering material, fabrication, coating, packing, and shipping costs within 24 hours, along with the mill test certificate format and third-party inspection coordination plan for your review.
Request Your SSAW Pipe Quotation and Material Documentation
Send your specifications, steel grade requirements, and delivery destination to receive a detailed quotation with mill test certificate samples and production lead time confirmation.
Company: Shandong Xin Jiyuan Special Steel Tube Co., Ltd
Website: www.xjystructure.com
Tel: +86 531 8573 6315
Mobile/WhatsApp/WeChat: +86 188 5315 7756
Email: admin@xjystructure.com
Frequently Asked Questions
Q: What is the difference between SSAW, LSAW, and ERW for large-diameter pipe projects?
A: SSAW uses a helical forming and submerged arc welding process suitable for diameters from 400 mm to 3000 mm, offering cost advantages at large sizes where LSAW plate tooling becomes limited. ERW is typically used for smaller diameters below 500 mm. The choice depends on project diameter requirements, pressure rating, and applicable code — API 5L accepts SSAW for transmission pipelines while structural piling often specifies SSAW for its diameter range flexibility.
Q: How does XJY Structure ensure material traceability from coil to finished pipe?
A: As a vertically integrated SSAW steel pipe manufacturer, we produce our own steel coils and track each heat number through forming, welding, and inspection. The mill test certificate for every shipped pipe references the original coil chemistry and mechanical test results, maintaining an unbroken certification chain that satisfies API and EN 10204 documentation requirements.
Q: What surface treatment options are available for corrosion protection?
A: Standard options include black painted coating for temporary protection during storage and transit, oiled surface for indoor or short-term outdoor exposure, and custom anti-corrosion coatings such as 3PE or FBE for buried pipeline service. The selection depends on the installation environment, soil conditions, and design service life of the pipeline or piling system.
Q: Can third-party inspection be arranged before shipment?
A: Yes. We coordinate on-site inspection by SGS, Bureau Veritas, Lloyd’s Register, or other nominated third-party agencies. The inspection covers dimensional checks, visual weld examination, coating thickness measurement, and review of the complete quality documentation package before the pipes are released for loading.
Q: What quality documentation is provided with each shipment?
A: Each shipment includes a mill test certificate with chemical and mechanical test results, WPS and PQR records for the welding procedures used, dimensional inspection reports, coating test reports where applicable, and full export documentation including packing list, bill of lading, and certificate of origin. All documents reference the specific heat numbers and production batches for the pipes supplied.
