Description
Factory-Direct Mill Supply — ASTM A106 seamless steel pipe supplier with vertically integrated production from raw slab to finished pipe, ensuring full heat-level traceability.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | ASTM A106 Seamless Steel Pipe |
| Product Type | Seamless Steel Pipe |
| Steel Grade | ASTM A106A, ASTM A106B |
| Standard | API 5CT, API 5L, ASTM A106, JIS, DIN, BS |
| Section Shape | Round |
| Size Range | OD 10–609 mm |
| Wall Thickness | 1.65–59.54 mm |
| Length | Customizable |
| Technique | Hot Rolled / Cold Rolled |
| Surface Treatment | Hot Rolled |
| Tolerance | ±5%, ±1% |
| Ends | Plain |
| Application | Fluid transport, Boiler systems, Oil & gas pipelines, Hydraulic systems, Chemical fertilizer pipelines, Structural applications, Machinery parts |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Oil & Gas EPC | High-temperature process piping, wellhead flow lines, refinery transfer pipelines |
| Power Generation | Main steam lines, boiler feedwater systems, superheater tubes |
| Chemical Processing | Fertilizer plant piping, reactor feed lines, heat exchanger circuits |
| Industrial Construction | Hydraulic cylinder barrels, machinery shafts, structural columns |
What Wall-Thickness Tolerance Costs on a Boiler Piping Order
Tight OD and wall tolerance on ASTM A106B pipe prevents field rework and weld rejection on pressure systems.
I still remember a shipment of boiler tubes to a Middle East EPC site where the wall thickness drifted into negative tolerance beyond the allowable margin. The third-party inspector flagged the entire lot at port, and the rework freight alone wiped out the margin on that order. Since then, every heat of ASTM A106 seamless steel pipe we roll gets checked against the ±1% and ±5% tolerance bands before it leaves the mill. When buyers source from fragmented traders who do not control the rolling process, wall-thickness variation becomes a gamble — and that gamble lands on the jobsite during hydrostatic testing. [NEED_CITE: ASTM A106 dimensional tolerance requirements for high-temperature service pipe]
Matching High-Temperature Service Demands in EPC Piping Networks
ASTM A106 Grade B is the workhorse specification for elevated-temperature piping across power plants and refineries. The seamless manufacturing process eliminates the weld seam that would otherwise become a fatigue initiation point under cyclic thermal loading. As an ASTM A106 seamless steel pipe supplier operating our own mill, we control the hot-rolling and cold-rolling parameters that determine grain structure and high-temperature creep resistance — something no trading intermediary can guarantee.
Engineering Code Compliance and Certification Pathways
Pressure piping systems in the EU require CE marking under the Pressure Equipment Directive, while North American projects reference ASME B31.1 and B31.3 alongside ASTM A106. Middle East EPC specifications frequently combine API 5L line pipe requirements with ASTM material grades for process piping. Each heat of ASTM A106A and ASTM A106B we produce carries full chemical composition and mechanical property documentation conforming to EN 10204 3.1 format, with third-party inspection by SGS or BV available before shipment. [NEED_CITE: ASTM A106 and API 5L grade equivalence for dual-certified pipe]
Understanding the Seamless Process for Pressure Service
Hot-rolled ASTM A106B pipe undergoes piercing and elongation at temperatures above the recrystallization point, producing a uniform grain structure suited for high-temperature service up to 400°C and beyond. Cold-rolled variants achieve tighter dimensional tolerance — critical for machined fittings and hydraulic cylinder applications where ±1% wall variation matters. The plain ends ship ready for beveling to ASME B16.25 preparation for butt-weld joints. Surface condition from the hot-rolling mill provides a clean oxide scale that accepts field coating systems without additional blast preparation. [NEED_CITE: seamless vs ERW pipe performance under cyclic thermal loading]
Hidden Costs of Sourcing Without Mill-Level Traceability
When seamless pipe arrives at site without verifiable heat numbers linking back to the original slab chemistry, the project faces three exposure points: customs rejection due to missing EN 10204 3.2 certificates, weld procedure qualification failure when base metal chemistry does not match the PQR, and hydrostatic test rejection if wall thickness falls below the minimum specified. These are not theoretical risks — they represent mobilized crews standing idle, replacement pipe flying in on charter freight, and schedule penalties accumulating daily. [NEED_CITE: material traceability requirements under EN 10204 for pressure equipment]
Why Project Buyers Source Directly from Our Mill
We operate three production lines with direct control from slab reheating through final sizing, meaning every ASTM A106 seamless steel pipe order carries a continuous chain of custody from raw material to finished length. Our in-house metallurgical laboratory tests every heat for chemical composition and mechanical properties before release, generating MTCs that satisfy the most stringent EPC auditor requirements. With over 2,800 specifications in our inventory system, we consolidate mixed-size orders into single shipments — eliminating the need for buyers to coordinate across multiple vendors. Professional loading teams handle the heavy-wall, large-OD lengths that require specialized lashing for ocean transit, and we provide complete export documentation packages including certificates of origin formatted for destination-country customs clearance.
Documentation & Compliance
- Mill Test Certificate per EN 10204 3.1 documenting ASTM A106B chemical composition (C, Mn, Si, P, S) and tensile properties for each heat number
- API 5L and API 5CT certification confirming manufacturing process compliance for oil & gas grade pipe
- ISO 9001 quality management system certificate covering the full production scope from melting to finished pipe
- SGS or BV third-party inspection report available upon request for independent verification of dimensions and mechanical tests
- Heat-number traceability linking each pipe length back to the original slab cast and rolling batch
- Complete customs documentation package including packing list, bill of lading, and certificate of origin formatted for destination-country clearance
Packaging, Loading & Delivery

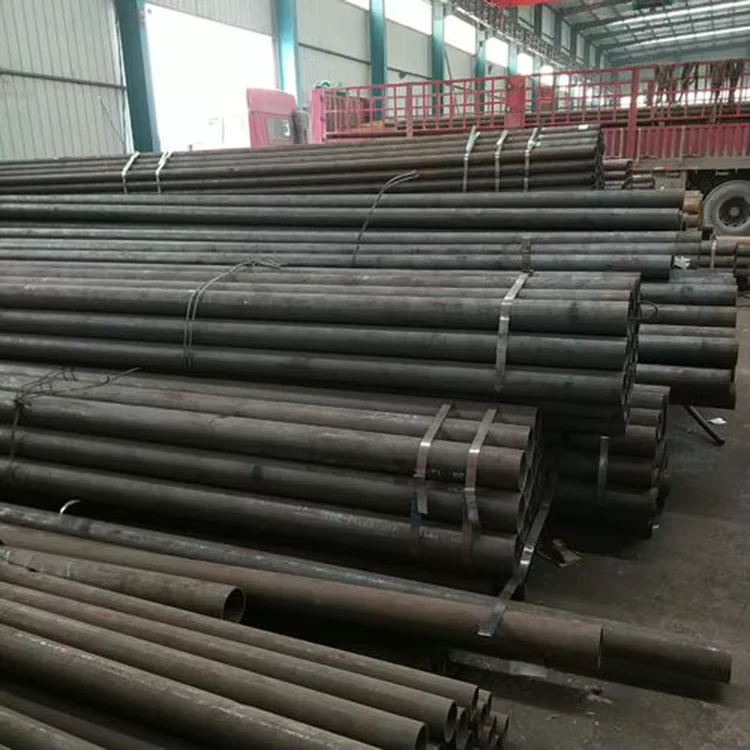

- ASTM A106B seamless pipes bundled with galvanized steel strips at regular intervals, with end protectors on plain-end lengths to prevent damage during handling
- Non-oiled surface condition shipped with anti-rust paper wrapping for ocean transit, preserving the hot-rolled mill scale for field coating compatibility
- Mixed-diameter orders optimized for 20ft and 40ft open-top containers, with heavy-wall large-OD lengths loaded on dedicated flat racks when exceeding standard container dimensions

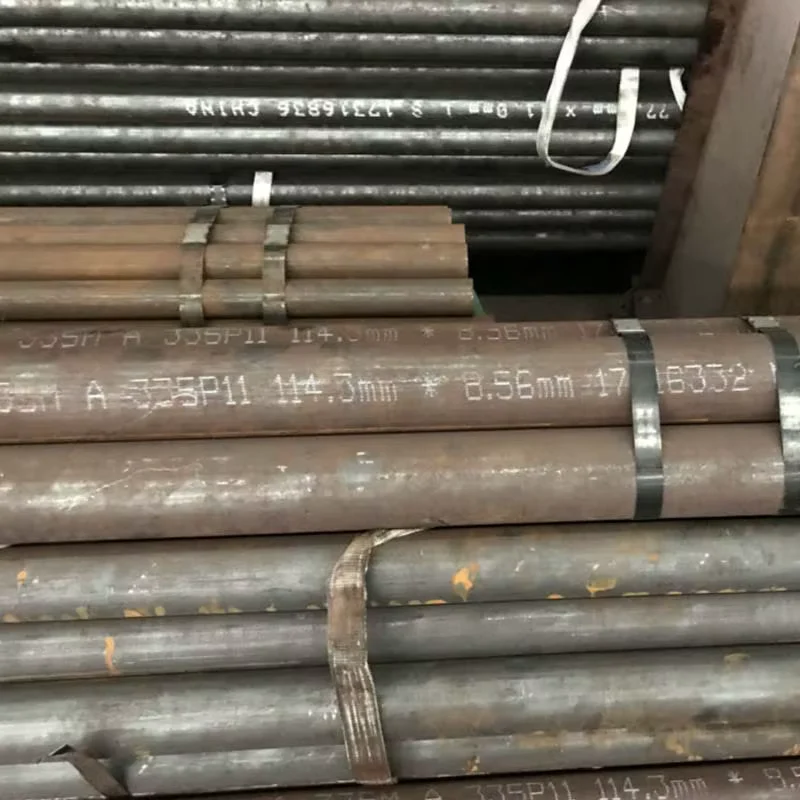

- Custom cut lengths available per project isometric drawings, with each bundle tagged showing heat number, ASTM A106B grade designation, and OD × wall thickness
- FOB Jinan or Qingdao port with CIF and DDP options to project sites across the Middle East, Southeast Asia, and Africa
Starting Your ASTM A106 Pipe Procurement
Send your project specifications including OD, wall thickness, total tonnage, steel grade preference between ASTM A106A and ASTM A106B, and destination port. We respond within 24 hours with a detailed quotation covering material, fabrication support, coating compatibility notes, and shipping costs — along with a sample MTC format from our most recent heat for your auditor review.
Request Your ASTM A106 Quotation with Mill Test Certificate
Submit your pipe specifications and project requirements to receive pricing and documentation samples.
Email: admin@xjystructure.com | WhatsApp: +86 188 5315 7756
Frequently Asked Questions
Q: What is the difference between ASTM A106A and ASTM A106B for my project?
A: ASTM A106A covers lower carbon content suitable for moderate-temperature service, while ASTM A106B is the standard grade for high-temperature piping in power plants and refineries. Both grades are available in our hot-rolled and cold-rolled production ranges from OD 10 mm to 609 mm.
Q: Can you provide third-party inspection before shipment?
A: Yes, we arrange SGS or BV inspection at our mill facility for dimensional verification, visual examination, and witness testing. The inspection report is included in the shipping documentation package for your project records.
Q: What documentation do you provide for customs clearance in the Middle East?
A: We supply a complete documentation set including commercial invoice, packing list, bill of lading, certificate of origin, and Mill Test Certificate per EN 10204 3.1. For Saudi Arabia and UAE projects, we format certificates to meet SASO and ESMA requirements.
Q: Do you offer custom cut lengths for project piping spools?
A: Yes, we cut ASTM A106 seamless pipe to your specified lengths based on project isometric drawings. Each cut length is marked with the heat number and grade designation for traceability during field welding.
Q: How do you ensure wall thickness tolerance on large-OD heavy-wall pipe?
A: Our hot-rolling mill controls wall thickness through mandrel positioning and reduction scheduling, maintaining ±5% tolerance on standard production and ±1% on cold-rolled orders. Every length undergoes ultrasonic thickness measurement before bundling.
