Description
Factory-Direct ASTM A106 Seamless Steel Pipe — Produced in-house from raw billet to finished pipe across 2,800+ specifications, eliminating third-party sourcing gaps and ensuring full heat-number traceability on every ASTM A106 seamless steel pipe shipped.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | ASTM A106 Seamless Steel Pipe |
| Product Type | Seamless Steel Pipe |
| Steel Grade | ASTM A106 Grade A, ASTM A106 Grade B |
| Standard | ASTM A106, API 5CT, API 5L, JIS, BS, DIN |
| Section Shape | Round |
| Outer Diameter | 10–609 mm |
| Wall Thickness | 1.65–59.54 mm |
| Technique | Hot Rolled / Cold Rolled / Cold Drawn |
| Surface Treatment | Hot Rolled, Non-oiled |
| Tolerance | ±5%, ±1% |
| Ends | Plain / Beveled (per standard) |
| Processing Service | Welding, Punching, Cutting, Bending, Decoiling |
| Application | Fluid transportation, Boiler systems, Oil & Gas pipelines, Chemical fertilizer plants, Machinery parts, Structural applications, Hydraulic systems, Gas distribution |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Power Generation & EPC | High-temperature steam lines, boiler feed water piping, superheater tubes in thermal and combined-cycle plants |
| Oil & Gas | Process piping, flow lines, gas distribution headers, and transmission pipelines requiring API-certified seamless construction |
| Chemical & Fertilizer | Corrosive fluid transfer lines, reactor feed pipes, and high-pressure process manifolds in petrochemical complexes |
| Industrial Infrastructure | Hydraulic systems, compressed air mains, cooling water circuits, and fire protection risers in manufacturing facilities |
What Negative Wall Tolerance Really Costs on a Boiler Pipe Order
A pipe that passes mill paperwork but fails field caliper measurement triggers full-batch rejection at destination.
Overseas buyers sourcing ASTM A106 seamless steel pipe through trading intermediaries frequently discover that wall thickness has been pushed to the lower edge of permissible tolerance — or beyond it. The mill test certificate looks clean, but third-party inspection at the discharge port reveals systematic under-gauge readings across multiple joints. At that point, the entire shipment becomes unusable for pressure-rated boiler or high-temperature fluid service. The financial exposure extends well beyond the pipe cost: demurrage charges, replacement lead times, and project schedule cascades dwarf the original savings from choosing a cheaper source. [NEED_CITE: ASTM A106 wall thickness tolerance requirements and inspection protocols]
Matching ASTM A106 Grade B to High-Temperature Pressure Service
ASTM A106 Grade B is the workhorse grade for boiler and high-temperature fluid piping because its carbon-manganese chemistry maintains mechanical integrity under sustained thermal cycling. The ASTM A106 seamless steel pipe in Grade B covers outer diameters from 10 mm to 609 mm with wall thickness spanning 1.65 mm to 59.54 mm, which captures the vast majority of process piping specifications encountered in power plant EPC packages and refinery turnaround projects. Hot rolled production delivers the standard mill finish for above-ground installations, while cold drawn variants provide tighter dimensional control for applications requiring precise fit-up in machined flange connections.
Engineering Compliance and Certification Requirements for Pressure Piping
Pressure piping systems operating at elevated temperatures demand material documentation that satisfies both the purchasing specification and the jurisdictional code governing the installation. ASTM A106 seamless steel pipe manufactured under API 5CT or API 5L certification provides dual-standard compliance, which matters when the same pipeline segment must satisfy both the material purchase order and the operating permit authority. [NEED_CITE: API 5L and ASTM A106 material equivalence for pressure piping] End preparation — plain end for socket-weld connections or beveled end for butt-weld field joints — must align with the project welding procedure specification to avoid costly rework at the spool shop. Dimensional verification against the stated tolerance range (±1% to ±5% depending on manufacturing route) forms the basis of acceptance testing before coating or insulation is applied.
Understanding the Manufacturing Route: Hot Rolled vs. Cold Drawn Seamless Pipe
The choice between hot rolled and cold drawn ASTM A106 seamless steel pipe is not merely a surface finish preference — it directly affects dimensional precision, mechanical property consistency, and ultimately project cost. Hot rolled pipe, produced by piercing a solid billet and elongating it through a series of rolls at elevated temperature, offers economical pricing for standard wall thicknesses where the broader tolerance band (±5%) is acceptable. Cold drawn pipe, pulled through a die and mandrel at ambient temperature after initial hot working, achieves tighter outer diameter and wall thickness control (±1%), making it the preferred choice for precision machining, hydraulic cylinder applications, and high-pressure boiler connections where fit-up accuracy is critical. Both routes produce fully seamless construction with no longitudinal weld seam, ensuring uniform pressure containment around the full circumference. [NEED_CITE: hot rolled vs cold drawn seamless pipe dimensional tolerance comparison]
The Hidden Cost of Sourcing ASTM A106 Pipe Without Verified Mill Documentation
Purchasing ASTM A106 seamless steel pipe based on price alone — without verified mill test certificates traceable to specific heat numbers — exposes the project to material substitution risk. Pipes that arrive at site without proper chemical composition records or mechanical test results cannot be approved by the inspector, regardless of whether the physical product meets specification. The consequences include customs holds due to missing certification, rejection during hydrostatic testing, and in worst cases, discovery of grade misidentification that compromises pressure integrity. [NEED_CITE: material traceability requirements for pressure piping per ASME B31.1]
Why Procure ASTM A106 Seamless Steel Pipe From Our Integrated Facility
Our production model eliminates the material sourcing gap that creates most quality disputes in international pipe procurement. The raw steel billet is melted, cast, and rolled into seamless pipe within the same facility — meaning every ASTM A106 seamless steel pipe carries a continuous chain of custody from ladle analysis to finished dimension. Our in-house laboratory performs chemical spectroscopy, tensile testing, hydrostatic pressure verification, and non-destructive examination before any pipe leaves the mill floor. With over 2,800 specification combinations in inventory, we consolidate multi-size orders into single-source shipments, reducing the documentation burden and eliminating the risk of mixed-origin material arriving on the same project. Third-party inspection by SGS or BV is routinely accommodated, and all test reports are issued with heat-number traceability matching the physical markings on each pipe.
Documentation & Compliance
- Mill Test Certificate per EN 10204 3.1 documenting ASTM A106 Grade A and Grade B chemical composition (carbon, manganese, silicon, sulfur, phosphorus) and mechanical properties (tensile strength, yield strength, elongation) with heat number traceability
- API 5CT and API 5L certification verifiable through the official API registry, confirming seamless pipe manufacturing authorization for pressure service applications
- ISO 9001 quality management system certificate covering the full production process from billet receipt through hydrostatic testing and final dimensional inspection
- SGS or BV third-party inspection report available upon request, covering dimensional verification, visual examination, and witness testing per project-specific inspection and test plans
- Material traceability report linking each pipe to its original heat number, with chemical composition and mechanical test results cross-referenced to the physical stamp markings on the pipe surface
- Export customs documentation including commercial invoice, packing list, bill of lading, and certificate of origin formatted to satisfy destination country import requirements
Packaging, Loading & Delivery

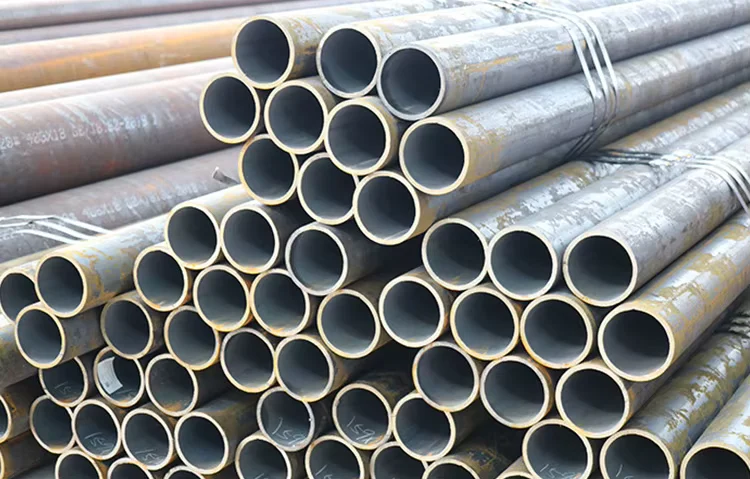

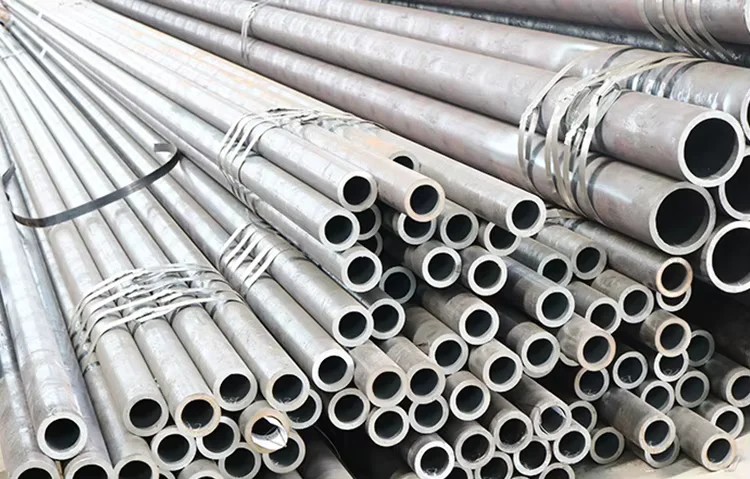

- ASTM A106 Grade B seamless pipes bundled with steel strip ties and separated by wooden cradles to prevent surface damage and maintain roundness during ocean transit
- Non-oiled hot rolled finish pipes coated with temporary rust preventive compound at the mill and wrapped in waterproof paper or woven bags to protect against condensation during container shipping
- Outer diameter and wall thickness combinations optimized for 20ft and 40ft container loading, with 6-meter and 12-meter random lengths nested to maximize payload and minimize freight cost per ton
- Beveled end pipes protected with plastic caps on both ends to preserve the bevel angle and prevent moisture ingress into the pipe bore during storage and transport
- Each pipe marked with heat number, steel grade (A106 Gr.A or Gr.B), outer diameter, wall thickness, length, and manufacturer identification per ASTM A106 marking requirements
- FOB, CIF, and DDP shipping terms available with professional oversized cargo loading plans for large-diameter pipes exceeding standard container dimensions
Initiating Your ASTM A106 Pipe Procurement
Submit your project specifications — including outer diameter, wall thickness, steel grade (Grade A or Grade B), total quantity, end preparation requirements, and destination port — to receive a detailed quotation with production timeline and mill test certificate sample. For projects requiring API 5CT or API 5L dual certification, confirm the specific edition and any supplementary testing requirements at the inquiry stage to ensure full compliance documentation is prepared before production begins.
Frequently Asked Questions
Q: What is the difference between ASTM A106 Grade A and Grade B for boiler pipe applications?
A: ASTM A106 Grade B has higher carbon and manganese content than Grade A, resulting in higher tensile and yield strength suitable for higher-pressure and higher-temperature service. Grade B is the more commonly specified grade for power plant boiler piping and industrial high-temperature fluid systems, while Grade A is typically used for lower-pressure applications.
Q: Can you provide API 5L certification alongside ASTM A106 for the same pipe?
A: Yes. Our facility holds both API 5CT and API 5L manufacturing certification. For projects requiring dual-standard compliance, we produce the pipe to meet the more stringent chemical and mechanical requirements of both specifications simultaneously, with all test results documented on a single mill test certificate.
Q: What third-party inspection services are available for ASTM A106 seamless pipe orders?
A: We routinely accommodate third-party inspection by SGS, BV, or other internationally recognized inspection agencies. Inspections can cover dimensional verification, visual examination, hydrostatic testing witness, non-destructive testing (ultrasonic, magnetic particle), and review of mill test certificates before shipment release.
Q: How do you ensure wall thickness tolerance compliance on ASTM A106 pipe?
A: Every pipe undergoes ultrasonic thickness measurement at multiple points along its length before leaving our facility. Wall thickness readings are recorded in the quality documentation package and cross-referenced to the ASTM A106 tolerance requirements. Third-party inspectors can witness these measurements during pre-shipment inspection.
Q: What end preparations are available for ASTM A106 seamless pipe?
A: We supply ASTM A106 seamless steel pipe in plain end (for socket-weld or coupling connections) or beveled end (for butt-weld field joints) per customer specification. Custom bevel angles and root face dimensions can be machined to match project welding procedure specifications.
Request Your ASTM A106 Seamless Steel Pipe Quotation
Send your project drawings, size schedule, steel grade, and quantity to receive pricing with full mill test documentation within 24 hours.
