Description
Mill-Direct ASTM A106 Seamless Steel Pipe — Vertically integrated steel production and fabrication under one roof ensures full material traceability from billet to finished pipe, eliminating third-party sourcing gaps.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | ASTM A106 Seamless Steel Pipe |
| Product Type | Seamless Steel Pipe |
| Steel Grade | ASTM A106A, ASTM A106B, ASTM A106C, ASTM A179, ASTM A192, ASTM A210, ASTM A53A, ASTM A53B, 10#, 20#, 45#, Q235, Q345B, Q195, Q215, ST37, ST37-2, DIN 1629 ST35, DIN 1629 ST45, DIN 17175 ST35.8, 16Mn, 15CrMo, Cr5Mo, 10CrMo910, 12CrMo, 13CrMo44, 30CrMo, A333 GR.1, A333 GR.3, A333 GR.6 |
| Standard | API 5CT, API 5L, ASTM A106, ASTM A53, ASTM A179, ASTM A192, ASTM A210, ASTM A333, BS, JIS, DIN, ISO 9001 |
| Section Shape | Round |
| Outer Diameter | 10–609 mm |
| Wall Thickness | 1.65–59.54 mm |
| Technique | Cold Rolled / Hot Rolled / Cold Drawn |
| Surface Treatment | Hot Rolled / Oiled or Non-oiled (customized) |
| Tolerance | ±5% / ±1% |
| Ends | Plain / Beveled (customized) |
| Application | Fluid transportation, Boiler, Drill pipe, Hydraulic pipe, Gas pipe, Oil pipe, Chemical fertilizer pipe, Structure pipe, Machinery parts, Construction, Automobile and tractor stress parts |
| Processing Service | Welding, Punching, Cutting, Bending, Decoiling |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Oil & Gas | Drill pipe, gas transmission pipelines, oil well casing, flow lines |
| Power & Energy | Boiler tubes, superheater elements, high-temperature steam lines |
| Industrial Construction | Structural frames, conveyor supports, platform columns |
| Chemical Processing | Chemical fertilizer transport pipes, process fluid lines |
| Machinery & Automotive | Hydraulic cylinders, automobile stress parts, tractor components |
What Material Traceability Gaps Cost on a High-Temperature Pipeline Order
Sourcing ASTM A106 seamless steel pipe from a trader rather than a mill-integrated fabricator creates documentation blind spots that surface only at site inspection.
When pipes change hands between multiple intermediaries, heat numbers get lost, MTCs get mixed, and chemical composition data becomes unverifiable. On a boiler project in Southeast Asia, we once received a batch where the mill test certificates referenced heat numbers that didn’t match the physical stamping on the pipes — the entire lot had to be re-inspected by SGS before installation could proceed. This is why XJY Structure maintains vertically integrated production: every ASTM A106 seamless steel pipe leaves our facility with complete traceability from raw billet through final dimensional inspection.
For EPC firms managing multi-site projects, fragmented procurement means coordinating with different suppliers for different grades — ASTM A106B for mainlines, ASTM A179 for heat exchangers, API 5L for laterals. Each supplier issues separate documentation, separate inspection schedules, separate liability chains. [NEED_CITE: material traceability requirements in ASME B31.3 process piping]
How OD 10–609mm Coverage Matches Diverse Pipeline Engineering Requirements
From small-bore instrument lines at 10mm OD to main transmission headers at 609mm, the ASTM A106 seamless steel pipe range covers pressure ratings across industrial applications without switching suppliers. Hot rolled processes handle thicker walls for high-pressure steam lines, while cold drawn finishing delivers tighter tolerances for hydraulic systems where dimensional precision directly affects seal integrity. Beveled ends come pre-prepared for field welding per project WPS, eliminating on-site machining delays.
Engineering Compliance Across ASTM, API, and DIN Standards
ASTM A106B serves as the default grade for high-temperature service in power plants and refineries, while ASTM A106C steps up carbon content for thicker-wall applications requiring higher strength. For low-temperature environments, A333 GR.6 provides impact-tested certification down to -45°C. European projects specifying DIN 1629 ST35 or DIN 17175 ST35.8 receive equivalent Chinese production with full chemical and mechanical documentation. Third-party inspection by SGS, BV, or TÜV is available at mill or pre-shipment stage to verify compliance before container sealing. [NEED_CITE: ASTM A106 high-temperature service carbon steel pipe requirements]
Seamless Process Selection: Hot Rolled vs Cold Drawn Trade-offs
Hot rolled ASTM A106 seamless steel pipe delivers cost efficiency for standard wall thicknesses above 6mm, with acceptable tolerance ranges for structural and fluid transport applications. Cold drawn processing achieves ±1% tolerance control for precision applications — hydraulic cylinders, instrument lines, and machinery parts where wall thickness variation affects pressure ratings. The cold drawn process also produces smoother internal surfaces, reducing turbulence in high-velocity fluid systems. For boiler tubes operating under cyclic thermal stress, the uniform microstructure from controlled cold drawing resists fatigue cracking better than hot rolled equivalents.
The Hidden Cost of Negative Tolerance Abuse in Seamless Pipe Procurement
When wall thickness falls below specified minimums, the theoretical weight calculation diverges from actual material — and structural calculations based on design pressure become invalid. A 20-inch SCH40 pipe ordered for a Middle East refinery project arrived with wall thickness at the lower limit of negative tolerance; field measurements showed multiple joints below acceptable minimums, triggering full batch rejection and three-week project delay. [NEED_CITE: wall thickness tolerance requirements in ASTM A106] Material certification without third-party verification leaves buyers exposed to documentation fraud — certificates that look authentic but reference non-existent heats or recycled test results from different batches.
Why Mill-Integrated Fabrication Eliminates Procurement Risk
XJY Structure operates both steel production and pipe fabrication under one quality management system, meaning the same ISO 9001 certification covers billet melting through final pipe inspection. Our in-house理化实验室 issues mill test certificates with full chemical composition and mechanical properties for every heat number — no third-party document fabrication. With 2,800+ specifications in inventory, mixed-grade orders (ASTM A106B for mainlines, A179 for exchangers, A333 for low-temp sections) ship from a single source with unified documentation. Certified welding procedures (WPS/PQR) and qualified welders handle any field modifications or custom fabrications required during installation. Professional loading teams optimize container utilization for 609mm OD pipes while protecting beveled ends from transit damage.
Documentation & Compliance
- Mill Test Certificate documenting ASTM A106B chemical composition (C, Mn, Si, S, P) and mechanical properties (tensile strength, yield strength, elongation) per heat number
- API 5L certification for line pipe grades with full PSL 1 or PSL 2 documentation as specified
- ISO 9001 quality management certificate covering entire production process from raw material to finished pipe
- SGS/BV/TÜV third-party inspection reports available at mill or pre-shipment stage with dimensional verification and coating thickness measurement
- Material traceability package linking each pipe to specific heat number with corresponding chemical analysis and mechanical test results
- Export documentation including commercial invoice, packing list, bill of lading, and certificate of origin for customs clearance
Packaging, Loading & Delivery

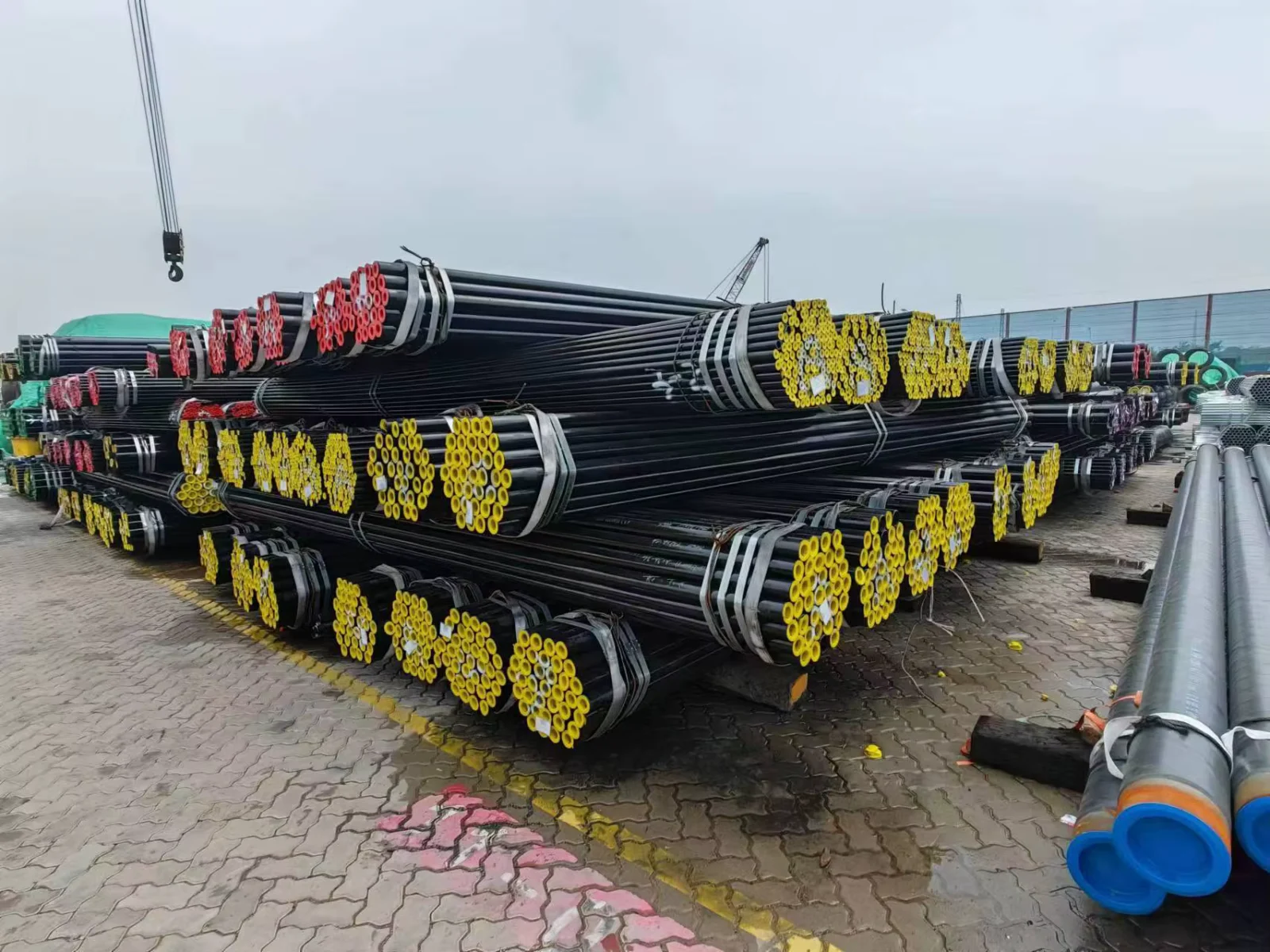

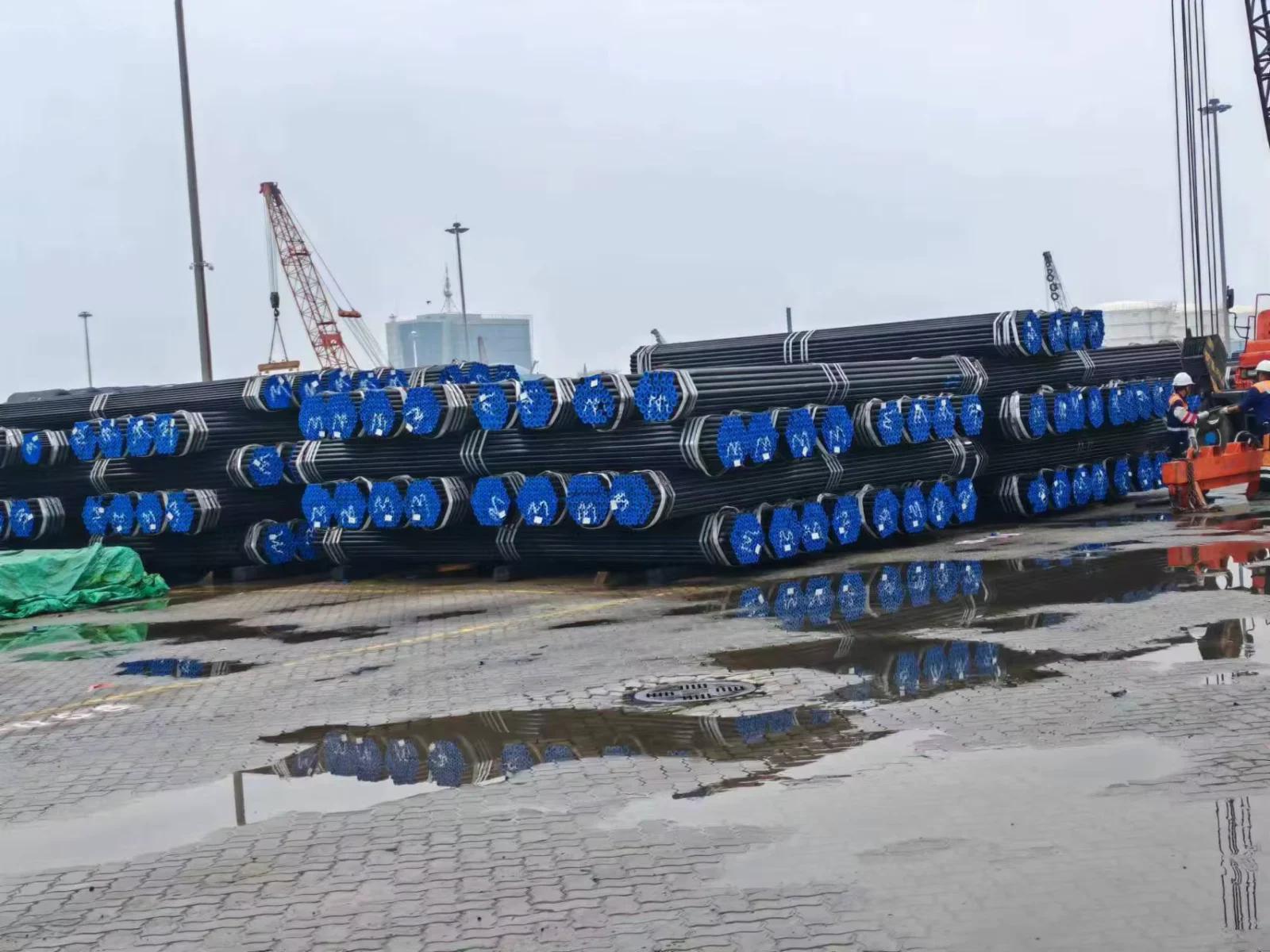

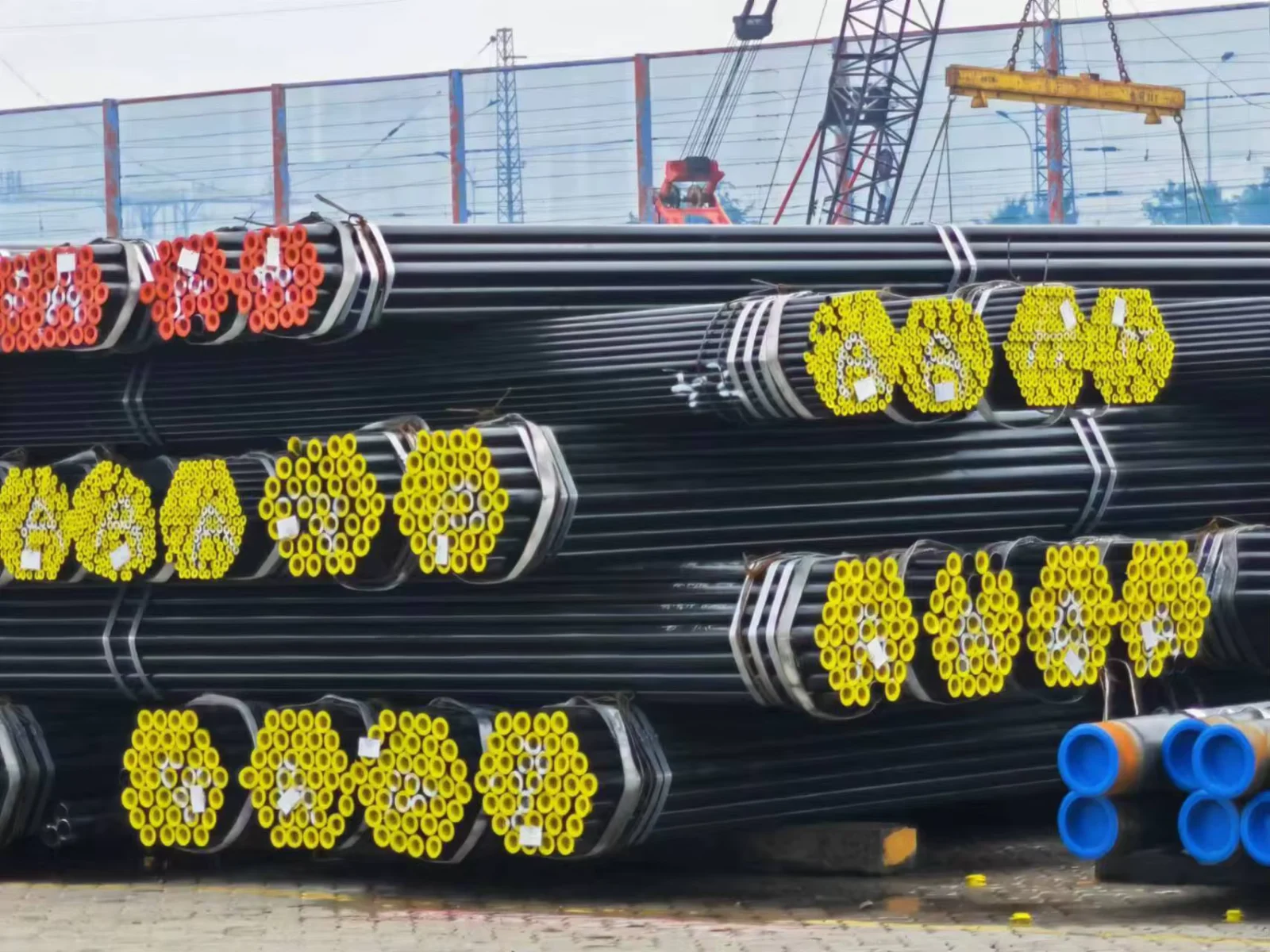

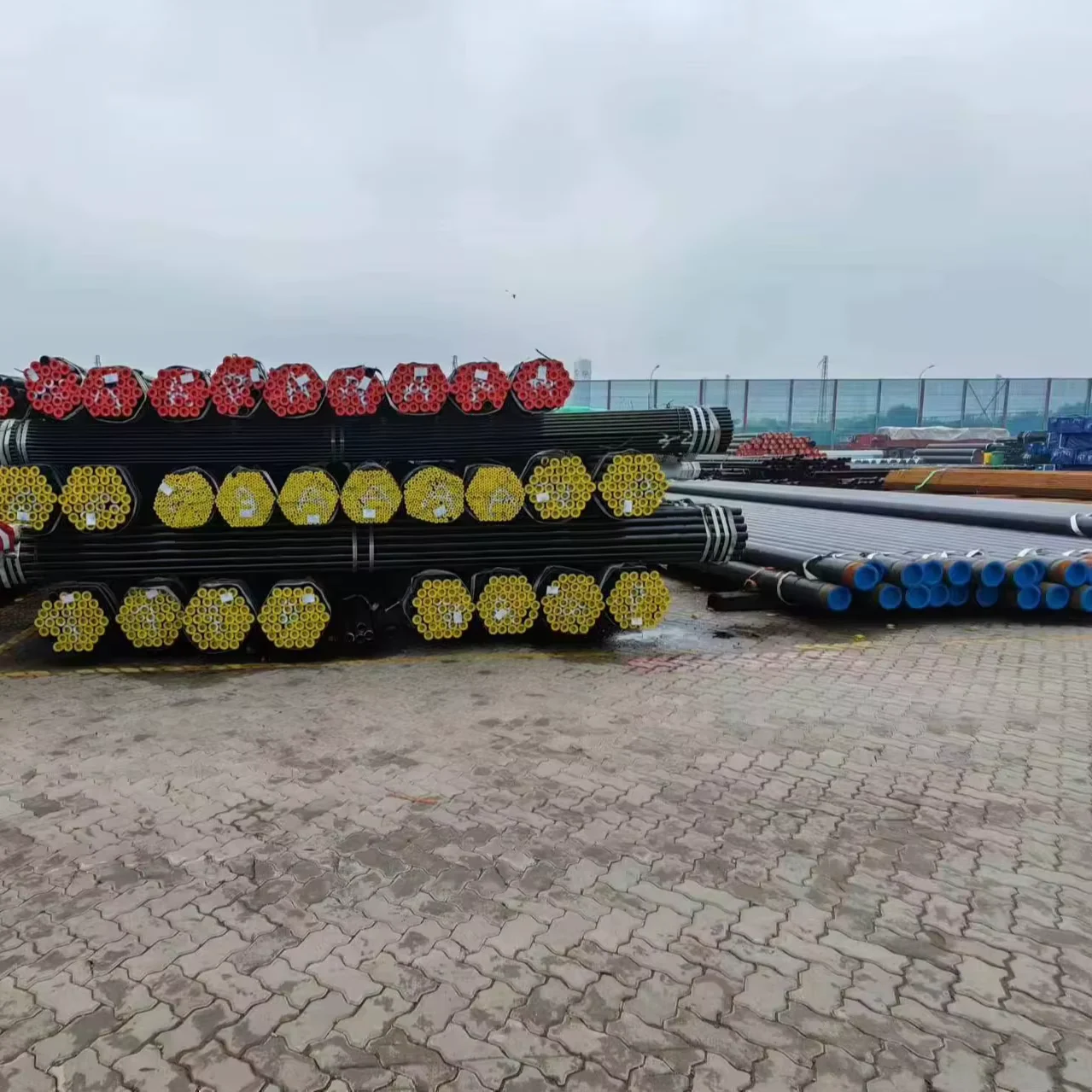

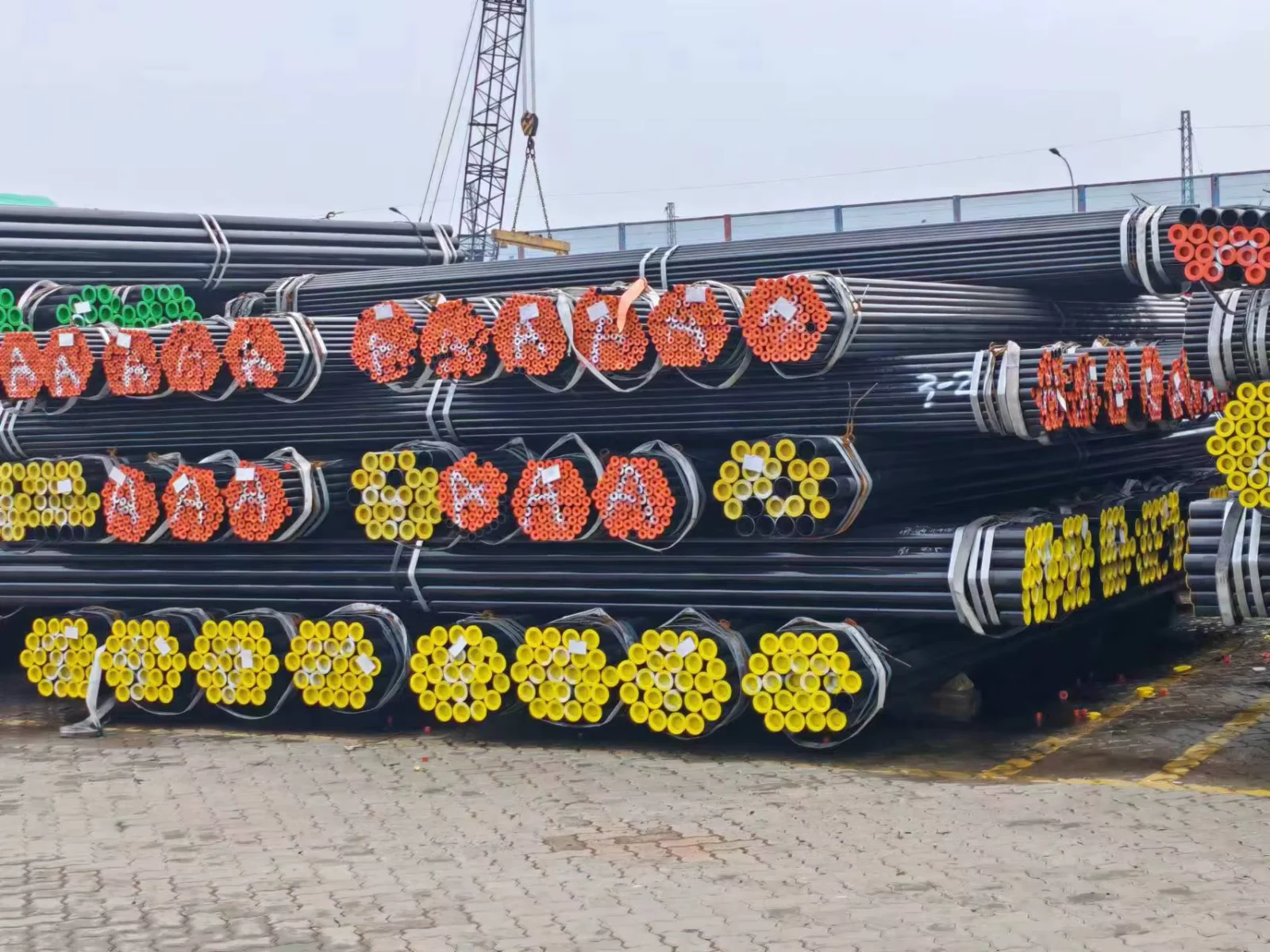

- ASTM A106 seamless steel pipes bundled with steel strips and edge protectors to prevent surface damage during ocean transit
- Oiled surface treatment applied per customer specification to prevent corrosion during storage and shipping

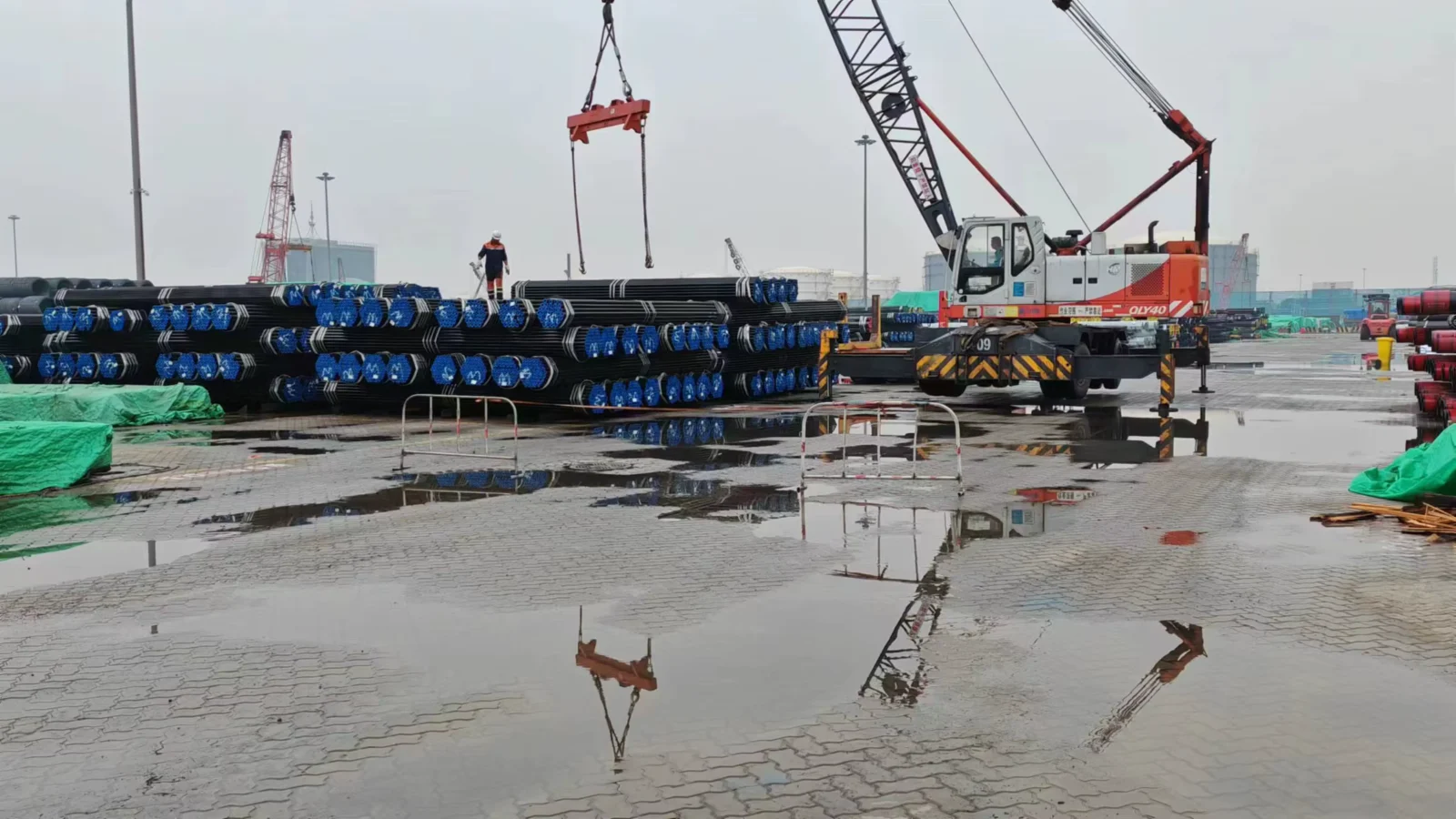

- Container loading optimized for 10–609mm OD range with wooden cradles preventing point loading on pipe bodies
- Custom cutting to project-specified lengths with beveled ends protected by plastic caps
- Heat number and steel grade stenciled on each pipe for site identification and traceability verification
- FOB/CIF/DDP terms available with professional logistics coordination for oversized cargo
Ready to Specify ASTM A106 Seamless Steel Pipe for Your Next Project?
Submit your project specifications including OD/Wall thickness/length/steel grade/quantity/destination port to receive detailed quotation with mill test certificate samples and production timeline. Our engineering team reviews drawings within 24 hours and provides shop drawing recommendations for optimal material utilization.
Contact XJY Structure for ASTM A106 Seamless Steel Pipe Inquiry
Email: admin@xjystructure.com
WhatsApp/WeChat: +86 188 5315 7756
Frequently Asked Questions
Q: What is the difference between ASTM A106 and ASTM A53 for seamless pipe applications?
A: ASTM A106 is specifically designed for high-temperature service in power plants and refineries, while ASTM A53 covers general low-pressure applications including water, steam, and air. ASTM A106 requires tighter chemical composition control and mandatory heat treatment for thicker walls, making it the preferred choice for critical high-temperature piping systems.
Q: Can you provide mill test certificates and support third-party re-inspection?
A: Yes, every ASTM A106 seamless steel pipe ships with EN 10204 3.1 mill test certificates documenting chemical composition and mechanical properties per heat number. Third-party inspection by SGS, BV, or TÜV is available at our facility or pre-shipment stage at your request.
Q: What is the minimum order quantity for custom OD and wall thickness combinations?
A: Standard sizes from our 2,800+ specification inventory have no minimum order quantity. For custom OD/wall thickness combinations outside standard ranges, typical minimum orders apply based on production setup requirements — contact us with your specifications for exact MOQ confirmation.
Q: How do you choose between oiled, bare, or painted surface treatment for export?
A: Oiled treatment provides short-term corrosion protection during ocean transit and is standard for most seamless pipe exports. Bare pipes suit immediate installation projects where surface preparation for painting occurs on-site. Painted or coated pipes require longer lead times but deliver ready-to-install condition for corrosive environments.
Q: How do you handle oversized pipe loading and container optimization?
A: Our loading team specializes in maximizing container utilization for pipes ranging from 10mm to 609mm OD. Wooden cradles and edge protectors prevent damage during transit, while nested loading techniques fit multiple diameter ranges in single containers. Professional lashing secures pipes against movement during ocean freight.
