Description
Gate Check
identifier: ASTM A36 SSAW Spiral Steel Pipe — not null, proceeding.
—
One-Source SSAW Pipe Supply — Material produced and fabricated under a single quality system, eliminating traceability gaps between mill and weld shop.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | ASTM A36 SSAW Spiral Steel Pipe |
| Product Type | SSAW Spiral Welded Steel Pipe |
| Steel Grade | Q195, Q235, Q345, A36, A53, A106, ST35, ST37, ST45, ST52 |
| Standard | ASTM A36, ASTM A53, ASTM A106 |
| Section Shape | Round |
| Size Range | Large Diameter (SSAW range) |
| Wall Thickness | 0.5–40 mm |
| Length | 6 m / 12 m |
| Technique | SSAW (Spiral Submerged Arc Welded) |
| Surface Treatment | Hot Rolled Finish, Non-oiled |
| Tolerance | ±1% |
| Ends | Plain / Beveled (per project requirement) |
| Application | Oil pipeline, Water pipeline, Gas pipeline, Sewage transport, Fluid transport, Structure pipe |
| MOQ | 25 Ton |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Oil & Gas EPC | Onshore and offshore crude oil transmission lines, gas gathering networks |
| Municipal Infrastructure | Urban water supply mains, sewage outfall pipelines, stormwater drainage |
| Industrial Construction | Process fluid lines in refineries, cooling water circuits, structural piling |
| Agriculture & Irrigation | Long-distance raw water conveyance, irrigation canal siphons |
Why Material Traceability Decides Customs Clearance for ASTM A36 SSAW Spiral Steel Pipe
Pipes without heat-number traceability get held at port — no amount of price discount fixes that.
When an EPC contractor sources large-diameter spiral welded pipe from a supplier who buys coil from one mill and welds at another, the material certification chain breaks. Third-party inspectors at destination ports routinely flag mismatched heat numbers between the mill test certificate and the pipe stamping. [NEED_CITE: material traceability requirements in ASTM A53 and A106 pipeline specifications]. For ASTM A36 SSAW spiral steel pipe destined for regulated pipeline projects, this means weeks of detention, re-inspection fees, and in worst cases, rejection of the entire shipment. The gap between material supplier and fabricator is where certification fails — not where welding quality fails.
How SSAW Spiral Welding Matches Pipeline Pressure and Diameter Requirements
Large-diameter pipeline projects often require wall thickness beyond what LSAW presses can form in a single pass. The SSAW spiral forming process wraps coil continuously at a helical angle, allowing wall thickness up to 40 mm and diameters that exceed plate-width limitations. For oil and water transmission lines where A36 or A53 grade provides adequate yield strength for moderate pressure, the ASTM A36 SSAW spiral steel pipe delivers the diameter-to-thickness ratio that LSAW cannot achieve without prohibitively expensive plate. The hot-rolled, non-oiled surface arrives ready for downstream 3PE, FBE, or epoxy coating — no additional descaling required before the coating applicator’s line.
Engineering Compliance and Corrosion Protection Selection
Pipeline design codes such as ASME B31.4 and B31.8 govern allowable stress for carbon steel pipe in hydrocarbon and gas service. ASTM A36 SSAW spiral steel pipe conforming to ASTM A53 Grade B or A106 Grade B meets the tensile and elongation floors these codes reference. [NEED_CITE: ASME B31.4 and B31.8 allowable stress tables for carbon steel pipe]. In corrosive soil or submerged conditions, the bare hot-rolled surface accepts factory-applied 3PE or FBE coatings that provide 20–30 year service life. For municipal water lines, cement-mortar lining with seal coat is the standard pairing. Beveled ends per project specification enable field welding with approved WPS procedures, while plain ends suit mechanical coupling or flanged connections.
Steel Grade Selection and Spiral Welding Process Explained
The ASTM A36 SSAW spiral steel pipe covers a grade range spanning Q195 through ST52, addressing both structural and pressure-containing applications. Q235 and A36 share similar yield floors around 235–250 MPa, making them interchangeable for low-pressure water and sewage lines. A53 Grade B and A106 Grade B raise the tensile requirement for higher-pressure gas and oil transmission. The SSAW process uses submerged arc welding with inner and outer torch heads traversing the helical seam simultaneously — this dual-torch configuration produces full-penetration welds that pass radiographic and ultrasonic examination at the same acceptance levels as longitudinal seam pipe. [NEED_CITE: SSAW versus LSAW welding process comparison for pipeline applications]. Wall thickness tolerance of ±1% ensures that coating applicators receive consistent substrate dimensions, preventing thin-spot coating failures at weld seams.
The Hidden Cost of Negative Tolerance and Missing Mill Certificates
Specifying ASTM A36 SSAW spiral steel pipe without enforcing positive tolerance or requiring EN 10204 3.2 third-party certified mill test certificates creates downstream risk. Pipes rolled to extreme negative tolerance reduce the actual wall thickness below design minimum, forcing the pipeline engineer to derate the allowable operating pressure — or worse, accept a safety margin below code requirements. Missing or forged mill certificates surface during hydrostatic testing or third-party audit, triggering full-batch rejection. [NEED_CITE: EN 10204 inspection document types for steel products]. The cost of re-procurement, air-freight replacement, and project delay dwarfs any per-ton savings from an unverified supplier.
Why Procure ASTM A36 SSAW Spiral Steel Pipe From an Integrated Mill-Fabricator
Purchasing from a vertically integrated operation means the same facility that produced the steel coil also welded the spiral seam and performed all non-destructive testing. This eliminates the material traceability gap that plagues broker-sourced pipe. Our own steel mill with three production lines and over 2,800 raw material specifications ensures that every heat of steel carries a mill test certificate traceable from slab to finished pipe. Certified welding procedures (WPS/PQR) and AWS/EN-qualified welders produce spiral seams that pass radiographic examination on first submission. The complete quality documentation package — weld maps, dimensional inspection reports, coating thickness records — travels with the shipment, satisfying both the EPC contractor’s QA requirements and the destination country’s customs inspectors.
Documentation & Compliance
- Mill Test Certificate documenting ASTM A36 chemical composition and mechanical properties per heat number, traceable from steelmaking slab to finished SSAW pipe
- Third-party inspection report from SGS, BV, or TUV verifying wall thickness, outer diameter, and spiral weld radiographic examination results
- Welding Procedure Specification (WPS) and Procedure Qualification Record (PQR) for SSAW spiral seam welding per AWS D1.1 or EN ISO 15614
- Dimensional inspection report covering outer diameter tolerance, wall thickness distribution, and length measurement for each pipe in the shipment
- Certificate of Origin and packing list formatted for destination country customs clearance, with heat number cross-reference to mill test certificate
- ISO 9001 quality management system certificate covering the integrated steel production and SSAW pipe fabrication process
Packaging, Loading & Delivery

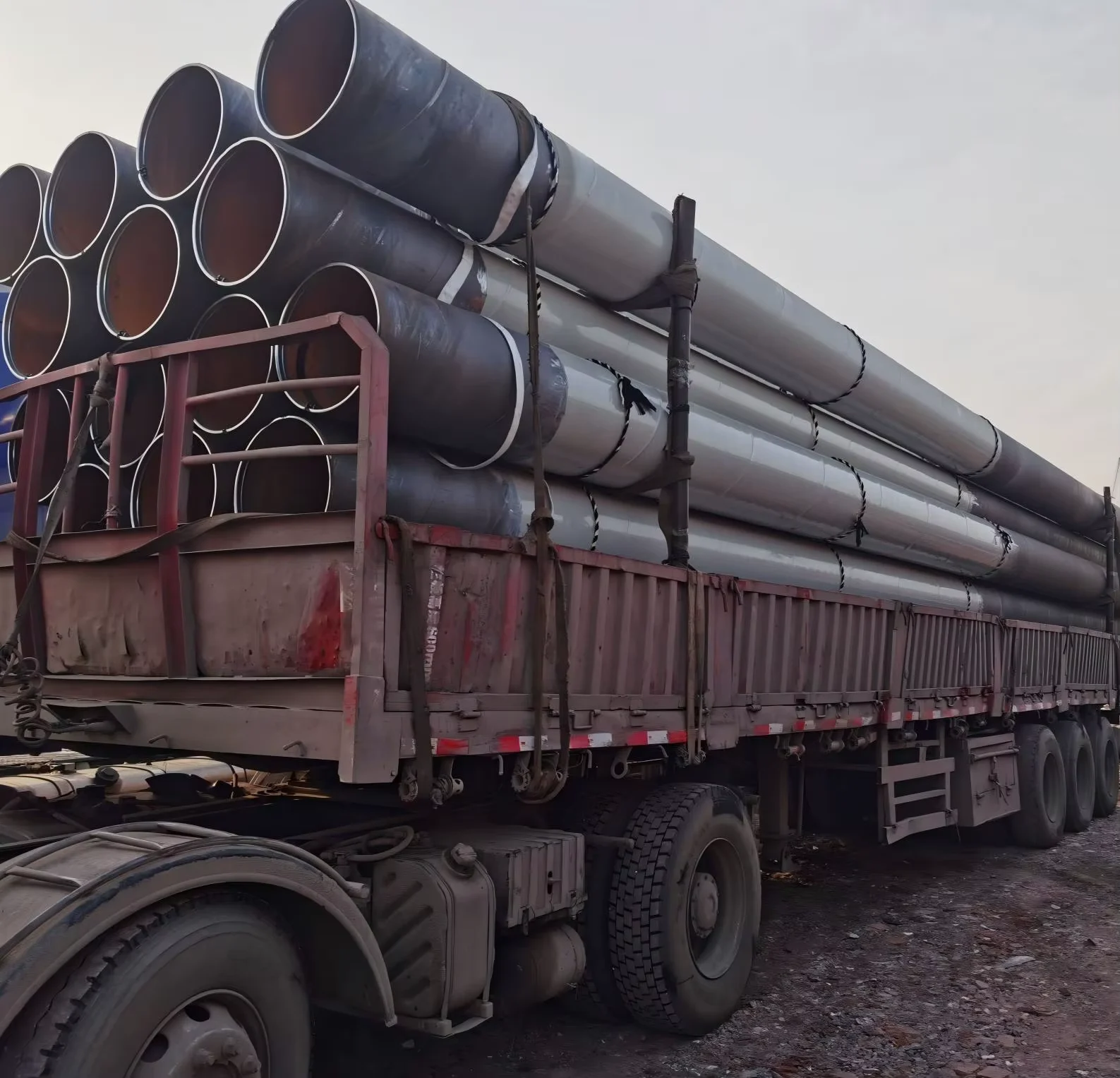

- ASTM A36 SSAW spiral steel pipe bundled with galvanized steel strips at intervals matching the 6 m and 12 m standard lengths, with rubber edge protectors preventing hot-rolled surface damage during handling
- Non-oiled hot-rolled finish wrapped with waterproof VCI paper at pipe ends to prevent moisture ingress and edge corrosion during ocean transit
- Large-diameter pipes loaded in dedicated open-top containers or flat-rack arrangements with welded steel cradles preventing rolling and distributing weight across container floor structures
- Heat number and steel grade stenciled on each pipe end in weather-resistant paint, matching the mill test certificate for field verification before welding
- FOB, CIF, and DDP shipping terms available with professional oversized cargo lashing plans for pipes exceeding standard container dimensions
How to Request a Quotation for Your Pipeline Project
Submit your project drawings, required ASTM A36 SSAW spiral steel pipe specifications including outer diameter, wall thickness, total tonnage, and destination port. Our engineering team responds within 24 hours with a detailed quotation covering material, fabrication, coating, packing, and shipping costs — along with a shop drawing timeline and production schedule. Third-party inspection arrangements and mill test certificate formats are confirmed before contract signing.
Frequently Asked Questions
Q: What is the difference between SSAW and LSAW pipe for pipeline applications?
A: SSAW spiral welded pipe is formed by helically wrapping steel coil and welding the spiral seam, allowing larger diameters from narrower coil widths. LSAW pipe is formed by pressing flat plate into a cylinder and welding a single longitudinal seam. SSAW is typically more cost-effective for large-diameter, moderate-pressure water and sewage lines, while LSAW is preferred for high-pressure gas transmission where longitudinal seam inspection is simpler.
Q: Can you provide mill test certificates that meet EN 10204 3.2 requirements?
A: Yes. Our integrated steel mill issues mill test certificates documenting chemical composition and mechanical properties for each heat of steel. Third-party inspection by SGS, BV, or TUV is available to witness testing and issue EN 10204 3.2 certificates for projects requiring independent verification.
Q: What surface coating options are available for corrosion protection?
A: The ASTM A36 SSAW spiral steel pipe is supplied with hot-rolled, non-oiled finish suitable for downstream coating application. Factory-applied options include 3-layer polyethylene (3PE), fusion-bonded epoxy (FBE), and cement-mortar lining for water pipelines. Coating selection depends on soil corrosivity, operating temperature, and design life specified in the project specification.
Q: Do you offer custom lengths and beveled ends for field welding?
A: Standard lengths are 6 m and 12 m. Custom cut lengths and beveled ends per project drawing are available. End preparation includes bevel angle, root face, and outside upset dimensions matched to the approved welding procedure specification for field joint welding.
Q: How do you handle loading and shipping for large-diameter oversized pipes?
A: Large-diameter SSAW pipes exceeding standard container dimensions are loaded on flat-rack containers or shipped as breakbulk cargo. Professional lashing plans with welded steel cradles and steel wire rope securing prevent movement during ocean transit. Complete export documentation including certificate of origin, packing list, and bill of lading is prepared for customs clearance at destination.
Get Your ASTM A36 SSAW Spiral Steel Pipe Quotation Today
Send your project specifications, steel grade requirements, and destination port to receive a detailed quotation with mill test certificate confirmation and production timeline within 24 hours.
