Description
Vertically Integrated Galvanized SHS Mill — own steel production lines supply 2,800+ specifications of raw material directly to fabrication, eliminating trader-sourced traceability gaps.
Technical Specifications
| Parameter | Value |
|---|---|

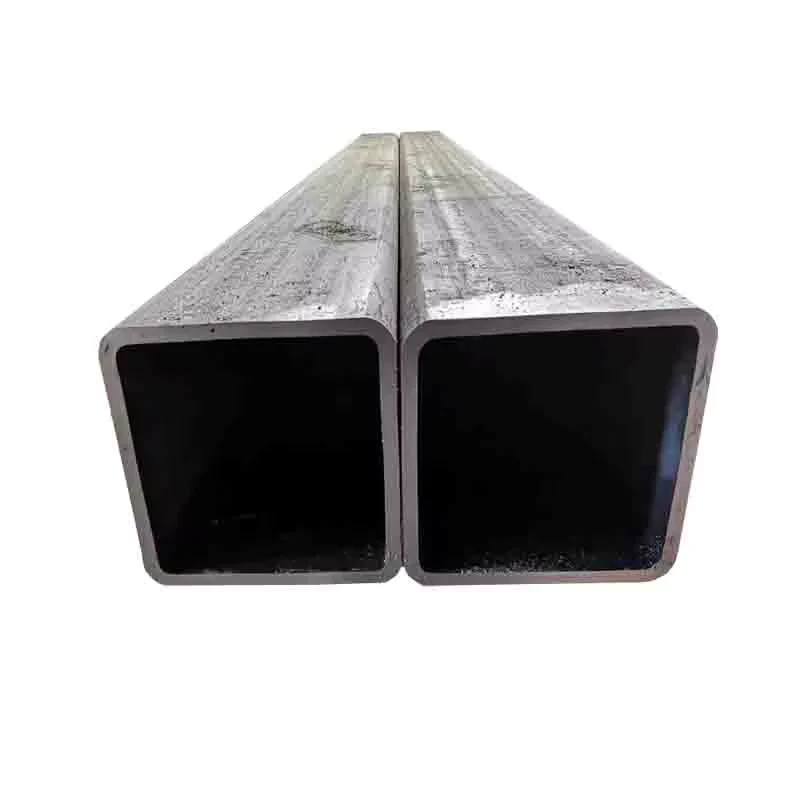

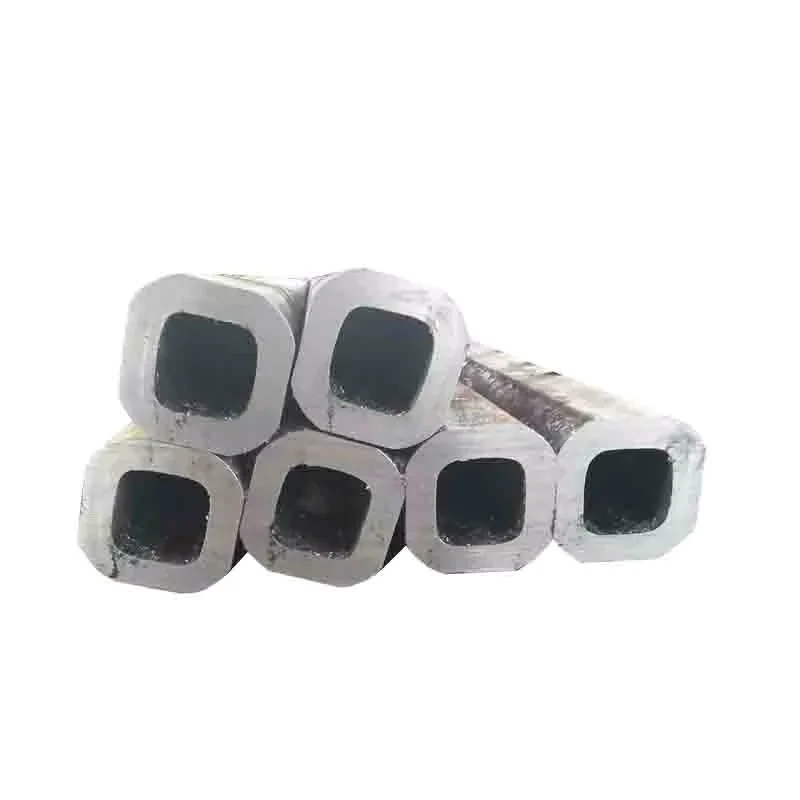

| Designation | ASTM A500 Galvanized Square Steel Tube |
| Product Type | Square Steel Tube (SHS) |
| Steel Grade | Gr.B, S235, S275, S355, STK400, Q235B, Q345B |
| Standard | ASTM A500, ASTM A53, GB/T 3091 |
| Section Shape | Square |
| Size Range | 19mm×19mm – 800mm×800mm |
| Wall Thickness | 1 – 30 mm |
| Length | 5.8m / 6m / 11.8m / 12m / Random Length |
| Technique | ERW / Welded or Seamless |
| Surface Treatment | Pre-galvanized / Hot-dip Galvanized / Black Painting / Bare |
| Tolerance | ±1% |
| Ends | Plain |
| Application | Construction structure / Building frames / Curtain wall / Support tubes / Structural pipe / Machinery / Scaffolding |
| MOQ | 5 Tons |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| General Construction | Building frames, structural columns, portal frame supports |
| Industrial Facilities | Warehouse purlins, logistics center mezzanine structures, plant support frames |
| Curtain Wall Systems | Vertical and horizontal mullion supports, facade sub-frames |
| Scaffolding & Access | Scaffold uprights, ledger tubes, temporary support towers |
| Machinery & Equipment | Equipment base frames, conveyor support structures, machine guards |
What Pre-Galvanized Coating Adhesion Reveals About Base Material Control
Coating peeling or uneven zinc distribution almost always traces back to uncontrolled base steel chemistry — not the galvanizing line itself.
When overseas buyers source pre-galvanized square steel tube supplier products through traders, the fabricator rarely controls the hot-rolled coil chemistry or rolling temperature. Silicon and phosphorus levels in the base steel directly affect zinc-iron alloy layer formation during galvanizing [NEED_CITE: effect of silicon content on galvanizing coating structure]. Excessive silicon causes thick, brittle coatings that flake during forming; low silicon produces thin coatings that fail salt-spray tests prematurely. Our own steel mill controls chemistry from melt shop to galvanizing line in one continuous process, so coating adhesion stays consistent across every heat number.
Matching Wall Thickness and Grade to Structural Load Paths
A pre-galvanized square steel tube supplier must offer wall thickness from 1mm to 30mm because structural engineers specify different sections for different load paths. Light-gauge 19×19mm tubes at 1–2mm wall serve curtain wall sub-frames where dead load dominates. Heavier 400×400mm or 800×800mm sections at 12–30mm wall carry vertical columns in warehouse portal frames. The ±1% dimensional tolerance ensures that connection plates and bolt holes fabricated to shop drawings fit without on-site reaming — a detail that matters when EPC firms coordinate steel delivery with erection schedules across Southeast Asia and Middle East job sites.
Structural Code Compliance and Surface Protection Selection
Engineering specifications for pre-galvanized square steel tube supplier orders typically reference EN 1993-1-1 for limit state design or AISC 360 for allowable stress design, both of which require verified material properties rather than nominal values [NEED_CITE: EN 10219 cold-formed hollow section dimensional and tolerances requirements]. For projects in coastal or industrial atmospheres, pre-galvanized coating (typically 40–80 μm) suits indoor or sheltered applications, while hot-dip galvanizing (60–120 μm) handles outdoor exposure. Steel grade selection — S235 for light structures, S355 for primary frames, Q345B for heavy-load columns — directly affects section sizing and tonnage. CE marking per EN 10219 is mandatory for EU customs clearance, while ASTM A500 Gr.B satisfies North American specification requirements.
Steel Grade Equivalence and ERW Weld Integrity Across Standards
The pre-galvanized square steel tube supplier must navigate three major grade systems: ASTM (Gr.B), EN (S235/S275/S355), and GB (Q235B/Q345B), plus JIS STK400 for Southeast Asian projects. While S355 and Q345B share similar yield strength ranges, their chemical composition limits and impact testing requirements differ — specifying the wrong equivalence can cause mill test certificate rejection at site inspection [NEED_CITE: steel grade equivalence between EN S355 and ASTM A500 Gr.B]. ERW welded production suits most structural applications where internal pressure is absent, offering cost efficiency and tight dimensional control. Seamless production remains necessary for heavy-wall sections above 20mm or where through-thickness integrity is critical. Pre-galvanizing (continuous galvanizing of coil before forming) produces a smoother, more uniform coating than batch hot-dip, making it preferable for visible architectural applications where surface appearance matters.
Hidden Costs When Coating and Tolerance Fail Site Inspection
Ordering pre-galvanized square steel tube supplier products without verified coating thickness or dimensional reports creates downstream costs that dwarf the initial price saving. Coating below specification triggers third-party rejection at port, forcing return shipment or on-site recoating — both adding weeks to project schedules. Negative tolerance beyond ±1% means actual wall thickness falls below design assumptions, requiring structural re-calculation or section replacement. Material traceability gaps — missing heat numbers on certificates — cause customs holds in markets requiring EN 10204 3.2 certification [NEED_CITE: EN 10204 inspection document types for steel products]. These failures rarely appear in supplier quotations but consistently surface in project variation orders.
Why Direct Mill Control Eliminates Procurement Risk
Our vertically integrated operation means the pre-galvanized square steel tube supplier you deal with owns the steel mill, the galvanizing line, and the fabrication workshop — one quality system from melt shop to container. We stock 2,800+ specifications covering all standard SHS sizes from 19×19mm to 800×800mm, so urgent project requirements don’t wait for rolling campaigns. Every order ships with mill test certificates documenting chemical composition and mechanical properties per the specified standard, backed by our own理化实验室. Third-party inspection through SGS, BV, or TÜV is available before shipment for projects requiring independent verification. CE certification per EN 10219 covers EU market compliance, while ISO 9001 quality management ensures repeatable process control. Custom lengths beyond standard 6m and 12m reduce on-site cutting waste, and professional loading plans maximize container payload for 11.8m lengths in 40ft open-top containers.
Documentation & Compliance
- Mill test certificate documenting S355JR or Gr.B chemical composition and yield strength per ASTM A500 or EN 10219, with heat number traceability
- CE certificate per EN 10219 for cold-formed structural hollow sections, required for EU customs clearance
- ISO 9001 quality management certificate covering galvanizing process control and dimensional inspection
- SGS or BV third-party inspection report verifying pre-galvanized coating thickness and adhesion before shipment
- Material traceability report linking each bundle to heat number, coil position, and galvanizing batch
- Export documentation including packing list, bill of lading, and certificate of origin for destination customs
Packaging, Loading & Delivery
- Pre-galvanized square tubes bundled with steel strips and edge protectors to preserve zinc coating during ocean transit
- Surface protection maintained through separation layers between tubes, preventing zinc scratching on 800×800mm heavy sections
- Container loading optimized for 6m and 11.8m lengths in 20ft and 40ft units, maximizing payload for 5-ton MOQ shipments
- Custom cut lengths available to match project-specific requirements, reducing on-site waste for scaffolding and curtain wall applications
- Heat number and steel grade stenciled on each bundle for site identification and inspection traceability
- FOB, CIF, and DDP terms available with professional stowage planning for oversized SHS sections
Getting Your Pre-Galvanized SHS Quote Started
Submit project drawings or a specification list covering size, wall thickness, steel grade, surface treatment, and destination port. We respond within 24 hours with pricing, mill test certificate format, production schedule, and container loading plan — all based on verified stock availability from our own mill.
Request ASTM A500 Galvanized SHS Pricing and Mill Test Certificates
Send your specification list or drawings to receive a detailed quotation with material certification and delivery schedule.
Shandong Xin Jiyuan Special Steel Tube Co., Ltd
Website: www.xjystructure.com
Tel: +86 531 8573 6315
Mobile/WhatsApp/WeChat: +86 188 5315 7756
Email: admin@xjystructure.com
Address: No.11889, Jingshi West Road, Lulian Group, Jinan City, Shandong Province, China
Frequently Asked Questions
Q: What is the difference between pre-galvanized and hot-dip galvanized square tubes for structural applications?
A: Pre-galvanized tubes are produced from continuously galvanized coil before forming, resulting in a smoother, more uniform coating typically 40–80 μm thick — ideal for architectural and indoor applications. Hot-dip galvanizing coats the finished tube in molten zinc, producing a thicker 60–120 μm coating better suited for outdoor or corrosive environments. Both processes are available from our production lines.
Q: Can you supply ASTM A500 Gr.B and EN S355JR from the same production facility?
A: Yes. Our steel mill produces both grade systems, and we issue separate mill test certificates per standard. Chemical composition and mechanical properties are verified independently for each heat, ensuring compliance whether your project specifies ASTM, EN, or GB standards.
Q: What quality documentation is included with each shipment?
A: Every order includes mill test certificates with heat number traceability, dimensional inspection reports, coating thickness test results, and packing lists. CE certificates per EN 10219 are provided for EU shipments. Third-party inspection reports from SGS, BV, or TÜV are available upon request before loading.
Q: Do you produce non-standard sizes or custom lengths to reduce on-site cutting?
A: Yes. Beyond standard sizes from 19×19mm to 800×800mm, we can produce custom lengths to match your project’s module dimensions. This reduces on-site cutting waste and speeds erection — particularly valuable for scaffolding and curtain wall sub-frame applications.
Q: How do you ensure coating protection during ocean freight?
A: Pre-galvanized bundles are packed with edge protectors and separation layers to prevent zinc coating damage. Container loading plans are prepared for each order, ensuring proper weight distribution and securing for 6m and 11.8m lengths. Stowage instructions account for the specific surface treatment and destination climate.
