Description

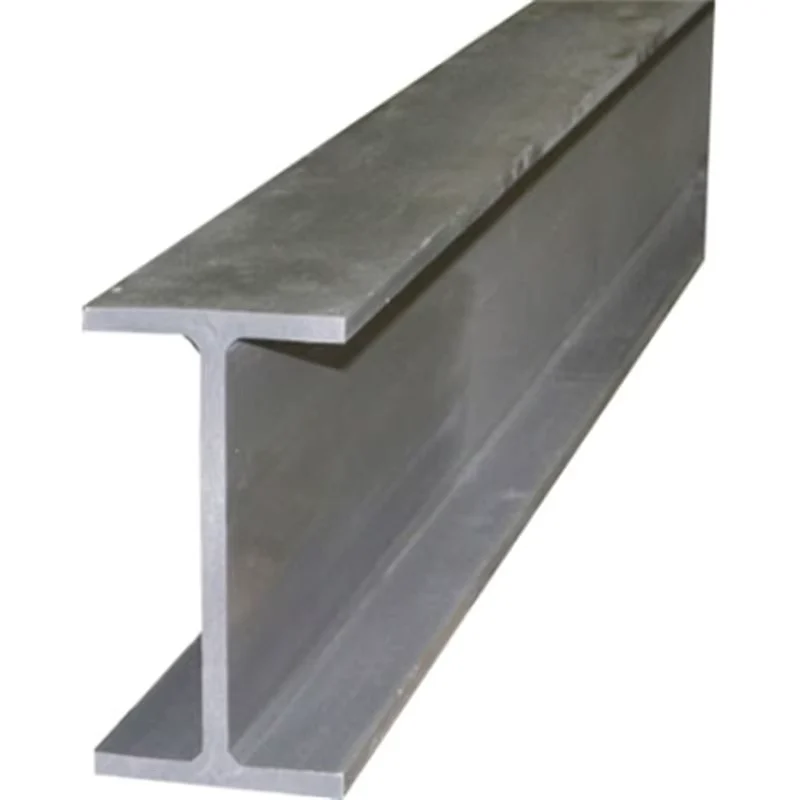

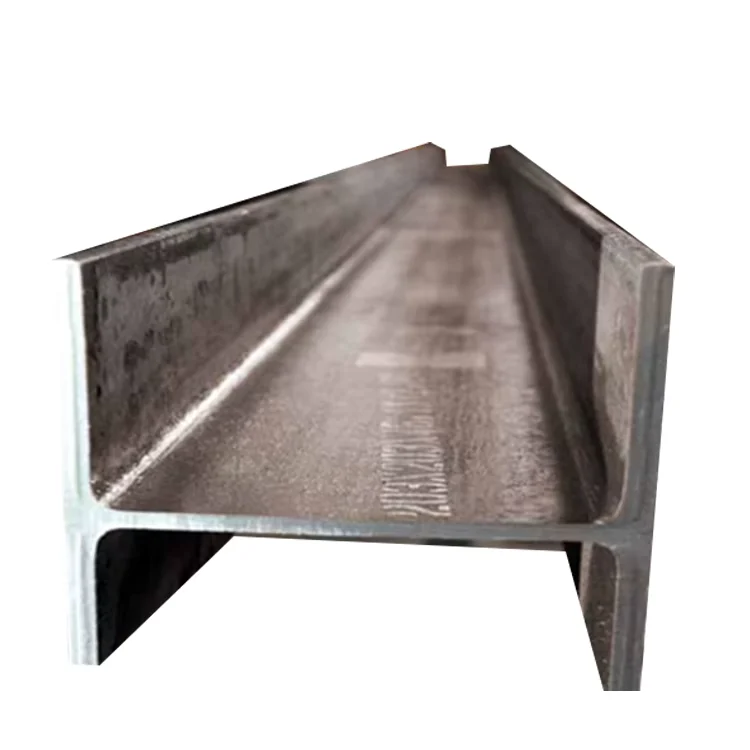

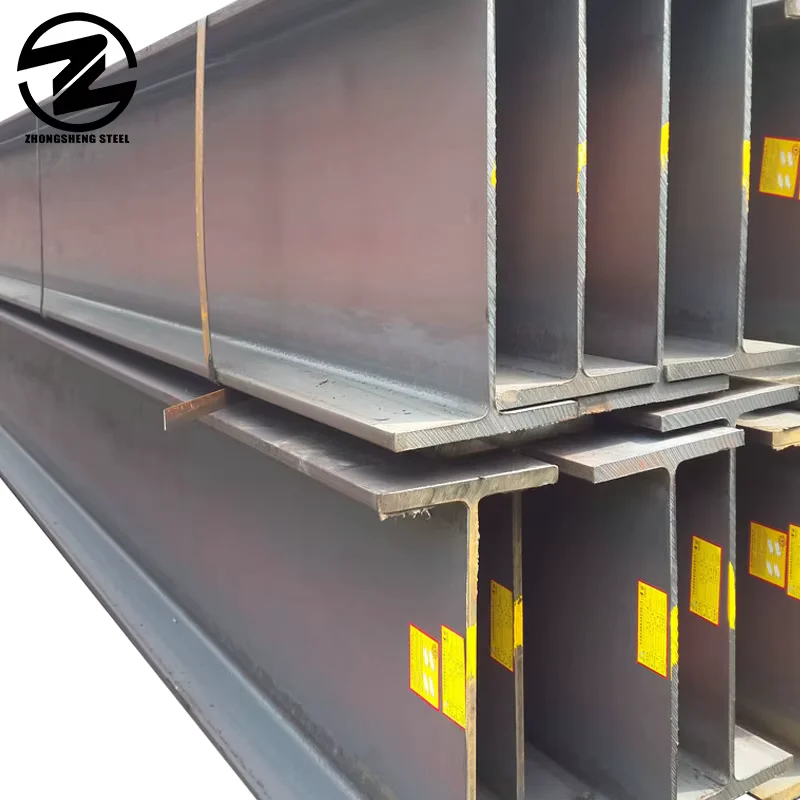

Factory-Direct H-Beam Supply — ASTM A572 Grade 50 wide flange beams rolled and fabricated under one roof, from raw billet to finished section with full heat-number traceability.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | ASTM A572 Grade 50 H-Beam |
| Product Type | H-Beam / Wide Flange Beam |
| Steel Grade | ASTM A572 Grade 50, Q235, Q355B, S355JR, S355J0, A36, A992 |
| Standard | ASTM A572, ASTM A36, ASTM A992, EN 10025, GB/T 11263 |
| Section Shape | H-Beam / Wide Flange |
| Web Width | 100 mm – 900 mm |
| Flange Thickness | 8 mm – 64 mm |
| Web Thickness | 4.5 mm – 36.5 mm |
| Length | As per customer request |
| Technique | Hot Rolled |
| Surface Treatment | Hot Rolled Black / Hot Dip Galvanized / Custom Painted |
| Tolerance | ±1% |
| Processing Service | Bending, Welding, Decoiling, Punching, Cutting |
| Application | Steel building structures, industrial platforms, warehouse construction, infrastructure projects |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Commercial Construction | Building frames for warehouses, logistics centers, and multi-story commercial structures |
| Industrial Facilities | Heavy-duty platforms, mezzanine floors, and equipment support structures in processing plants |
| Infrastructure | Bridge support beams, highway gantry frames, and transit station structural members |
| EPC Projects | Prefabricated steel modules for power plants, mining facilities, and petrochemical installations |
What Material Traceability Gaps Cost on an ASTM A572 Grade 50 H-Beam Order
When a beam fails re-inspection at destination, the entire structural package gets rejected — not just one piece.
Overseas buyers sourcing structural H-beams from fragmented suppliers face a recurring nightmare: the mill test certificate says Grade 50, but third-party lab results at the job site show yield strength falling short. I have seen an entire container of H-beams rejected by a structural engineer in South America because the material traceability chain broke somewhere between the rolling mill and the trading company. The steel came from one mill, the certificate from another, and nobody could match heat numbers to physical beams. With our vertically integrated ASTM A572 Grade 50 H-Beam supply, every beam carries a heat number traceable directly back to our own steel production facility — no gaps, no middlemen, no excuses. [NEED_CITE: material traceability requirements for structural steel in international construction projects]
How ASTM A572 Grade 50 H-Beam Matches Structural Frame Demands
Hot rolled wide flange beams in ASTM A572 Grade 50 deliver the strength-to-weight ratio that structural engineers specify for building frames and industrial platforms. The wider flange geometry provides superior moment resistance compared to standard I-beams, making it the preferred choice for column and beam applications in warehouse construction and multi-story structures. Our ASTM A572 Grade 50 H-Beam production covers web widths from 100 mm to 900 mm with flange thicknesses up to 64 mm, accommodating everything from light-duty mezzanine systems to heavy-load infrastructure members. The hot rolled process ensures consistent grain structure throughout the section, which matters when your structural calculations depend on predictable mechanical behavior under load.
Engineering Compliance and Certification Requirements for Wide Flange Beams
Structural steel for international projects must comply with the governing building code at the construction site — ASTM A572 for North American projects, EN 10025 S355JR for European work, and GB/T 11263 for domestic Chinese standards. Our ASTM A572 Grade 50 H-Beam meets the chemical composition and mechanical property requirements of ASTM A572, and we provide equivalent grade guidance when project specifications call for S355JR or Q355B substitution. For projects requiring CE marking under EN 1090, we supply full factory production control documentation including welding procedure specifications and dimensional inspection reports. Surface treatment selection — hot rolled black for indoor applications, hot dip galvanized for corrosive environments, or custom painted systems for architectural exposure — must align with the project’s environmental classification and maintenance interval expectations. [NEED_CITE: EN 1090 structural steel fabrication execution class requirements]
Steel Grade Selection and Hot Rolling Process Explained
ASTM A572 Grade 50 belongs to the high-strength low-alloy (HSLA) steel family, offering approximately 50 ksi minimum yield strength — roughly 345 MPa — which provides a meaningful weight reduction compared to A36 mild steel in the same structural member. The hot rolling process heats steel billets above recrystallization temperature and passes them through shaped rolls to form the H-beam profile, producing a uniform microstructure with consistent properties across the web and flange. Our production covers multiple international grade systems: the ASTM family (A572 Gr 50, A36, A992), the Chinese Q-series (Q235, Q355B), and the European S-series (S355JR, S355J0), allowing procurement consolidation when a single project spans multiple design standards. Surface treatment options include hot rolled black scale for immediate fabrication, hot dip galvanizing for long-term corrosion protection in outdoor or humid environments, and custom paint systems matched to project color specifications. The ±1% dimensional tolerance on our ASTM A572 Grade 50 H-Beam ensures that connection details designed in shop drawings translate accurately to field assembly without costly field modifications. [NEED_CITE: HSLA steel grade comparison between ASTM A572 and EN 10025 standards]
The Hidden Costs of Sourcing H-Beams Without Verified Certification
Purchasing structural H-beams based on price alone — without verified mill test certificates and independent re-inspection rights — creates downstream costs that dwarf any upfront savings. Beams with incorrect chemistry or substandard yield strength will fail structural inspection at the job site, triggering full container rejection, air-freight replacement costs, and project schedule delays that can extend months. Missing or forged material certificates create customs clearance problems in markets with strict import documentation requirements, particularly the EU and Middle East. Negative tolerance abuse — where actual section dimensions fall below the specified minimum — reduces load-bearing capacity and violates structural engineering assumptions, creating safety liability for the building owner. [NEED_CITE: consequences of non-compliant structural steel in international construction]
Why Procure ASTM A572 Grade 50 H-Beam From Our Integrated Facility
Our operation eliminates the material traceability gap that plagues fragmented steel supply chains because we control the entire process from raw steel production through finished H-beam fabrication. Our own steel mill with three production lines and over 2,800 raw material specifications means we roll ASTM A572 Grade 50 H-Beam from billets we produce ourselves — every heat number on the mill test certificate traces directly to our furnaces, not a third-party supplier’s paperwork. The fabrication workshop adjacent to the mill handles CNC cutting, drilling, bending, and welding per approved shop drawings, so beams arrive at your site ready for erection with all connection holes and copes completed to tolerance. Our quality documentation package includes welding procedure specifications, welder qualifications, dimensional inspection reports, and coating thickness measurements — the complete paper trail that project owners and structural engineers require for final acceptance. Professional loading and lashing for oversized H-beam shipments prevents transit damage and ensures dimensional integrity from our facility to your construction site.
Documentation & Compliance
- Mill Test Certificate documenting ASTM A572 Grade 50 chemical composition and mechanical properties per heat number, issued in EN 10204 3.1 format
- CE certificate confirming compliance with EN 1090 execution class requirements for structural steel components exported to European markets
- ISO 9001 quality management system certificate covering the integrated steel production and fabrication process
- SGS or BV third-party inspection report available for pre-shipment verification of dimensional accuracy and surface treatment quality
- Full material traceability linking each ASTM A572 Grade 50 H-Beam to its production heat number through the complete mill test certificate chain
- Export customs documentation including packing list, bill of lading, and certificate of origin formatted for destination country import requirements
Packaging, Loading & Delivery
- ASTM A572 Grade 50 H-Beams bundled with high-tensile steel strips and edge protectors to prevent surface damage and maintain dimensional stability during ocean transit
- Hot dip galvanized H-beams packed with separation materials between layers to preserve zinc coating integrity and prevent white rust formation
- Container loading optimized for H-beam web widths from 100 mm to 900 mm, with oversized sections shipped via flat rack or breakbulk vessel when standard container dimensions are exceeded
- Custom cutting to project-specified lengths available before shipment, reducing on-site waste and accelerating erection schedules for warehouse and infrastructure projects
- Each ASTM A572 Grade 50 H-Beam marked with heat number, steel grade, and section dimensions for immediate site identification and traceability verification
- FOB, CIF, and DDP shipping terms available with professional export packing and complete documentation for customs clearance at destination port
How to Initiate Your ASTM A572 Grade 50 H-Beam Inquiry
Submit your project drawings in PDF or DWG format along with steel grade specifications, required quantities, and destination port to receive a detailed quotation within 24 hours. Our engineering team will review shop drawing requirements, confirm material availability for your specified section dimensions, and provide a production schedule aligned with your project timeline. We will also confirm which certification and inspection documentation your project requires — whether EN 10204 3.1 mill test certificates, third-party SGS/BV inspection, or CE marking for European delivery.
Request Your ASTM A572 Grade 50 H-Beam Quotation
Send your project specifications, required quantities, and destination port to receive pricing, mill test certificates, and production lead time confirmation.
Contact: Shandong Xin Jiyuan Special Steel Tube Co., Ltd
Website: www.xjystructure.com
Tel: +86 531 8573 6315
Mobile/WhatsApp/WeChat: +86 188 5315 7756
Email: admin@xjystructure.com
Address: No.11889, Jingshi West Road, Lulian Group, Jinan City, Shandong Province, China
Frequently Asked Questions
Q: Can ASTM A572 Grade 50 H-Beam be substituted with S355JR or Q355B?
A: Yes, these grades are mechanically equivalent for most structural applications. ASTM A572 Grade 50 requires 50 ksi (345 MPa) minimum yield strength, which aligns with S355JR (355 MPa) and Q355B (355 MPa). We provide grade equivalence guidance and can supply mill test certificates showing compliance with your specified standard.
Q: What material certification accompanies ASTM A572 Grade 50 H-Beam shipments?
A: Every shipment includes EN 10204 3.1 mill test certificates documenting chemical composition and mechanical properties by heat number. Third-party inspection reports from SGS, BV, or TÜV are available upon request for pre-shipment verification.
Q: Can you cut, drill, and weld ASTM A572 Grade 50 H-Beam to my shop drawings?
A: Yes. Our fabrication workshop provides CNC cutting, drilling, bending, and welding services per approved shop drawings. Welding procedures are qualified to AWS and EN standards, and all fabrication work is documented with weld maps and dimensional inspection reports.
Q: What surface treatment options are available for ASTM A572 Grade 50 H-Beam?
A: We supply hot rolled black (as-rolled scale), hot dip galvanized for corrosion protection, and custom painted finishes. Surface treatment selection depends on your project’s environmental exposure conditions and maintenance interval requirements.
Q: How do you handle shipping for oversized H-beam sections?
A: Standard sections within container dimensions are loaded in standard shipping containers with professional lashing. Oversized H-beams with web widths exceeding container capacity are shipped via flat rack containers or breakbulk vessel with specialized securing to prevent transit damage.
