Description
Factory-direct galvanized pipe supply — Vertically integrated steel mill and fabrication workshop eliminate third-party sourcing risks for BS 1387 galvanized ERW steel pipe orders.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | BS 1387 Galvanized ERW Steel Pipe |
| Product Type | Round Steel Pipe (ERW / Welded) |
| Steel Grade | GrA / GrB / GrC per BS 1387 |
| Standard | BS 1387 / ASTM A53 |
| Section Shape | Round |
| Size Range | 1/2″–8″ (DN15–DN200) / 21.3–219 mm outer diameter |
| Wall Thickness | 1.8–8 mm |
| Length | 5.8 m / 6 m |
| Technique | ERW (Electric Resistance Welded) |
| Surface Treatment | Hot Dipped Galvanized (Zinc Coated, Min 300 g/m²) |
| Tolerance | ±10% |

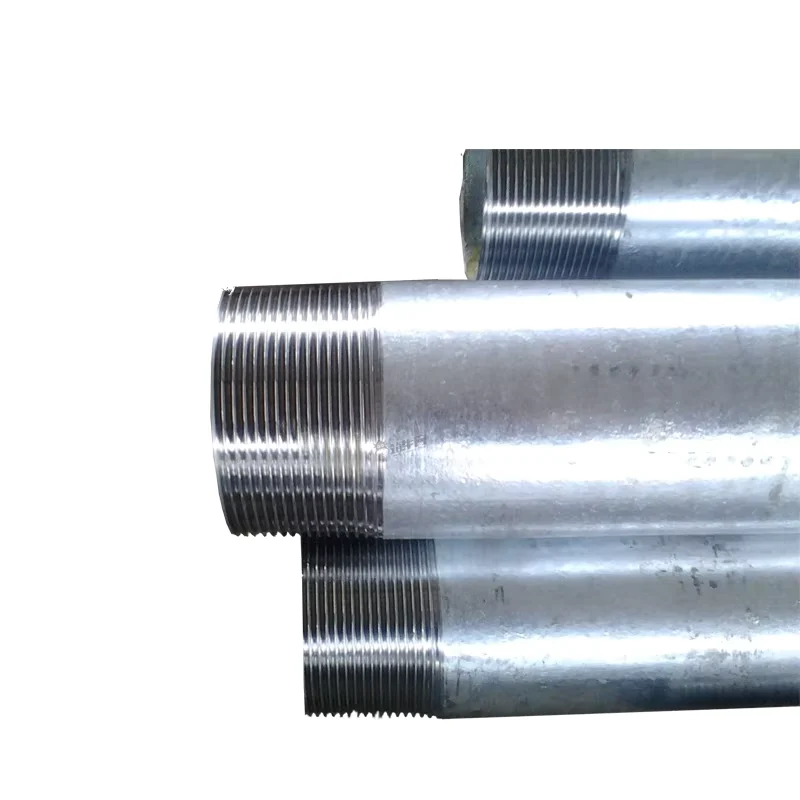

| Ends | Threaded with Couplings (NPT / BS) |
| Application | Fluid transport / Construction / Structural / Scaffolding / Fencing |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Construction & Infrastructure | Scaffolding systems, structural supports, handrail posts, fencing frameworks |
| Industrial Facilities | Process piping, utility conduits, plant drainage systems |
| EPC & General Contractors | Certified material supply for turnkey building projects, municipal utilities |
| Agricultural & Commercial | Greenhouse frames, warehouse structures, livestock fencing |
Where Zinc Coating Thickness Determines Site Acceptance
Sub-standard galvanizing fails third-party inspection and triggers costly air-freight replacements.
Overseas buyers sourcing galvanized pipes from trading companies face material traceability gaps — the supplier cannot verify which mill produced the black pipe, what zinc bath temperature was used, or whether coating thickness meets BS 1387 minimums. When a Middle East municipal project received pipes with only 45-micron zinc instead of the required 65-micron minimum, the entire batch was rejected. Air-freighting replacement material cost nearly thirty thousand dollars. [NEED_CITE: BS 1387 hot-dip galvanized pipe coating requirements]
At our facility, every production run undergoes membrane thickness testing before dispatch. The BS 1387 galvanized ERW steel pipe we supply carries minimum 300 g/m² zinc coating — verified by in-process inspection and documented in mill test certificates. This vertically integrated approach, from raw coil to finished galvanized pipe, eliminates the uncertainty of third-party sourcing.
Matching Project Requirements for Corrosive Environments
Hot-dip galvanizing provides sacrificial corrosion protection essential for outdoor scaffolding, coastal fencing, and industrial drainage applications. The BS 1387 galvanized ERW steel pipe with minimum 300 g/m² zinc coating withstands atmospheric exposure without field painting — critical for projects where maintenance access is limited. Threaded ends with NPT or BS couplings enable direct site connection without additional welding, reducing installation time and eliminating weld-zone corrosion vulnerabilities.
Engineering Compliance and Certification Pathways
BS 1387 specifies mechanical properties and dimensional tolerances for screwed and socketed steel tubes, while ASTM A53 covers seamless and welded black and hot-dipped galvanized steel pipe for structural and pressure applications. [NEED_CITE: BS 1387 vs ASTM A53 specification differences] European projects require EN 10204 3.1 or 3.2 mill test certificates documenting chemical composition and mechanical properties. Our quality system provides complete documentation packages — including heat number traceability, coating thickness reports, and dimensional inspection records — enabling customs clearance and site acceptance across EU, Middle East, and Southeast Asian markets.
Understanding ERW Welding and Galvanizing Process Integration
Electric Resistance Welding produces a longitudinal seam by passing high-frequency current through steel strip edges, creating a forge-welded joint without filler metal. This process suits medium-diameter pipes (21.3–219 mm) requiring consistent wall thickness and smooth internal surfaces for fluid transport. Hot-dip galvanizing immerses the welded pipe in molten zinc at approximately 450°C, forming metallurgical bonds between zinc and steel substrate. The Grade B and Grade C classifications under BS 1387 indicate increasing tensile strength requirements — Grade C pipes suit higher-load structural applications such as scaffolding uprights and crane booms where yield strength matters more than formability.
Hidden Costs of Compromised Material Sourcing
Purchasing galvanized pipes from traders rather than integrated manufacturers introduces risks: coating thickness below specification triggers third-party inspection failures; missing mill test certificates delay customs clearance; dimensional tolerance deviations cause fitting problems during assembly. [NEED_CITE: consequences of non-compliant galvanized steel in construction projects] When material cannot be traced to specific heat numbers, project owners face liability exposure if structural failures occur. Our vertically integrated production — from steelmaking to galvanizing — provides single-source accountability and complete quality documentation.
Why Source BS 1387 Galvanized ERW Steel Pipe from Our Mill
Our facility operates dedicated galvanizing lines with in-process coating thickness monitoring — every pipe receives minimum 300 g/m² zinc before leaving the plant. The integrated steel mill produces over 2,800 specifications of raw material, ensuring consistent chemistry for galvanizing adhesion. Our quality laboratory issues EN 10204 3.1 mill test certificates documenting chemical composition and mechanical properties per BS 1387 requirements. Third-party inspection through SGS, BV, or TUV is available for projects requiring independent verification. Professional loading teams understand galvanized pipe protection requirements — edge protectors prevent zinc coating damage during ocean transit, and bundle configurations optimize container utilization for 5.8 m and 6 m lengths.
Documentation & Compliance
- Mill Test Certificate per EN 10204 3.1 documenting GrA/GrB/GrC chemical composition and mechanical properties per BS 1387
- Hot-dip galvanized coating thickness report verifying minimum 300 g/m² zinc deposition
- Dimensional inspection certificate confirming outer diameter, wall thickness, and length tolerances
- Material traceability sheet linking each pipe to specific heat number and production batch
- Third-party inspection report from SGS/BV/TUV available upon request for project-specific verification
- Export documentation including packing list, bill of lading, and certificate of origin for customs clearance
Packaging, Loading & Delivery
- Galvanized pipes bundled with steel strips and edge protectors to preserve zinc coating during handling and ocean transit
- Threaded ends capped with plastic protectors to prevent thread damage and moisture ingress during storage
- Container loading optimized for 5.8 m and 6 m lengths with wooden cradles preventing pipe-to-pipe contact
- Heat number and steel grade stenciled on each pipe bundle for site identification and traceability
- FOB, CIF, and DDP shipping terms available with professional oversized cargo loading expertise
- Complete export documentation package prepared before vessel departure to prevent customs delays
Initiating Your BS 1387 Galvanized Pipe Inquiry
Submit your project specifications — including pipe diameter, wall thickness, quantity, thread standard (NPT or BS), and destination port — to receive a detailed quotation with production timeline and mill test certificate samples. Our engineering team reviews shop drawings to confirm material suitability and provides fabrication sequencing recommendations for large-volume orders. Certification requirements and third-party inspection arrangements are confirmed before contract signing to ensure compliance with project specifications.
Frequently Asked Questions
Q: What is the difference between BS 1387 Grade A, Grade B, and Grade C?
A: BS 1387 classifies galvanized pipes into three grades based on mechanical property requirements. Grade A suits general-purpose applications, Grade B provides higher tensile strength for structural use, and Grade C offers maximum strength for heavy-load applications such as scaffolding and industrial supports. All grades receive identical hot-dip galvanizing treatment with minimum 300 g/m² zinc coating.
Q: How do you verify zinc coating thickness meets BS 1387 requirements?
A: Every production batch undergoes magnetic thickness gauge testing at multiple points along the pipe length. Results are documented in coating thickness reports included with the mill test certificate package. Minimum coating weight is 300 g/m², exceeding BS 1387 baseline requirements to ensure corrosion protection in demanding environments.
Q: Can you supply threaded ends with both NPT and BS thread standards?
A: Yes, our threading machines produce both NPT (American National Pipe Taper) and BS (British Standard) thread profiles. Couplings matching the specified thread standard are supplied with each pipe. Thread protectors are installed before packaging to prevent damage during transit.
Q: Do you offer third-party inspection before shipment?
A: Third-party inspection through SGS, Bureau Veritas, or TUV is available for projects requiring independent quality verification. Inspection scope includes visual examination, dimensional checks, coating thickness measurement, and mill test certificate review. Inspection reports are issued directly to the buyer before container sealing.
Q: What is the typical production lead time for BS 1387 galvanized pipes?
A: Standard sizes in Grade B with threaded ends typically ship within typical production lead times after contract confirmation and deposit receipt. Custom sizes, large-volume orders, or specific coating requirements may require extended scheduling. Production timelines are confirmed during quotation based on current mill capacity and raw material availability.
Get Your BS 1387 Galvanized Pipe Quotation with Complete Mill Documentation
Send your project specifications to receive pricing, production schedules, and sample mill test certificates demonstrating compliance with BS 1387 and ASTM A53 standards.
