Description

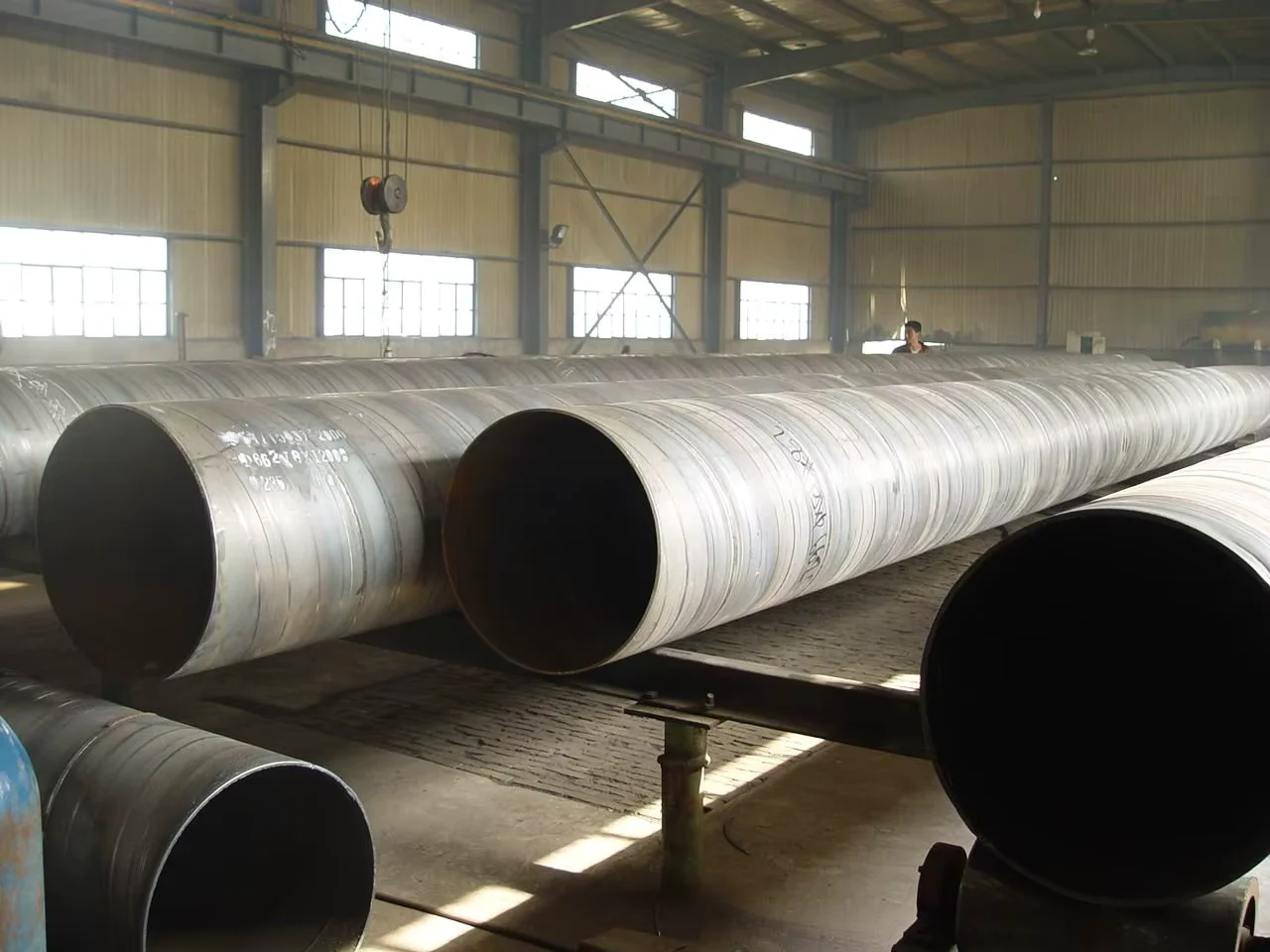

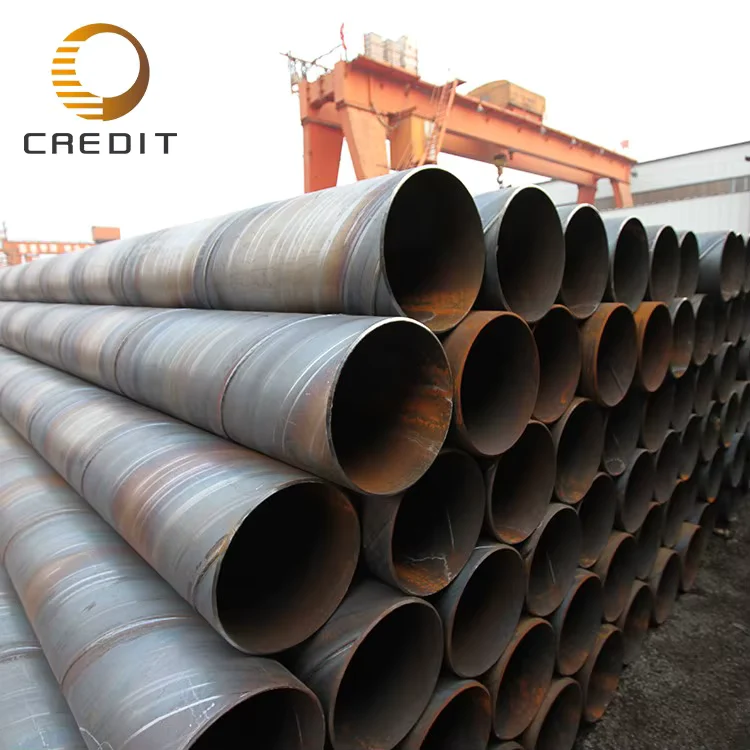

Factory-Direct SSAW Pipe Mill — XJY Structure produces API 5L SSAW steel pipe from our own steel mill, eliminating third-party sourcing gaps that cause material traceability failures on pipeline projects.
Technical Specifications
| Parameter | Value |
|---|---|

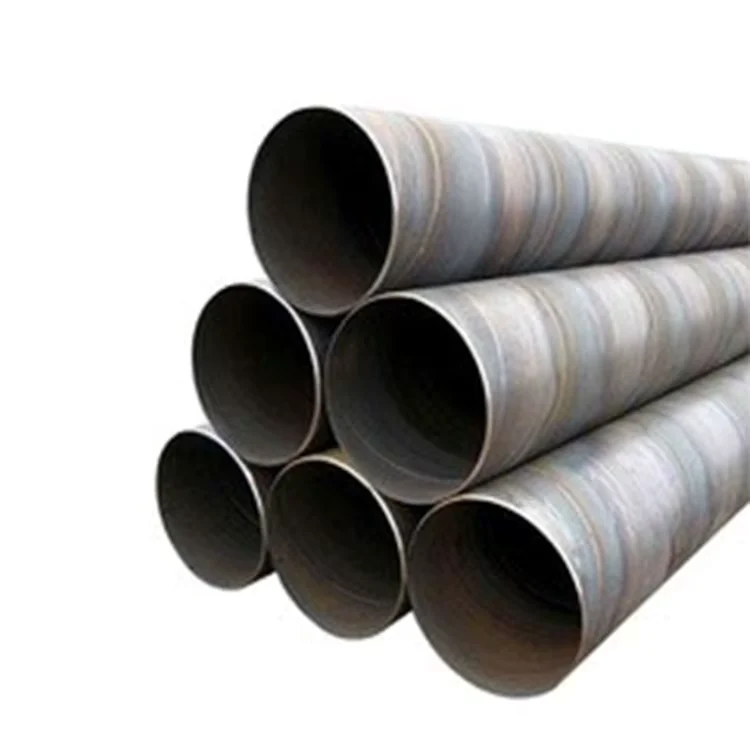

| Designation | SSAW Round Steel Pipe |
| Product Type | Round Steel Pipe (SSAW) |
| Steel Grade | Gr.B, X42, X46, X52, X60, X65, X70 |
| Standard | API 5L, ASTM A252, EN 10219, GB/T 9711 |
| Section Shape | Round |
| Size Range | OD 219–3048 mm |
| Wall Thickness | 4.5–25.4 mm |
| Length | 6–12 m (customizable up to 50 m) |
| Technique | SSAW (Spiral Submerged-Arc Welded) |
| Surface Treatment | Oiled / Paint / Custom requirement |
| Tolerance | ±1% / ±5% |
| Ends | Plain / Beveled (per customer request) |
| Application | Oil transport / Gas transport / Liquid transport / Sewage transport / Structural piling |
| MOQ | 10 Tons |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Oil & Gas EPC | Onshore and offshore transmission pipelines for crude oil, natural gas, and refined products |
| Municipal Infrastructure | Urban water supply mains, sewage discharge lines, and stormwater drainage systems |
| Civil Engineering | Structural piling for bridge foundations, port wharves, and high-rise building substructures |
| Industrial Plants | Process water and cooling water circulation pipelines within refinery and petrochemical facilities |
Why Material Traceability Gaps Cause Pipeline Rejection at Site
A mill certificate that does not match the actual pipe is the most expensive document in pipeline construction.
I once watched an SGS inspector pull out a spectrometer on SSAW pipe that had already cleared customs and reached the project site in the Middle East. The yield strength readings on the母材 fell below the API 5L X52 minimum threshold. The entire batch was rejected — and the demurrage charges alone ran into six figures. The root cause was never the welding; it was that the fabricator had sourced the steel plate from a third-party mill whose heat records did not align with the mill test certificate supplied to the buyer. [NEED_CITE: API 5L PSL2 material traceability and heat number requirements] When you procure a SSAW steel pipe API 5L supplier that does not control its own raw material, you inherit that gap. Every heat number on every pipe must be traceable back to the original slab chemistry — anything less is a liability waiting to surface during third-party inspection.
Matching Large-Diameter SSAW Pipe to Pipeline Engineering Demands
Long-distance oil and gas transmission pipelines demand pipe that can sustain internal pressure across hundreds of kilometers while resisting external corrosion from soil and groundwater. The SSAW process produces spiral weld seams that distribute stress more evenly along the pipe axis compared to straight-seam alternatives, making it particularly suited for OD 219–3048 mm diameters where seamless manufacturing becomes economically unviable. Our X42 through X70 grade range covers both PSL1 and PSL2 requirements under API 5L, allowing EPC contractors to source the full grade spectrum for mainline, lateral, and crossing sections from a single SSAW steel pipe API 5L supplier. The spiral welding geometry also enables production of lengths up to 50 meters, reducing field weld joints and lowering installation cost per kilometer.
Engineering Compliance and Certification Across Export Markets
Pipeline projects crossing international borders face different certification frameworks depending on the destination. European-spec projects require EN 10219 compliance with CE marking for structural applications, while North American EPC firms typically specify ASTM A252 for piling or API 5L for hydrocarbon transmission. [NEED_CITE: steel grade equivalence between API 5L and EN 10219 standards] Middle East national oil companies often mandate GB/T 9711 alongside API 5L for dual-certified supply. Surface treatment selection — whether 3PE coating, fusion-bonded epoxy, or custom paint systems — must align with the soil corrosivity classification at the installation site. Beveled ends per API 5L or customer-requested profiles ensure field welding compatibility without secondary machining. Procuring from a SSAW steel pipe API 5L supplier that holds multiple standard certifications eliminates the risk of customs rejection or site-level non-conformance reports.
Understanding SSAW Process and Grade Selection for Pressure Containment
The spiral submerged-arc welding process forms the pipe by helically winding steel plate or coil and welding both the inner and outer seams simultaneously under flux coverage. This method allows production of large diameters — up to 3048 mm OD — from relatively narrow plate, which is a significant cost advantage over seamless or straight-seam alternatives at these sizes. Steel grade selection directly determines the maximum allowable operating pressure: X42 and X46 serve low-to-medium pressure gathering lines, while X52, X60, and X65 are the workhorses of long-distance transmission pipelines. X70 and higher grades are specified for high-pressure offshore or deep-water applications where wall thickness optimization matters. [NEED_CITE: API 5L grade designation and minimum yield strength relationship] The PSL2 designation adds mandatory Charpy impact testing, stricter chemical composition limits including carbon equivalent controls, and expanded non-destructive testing coverage — all critical for sour service or low-temperature environments. Surface treatment options including oiled finish for temporary protection during transit, paint systems for above-ground installations, and 3PE coating for buried pipelines address different corrosion exposure conditions across the project lifecycle.
The Hidden Cost of Procuring SSAW Pipe Without Verified Certification
Selecting a lower-cost SSAW steel pipe API 5L supplier that cannot provide verifiable mill test certificates creates downstream costs that far exceed the initial price saving. Pipes with chemistry that deviates from the declared grade will fail during third-party inspection at the construction site — and by that point, the material has already incurred ocean freight, customs clearance, and inland transport charges. [NEED_CITE: consequences of non-conforming pipeline steel in international projects] Welding procedure qualifications based on incorrect base metal chemistry produce weld joints that fail NDT, forcing cut-out and re-welding that delays the critical path. Pipes manufactured outside declared tolerance ranges create fit-up problems during field jointing, increasing welder time and consumable waste. For projects governed by API 5L PSL2 or EN 10219, the absence of proper documentation — including WPS/PQR records, dimensional inspection reports, and coating thickness certificates — can halt project handover indefinitely.
Why EPC Contractors Source SSAW Pipe from XJY Structure
XJY Structure operates as the dedicated structural steel fabrication division of Shandong Xin Jiyuan Special Steel Tube Co., Ltd, meaning every SSAW steel pipe API 5L supplier order we fulfill starts from steel produced on our own mill’s three production lines. This vertical integration eliminates the material traceability gap that causes the type of site rejection I witnessed in the Middle East — every heat number is traceable from slab to finished pipe under a single quality system. Our in-house理化实验室 issues mill test certificates documenting chemical composition and mechanical properties for every heat, and we welcome SGS, BV, or Lloyd’s third-party inspection at any production stage. With over 2,800 specifications in our raw material inventory, we can consolidate multi-grade, multi-diameter pipeline packages into coordinated production runs — reducing the number of purchase orders and shipping documents an EPC contractor must manage. Our welding procedures are qualified per AWS and EN standards, and our welders hold current certifications for submerged-arc welding on pipeline-grade steel. We have supplied SSAW pipe to projects across the Middle East, Southeast Asia, and Africa, and our documentation packages — including WPS, PQR, weld maps, and coating reports — are structured to satisfy the most stringent EPC handover requirements.
Documentation & Compliance
- Mill Test Certificate (EN 10204 3.1/3.2) documenting X42–X70 chemical composition, yield strength, tensile strength, and elongation per API 5L for each heat number
- API 5L certification with PSL1 or PSL2 compliance records including Charpy impact test results and carbon equivalent calculations
- Third-party inspection reports from SGS, BV, or Lloyd’s covering dimensional checks, NDT results, and coating thickness measurements
- Welding procedure specification (WPS) and procedure qualification record (PQR) for spiral submerged-arc welding seams
- Material traceability matrix linking each pipe to its source heat number, slab chemistry, and rolling records from our own steel mill
- Export documentation package including commercial invoice, packing list, bill of lading, and certificate of origin formatted for destination-country customs requirements
Packaging, Loading & Delivery
- SSAW pipes bundled with galvanized steel strips at intervals calibrated to the OD and wall thickness, preventing deformation during crane handling and ocean transit
- Pipe ends fitted with plastic protectors to preserve beveled edge geometry and prevent moisture ingress into the bore during storage and shipping
- Surface treatment preserved through careful stacking: oiled pipes separated by rubber spacers, painted pipes wrapped in waterproof cloth, and 3PE-coated pipes loaded with nylon slings to avoid coating damage
- Container and bulk vessel loading plans optimized for 6–12 m standard lengths and up to 50 m custom lengths, maximizing weight utilization while respecting port crane capacity at destination
- Each pipe stenciled with heat number, steel grade, OD, wall thickness, and length for immediate site identification and traceability verification
- Shipment available FOB, CIF, or DDP with full export documentation and tracking until delivery at the project site or laydown yard
Moving from Inquiry to Mill Test Certificate in Six Steps
Submit your project drawings, required steel grades, pipe dimensions, applicable standards, and destination port — we respond within 24 hours with a preliminary technical assessment and quotation covering material, fabrication, coating, packing, and shipping costs. Our engineering team then prepares shop drawings and confirms the production schedule before contract execution, ensuring every SSAW steel pipe API 5L supplier requirement is locked down before production begins.
Request Your SSAW Pipe Quotation with Full Mill Documentation
Send your project specifications, steel grade requirements, and target quantity to receive a detailed quotation and sample mill test certificate within 24 hours.
Contact: Shandong Xin Jiyuan Special Steel Tube Co., Ltd | Tel: +86 531 8573 6315 | Mobile/WhatsApp/WeChat: +86 188 5315 7756 | Email: admin@xjystructure.com | Address: No.11889, Jingshi West Road, Lulian Group, Jinan City, Shandong Province, China
Frequently Asked Questions
Q: What is the difference between API 5L PSL1 and PSL2 for SSAW pipe?
A: PSL1 sets the baseline requirements for chemical composition, mechanical properties, and dimensional tolerance. PSL2 adds mandatory Charpy impact testing, stricter carbon equivalent limits, expanded non-destructive testing coverage, and additional chemical composition restrictions — making it the required designation for sour service, low-temperature, or high-pressure transmission applications.
Q: Can XJY Structure provide third-party inspection for SSAW steel pipe API 5L orders?
A: Yes. We accommodate SGS, BV, Lloyd’s, or any buyer-nominated inspection agency at our facility. Inspection scope can cover dimensional checks, visual and NDT examination of weld seams, coating thickness verification, and witness testing of mechanical samples — all documented in the final inspection report delivered with the shipment.
Q: What surface treatment options are available for buried pipeline applications?
A: We offer 3PE (three-layer polyethylene) coating, fusion-bonded epoxy (FBE), and custom paint systems for corrosion protection. The selection depends on soil corrosivity, operating temperature, and project specification. Lead times for coated pipe are confirmed after the coating system and quantity are finalized.
Q: What is the minimum order quantity for custom diameter and wall thickness?
A: The standard MOQ is 10 Tons. For non-standard OD or wall thickness outside our regular rolling schedule, we will confirm the minimum tonnage based on mill setup requirements during the quotation stage.
Q: How does XJY Structure handle shipping for large-diameter SSAW pipe?
A: Pipes up to 3048 mm OD are loaded using specialized heavy-lift equipment with nylon slings to protect the surface treatment. We prepare detailed loading and lashing plans for both container and breakbulk vessel shipment, and provide complete export documentation including customs clearance support for the destination country.
