Description
Factory-Direct GRB Supply — Hot-dip galvanized ERW pipe produced from our own billet through to final zinc coating, eliminating third-party material gaps.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | GRB ERW Galvanized Welded Steel Pipe |
| Product Type | ERW Welded Steel Pipe |
| Steel Grade | GRB |
| Standard | ASTM / BS 1387 |
| Section Shape | Round |
| Size Range | 21.3–219 mm (1/2″–8″, DN15–DN200) |
| Wall Thickness | 1.8–8 mm |
| Length | 3–12 m (5.8 m / 6 m standard) |
| Technique | ERW (Electric Resistance Welded) |
| Surface Treatment | Hot-Dip Galvanized (Zinc Coated Min. 300 g/m²) |
| Tolerance | ±10% |
| Ends | Beveled / Threaded + Couplings (NPT/BS) |
| Application | Structure pipe / Fluid transport / Construction / Fencing / Scaffolding / Greenhouse |
| MOQ | 1 Ton |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Construction & Infrastructure | Scaffolding systems, perimeter fencing, structural supports for warehouse frames |
| Fluid Transport | Water supply lines, agricultural irrigation networks, low-pressure fluid conveyance |
| EPC & Industrial Projects | Pipe rack structures, equipment support frames, utility conduits for plant facilities |
| Agriculture | Greenhouse framing, trellis systems, crop support structures |
What Wall-Thickness Tolerance Costs on a GRB Galvanized ERW Steel Pipe Order
A ±10% tolerance sounds generous on paper — until the batch arrives at port and the inspector finds wall thickness clustering at the lower edge.
When procurement teams source GRB galvanized ERW steel pipe from a fabricator who does not own the upstream mill, material certificates become disconnected from the actual production batch. The mill test certificate references a heat number that cannot be traced back to a specific coil or strip — creating gaps that third-party inspectors flag immediately. On a recent shipment of galvanized pipe to the Middle East, an entire container was rejected because wall thickness measurements fell below the minimum acceptable threshold, even though the paperwork looked correct. The root cause was never the galvanizing line — it was the raw strip entering the ERW mill without verified dimensional control. [NEED_CITE: EN 10219 cold-formed hollow section dimensional tolerance requirements]
Matching GRB Galvanized ERW Steel Pipe to Structural and Fluid Applications
GRB grade per ASTM and BS 1387 covers the light-to-medium duty range that dominates scaffolding, fencing, and low-pressure water lines. The 21.3–219 mm outer diameter range spans from DN15 branch connections up to DN200 main headers, while the 1.8–8 mm wall thickness band handles everything from greenhouse hoops to industrial pipe rack uprights. Hot-dip galvanizing with a minimum 300 g/m² zinc coating provides the corrosion resistance needed for outdoor exposure and buried installations — the environments where black pipe would fail within a single construction season. Our vertically integrated production line feeds strip directly from our own steel mill into the ERW welding and galvanizing stations, so every GRB galvanized ERW steel pipe carries traceable chemistry from billet to finished bundle.
Engineering Compliance and Certification Requirements for GRB Pipe
GRB conforms to ASTM A53 Grade B and BS 1387 medium-class specifications, making it acceptable for structural framing in warehouses, scaffolding systems, and non-pressure fluid transport. For projects targeting EU markets, the equivalent S235JR grade under EN 10219 may be required — and the certification documentation must reflect the actual standard specified in the contract, not a substituted grade. Hot-dip galvanizing to 300 g/m² minimum meets ISO 1461 requirements for long-term atmospheric corrosion protection, which is critical for scaffolding and fencing applications exposed to weather cycles. Threaded ends with NPT or BS couplings reduce on-site processing time for fluid transport installations, while beveled ends prepare the pipe for field welding in structural frames. [NEED_CITE: ASTM A53 Grade B material requirements for structural and fluid applications]
Understanding GRB Steel Grade and ERW Process Fundamentals
GRB is a non-alloy carbon steel grade defined under ASTM A53 and BS 1387, positioned for general structural and low-pressure fluid service. It sits below higher-strength grades like GRB in the ASTM system, offering adequate formability and weldability for ERW pipe production without the cost premium of alloyed alternatives. The ERW (Electric Resistance Welded) process joins the strip edges through resistive heating under pressure — producing a consistent longitudinal weld seam that is then normalized to match the base metal’s microstructure. This makes ERW pipe more cost-effective than seamless for non-high-pressure applications while maintaining dimensional consistency across long production runs. Hot-dip galvanizing immerses the finished pipe in molten zinc, creating a metallurgical bond between the zinc and the steel substrate that provides cathodic protection even if the coating is scratched during handling or installation.
Hidden Costs of Sourcing GRB Galvanized ERW Steel Pipe Without Verified Traceability
When wall thickness clusters at the negative tolerance edge, the theoretical weight on the mill test certificate no longer matches the actual delivered weight — and the buyer absorbs the difference. Material certificates referencing heat numbers that cannot be traced to a specific production batch create customs clearance delays and third-party inspection failures. Substituted steel grades that do not meet GRB chemistry requirements may pass visual inspection but fail during structural load testing or welding procedure qualification. Galvanizing thickness below 300 g/m² accelerates corrosion in outdoor applications, leading to premature coating failure and costly replacement during the structure’s service life. [NEED_CITE: material traceability requirements for structural steel procurement]
Why Procure GRB Galvanized ERW Steel Pipe From Our Integrated Mill
Our own steel mill produces over 2,800 specifications of raw material that feed directly into the ERW pipe production line — there is no intermediate supplier between the billet and the finished galvanized bundle. Every GRB galvanized ERW steel pipe carries a Mill Test Certificate with heat number traceability back to our own production, verified by our in-house laboratory before the pipe enters the galvanizing bath. We hold ISO 9001 certification and offer third-party inspection through SGS, BV, or TÜV for dimensional verification, coating thickness measurement, and weld seam quality. Our fabrication division provides downstream services including cutting, drilling, welding, and surface treatment — so if your project requires fabricated components from this pipe, the entire supply chain remains under one quality system. Professional loading and container optimization ensure the galvanized coating is protected during ocean transit, with edge protectors and bundle strapping designed for zinc-coated surfaces.
Documentation & Compliance
- Mill Test Certificate documenting GRB chemical composition and dimensional inspection results per ASTM A53 / BS 1387, with heat number traceability to our own mill production
- ISO 9001 quality management system certificate covering the integrated production from raw strip to hot-dip galvanized finished pipe
- Third-party inspection report from SGS, BV, or TÜV verifying outer diameter, wall thickness, zinc coating thickness, and weld seam quality
- Material traceability documentation linking each bundle to the specific heat number and production date, supporting customs clearance and project handover requirements
- Complete export documentation package including packing list, bill of lading, and certificate of origin formatted for the destination country’s import regulations
Packaging, Loading & Delivery

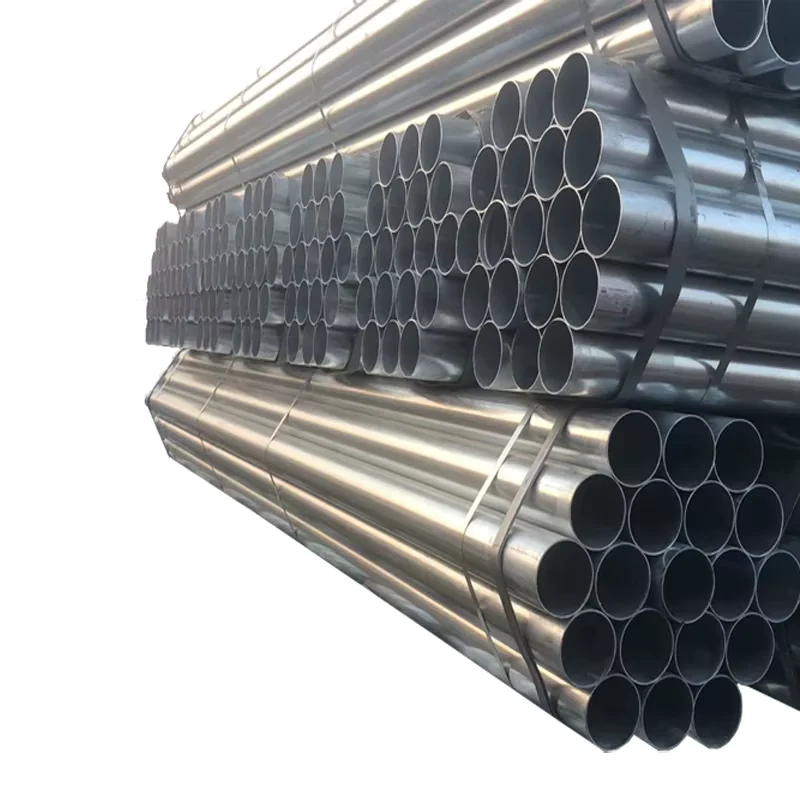

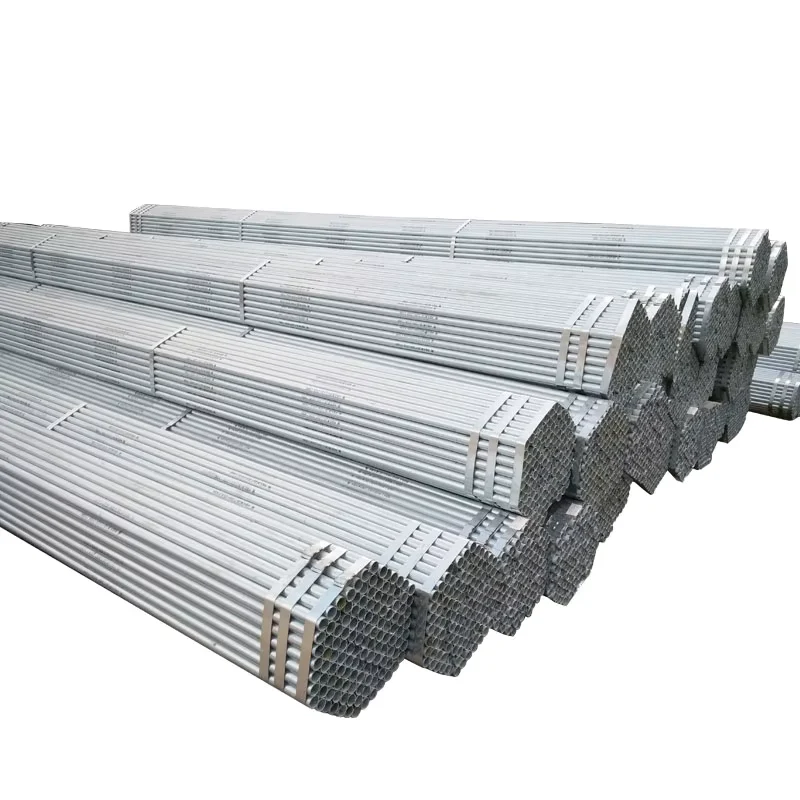

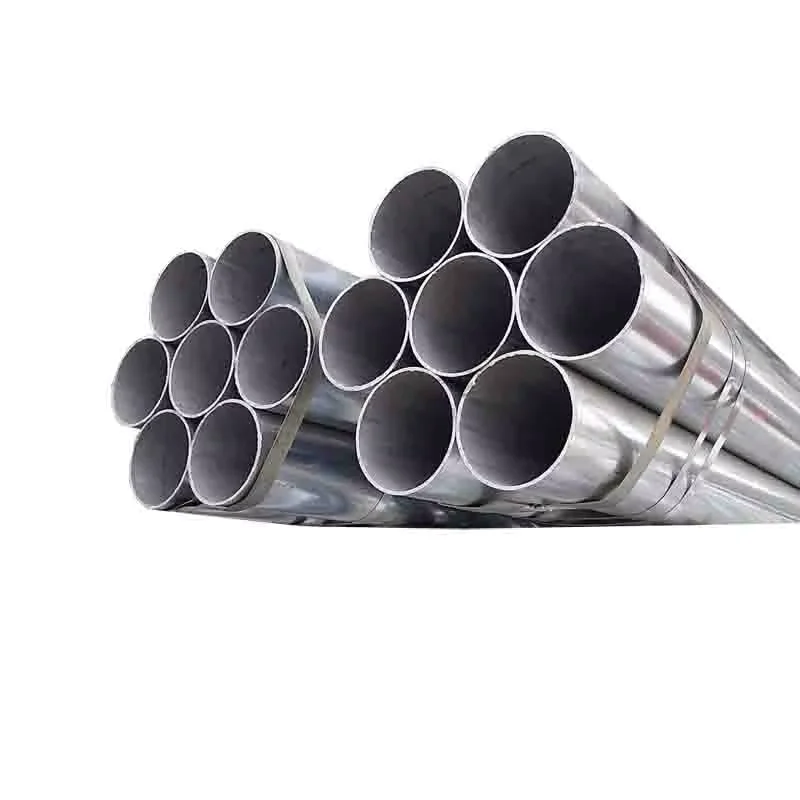

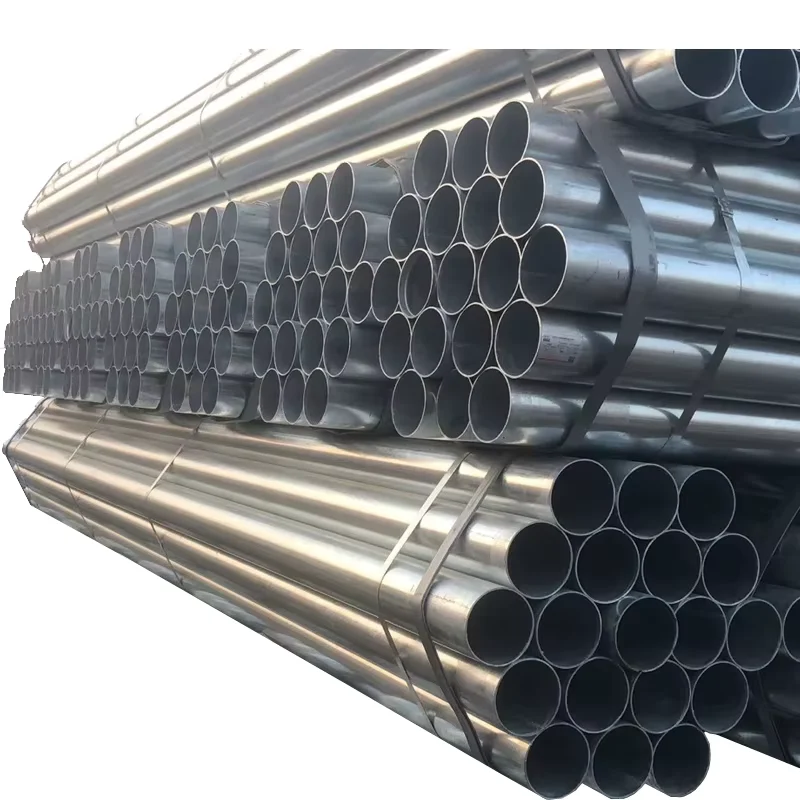

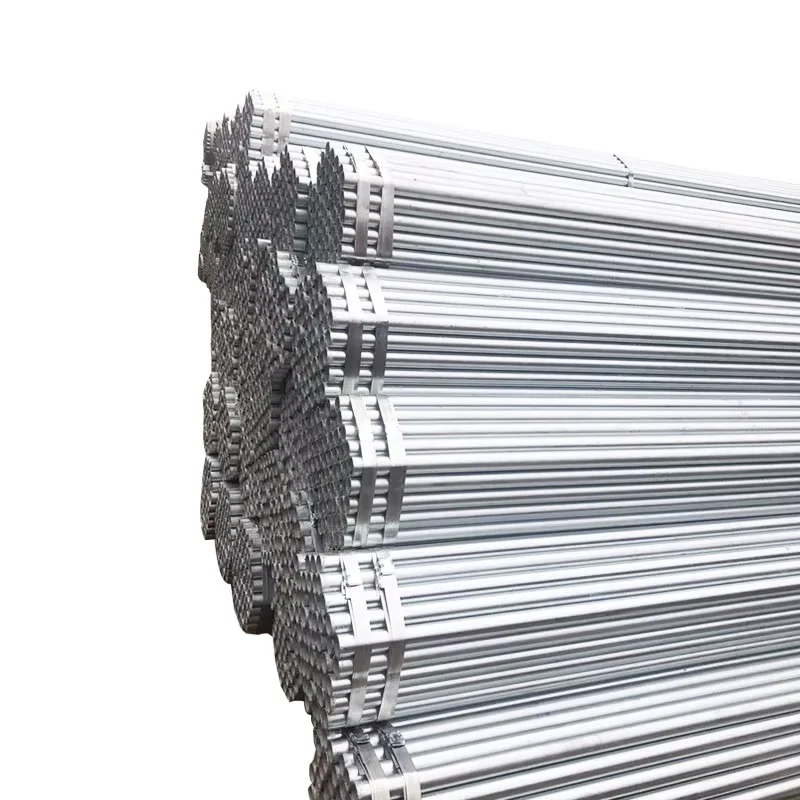

- GRB galvanized ERW steel pipe bundled with steel strips and edge protectors to preserve the zinc coating during ocean transit and prevent mechanical damage at contact points

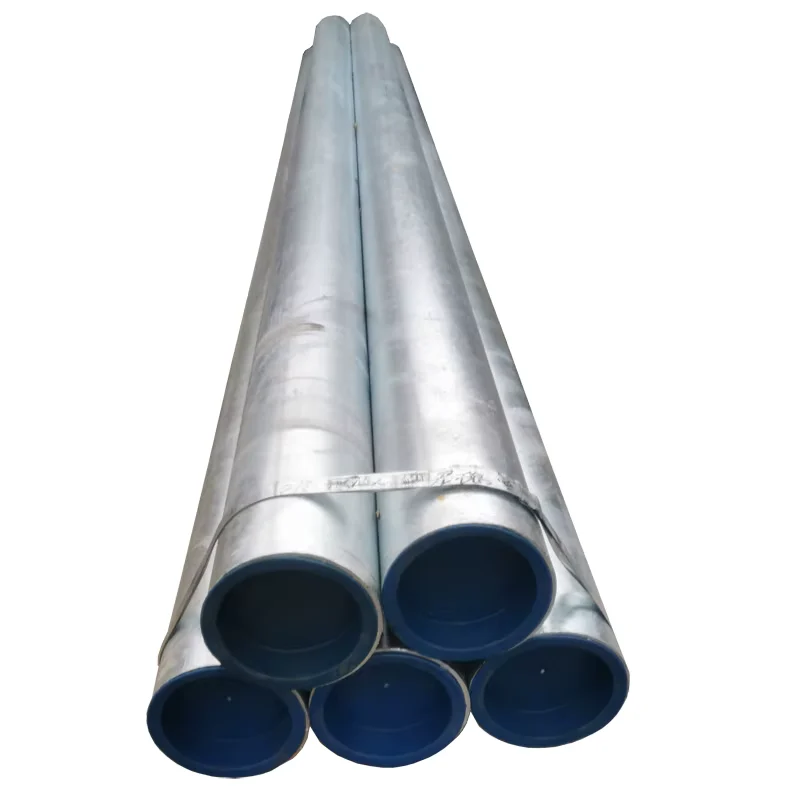

- Hot-dip galvanized surface protected by plastic end caps on both pipe ends, preventing moisture ingress and thread damage for coupled pipe deliveries
- Container loading optimized for 5.8 m and 6 m standard lengths in 20ft containers, with 12 m lengths requiring 40ft open-top or flat-rack arrangements for oversized shipments
- Threaded ends with NPT or BS couplings pre-assembled and wrapped individually to prevent cross-threading and zinc flaking during handling
- Heat number and GRB grade stenciled on each bundle tag, matching the Mill Test Certificate for site verification upon arrival
- FOB, CIF, and DDP shipping terms available with professional export packing and complete documentation for customs clearance at destination port
Requesting a Quotation for Your GRB Galvanized ERW Steel Pipe Project
Submit your project specifications including outer diameter, wall thickness, total quantity, end finish preference, and destination port — we respond within 24 hours with a detailed quotation covering material, galvanizing, packing, and shipping costs. For projects requiring third-party inspection or specific certification documentation, confirm these requirements at the inquiry stage so we can include them in the production schedule and pricing.
Start Your GRB Galvanized ERW Steel Pipe Inquiry
Share your project drawings and specifications to receive a quotation with full Mill Test Certificate documentation.
