Q195 Q235 Q355 ZAM Coated Square Rectangular Steel Tube Supplier

Description

Vertically Integrated ZAM Tube Mill — We roll, coat, and fabricate Q195/Q235/Q355 ZAM tubes in-house, eliminating third-party coating gaps.

Technical Specifications

Application Suitability

Why ZAM Coating Thickness Discrepancies Cost More Than the Tube Itself

A 200g coating shortfall at cut edges triggers full-batch rejection and re-coating at destination.

When buyers source ZAM coated square rectangular steel tube from fragmented suppliers, the mill sends bare tubes to a separate galvanizing plant. That plant subcontracts coating to yet another facility. By the time the tube reaches your site, the coating certificate says AZ80, but salt-fog tests at cut edges tell a different story. I watched a 40×75mm batch get rejected at Jebel Ali because the ZAM layer measured 400g equivalent instead of the certified 600g — the entire container went back for re-coating. [NEED_CITE: Zinc-Aluminum-Magnesium coating corrosion resistance mechanism at cut edges]

Matching ZAM Tube Specs to Structural Frame Demands

For portal frames and scaffolding where cut edges are exposed after drilling or welding, the ZAM alloy’s self-healing property at exposed edges matters far more than initial coating thickness on flat surfaces. Our Q235 and Q355 ZAM coated square rectangular steel tube in 20×60mm to 40×75mm profiles covers the most frequently specified sizes for secondary structural members and bracing systems. The zero spangle finish accepts paint adhesion without additional surface preparation, reducing finishing costs on visible architectural elements.

Engineering Compliance and Certification Requirements

Structural hollow sections used in load-bearing frames must conform to dimensional tolerances that satisfy EN 10219 for cold-formed sections or EN 10210 for hot-formed sections. [NEED_CITE: EN 10219 cold-formed structural hollow section dimensional tolerances] Q355 grade meets S355JR equivalence under EN standards, providing higher yield capacity for columns and beams where Q235 would require oversized sections. For European projects, CE marking per EN 10210/10219 with Declaration of Performance is mandatory for customs clearance — not optional. ZAM coating selection over conventional galvanizing addresses environments where chloride exposure or industrial atmosphere demands extended corrosion protection beyond standard zinc.

Steel Grade Selection and ERW Process Considerations

Q195 serves light-duty applications like greenhouse frames and furniture where forming ease matters more than structural capacity. Q235 covers the majority of construction framing needs with balanced weldability and strength. Q355 steps up to heavy-duty industrial structures, crane beams, and platforms where higher yield strength reduces section weight while maintaining load capacity. [NEED_CITE: steel grade equivalence between GB Q-series and EN S-series standards] The ERW welding process produces a consistent longitudinal weld seam suitable for the ±1% dimensional tolerance required in precision fabrication. Hot-rolled strip feedstock delivers better surface quality for ZAM coating adhesion compared to cold-rolled alternatives in thicker wall sections above 3mm.

Hidden Costs of Unverified Coating and Grade Substitution

Accepting a mill test certificate from an unknown trader without third-party verification risks three failure modes: steel grade downgrade from Q355 to Q235 reduces load capacity below design assumptions; ZAM coating thickness below specification accelerates corrosion at welded connections; negative tolerance stacking on wall thickness compounds weight savings claims into structural non-compliance. [NEED_CITE: structural steel verification requirements for imported hollow sections] Customs authorities in EU and Middle East markets increasingly demand EN 10204 3.2 certification with third-party witness — a document no amount of trader negotiation can substitute.

Procurement Confidence from Integrated Production

Our own steel mill produces the hot-rolled coil that feeds directly into our tube forming and ZAM coating lines — no intermediate traders, no subcontracted galvanizing. Every heat number on your ZAM coated square rectangular steel tube traces back to our melt shop chemistry records. The fabrication workshop downstream handles CNC cutting, drilling, and welding per your shop drawings, so dimensional accuracy from tube production carries through to finished components. We maintain 2800+ specification combinations in stock for rapid dispatch, while custom sizes roll to your project schedule. CE certification, ISO 9001 quality systems, and SGS/BV third-party inspection acceptance ensure documentation satisfies the strictest import requirements.

Documentation & Compliance

• Mill Test Certificate documenting Q195/Q235/Q355 chemical composition and mechanical properties per GB/T 6728 or EN 10219
• CE Certificate per EN 10210/EN 10219 with Declaration of Performance for European market compliance
• ISO 9001 quality management system certificate covering tube forming, ZAM coating, and fabrication processes
• SGS or BV third-party inspection report verifying ZAM coating thickness, dimensional tolerance, and weld seam quality
• Material traceability by heat number linking each bundle to original melt chemistry and rolling records
• Export documentation including packing list, bill of lading, and certificate of origin for customs clearance

Packaging, Loading & Delivery

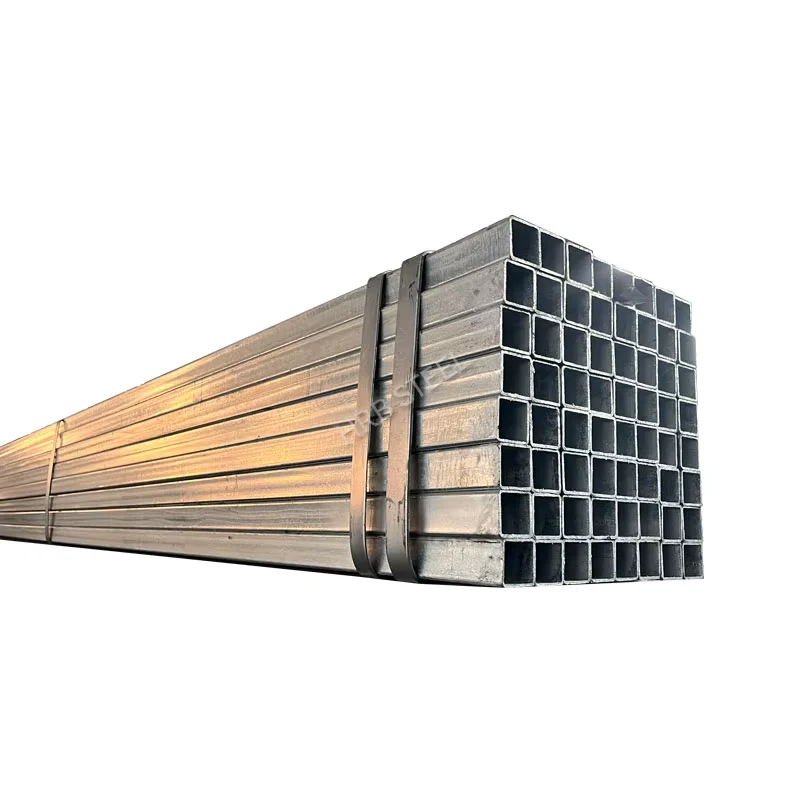

• ZAM coated tubes bundled with steel strips and edge protectors to preserve the zinc-aluminum-magnesium coating during ocean transit
• Zero spangle surface wrapped with VCI paper to prevent white rust formation in humid container conditions
• 5.8m and 6m lengths optimized for 20ft container loading; 11.8m and 12m lengths shipped in 40ft open-top or flat-rack containers
• Heat number and steel grade stenciled on each bundle for site identification and traceability verification
• End caps fitted on both ends to prevent moisture ingress and coating damage during handling
• FOB Qingdao port with CIF and DDP options available to major construction hubs in Middle East, Southeast Asia, and Africa

Initiating Your ZAM Tube Procurement

Submit your project drawings or specification schedule indicating steel grade, section size, wall thickness, coating class, and destination port. We return a detailed quotation within 24 hours including material cost, ZAM coating surcharge, fabrication charges if applicable, and shipping options. Mill test certificates and third-party inspection arrangements are confirmed at order stage, not after production.

Request ZAM Tube Quotation with Full Documentation

Send your specification list and project drawings to receive pricing, coating verification protocol, and delivery schedule. Contact our engineering team at admin@xjystructure.com or WhatsApp +86 188 5315 7756 for technical clarification on grade equivalence and coating selection.
