Description
Factory-direct galvanized SHS — vertically integrated from raw steel to finished Q235 hot galvanized square steel tube with full heat-number traceability.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | Q235 Hot Galvanized Square Steel Tube |
| Product Type | Square Steel Tube (SHS) |
| Steel Grade | Q195, Q235, Q345, SS400 |
| Standard | ASTM A53, ASTM A500, ASTM A36, ASTM A795, BS1387, EN10255, ISO65, ANSI C80, DIN2440, JIS G3444, GB/T3091, GB/T13793 |
| Section Shape | Square |
| Size Range (Side Length) | 21.3 mm – 660 mm (1/2″ – 26″) |
| Length | 5.8 m / 6 m / 11 m or as customer needs |
| Technique | ERW (Welded) |
| Surface Treatment | Hot Dipped Galvanized / Pre-Galvanized (Zinc Coated 40–600 g/m²) |
| Tolerance | ±1% |
| Pipe Ends | Plain ends / Beveled ends / Threaded ends / Grooved ends |
| Processing Service | Decoiling, Bending, Cutting, Punching, Welding |
| Oiled or Non-oiled | Non-oiled |
| Invoicing | By Theoretical Weight |
| Application | Steel structures / Construction frames / Mechanical support / Outdoor construction / Fluid transportation / Power / Boiler / Petrochemical / Building industry |
| MOQ | 1 Ton |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| EPC & Infrastructure | Steel frame structures, platform supports, truss assemblies for industrial plants and logistics centers |
| Commercial Construction | Building columns, beam-to-column connections, curtain wall sub-frames |
| Mechanical & Industrial | Conveyor structures, equipment support frames, mechanical housings |
| Power & Petrochemical | Pipe rack supports, cable tray systems, outdoor structural bracing |
| Outdoor & Agricultural | Fencing posts, greenhouse frames, solar panel mounting structures |
Where Zinc Coating Thickness Decides Whether Your Structure Survives a Coastal Job Site
A 45 μm coating on a project specified for 80 μm means the entire batch goes back to the acid bath — forty days of schedule gone.
I learned this the hard way on a commercial complex in Riyadh. A batch of Q235 hot-dipped galvanized square tubes arrived at site, and the third-party inspector found zinc coating at only 45 μm against a contract requirement of 80 μm minimum. The entire lot was rejected, returned for re-pickling and re-galvanizing, and the project schedule slipped by over a month. Since then, I monitor zinc bath temperature, immersion time, and cooling rate on every production run, and verify ASTM A500 wall thickness tolerance on each piece. [NEED_CITE: hot-dip galvanizing coating thickness requirements per ASTM A123]
When sourcing a Q235 hot galvanized square steel tube from overseas, the distance between buyer and fabricator creates real risk: coating thickness inconsistency, material traceability gaps, and certification documents that do not match the heat numbers on the steel. These are not abstract concerns — they translate directly into customs delays, failed site inspections, and costly rework.
How Hot-Dipped Galvanized SHS Meets Structural and Corrosion Demands on EPC Projects
A Q235 hot galvanized square steel tube with zinc coating up to 600 g/m² provides long-term corrosion protection for outdoor structural frames, platform supports, and bracing systems exposed to humid or saline environments. The ERW welding process produces consistent seam quality across side lengths from 21.3 mm to 660 mm, while the ±1% dimensional tolerance ensures that connection plates and gussets fit without on-site reaming. Multiple end treatments — plain, beveled, threaded, or grooved — allow direct integration into bolted or welded structural assemblies without secondary machining at the job site.
Engineering Compliance Requirements for Galvanized Structural Hollow Sections
Structural hollow sections used in load-bearing frames must conform to recognized engineering standards such as EN 10219 for cold-formed welded sections or ASTM A500 for cold-formed welded and seamless carbon steel tubing. [NEED_CITE: EN 10219 cold-formed hollow section dimensional and tolerances requirements] The choice between hot-dipped galvanizing (40–600 g/m²) and pre-galvanized coating depends on the corrosion severity of the installation environment — coastal, industrial, or rural. Steel grade equivalence matters for cross-border procurement: Q235 maps broadly to S235JR under EN standards and A36 under ASTM, but chemical composition limits and testing frequencies differ, and the mill test certificate must reflect the correct designation. [NEED_CITE: steel grade equivalence between GB, EN, and ASTM standards] Custom cut-to-length and end preparation reduce on-site waste and welding time, while certified welding procedures (WPS/PQR) ensure that any field modifications maintain structural integrity.
Understanding Steel Grade Selection and Galvanizing Process for Square Tubes
Q195, Q235, and Q345 represent a progression in yield strength within the Chinese steel grade system, where Q235 serves as the most widely specified grade for general structural applications due to its balance of formability and load-bearing capacity. SS400, the Japanese equivalent commonly requested in Southeast Asian projects, offers similar mechanical performance to Q235. The ERW (Electric Resistance Welding) process used to produce these square tubes creates a longitudinal weld seam that is subsequently hot-dipped galvanized, ensuring both the base metal and the weld zone receive full zinc coverage. Hot-dipped galvanizing immerses the fabricated tube in molten zinc, producing a metallurgical bond that delivers coating thicknesses significantly higher than pre-galvanized (electro-galvanized) alternatives — critical for structures expected to serve twenty years or more without maintenance. The ±1% tolerance on side length and wall thickness means that theoretical weight calculations remain reliable for cost estimation, though actual weight may vary slightly within this band.
The Hidden Cost of Buying Galvanized Tubes Without Verified Coating and Traceability
Purchasing a Q235 hot galvanized square steel tube based on price alone, without verified coating thickness and heat-number traceability, exposes the project to multiple failure modes: zinc coating below specification leads to premature corrosion and failed inspector sign-off; missing or mismatched mill test certificates trigger customs holds and documentation rejection; negative wall thickness beyond allowable tolerance reduces structural load capacity and may require engineering re-assessment. [NEED_CITE: ASTM A500 dimensional tolerance requirements for structural tubing] These are not theoretical risks — they represent real costs in the form of re-galvanizing charges, air-freight for replacement material, and schedule penalties on fixed-date projects.
Why Procure Galvanized SHS From a Vertically Integrated Source
Our production model eliminates the gap between raw material supplier and fabricator. We operate our own steel mill with three production lines and maintain over 2,800 specifications of raw material in stock, meaning every Q235 hot galvanized square steel tube we deliver traces back to a single heat number and a single quality system. This vertical integration gives us direct control over zinc bath chemistry, immersion duration, and coating weight — the very parameters that determined the outcome of that Riyadh project. Our fabrication workshop handles CNC cutting, drilling, welding, and shot blasting in-house, so shop drawing revisions do not require re-coordination with a separate processor. We hold certified welding procedures per AWS and EN standards, and our quality documentation package includes WPS, PQR, weld maps, dimensional inspection reports, and coating thickness reports — the complete set that EPC inspectors and customs authorities require.
Documentation & Compliance
- Mill test certificate (EN 10204 3.1) documenting Q235 chemical composition and mechanical properties per GB/T3091, with heat number traceability to our own steel production
- Coating thickness inspection report verifying hot-dipped galvanized zinc layer at specified g/m² range (40–600 g/m²) per ASTM A123 or ISO 1461
- Third-party inspection report from SGS, BV, or TÜV covering dimensional accuracy, coating adhesion, and surface quality
- Dimensional inspection report confirming side length, wall thickness, and straightness within ±1% tolerance per ASTM A500
- Complete export documentation package: commercial invoice, packing list, bill of lading, and certificate of origin
- Welding procedure specifications (WPS) and procedure qualification records (PQR) per AWS D1.1 or EN ISO 15614 for any fabricated connections
Packaging, Loading & Delivery

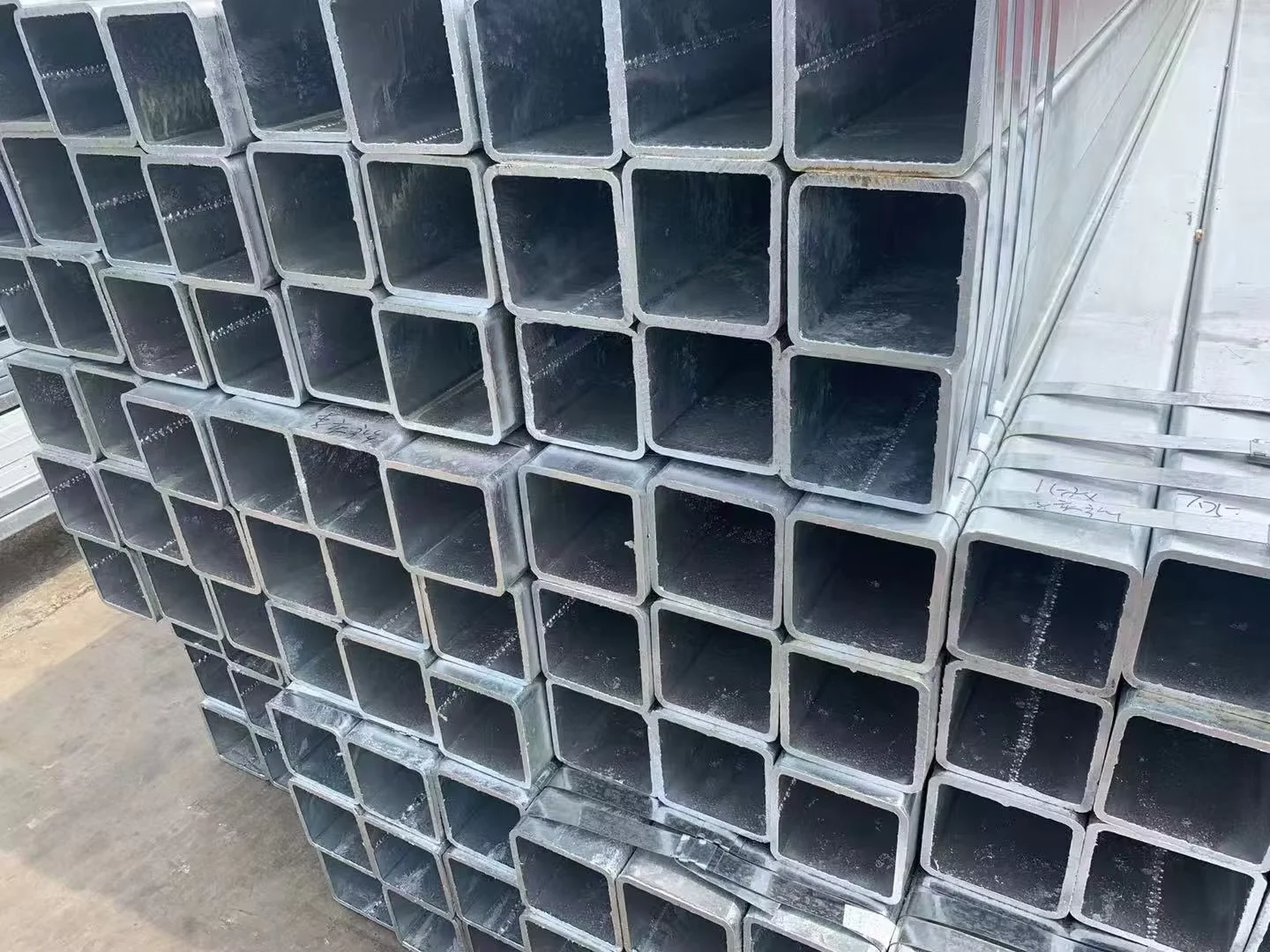

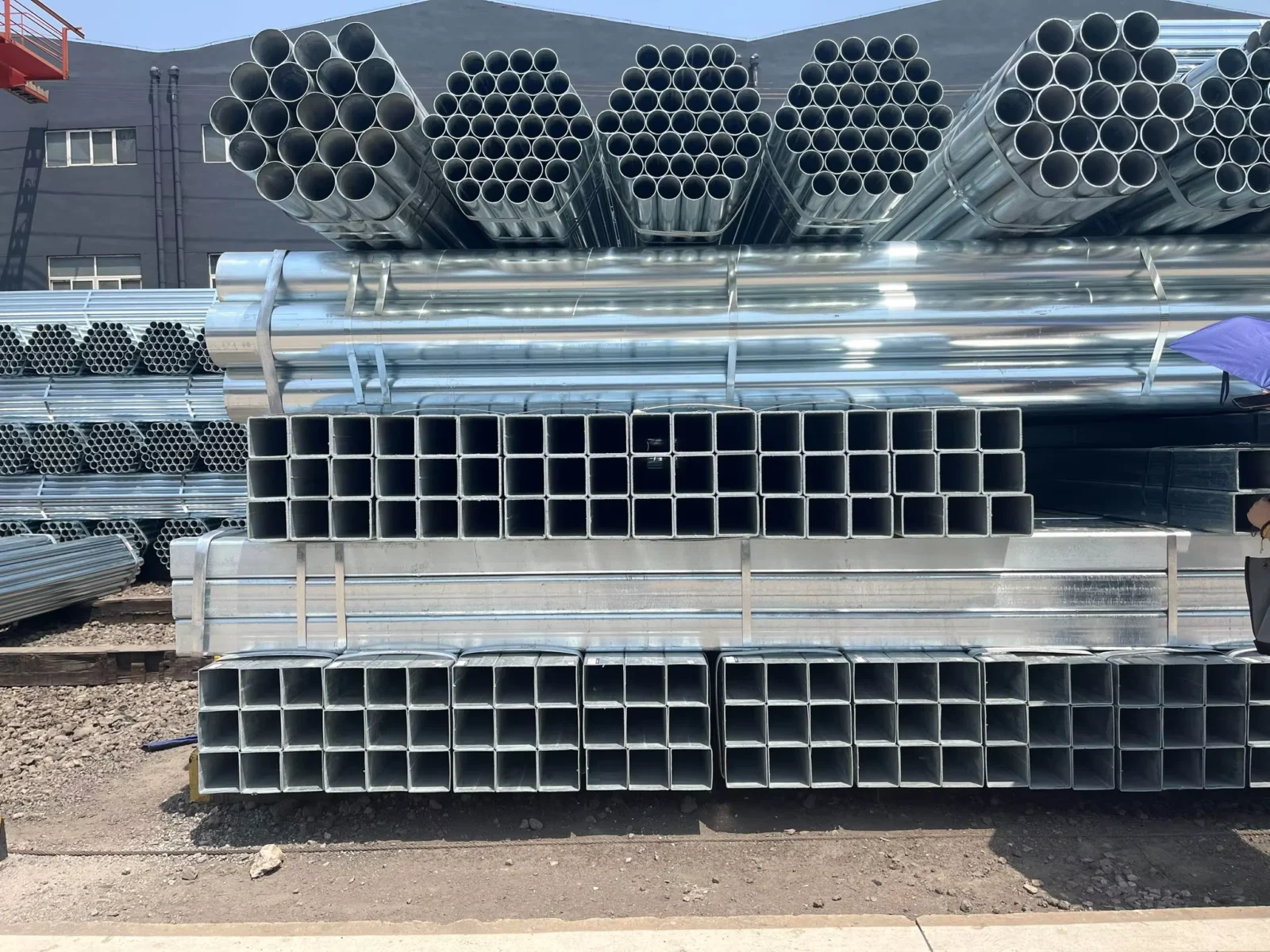

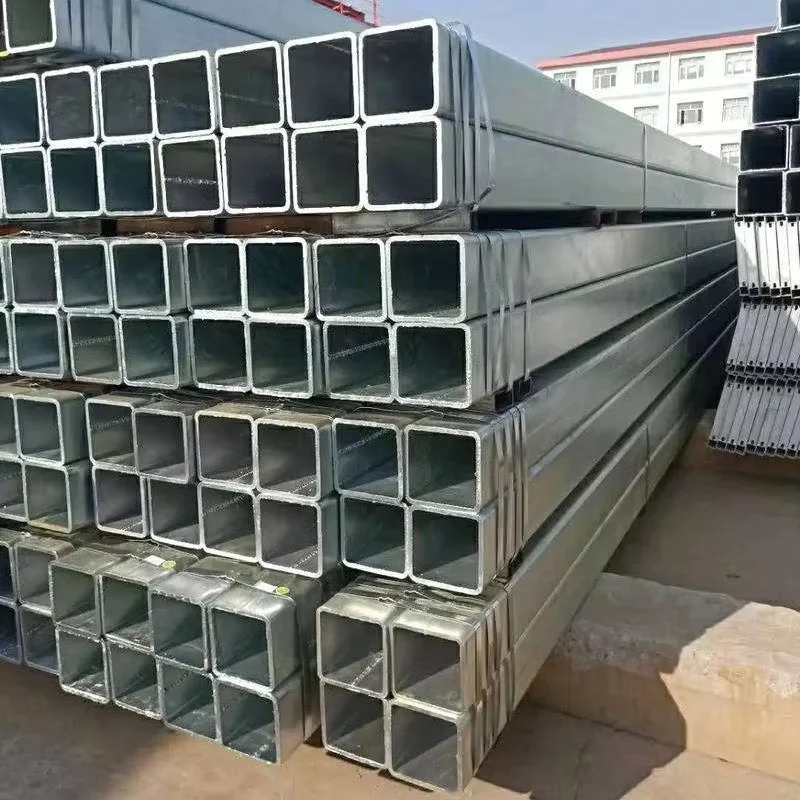

- Q235 hot galvanized square tubes bundled with steel strips and edge protectors to preserve the zinc coating during ocean transit and prevent mechanical damage
- Seaworthy packaging with waterproof wrapping for lengths of 5.8 m, 6 m, and 11 m, optimized for 20ft and 40ft container loading with nested stacking for smaller side lengths
- Heat number and steel grade (Q235/Q345) stenciled on each bundle for site identification and traceability verification upon arrival
- Custom cut-to-length service available for project-specific dimensions, with cut ends protected against corrosion during transport
- FOB, CIF, and DDP shipping terms supported, with professional loading plans for oversized SHS sections exceeding standard container dimensions
- Non-oiled surface condition as standard, with optional light oiling available for extended storage or high-humidity destination environments
Ready to Verify Coating Quality and Traceability Before You Commit
Submit your project drawings, required steel grade (Q235/Q345/SS400), coating specification, and destination port — we respond within 24 hours with a detailed quotation, shop drawing timeline, and sample mill test certificate from a recent production run. Confirm your dimensional requirements, end treatment preferences, and third-party inspection needs before contract signing, so there are no surprises at the galvanizing bath or the job site.
Request Your Quotation and Mill Test Certificate Today
Share your specifications, steel grade, and coating requirements to receive a detailed quote with complete quality documentation.
