Description

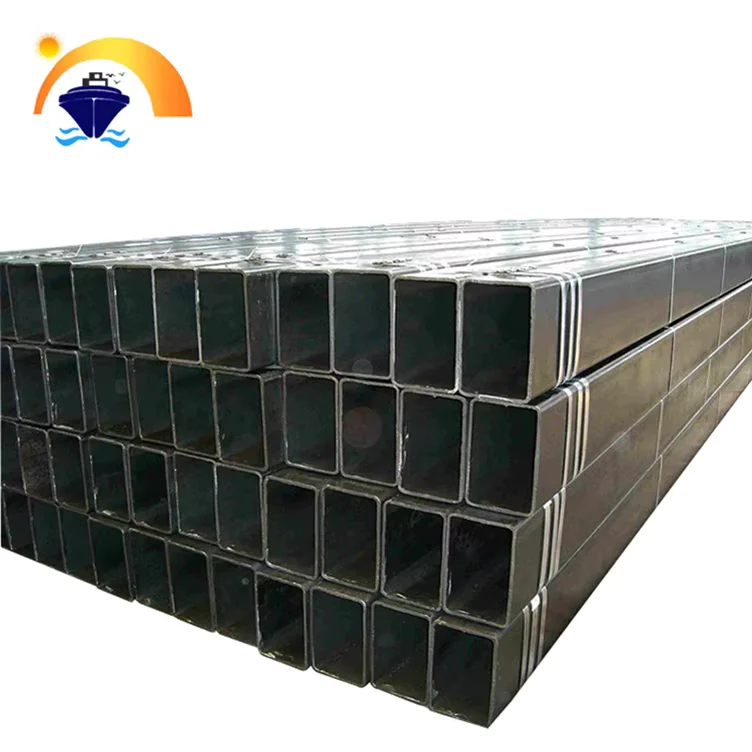

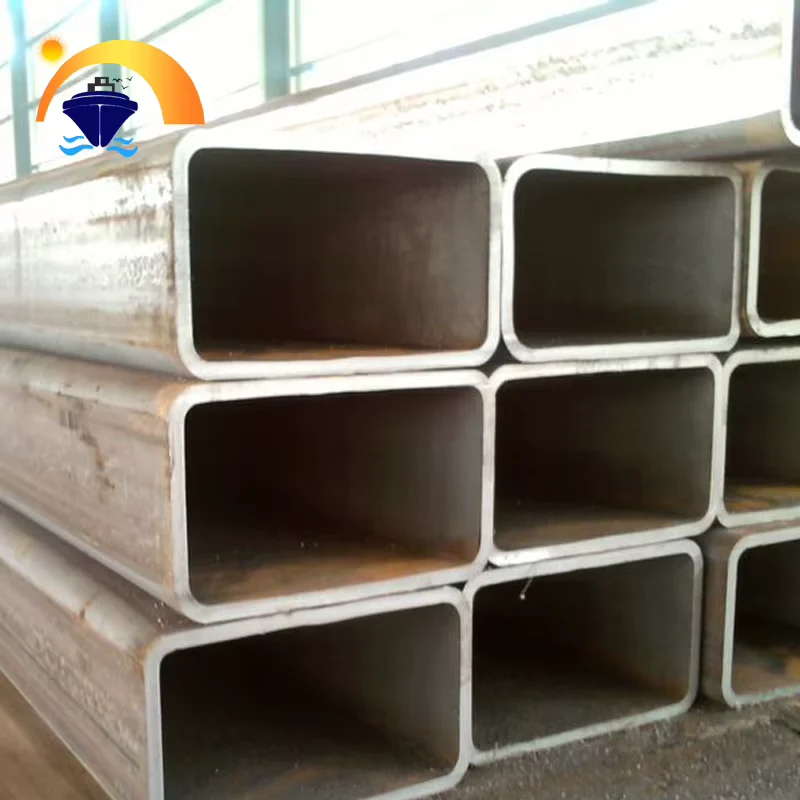

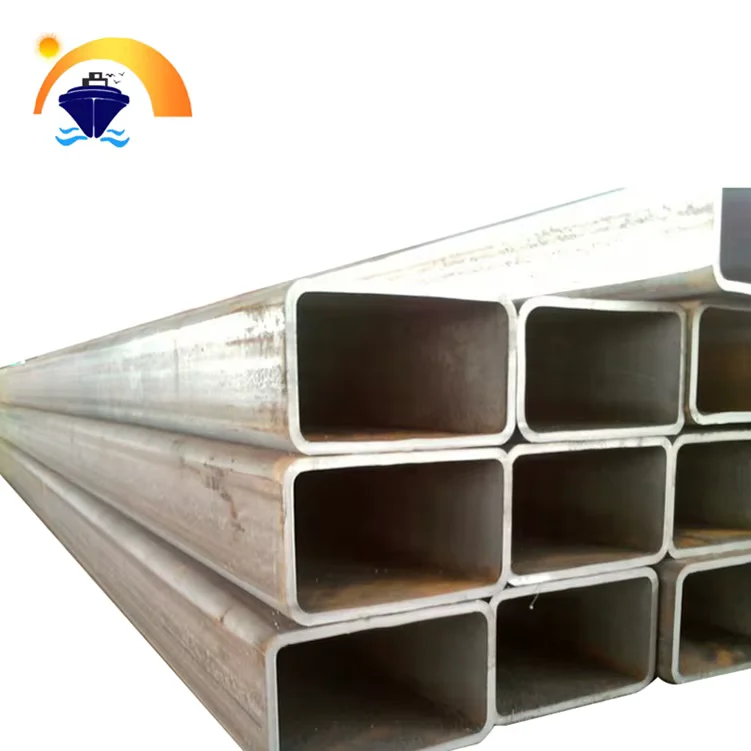

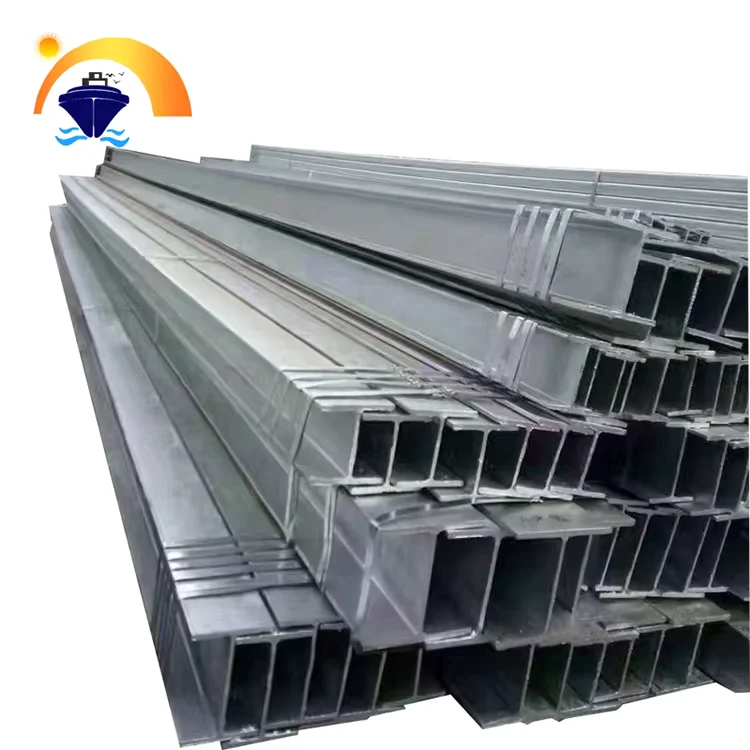

Factory-Direct Galvanized Rectangular Tubes — vertically integrated from raw steel coil to finished ASTM-grade sections, eliminating third-party sourcing gaps.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | Q235/Q345 Galvanized Rectangular Steel Tube |
| Product Type | Rectangular Steel Tube (Galvanized) |
| Steel Grade | Q195, Q215, Q235, Q345 |
| Standard | GB, API, JIS, SNI, BIS |
| Section Shape | Rectangular / Square |
| Size Range | 10–914 mm outer diameter |
| Technique | ERW (Welded) |
| Surface Treatment | Hot-Dip Galvanized |
| Tolerance | ±5% |
| Length | Customizable per customer request |
| Ends | Plain / Beveled (per requirement) |
| Application | Construction structures / Steel frameworks / Scaffolding / Industrial facilities / Infrastructure projects |
| Packing | Customized export packing |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Commercial Construction | Building frames, column-beam assemblies, mezzanine platforms |
| Industrial Facilities | Factory warehouse structures, conveyor support frames, equipment platforms |
| Infrastructure | Scaffolding systems, bridge handrails, signage gantries |
| EPC Projects | Structural steel packages for Middle East and Southeast Asian developments |
What Dimensional Tolerance Costs on a Structural Frame Order
Tight tolerance on hot-dip galvanized rectangular tubes prevents on-site rework and weld-fit failures.
When ASTM Galvanized Rectangular Steel Tube shipments arrive with inconsistent section dimensions, fitters spend hours grinding and re-cutting before any weld can begin. Zinc coating thickness variation compounds the problem — thin spots corrode prematurely while thick spots crack during bending. On a recent warehouse project in West Africa, the contractor received tubes from a trader who had outsourced galvanizing to a separate facility. The coating peeled during bolting, and dimensional drift meant every connection plate needed re-drilling. That single oversight cost three weeks of delay and a full recoating order. [NEED_CITE: hot-dip galvanizing coating thickness standards ASTM A123]
Matching Load Requirements Across Q235 and Q345 Grades
For portal frames and bracing members in industrial warehouses, Q235 offers sufficient yield capacity at lower cost, while Q345 serves primary columns and long-span trusses where higher strength reduces section weight. The ASTM Galvanized Rectangular Steel Tube range covers both grades, allowing engineers to specify material based on structural analysis rather than availability constraints. Hot-dip galvanizing adds corrosion resistance without altering the base steel’s mechanical behavior, making these tubes suitable for coastal and high-humidity environments where painted alternatives degrade within years.
Structural Compliance and Certification Pathways
Engineering specifications for ASTM Galvanized Rectangular Steel Tube projects typically reference load-bearing codes that demand traceable mill certificates and verified coating weights. Our in-house steel mill produces Q195 through Q345 grades with full heat-number traceability, while the galvanizing line maintains coating thickness records per batch. For EU-bound shipments, EN 10219 cold-formed hollow section requirements apply, and our fabrication division holds the necessary welding procedure qualifications to support CE marking documentation. [NEED_CITE: EN 10219 cold-formed hollow section requirements]
Understanding ERW Welding and Hot-Dip Galvanizing for Structural Use
ERW (Electric Resistance Welding) forms rectangular and square sections from steel coil with a longitudinal seam that undergoes full galvanizing coverage — unlike seamless alternatives, ERW offers cost efficiency at structural dimensions above 100 mm. Hot-dip galvanizing immerses the welded tube in molten zinc, creating a metallurgical bond that protects both exterior and interior surfaces. The ±5% dimensional tolerance ensures that connection plates and gussets fit without modification, while customizable lengths up to project specifications reduce on-site cutting waste and preserve the zinc layer at cut points.
Hidden Costs of Unverified Galvanized Tube Procurement
Purchasing ASTM Galvanized Rectangular Steel Tube from trading companies without mill-direct control introduces risks that surface only during installation: coating thickness below specification triggers rejection at site inspection, mixed heat numbers complicate weld procedure qualification, and oversized tolerance forces expensive field modifications. Projects in the Middle East and Africa increasingly require third-party inspection reports before shipment release, and documentation gaps delay customs clearance for weeks. [NEED_CITE: structural steel quality verification requirements international projects]
Integrated Production Control From Coil to Coating
Our vertically integrated facility operates three steel production lines producing over 2,800 specifications of raw material, then feeds the fabrication division where ERW welding and hot-dip galvanizing occur under one quality management system. This eliminates the material-traceability gap that occurs when fabricators source black tubes from third parties and outsource galvanizing separately. Each ASTM Galvanized Rectangular Steel Tube order ships with mill test certificates showing chemical composition and mechanical properties from our own laboratory, plus coating thickness measurements recorded during galvanizing. For projects requiring third-party validation, we coordinate SGS or BV inspection at our facility before container loading.
Documentation & Compliance
- Mill Test Certificate documenting Q235/Q345 chemical composition and mechanical properties per GB standards with heat-number traceability
- Galvanizing coating thickness report showing measurements across tube surfaces per batch
- SGS or BV third-party inspection report available upon request prior to shipment
- Material traceability certificate linking each tube bundle to its production heat number
- Export documentation including packing list, bill of lading, and certificate of origin for customs clearance
- Welding procedure specifications and welder qualification records for fabricated connections
Packaging, Loading & Delivery

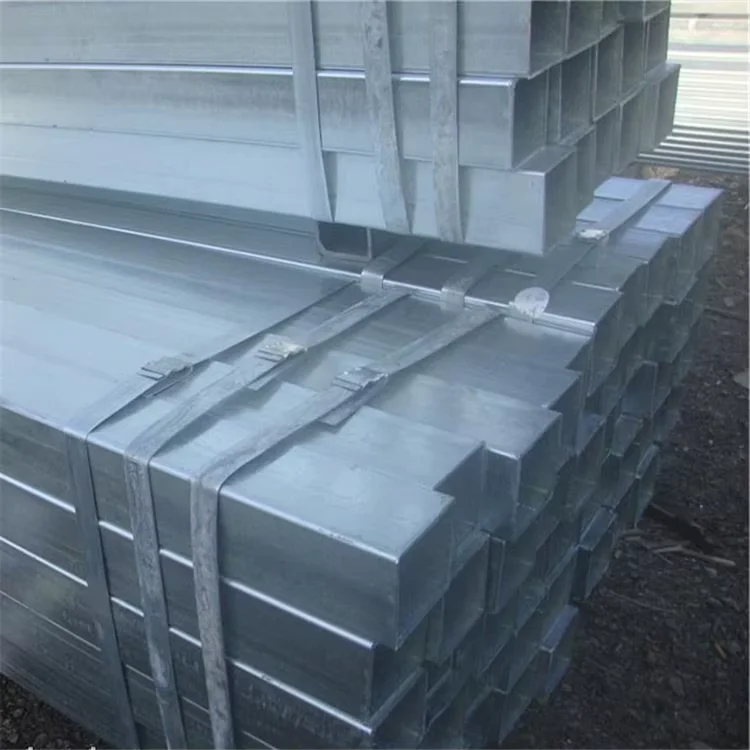

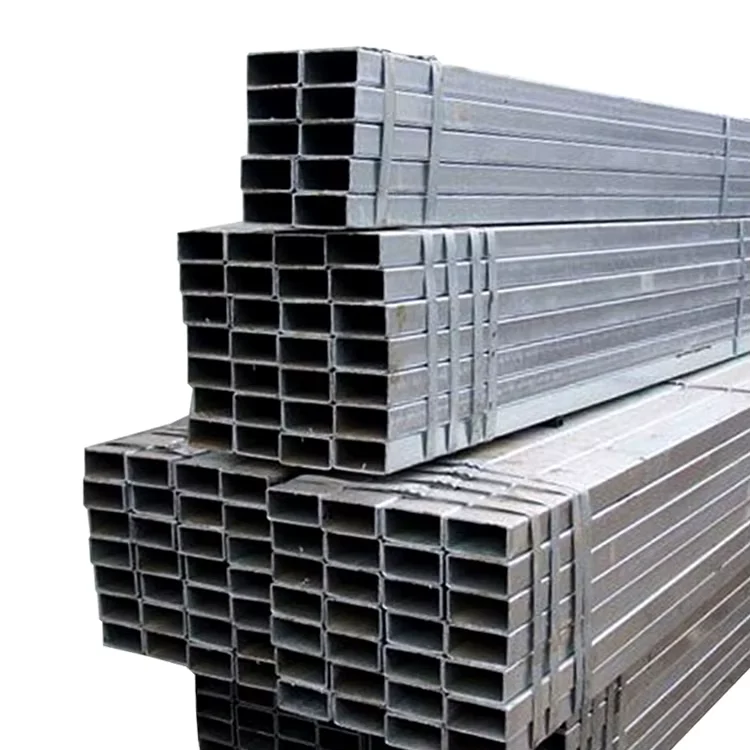

- Hot-dip galvanized Q235/Q345 rectangular tubes bundled with steel strips and edge protectors to prevent zinc coating damage during handling
- Seaworthy packaging with waterproof wrapping for ocean transit, preserving galvanized surface integrity across humid climates
- Container loading optimized for 10–914 mm section sizes, maximizing weight utilization while protecting tube ends from deformation
- Custom length cutting per project specifications reduces on-site waste and maintains galvanized coverage at cut points
- Heat number and steel grade markings stenciled on each bundle for site identification and traceability verification
- FOB, CIF, and DDP shipping terms available with professional oversized cargo loading for large-dimension sections
Initiating Your ASTM Galvanized Rectangular Steel Tube Inquiry
Submit your project drawings with specified steel grades, section dimensions, quantities, and destination port to receive a detailed quotation including material cost, galvanizing treatment, export packing, and shipping. Our engineering team reviews shop drawings within 24 hours and confirms coating thickness requirements, dimensional tolerances, and certification documentation needed for your project’s compliance framework.
Frequently Asked Questions
Q: What is the difference between Q235 and Q345 galvanized rectangular tubes for structural use?
A: Q235 provides adequate strength for secondary structures and bracing at lower cost, while Q345 offers higher yield strength for primary load-bearing members like columns and long-span beams. Both grades receive identical hot-dip galvanizing treatment for corrosion protection.
Q: Can you provide third-party inspection and material traceability documentation?
A: Yes, we coordinate SGS or BV inspection at our facility before shipment, and every tube bundle carries heat-number traceability linking back to our in-house steel mill production records.
Q: What is the coating thickness standard for hot-dip galvanized tubes?
A: Hot-dip galvanizing follows GB standards for coating thickness, and we provide detailed coating measurement reports with each shipment. Specific requirements can be confirmed during quotation based on your project specifications.
Q: How do you handle custom lengths and non-standard dimensions?
A: We cut tubes to your specified lengths during production, and our 2,800+ specification range covers most standard and non-standard rectangular and square sections. Custom dimensions are confirmed during shop drawing review.
Q: What are the loading and shipping considerations for oversized galvanized tubes?
A: Large-dimension sections require specialized container loading with proper support to prevent deformation. We provide professional lashing and blocking for oversized cargo, with complete export documentation for smooth customs clearance.
Get Your ASTM Galvanized Rectangular Steel Tube Quote With Full Mill Certification
Send your project specifications including steel grade, section size, quantity, and destination to receive pricing and material documentation within 24 hours.
