Description
Factory-direct galvanized square tubes from integrated steel mill — Q195 to Q345 grades produced, welded, and hot-dip galvanized under one roof with full heat-number traceability from raw slab to finished section.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | Q235/Q345 Galvanized Square ERW Steel Tube |
| Product Type | Square / Rectangular Galvanized Steel Tube (SHS/RHS) |
| Steel Grade | Q195, Q215, Q235, Q345 |
| Standard | GB, JIS, API, SNI, BIS |
| Section Shape | Square, Rectangular, Round |
| Outer Diameter | 10–914 mm |
| Length | Customers’ Request |
| Technique | ERW (Electric Resistance Welded) |
| Surface Treatment | Hot-Dip Galvanized |
| Tolerance | ±5% |
| Ends | Plain / Customized |
| Application | Construction, Steel Structures, Building Frames, Scaffolding, Industrial Projects |
| Packing | Customized Packing |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| General Construction | Building frames, column-beam structures, roof trusses for commercial and residential projects |
| Industrial Facilities | Warehouse portal frames, factory support structures, equipment platforms |
| Infrastructure | Scaffolding systems, bridge handrails, sound barrier posts, solar mounting structures |
| EPC Projects | Pipe rack supports, conveyor frames, modular plant structures in petrochemical and mining sectors |
What Zinc Coating Thickness Actually Determines on a Galvanized Square Tube Order
Coating weight decides whether the structure survives its design life or starts rusting before handover.
When procurement teams source Hot-Dip Galvanized Square Steel Tube from overseas fabricators, the most common failure point is not the steel itself — it is the zinc layer. Inconsistent coating thickness at weld seams and inner corners leads to premature corrosion, especially in humid coastal or industrial atmospheres. Buyers who accepted the lowest quote without specifying minimum coating weight per GB/T 13912 or JIS H 8641 have faced on-site re-galvanizing costs that exceeded the original material savings. [NEED_CITE: hot-dip galvanized coating thickness standards for structural hollow sections]
How ERW Galvanized Square Tubes Match Structural Frame Requirements
Hot-Dip Galvanized Square Steel Tube in Q235 and Q345 grades serves as the primary load-bearing skeleton for warehouse portals, mezzanine floors, and modular industrial buildings. The ERW welding process produces a straight, consistent seam that integrates fully with the galvanizing bath — unlike spiral-welded alternatives where flux residue can cause coating adhesion failure. Our integrated mill-to-galvanizing line ensures the zinc layer bonds uniformly across the entire surface, including the weld zone, which is typically the weakest point in third-party-sourced tubes. For EPC contractors managing multi-site deliveries, having one source producing both the raw steel and the finished galvanized section eliminates material traceability gaps that delay customs clearance and site inspections.
Engineering Compliance and Certification Requirements for Galvanized Structural Tubes
Structural frames designed under GB 50017 or JIS A 4102 require verified material properties and documented coating performance. Hot-Dip Galvanized Square Steel Tube must carry mill test certificates showing chemical composition and mechanical properties per the specified grade — Q235 for general framing where moderate load capacity suffices, Q345 where higher yield strength reduces section size and self-weight. For projects targeting Middle East or Southeast Asian markets, compliance with SNI, BIS, or API standards adds another layer of documentation that many traders cannot provide. [NEED_CITE: structural hollow section certification requirements for international construction projects] Galvanizing thickness must meet the specified standard’s minimum value, and third-party inspection reports from SGS or BV are frequently required before shipment. Custom cut-to-length services reduce on-site welding and secondary corrosion risk at cut edges.
Steel Grade Selection and ERW Process Fundamentals
Q195 and Q215 are low-carbon grades suited for non-structural applications such as fencing, signage frames, and light-duty scaffolding where formability matters more than load capacity. Q235 remains the workhorse grade for general construction frames across China, Southeast Asia, and Africa — offering adequate yield strength for most building and warehouse structures at competitive cost. Q345 provides higher yield strength for heavy-load applications such as crane runways, industrial platforms, and large-span roof trusses, allowing engineers to specify smaller section sizes without compromising structural integrity. The ERW process uses electric resistance to fuse the tube seam without filler metal, producing a clean weld line that responds well to hot-dip galvanizing. [NEED_CITE: ERW welded hollow section manufacturing process and galvanizing compatibility] Hot-dip galvanizing immerses the finished tube in molten zinc, creating a metallurgical bond that provides both barrier protection and sacrificial cathodic protection — far superior to electro-galvanized or painted alternatives for outdoor and corrosive environments.
Hidden Costs of Procuring Galvanized Tubes Without Verified Compliance
Purchasing Hot-Dip Galvanized Square Steel Tube based on price alone, without confirmed mill test certificates and coating inspection reports, exposes projects to multiple failure modes. Material substitution — receiving Q195 when Q235 was specified — compromises structural safety and fails engineering audits. Thin or uneven zinc coating accelerates corrosion at weld seams, leading to costly on-site remediation or premature structural replacement. Missing or forged documentation triggers customs holds, demurrage charges, and project delays that dwarf any initial material savings. [NEED_CITE: consequences of non-compliant structural steel procurement in international projects]
Integrated Mill and Galvanizing Capability That Eliminates Supply Chain Gaps
Our facility operates its own steel production lines alongside the galvanizing and tube fabrication workshop — meaning the Q235 and Q345 Hot-Dip Galvanized Square Steel Tube you receive carries traceable heat numbers from raw slab through to final coated section. This vertical integration eliminates the material certification gaps that occur when fabricators purchase black tube from third-party mills and send it out for galvanizing. With 2,800+ specifications in stock and custom manufacturing capability, we cover the full diameter range from 10 mm to 914 mm without requiring buyers to split orders across multiple suppliers. Certified welding procedures, in-process dimensional checks, and complete QC documentation packages — including WPS, PQR, weld maps, and coating thickness reports — meet the requirements of international engineering standards. Professional loading plans for oversized sections and complete export documentation ensure smooth customs clearance across EU, Middle East, Southeast Asian, and African markets.
Documentation & Compliance
- Mill test certificate documenting Q235/Q345 chemical composition, yield strength, and tensile properties per GB/T 700 or GB/T 1591, with heat number traceability to raw material batch
- Hot-dip galvanized coating thickness report confirming compliance with GB/T 13912 or JIS H 8641 minimum requirements across all surfaces including weld zones
- SGS or BV third-party inspection report covering dimensional verification, coating adhesion testing, and visual surface quality before shipment
- Complete export documentation package including commercial invoice, packing list, bill of lading, and certificate of origin for customs clearance in destination country
- ISO 9001 quality management system certificate covering the integrated production process from steelmaking through galvanizing and final inspection
Packaging, Loading & Delivery

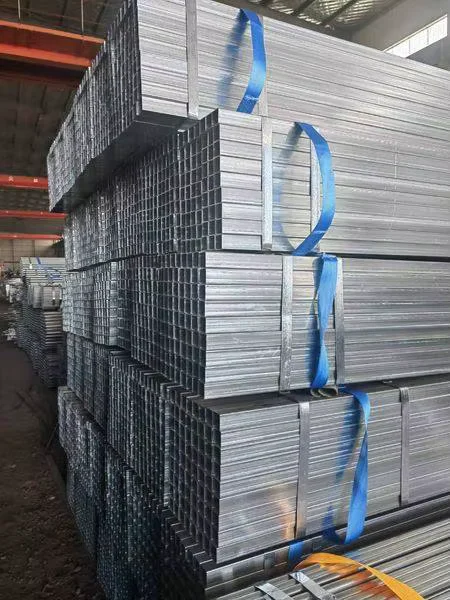

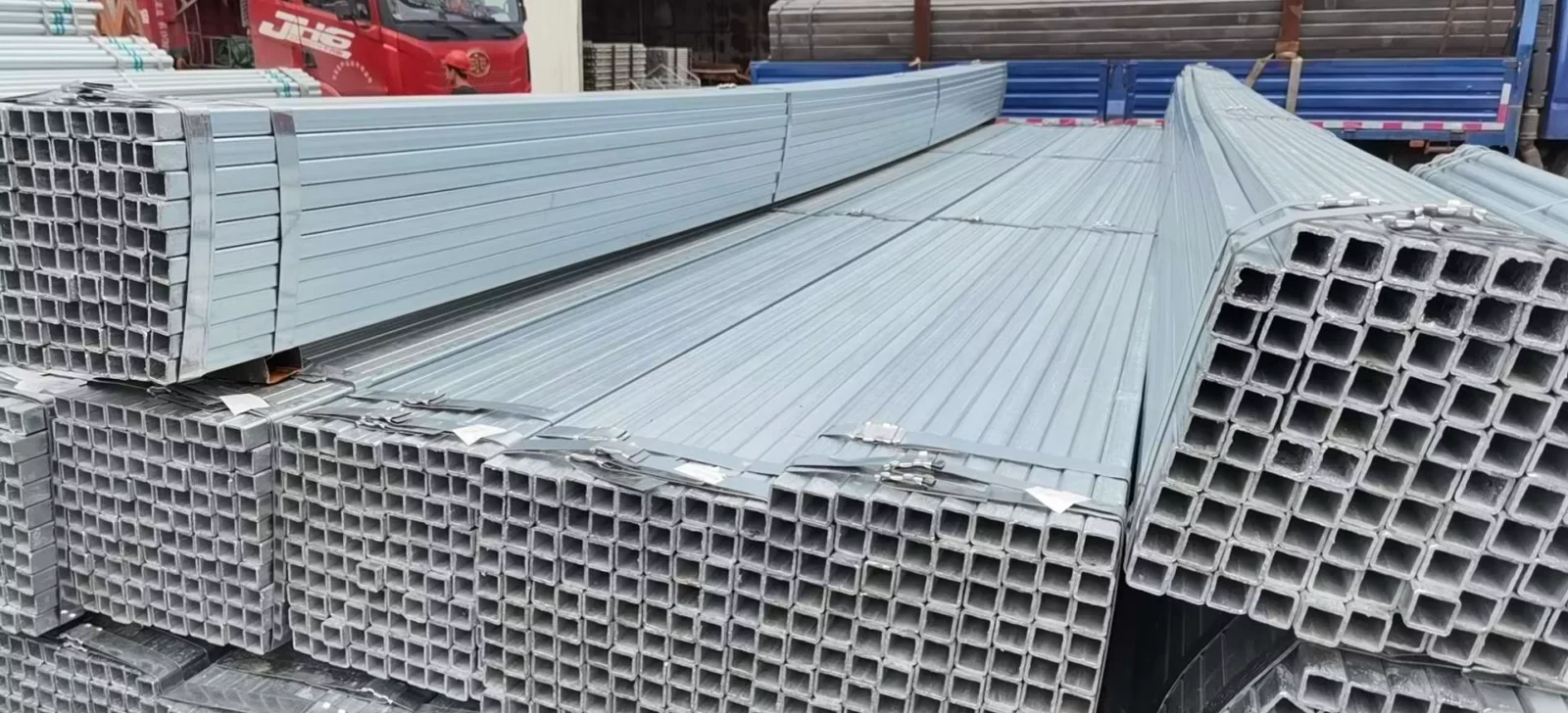

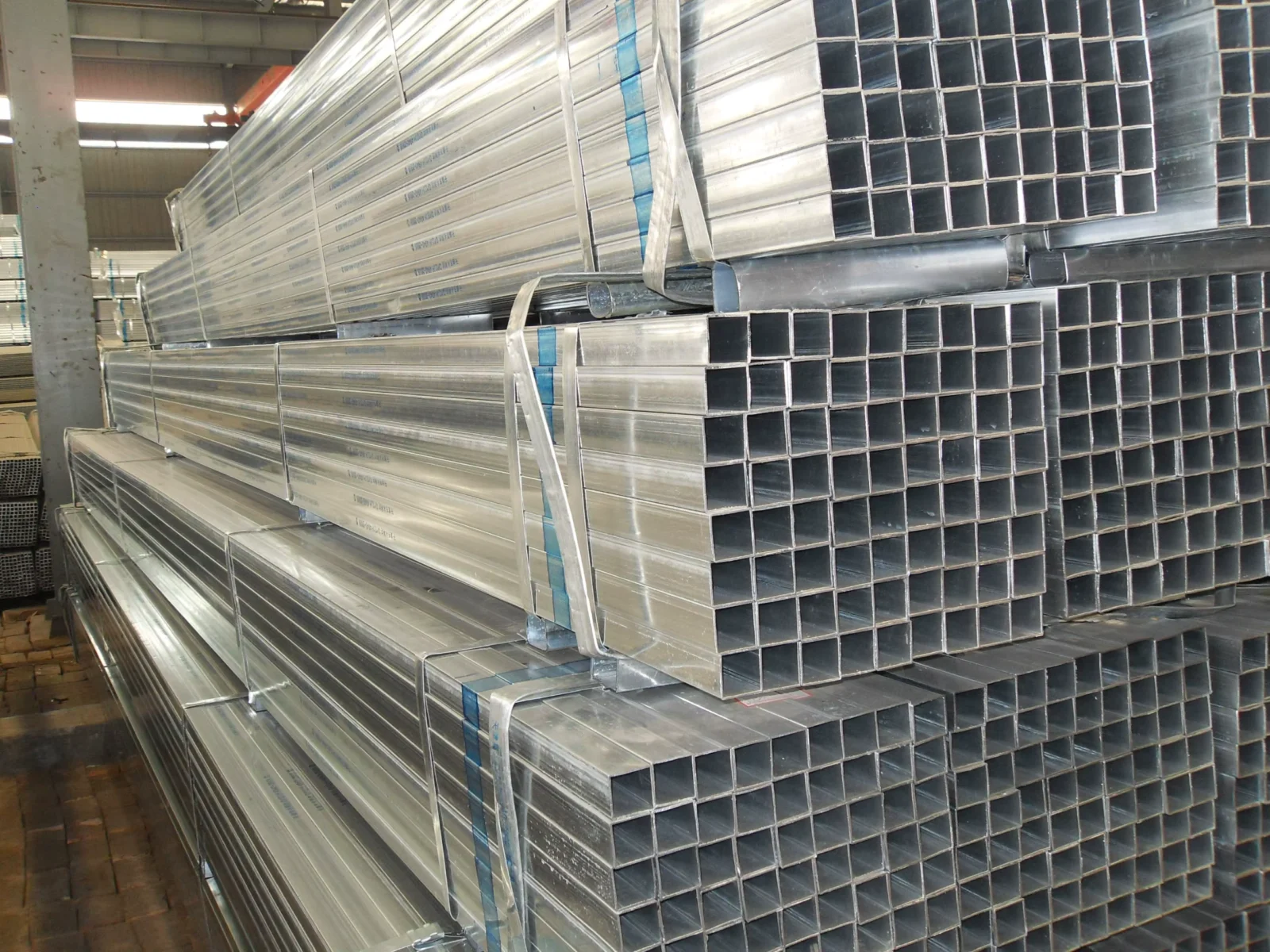

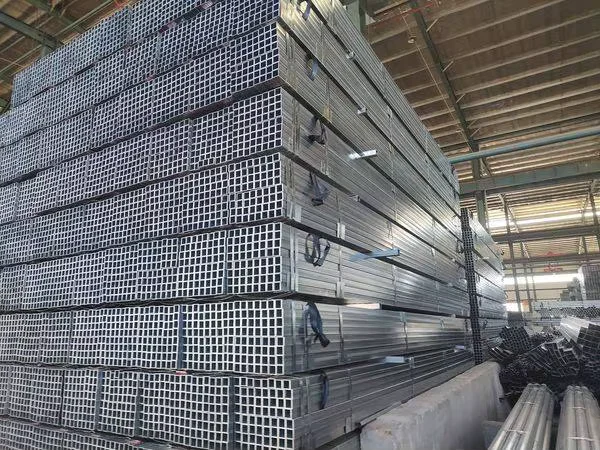

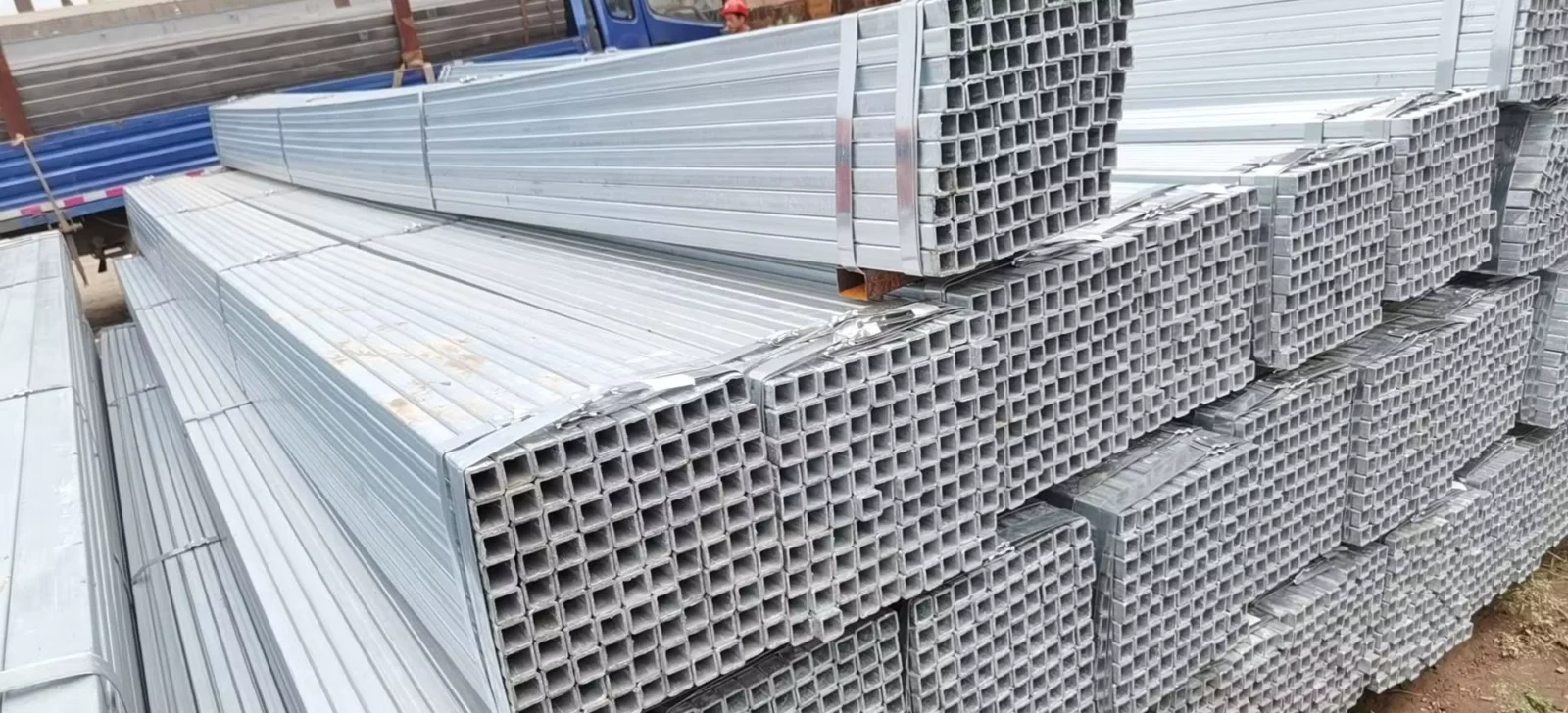

- Q235/Q345 Hot-Dip Galvanized Square Steel Tube bundled with galvanized steel strips and edge protectors to preserve the zinc coating during ocean transit and prevent mechanical damage at corners
- Seaworthy packaging with waterproof wrapping available for Q345 heavy-wall sections destined for humid tropical or coastal project sites where surface protection during storage is critical
- Custom cut-to-length service available per project drawing requirements, reducing on-site cutting waste and secondary corrosion risk at field-cut edges for scaffolding and building frame applications
- Container loading optimization for 10–914 mm diameter range, with professional lashing plans for oversized rectangular sections to maximize 20ft and 40ft container utilization
- Heat number and steel grade markings stenciled on each bundle for on-site material identification and traceability verification during engineering inspections
- FOB, CIF, and DDP delivery terms available with door-to-door logistics coordination for EPC projects across Middle East, Southeast Asia, and African markets
Start Your Galvanized Tube Procurement With Verified Documentation
Submit your project drawings, steel grade requirements, quantity, and destination port to receive a detailed quotation including material cost, galvanizing specification, production schedule, and mill test certificate samples. Our engineering team reviews shop drawings for material optimization and confirms custom dimensions, coating requirements, and certification needs before contract signing.
Request Quotation and Material Certification
Share your Hot-Dip Galvanized Square Steel Tube specifications, required steel grades, and project timeline to receive pricing with full documentation package. Contact our team at +86 188 5315 7756 or email admin@xjystructure.com for technical consultation and export-ready quotations.
Frequently Asked Questions
Q: What is the difference between Q235 and Q345 galvanized square tubes in load capacity?
A: Q345 offers higher yield strength than Q235, allowing engineers to specify smaller section sizes for the same load requirement. Q235 suits general building frames and warehouse structures, while Q345 is selected for heavy-load applications such as crane runways, industrial platforms, and large-span trusses where weight reduction matters.
Q: How do you ensure zinc coating uniformity and adhesion on ERW welded tubes?
A: Our integrated production line galvanizes tubes immediately after ERW welding and finishing, ensuring the weld seam is clean and free of flux residue before zinc immersion. In-process coating thickness checks verify compliance with GB/T 13912 or JIS H 8641 across all surfaces, with particular attention to weld zones and inner corners where coating adhesion is most critical.
Q: Can you produce non-standard sizes and what is the MOQ for custom dimensions?
A: We manufacture Hot-Dip Galvanized Square Steel Tube in custom dimensions across the 10–914 mm diameter range per project drawings. With 2,800+ specifications maintained in our integrated facility, standard sizes ship quickly while custom orders are scheduled based on section complexity and quantity requirements.
Q: What certifications and test reports are provided for international customs clearance?
A: Each shipment includes mill test certificates with heat-number traceability, galvanized coating thickness reports, and ISO 9001 quality certificates. Third-party inspection reports from SGS or BV are available upon request. Complete export documentation including certificate of origin supports customs clearance across EU, Middle East, Southeast Asian, and African markets.
Q: What is the production lead time and how do you handle oversized container loading?
A: Standard sizes ship within typical production lead times after contract signing and drawing approval. For oversized rectangular sections and long-length tubes, our logistics team prepares professional loading plans to maximize container utilization while securing cargo against transit movement. Full export documentation and tracking support continues until site delivery.
