Description

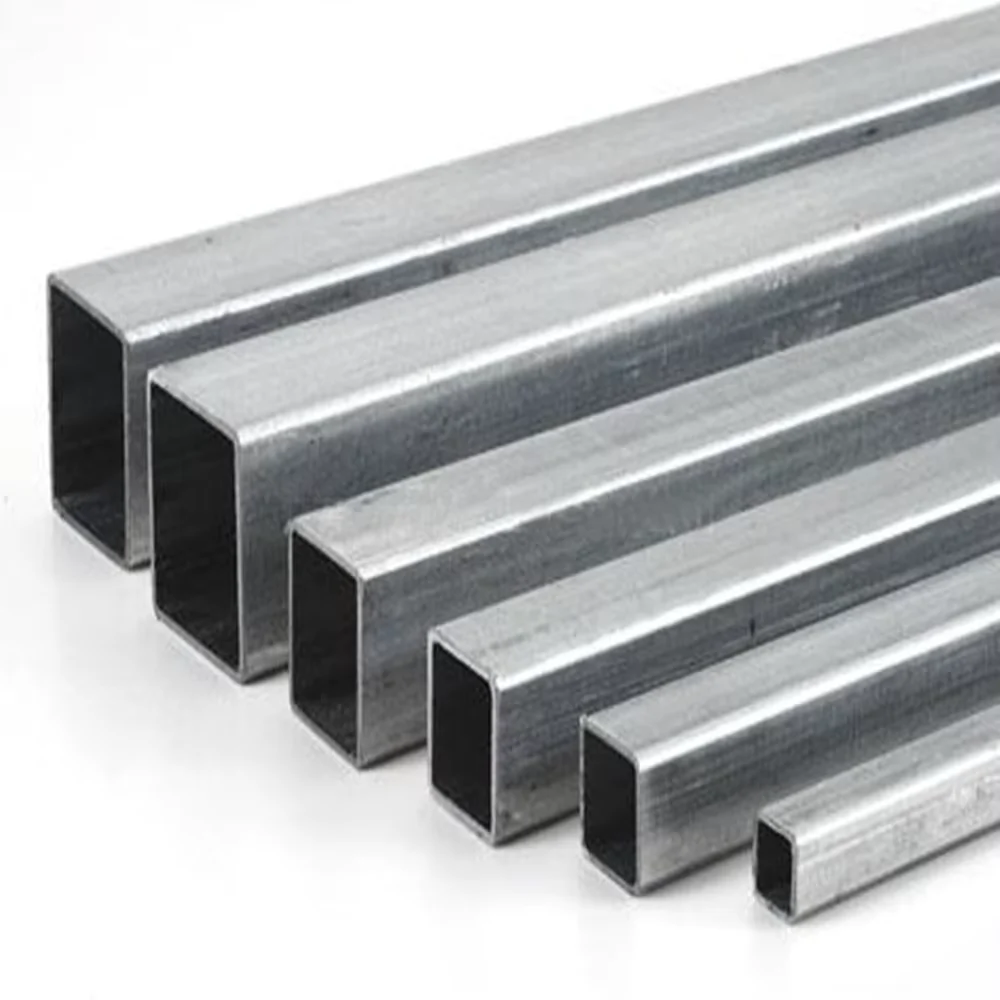

Factory-Direct Galvanized Square Steel Tube Supplier — Vertically integrated from our own steel mill with 2,800+ raw material specifications to finished galvanized square and rectangular tubes, eliminating third-party sourcing gaps.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | Galvanized Square Steel Tube |
| Product Type | Galvanized Square / Rectangular Steel Tube |
| Steel Grade | Q195, Q215, Q235, Q345, GR.A, GR.B, S235, S355 |
| Standard | ASTM A213, DIN EN 10217-1 |
| Section Shape | Square / Rectangular |
| Size Range | Customized (including 40×40mm and other dimensions) |
| Wall Thickness | 0.8–30 mm |
| Length | 500mm / 1000mm / 4000mm / 5800mm / 11800mm (customized available) |
| Technique | Welded (ERW) / Seamless options |
| Surface Treatment | Pre-galvanized / Hot-dipped galvanized / Bare / Oiled / Black |
| Tolerance | ±1% |
| Ends | Plain (default) |
| Processing Service | Welding, Punching, Cutting, Bending, Decoiling |
| Application | Structure pipe, Steel fence, Steel post, Warehouse construction, Building construction |
| MOQ | 10 Tons |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Industrial Construction | Warehouse frames, factory building columns, mezzanine support structures |
| Infrastructure & EPC | Steel fence systems, structural posts, sound barrier frameworks |
| Commercial Building | Curtain wall sub-frames, canopy supports, stairway handrail structures |
| Agricultural & Logistics | Cold storage building frames, equipment platforms, conveyor support structures |
Where Galvanizing Thickness Decides Site Acceptance for a Galvanized Square Steel Tube Supplier
Coating weight mismatch between mill certificate and third-party site testing remains the single most common cause of shipment rejection on galvanized structural tube orders.
I started on the rolling floor at a Wuxi steel mill before moving into export sales. The thing I dread most is galvanized square tube failing zinc coating inspection on site. Once we shipped a batch of 40x40mm galvanized tubes to the Middle East — client’s third-party tester found average coating under 60 microns when the spec called for 80. The whole lot got held up, had to re-galvanize locally, and the rework cost ate most of our margin. Now I watch the thickness gauge on every batch before it leaves. [NEED_CITE: hot-dip galvanized coating thickness requirements per ISO 1461]
Matching Structural Load Paths and Connection Geometry
Galvanized square steel tube in Q235 and Q345 grades serves as primary and secondary structural members in warehouse frames and building skeletons where flat bearing surfaces at joints simplify bolted and welded connections. The square cross-section provides equal moment resistance on both axes, reducing orientation errors during erection compared to angle or channel sections. For fence and post applications, pre-galvanized tubes offer sufficient corrosion protection at lower cost, while hot-dipped galvanized finishes handle coastal or industrial atmospheres where chloride exposure accelerates zinc consumption. Our fabrication workshop handles cutting, punching, and welding to project-specific shop drawings, so tubes arrive on site ready to assemble without secondary processing delays.
Structural Code Compliance and Corrosion Environment Selection
Load-bearing galvanized square steel tube for structural frames must conform to EN 10210 (hot-finished) or EN 10219 (cold-formed) hollow section standards in European projects, while ASTM A500 Grade B/C governs North American structural applications. Steel grade selection directly affects design capacity — S355 offers higher yield strength than S235, allowing thinner wall sections for equivalent load, which reduces self-weight and foundation costs. [NEED_CITE: EN 10219 cold-formed structural hollow section requirements] In aggressive environments such as chemical plants or marine structures, hot-dipped galvanizing with minimum 80-micron coating thickness provides 20–25 year maintenance-free service life, whereas pre-galvanized coating suits indoor or sheltered applications. For EU customs clearance, CE marking per EN 10210/10219 with Declaration of Performance is mandatory — missing documentation triggers port holds and demurrage charges. [NEED_CITE: CE marking requirements for structural steel under EU Construction Products Regulation]
Steel Grade Systems and Galvanizing Process Fundamentals
The Q-series (Q195–Q345) follows Chinese GB/T 700 and GB/T 1591 standards where the number indicates minimum yield strength in MPa, commonly specified for domestic projects and Belt & Road infrastructure. S-series grades (S235, S355) follow EN 10025 with equivalent yield designations for European projects, while GR.A and GR.B align with ASTM A500 for American structural work. ERW welded tube dominates square and rectangular sections up to 400mm due to cost efficiency and consistent wall thickness, while seamless options serve high-pressure or critical structural applications requiring homogeneous material without weld seams. [NEED_CITE: steel grade equivalence between EN, ASTM, and GB standards] Hot-dipped galvanizing immerses fabricated tube in molten zinc at approximately 450°C, forming metallurgical zinc-iron alloy layers bonded to the steel substrate — this provides cathodic protection even if the coating is scratched, unlike paint systems that allow corrosion to spread. Pre-galvanized tube is manufactured from already-coated coil, then formed and welded, resulting in thinner zinc coverage at weld seams that may require touch-up for outdoor exposure.
Hidden Costs When Material Certification Falls Short
Specifying Q345 or S355 galvanized square steel tube without verified mill test certificates creates downstream risk: if site testing reveals actual yield strength below design assumptions, structural engineers must either reject the shipment or redesign connections — both options trigger schedule delays and cost overruns. Material traceability gaps between coil heat numbers and finished tube batches complicate third-party inspection approval, particularly for EN 10219-certified projects where full documentation chains are audited before customs release. Negative tolerance beyond ±1% reduces actual wall thickness and load capacity while invoicing by theoretical weight means buyers pay for steel they did not receive — this practice surfaces during dimensional inspection and becomes grounds for claim or rejection. [NEED_CITE: dimensional tolerance requirements for cold-formed structural hollow sections]
Why Project Teams Source Galvanized Square Steel Tube From Our Mill
Our vertical integration from raw steel production through fabrication eliminates the material sourcing gap that creates traceability problems — every heat number on your mill test certificate links directly to our own steelmaking records across 2,800+ specifications. The in-house fabrication workshop handles CNC cutting, drilling, welding per approved WPS procedures, and surface treatment in one facility, so shop drawing revisions do not require coordinating between separate material supplier and fabricator. Certified welding procedures and qualified welders holding AWS and EN certifications ensure structural connections meet international code requirements, with complete quality documentation including WPS, PQR, weld maps, and dimensional inspection reports delivered with each shipment. Third-party inspection through SGS, BV, or TÜV is available upon request for projects requiring independent verification before container loading. Professional packing and loading plans optimize container utilization for 6m and 12m lengths while protecting galvanized coatings from transit damage.
Documentation & Compliance
- Mill test certificate documenting Q235B/Q345B chemical composition and mechanical properties per GB/T 700 and GB/T 1591, with heat number traceability to raw material batch
- CE certificate for EN 10210 hot-finished or EN 10219 cold-formed structural hollow sections, required for EU market access and customs clearance
- ISO 9001 quality management system certificate covering the full production process from steelmaking through galvanizing and final inspection
- SGS or BV third-party inspection report verifying coating thickness, dimensional accuracy, and surface quality before shipment, available for project-specific requirements
- Material traceability documentation linking finished galvanized square steel tube to coil heat numbers with complete certification chain
- Export customs documents including packing list, bill of lading, and certificate of origin formatted for destination country requirements
Packaging, Loading & Delivery

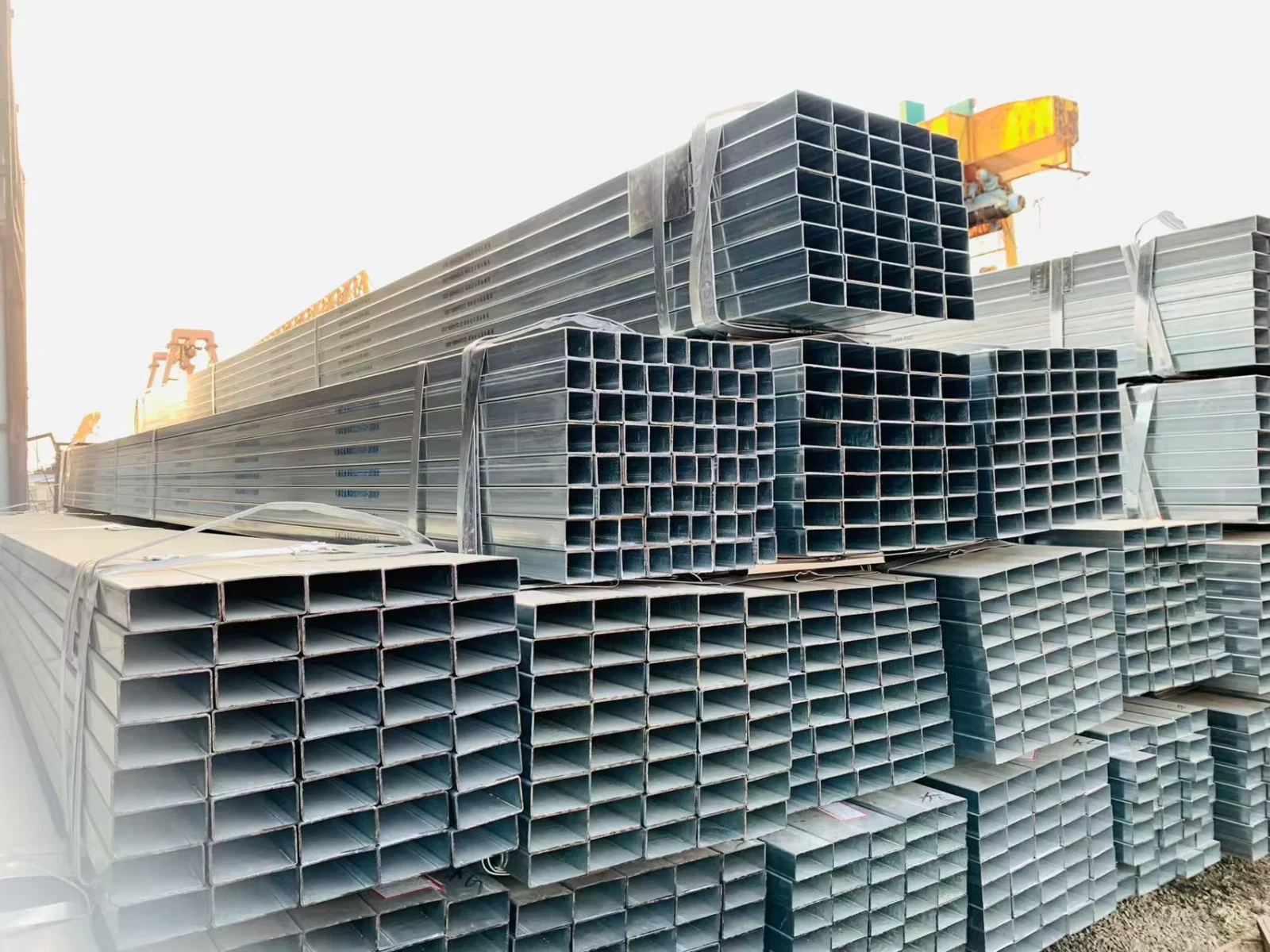

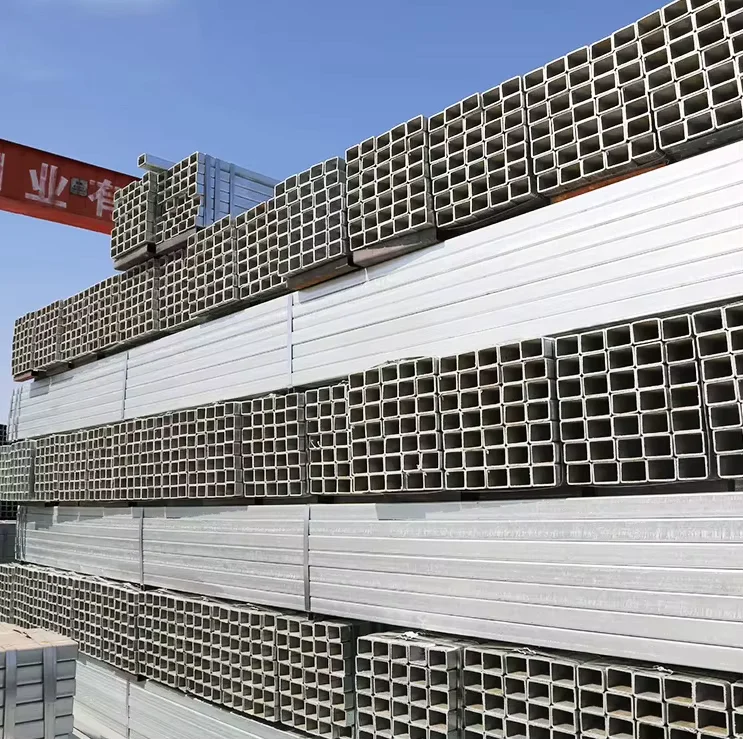

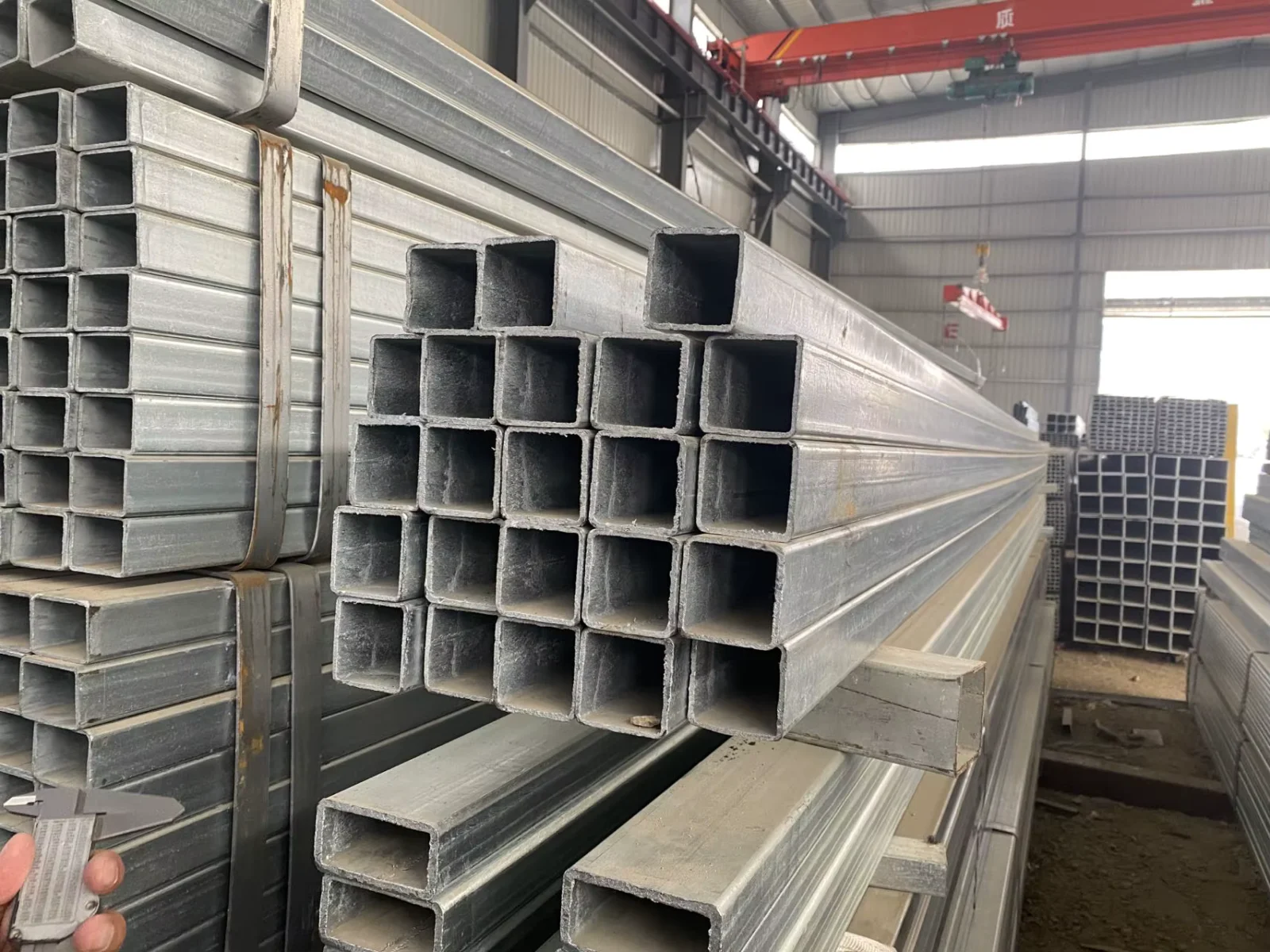

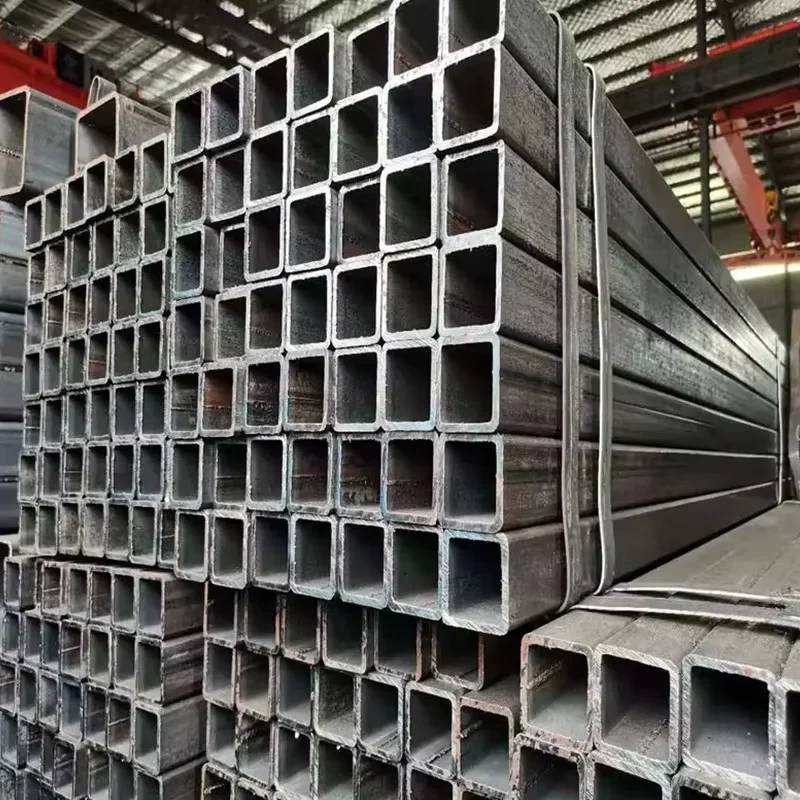

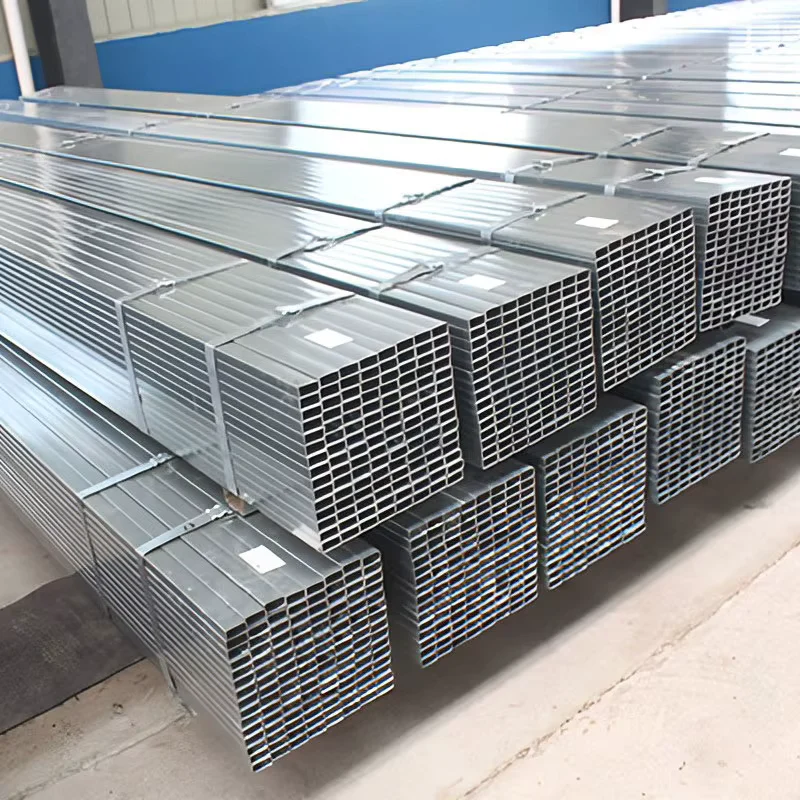

- Galvanized square steel tube bundled with high-strength steel strips and edge protectors to preserve zinc coating integrity during ocean transit and prevent corner damage
- Surface protection tailored to galvanizing type: hot-dipped galvanized tubes separated by rubber spacers to avoid coating adhesion, while pre-galvanized bundles wrapped in waterproof paper for humidity protection
- Container loading optimization for 5.8m and 11.8m lengths in 20ft and 40ft containers, with professional lashing plans maximizing payload while maintaining weight distribution
- Custom cutting to project-specific lengths from 500mm to 11,800mm, reducing on-site waste and labor costs for warehouse frame and fence post applications
- Heat number and steel grade markings stenciled on each bundle for site identification and inspection traceability, matching mill test certificate documentation
- Flexible trade terms including FOB, CIF, and DDP delivery to project sites, with complete export documentation support for customs clearance in Middle East, Southeast Asia, and African markets
Initiating Your Galvanized Square Steel Tube Inquiry
Submit project drawings in PDF or DWG format with steel grade requirements, surface treatment preference, and target standards to receive a detailed quotation including material, fabrication, coating, and logistics costs within 24 hours. Our engineering team reviews shop drawings for material optimization and fabrication sequencing before production begins, ensuring dimensional accuracy and code compliance. Confirm certification requirements for your destination market and we will prepare the complete documentation package including mill test certificates, CE declarations, and third-party inspection reports.
Request Quotation and Mill Test Certificate
Share your galvanized square steel tube specifications, quantities, and destination port to receive pricing and material documentation.
Contact: Shandong Xin Jiyuan Special Steel Tube Co., Ltd
Website: www.xjystructure.com
Tel: +86 531 8573 6315
Mobile/WhatsApp/WeChat: +86 188 5315 7756
Email: admin@xjystructure.com
Address: No.11889, Jingshi West Road, Lulian Group, Jinan City, Shandong Province, China
Frequently Asked Questions
Q: What is the difference between pre-galvanized and hot-dipped galvanized square tubes?
A: Pre-galvanized tube is manufactured from zinc-coated steel coil that is formed and welded, resulting in thinner zinc coverage at weld seams suitable for indoor or sheltered applications. Hot-dipped galvanized tube undergoes full immersion in molten zinc after fabrication, creating metallurgical zinc-iron alloy layers with uniform coating thickness including weld areas, providing superior corrosion resistance for outdoor and aggressive environments.
Q: Can you provide EN 10210 or EN 10219 certification for European projects?
A: Yes, our galvanized square steel tube production complies with EN 10210 for hot-finished and EN 10219 for cold-formed structural hollow sections, with CE marking and Declaration of Performance documentation required for EU customs clearance and project approval.
Q: What is the MOQ for custom sizes and non-standard dimensions?
A: The minimum order quantity is 10 tons for standard specifications. For custom sizes, non-standard dimensions, or special steel grades outside our regular production range, please submit your requirements for evaluation as MOQ may vary based on production setup and material procurement.
Q: How do you ensure welding quality and dimensional accuracy for overseas buyers?
A: All structural welding follows approved Welding Procedure Specifications with qualified welders holding AWS and EN certifications. In-process dimensional checks, non-destructive testing, and final inspection against ±1% tolerance standards are documented in inspection reports delivered with each shipment. Third-party inspection through SGS, BV, or TÜV is available upon request.
Q: What documentation do you provide for customs clearance and project approval?
A: Each shipment includes mill test certificates with chemical composition and mechanical properties, material traceability documentation linking to heat numbers, packing lists, bills of lading, and certificates of origin. For European projects, CE certificates and Declarations of Performance are provided. Third-party inspection reports are available when specified in purchase orders.
