Description
Direct Mill Supply — Seamless square and rectangular tubes produced from our own billet stock, eliminating third-party sourcing gaps for Q235, Q345, and S355JR grades.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | Q235/Q345/S355JR Seamless Square and Rectangular Steel Tube |
| Product Type | Seamless Square and Rectangular Hollow Section |
| Steel Grade | Q195, Q235, Q345, S235JR, S275JR, S355JR |
| Standard | ASTM |
| Section Shape | Square / Rectangular |
| Technique | Hot Rolled Seamless |
| Surface Treatment | Black (as rolled), customizable per requirement |
| Tolerance | ±1% |
| Size | Customized |
| Ends | Plain (default) |
| Processing Service | Welding, Punching, Cutting, Bending, Decoiling |
| Application | Steel structures, Construction frames, Machinery, Scaffolding, Fluid transport, Industrial facilities |
| MOQ | 1 Ton |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Commercial Construction | Building column frames, roof truss systems, curtain wall support structures |
| Industrial Facilities | Equipment platforms, conveyor support frames, mezzanine floor beams |
| Infrastructure | Bridge handrail posts, highway sign gantry columns, tunnel support frames |
| Machinery Manufacturing | Hydraulic cylinder housings, crane boom sections, agricultural machinery frames |
| Scaffolding & Access | Load-bearing scaffolding uprights, temporary structure bracing tubes |
What Negative Wall Tolerance Actually Costs on a Structural Frame Project
Actual weight falling short of theoretical weight triggers inspection rejection and shipment holds at destination port.
When procurement teams order seamless square and rectangular hollow sections based on theoretical weight calculations, a wall thickness running consistently negative by even a fraction of a millimeter compounds across hundreds of tons. The mill certificate may read perfectly on paper, yet the physical product fails third-party gauge checks. I have watched containers sit in South American ports for weeks because the weight discrepancy between invoice and actual measured mass could not be reconciled. The Hot Rolled Seamless Square and Rectangular Steel Tube Supplier who controls billet-to-finished production eliminates this gap — because the same quality system that rolls the billet also verifies the final wall dimension. [NEED_CITE: EN 10210 tolerance requirements for hot finished structural hollow sections]
How Seamless Hollow Sections Perform in Load-Bearing Structural Frames
Hot rolled seamless square and rectangular tubes deliver uniform wall thickness around the entire perimeter — a critical advantage over welded alternatives where the seam zone can create a weak point under concentrated loading. For steel structure frames and machinery supports, this consistency means predictable deflection behavior and reliable weld preparation edges. Our production line holds ±1% dimensional tolerance across customized sizes, which translates directly to fit-up accuracy when these sections meet connection plates or bolt groups on site. As a Hot Rolled Seamless Square and Rectangular Steel Tube Supplier operating our own steel mill, we control the chemistry from billet stage through final rolling, ensuring every heat number traces back to a single certified melt.
Meeting Engineering Codes and Customs Requirements Across Markets
Structural engineers specifying hollow sections for load-bearing frames typically reference design codes such as EN 1993 or AISC standards, which demand verified material properties and documented traceability. The choice between Q-series grades (Q235, Q345) and S-series grades (S235JR, S355JR) must align with the destination market’s regulatory framework — Chinese grades for domestic and certain Belt & Road projects, European S-grades for EN 10210 compliance, ASTM equivalents for North American specifications. Surface treatment selection matters equally: black finished tubes suit indoor structural applications or projects where site-applied coating systems are specified, while projects in corrosive environments may require galvanized or painted finishes arranged before shipment. Certification packages including CE marking and third-party inspection reports determine whether containers clear customs or face holds at destination. [NEED_CITE: steel grade equivalence mapping between GB, EN, and ASTM standards]
Understanding Grade Selection and Hot Rolled Seamless Manufacturing
The progression from Q195 through Q235 to Q345 — and their international counterparts S235JR through S355JR — represents increasing minimum yield strength, directly affecting the load capacity of structural members. Engineers select higher grades to reduce section size while maintaining structural performance, though this demands tighter quality control during fabrication. Hot rolled seamless manufacturing produces hollow sections by piercing a solid billet and elongating it through a series of rolls, then forming and welding the seam under continuous heat — resulting in a product with mechanical properties consistent throughout the cross-section, unlike cold-formed sections where corner radii experience different strain histories. The black as-rolled surface condition preserves the mill scale that provides temporary corrosion resistance during storage and transit, while remaining compatible with subsequent surface treatment processes including shot blasting, galvanizing, or industrial painting. Wall thickness tolerance directly affects both theoretical weight calculations and structural performance: sections produced to ±1% tolerance ensure that design assumptions about section modulus and moment of inertia match the physical product delivered to site. [NEED_CITE: hot rolled versus cold formed hollow section mechanical property differences]
The Hidden Costs When Material Certification Does Not Match Physical Product
Procurement decisions based solely on price per ton without verifying dimensional accuracy and certification authenticity create downstream costs that far exceed initial savings. Sections with wall thickness below specified tolerance fail structural inspection, requiring either costly supplementation or complete replacement — delays that cascade through project schedules. Material certificates listing chemical composition and mechanical properties must correspond to actual heat numbers marked on the product; mismatches trigger rejection by project owners and engineers, particularly on infrastructure projects governed by strict quality assurance protocols. The Hot Rolled Seamless Square and Rectangular Steel Tube Supplier who maintains integrated production from raw steel through finished tubes provides single-source accountability: one quality system, one documentation chain, one point of responsibility if questions arise during installation or inspection. [NEED_CITE: consequences of material certification discrepancies in structural steel projects]
Why Integrated Mill and Fabrication Capacity Matters for Your Project
Our vertically integrated operation combines steel production with structural fabrication under one roof, meaning the seamless square and rectangular tubes we supply come from billet stock we control — not purchased from third-party mills with variable quality. This integration allows us to offer over 2,800 specifications across our product range, including customized sizes for non-standard project requirements that fragmented suppliers cannot accommodate. Every heat of steel passes through our own laboratory for chemical analysis and mechanical testing before release, producing mill test certificates that document actual results rather than specification ranges. Our certified welding procedures and qualified welders hold AWS and EN certifications, supported by complete quality documentation packages including WPS, PQR, weld maps, and dimensional inspection reports. We have delivered structural steel components to projects across the European Union, Middle East, Southeast Asia, and Africa — experience that informs our understanding of varying certification requirements, documentation expectations, and logistics challenges across different markets. Professional packing and loading services handle oversized components with specialized lashing and transport planning, while complete export documentation ensures smooth customs clearance at destination.
Documentation & Compliance
- Mill test certificate documenting Q235, Q345, or S355JR chemical composition and mechanical properties per ASTM standards, with heat number traceability
- CE certificate confirming compliance with EN 10210 for hot finished structural hollow sections, required for European market projects
- ISO 9001 quality management system certificate covering the entire production process from billet reception through finished tube inspection
- SGS or BV third-party inspection report available for projects requiring independent verification of dimensional accuracy and surface quality
- Material traceability documentation linking each tube bundle to specific heat numbers, with test results matching physical markings
- Complete customs documentation package including packing list, bill of lading, and certificate of origin formatted for destination country requirements
Packaging, Loading & Delivery
- Seamless square and rectangular tubes bundled with high-tensile steel strips, with edge protectors preserving the black as-rolled surface finish during ocean transit
- Customized length tubes cut to project specifications and grouped by size in containers, optimizing space utilization for 20-foot and 40-foot shipments
- Plain end tubes capped at both extremities to prevent moisture ingress and internal corrosion during storage and transportation

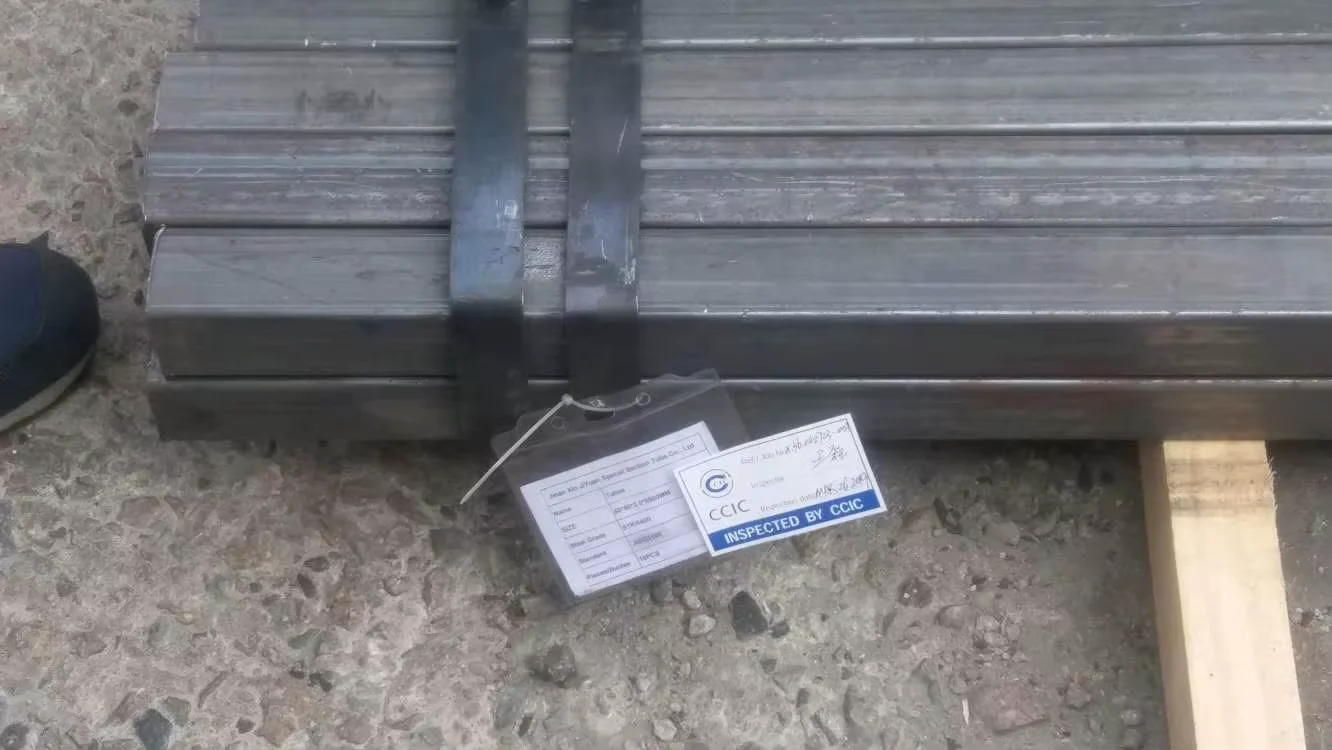

- Heat number and steel grade markings stenciled on each bundle, enabling site identification without unpacking
- FOB, CIF, and DDP shipping terms available, with professional loading plans for oversized rectangular sections that exceed standard container dimensions
- Complete export documentation prepared in parallel with production, ensuring certificates and test reports accompany the shipment from mill to destination port
Moving From Inquiry to Verified Supply
Share your project drawings, required steel grades, dimensions, and quantity to receive a detailed quotation including material, processing, and logistics costs within 24 hours. Our engineering team reviews shop drawings and confirms dimensional feasibility before production begins, eliminating the specification gaps that cause costly rework. Confirm certification requirements and third-party inspection needs upfront so documentation packages align with your project’s quality assurance protocols.
Frequently Asked Questions
Q: What is the difference between Q345 and S355JR, and which should I specify for my project?
A: Q345 is the Chinese standard grade equivalent to S355JR in the European system, both offering higher yield strength than Q235 or S235JR for demanding structural applications. The choice depends on your project’s governing design code and destination market requirements — we produce both grades from our integrated mill and provide mill test certificates documenting actual chemical composition and mechanical properties for whichever grade you specify.
Q: Can you arrange third-party inspection before shipment?

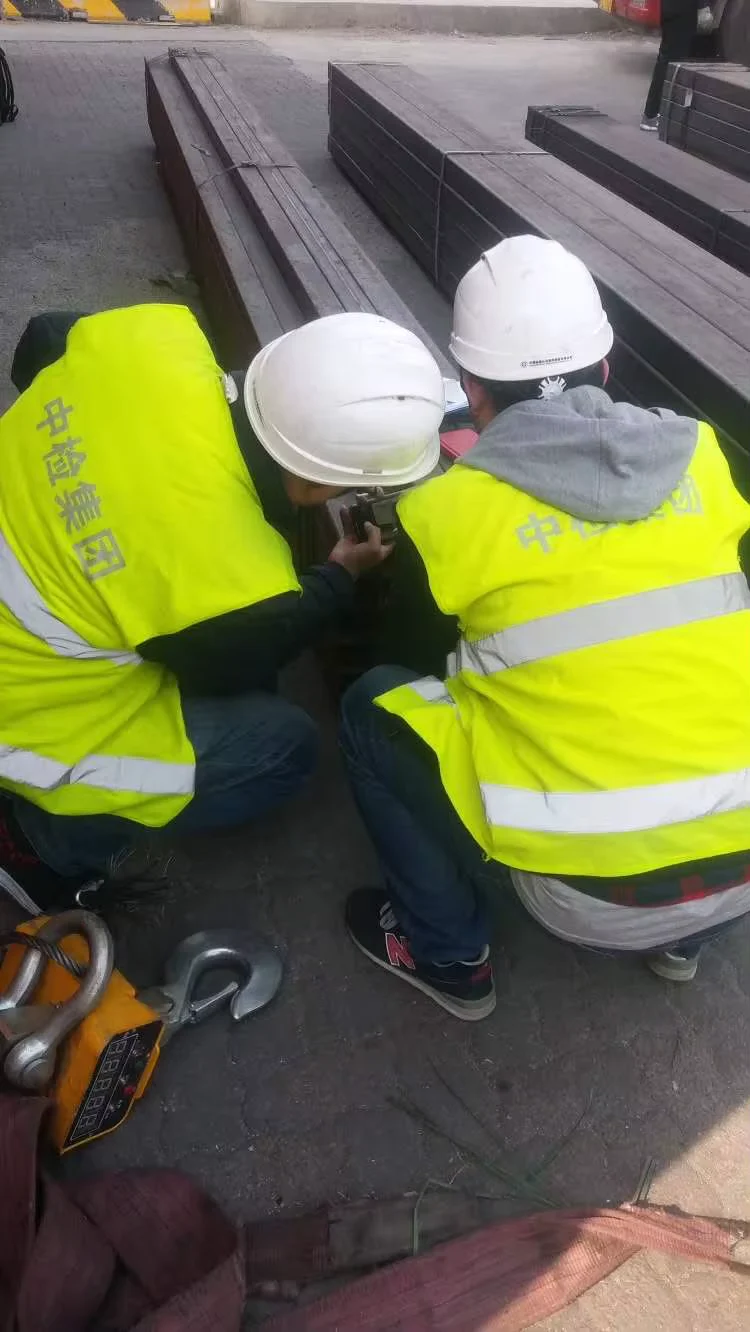

A: Yes, we coordinate SGS or BV inspection services for projects requiring independent verification. The inspector verifies dimensional accuracy, wall thickness, surface quality, and reviews mill test certificates against physical heat number markings. We schedule inspection after production completion but before packing, allowing any corrections while tubes remain accessible.
Q: What is the minimum order quantity for customized sizes?
A: The MOQ is 1 Ton for standard specifications. For customized dimensions outside our regular range, minimum quantities depend on the specific size and production setup required — share your dimensional requirements and we confirm feasibility and minimum tonnage during the quotation stage.
Q: How do you handle export documentation for international shipments?
A: We prepare complete documentation packages including commercial invoice, packing list, bill of lading, certificate of origin, mill test certificates, and any required CE or quality certificates. Documents are formatted to meet destination country customs requirements, and we coordinate with freight forwarders to ensure paperwork accompanies the shipment from loading to discharge port.
Q: What surface treatment options are available for seamless square and rectangular tubes?
A: Standard delivery condition is black as-rolled, suitable for indoor structural applications or projects where site-applied coating systems are specified. We also arrange galvanized finishing, shot blasting, or industrial painting based on project requirements — confirm your surface treatment needs during inquiry so we include processing costs and lead time in the quotation.
Request Your Quotation with Full Material Certification
Submit your project specifications, steel grade requirements, and destination port to receive a comprehensive quotation with mill test certificate samples and production timeline.
