Description

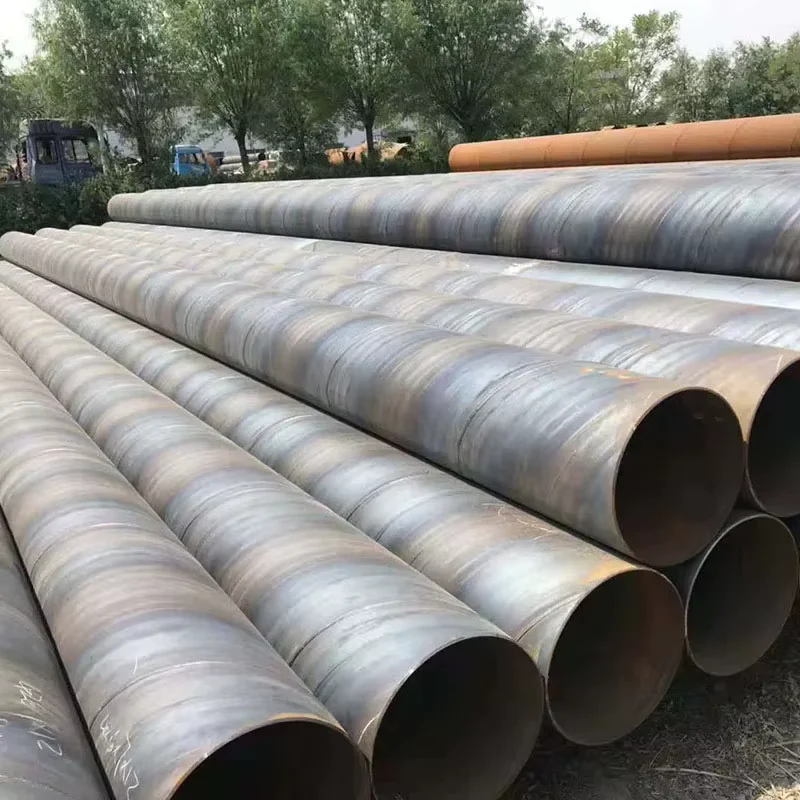

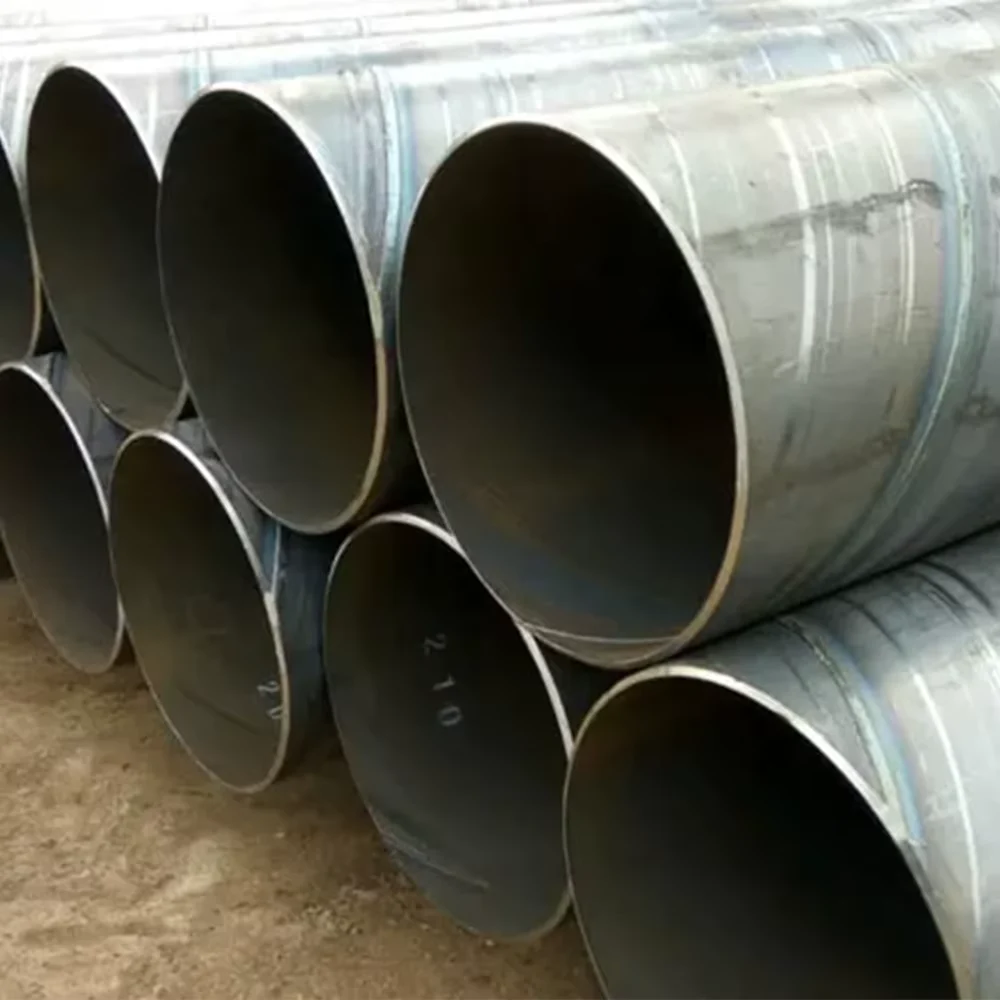

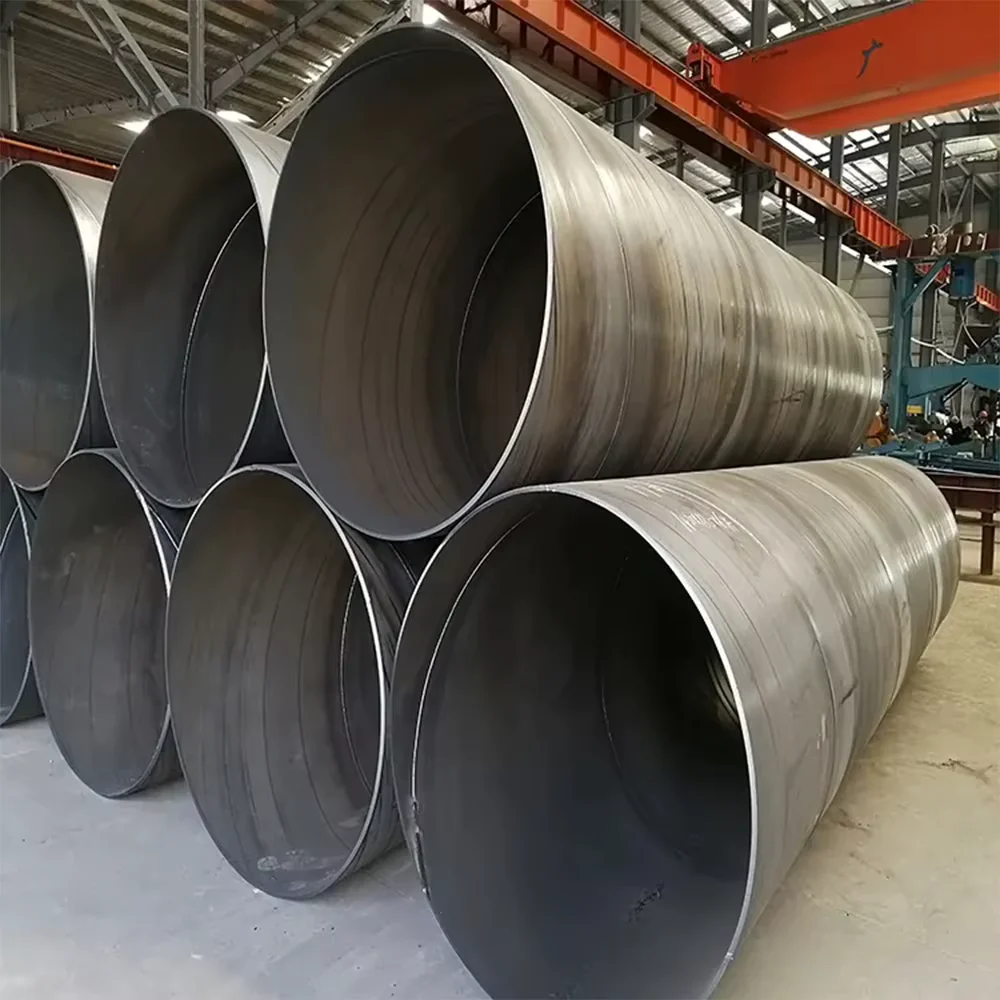

Factory-Direct SSAW Pipe Mill — Vertically integrated from raw steel slab to finished spiral welded pipe under one quality system, eliminating third-party sourcing gaps for large-diameter pipeline orders.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | SSAW Welded Steel Pipe |
| Product Type | Spiral Submerged Arc Welded Pipe |
| Steel Grade | Q235, Q345, Q195, Q235A-B, Q345A-E, 20#, 10#, 16Mn, ASTM A36, ASTM A500, ASTM A53, ASTM A106, SS400, St37, St52, S235JR, S355JR |
| Standard | ASTM A53, ASTM A106, ASTM A500, ASTM F1083, API, DIN, JIS, GB/T 3091-2001, GB/T 13912-2002, BS 1387 |
| Section Shape | Round |
| Outer Diameter | 200mm–2300mm |
| Wall Thickness | 5mm–60mm |
| Length | 6m / 6.4m / 12m (customizable 1–12m) |
| Technique | SSAW (Spiral Submerged Arc Welded) |
| Surface Treatment | Hot Rolled / Cold Rolled / Oiled / Non-oiled |
| Tolerance | ±1% |
| Ends | Plain / Beveled |
| Invoicing | By Actual Weight |
| MOQ | Negotiable per project |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Municipal Infrastructure | Water supply mains, sewage discharge pipelines, stormwater drainage systems |
| Oil & Gas Transmission | Low-pressure gas distribution lines, crude oil gathering pipelines, pump well casings |
| Industrial EPC Projects | Boiler feed lines, chemical fertilizer process piping, hydraulic conveyance systems |
| Construction & Structural | Building column sleeves, greenhouse frames, fence post foundations, curtain wall supports |
| Mining & Dredging | Slurry transport lines, dewatering discharge pipes, ventilation shafts |
Where Negative Wall Tolerance Triggers Customs Rejection on Large-Diameter Pipe Orders
A 2mm shortfall on a 2300mm OD spiral pipe can halt an entire pipeline project at the port of discharge.
Sourcing SSAW spiral welded steel pipe from overseas introduces a chain of verification risks that domestic procurement simply does not face. Third-party inspection at the destination port often reveals wall thickness readings below the specified lower limit — and when material certificates cannot be traced back to the original heat number, the entire shipment faces detention. [NEED_CITE: EN 10219 dimensional tolerance requirements for welded steel tubes] Buyers who split material sourcing between a trading company and a separate fabricator have no single point of accountability when coating adhesion fails or weld seam NDT reports show inconsistencies. The cost is never just the pipe — it is the crane idle time, the welding crew standing by, and the liquidated damages clause triggered by schedule slippage.
Matching Large-Diameter Spiral Pipe to Pipeline and Structural Demands
A 200–2300mm OD range with wall thickness from 5mm to 60mm covers the full spectrum from municipal water transmission mains to heavy-duty structural columns. The SSAW process produces a helical weld seam that distributes stress more evenly across the pipe body compared to longitudinal weld configurations, making it particularly suited for high-pressure fluid conveyance and load-bearing structural applications. Steel grades spanning Q235, Q345, ASTM A53, ASTM A106, and S355JR allow project engineers to specify material that conforms to the governing code — whether that is API for oilfield gathering lines or ASTM A500 for structural frames. Our own steel mill produces the raw plate and coil, so every SSAW spiral welded steel pipe leaving the workshop carries full traceability from slab chemistry to finished weld seam.
Engineering Compliance Across International Standards and Corrosive Environments
Structural engineers designing to EN 1993 or AISC 360 require mill documentation that proves the delivered steel grade meets the specified yield and tensile thresholds — not a generic certificate pulled from a batch of mixed heats. [NEED_CITE: ASTM A53 and A106 material requirements for pressure piping] For pipelines operating in coastal or chemically aggressive environments, surface treatment selection becomes critical: oiled finishes protect during transit, while 3PE coating or hot-dip galvanizing extends service life in buried or submerged conditions. The beveled or plain end configuration must align with the field welding procedure — beveled ends for butt-weld pipeline joints, plain ends for flanged or mechanical couplings. Custom lengths up to 12m reduce field weld joints and lower installation labor costs on long-run transmission lines.
Steel Grade Selection and SSAW Welding Metallurgy
The Q-series grades (Q235, Q345) dominate Chinese domestic projects and Belt & Road infrastructure specifications, while S235JR and S355JR are the European equivalents specifying minimum yield strength at room temperature with guaranteed impact toughness at 0°C or -20°C depending on the suffix letter. ASTM A36 and A53 serve North American structural and pressure applications respectively, with A106 covering high-temperature service for boiler and superheater lines. The SSAW process uses submerged arc welding with continuous flux coverage, producing deep penetration and consistent weld bead geometry even on thick-wall pipes up to 60mm — critical for maintaining joint integrity under internal pressure and external soil loading. [NEED_CITE: submerged arc welding metallurgy for thick-wall spiral pipe] Wall thickness tolerance of ±1% means a specified 10mm wall arrives between 9.9mm and 10.1mm — tight enough to satisfy most international inspection protocols without triggering rejection for under-thickness.
The Hidden Cost of Unverified Material Certificates on Pipeline Projects
Accepting a lower unit price from an unverified supplier becomes expensive the moment a third-party inspector at the destination port flags a heat number mismatch between the mill test certificate and the physical pipe stamping. [NEED_CITE: material traceability requirements for pressure piping per ASME B31.3] Pipes without proper end-bevel geometry force field crews to re-cut every joint before welding begins — adding days to the schedule and introducing potential alignment errors. Coating applied over inadequately blasted surfaces peels within months of burial, leaving the pipe exposed to corrosion while the original fabricator is unreachable across time zones. The SSAW spiral welded steel pipe that arrives with complete WPS, PQR, dimensional reports, and coating thickness measurements eliminates every one of these failure points before the container is sealed.
Why Project Procurement Teams Source SSAW Pipe From Our Mill

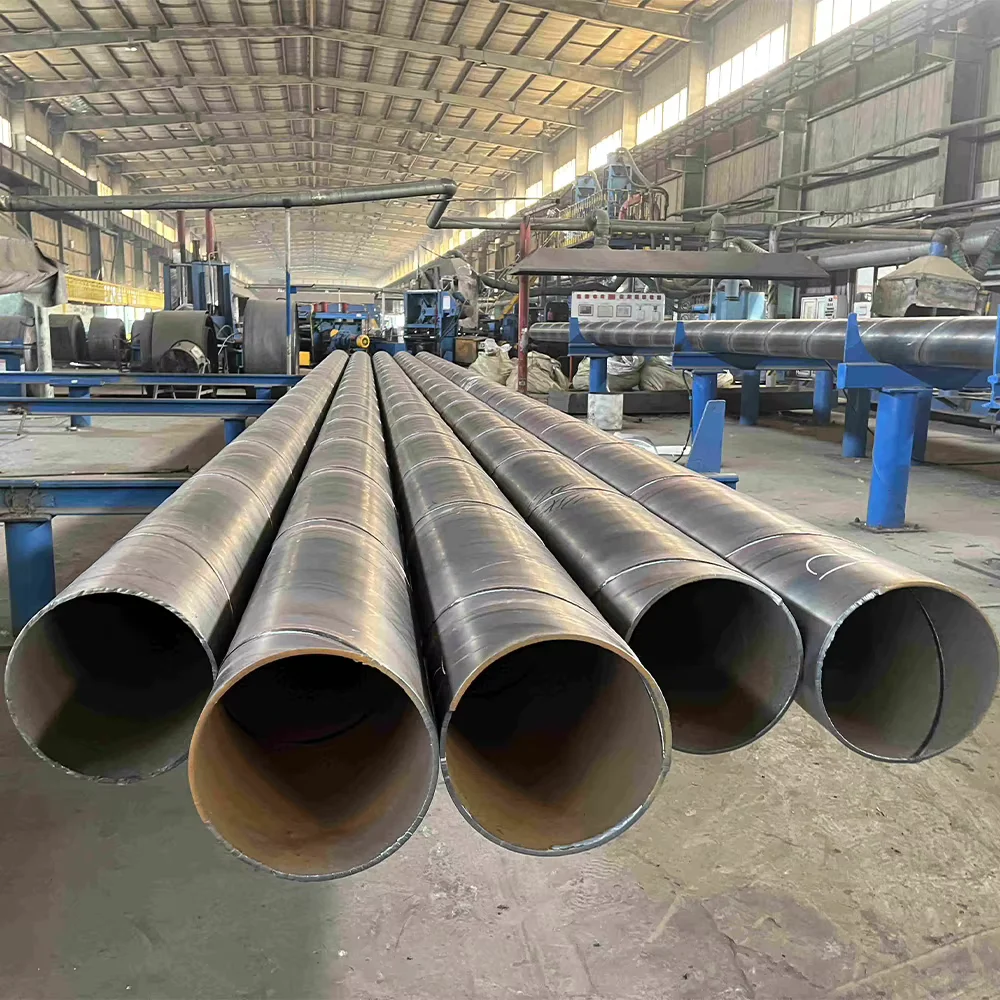

Our facility operates three dedicated SSAW production lines backed by an in-house steel mill producing over 2,800 raw material specifications — meaning the plate that becomes your 2300mm OD pipeline is rolled, tested, and certified under one roof. Every heat of steel carries a unique identification number that appears on the mill test certificate, the pipe surface marking, and the final inspection report — no gaps, no subcontracted sourcing, no certificate forgery risk. Our welding procedures are qualified to AWS and EN standards, with all welders holding current certifications, and every seam undergoes ultrasonic testing before the pipe moves to surface treatment. For projects requiring third-party validation, we welcome SGS, BV, or client-nominated inspectors at our facility at any stage of production. Custom lengths, non-standard wall thicknesses, and special end preparations are machined in our own workshop rather than outsourced — keeping lead times predictable and quality controlled.
Documentation & Compliance
- Mill Test Certificate documenting Q345B chemical composition and mechanical properties per GB/T 9711, including yield strength, tensile strength, and elongation values for each heat number
- CE certificate confirming SSAW spiral welded steel pipe conforms to EN 10219 dimensional and material requirements for European market customs clearance
- ISO 9001 quality management system certificate covering the full production chain from raw steel melting through final pipe inspection and packaging
- SGS or BV third-party inspection report verifying wall thickness, outer diameter, weld seam NDT results, and coating adhesion per client-specified acceptance criteria
- Material traceability sheet linking each pipe to its original heat number, slab casting record, and rolling schedule for full audit compliance
- Export customs documentation including commercial invoice, packing list, bill of lading, and certificate of origin formatted for destination country import requirements
Packaging, Loading & Delivery
- SSAW pipes bundled with high-tensile steel strips at intervals calculated for the specific OD and wall thickness, preventing bundle deformation during crane handling at the port of discharge
- Oiled surface finish pipes receive additional VCI paper wrapping to prevent rust staining during ocean transit in high-humidity container environments
- Large-diameter pipes above 1200mm OD shipped as breakbulk or on flat racks with custom cradle supports to prevent ovality damage from stacking pressure
- Custom-cut lengths between 1m and 12m optimized for 40ft open-top container loading, maximizing payload per TEU and reducing per-meter freight cost
- Each pipe marked with heat number, steel grade, OD, WT, and length in weather-resistant paint stencil at both ends and at 3m intervals along the body
- Delivery terms available as FOB Qingdao, CIF destination port, or DDP project site with complete door-to-door logistics coordination including inland trucking and customs brokerage
Submit Drawings and Specifications for Project-Specific Quotation
Share your pipeline route survey, structural drawings, or bill of materials specifying OD, wall thickness, steel grade, quantity, and destination port — our engineering team responds within 24 hours with a detailed quotation including material cost, fabrication charges, coating specification, and estimated production lead time. For non-standard dimensions or special end preparations, we provide shop drawing review and fabrication sequencing recommendations before contract execution.
Request Your SSAW Pipe Quotation and Mill Test Certificate Sample
Send your project specifications to admin@xjystructure.com or contact us via WhatsApp at +86 188 5315 7756 for immediate technical assessment and pricing.
—
Frequently Asked Questions
Q: What is the difference between SSAW and LSAW for large-diameter pipeline projects?
A: SSAW (Spiral Submerged Arc Welded) pipe uses a helical weld seam formed by continuously feeding steel coil at an angle, allowing production of large diameters from narrower coil widths — making it cost-effective for diameters above 500mm. LSAW uses straight longitudinal seams and is typically specified for very thick-wall or critical high-pressure applications. For municipal water, gas distribution, and structural applications, SSAW offers equivalent performance at lower material cost.
Q: Can you provide steel grade equivalence between Chinese Q-series and European S-series or American ASTM standards?
A: Yes. Q235 corresponds to S235JR and ASTM A36 in yield strength classification; Q345 aligns with S355JR and ASTM A572 Grade 50. Our engineering team provides formal equivalence documentation for project approval, confirming that the chemical composition and mechanical properties meet the governing specification requirements.
Q: What third-party inspections do you accept for SSAW spiral welded steel pipe shipments?
A: We welcome SGS, Bureau Veritas, TÜV, or any client-nominated inspection agency to conduct dimensional checks, weld seam NDT, coating thickness measurement, and material verification at our facility before shipment. Inspection reports are included in the final documentation package for customs and project handover.
Q: What is the minimum order quantity for custom-length or non-standard wall thickness SSAW pipe?
A: MOQ depends on the specific diameter and wall thickness combination relative to our standard mill schedule. For common sizes within the 200–2300mm OD range, small trial orders are acceptable for project qualification. Non-standard dimensions may require minimum tonnage to justify mill setup — contact us with your exact specifications for a confirmed MOQ and lead time.
Q: How do you ensure material traceability from steel mill to finished pipe delivery?
A: Every heat of steel produced in our own mill receives a unique heat number that is stamped on the slab, carried through the rolling process, and marked on every pipe produced from that heat. The mill test certificate, ultrasonic test report, and final inspection documentation all reference the same heat number — providing a complete, unbroken chain of traceability from raw material to delivered product.
