Description

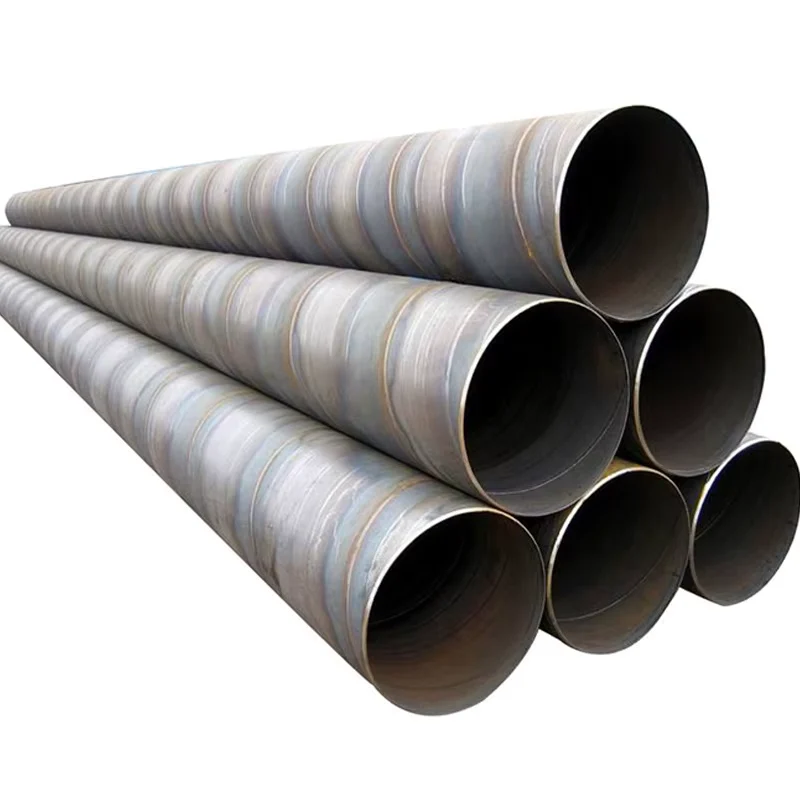

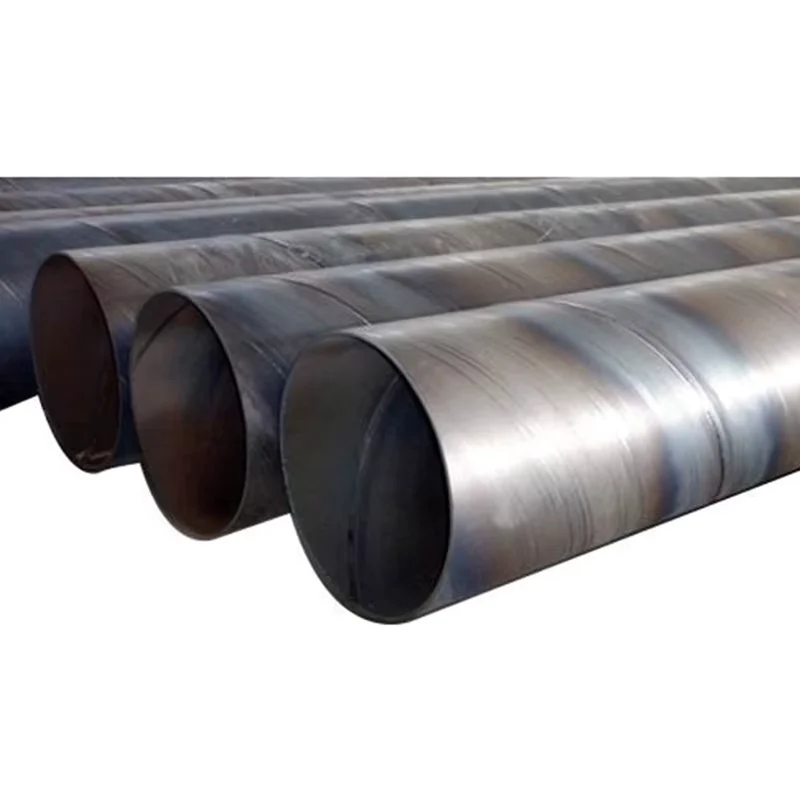

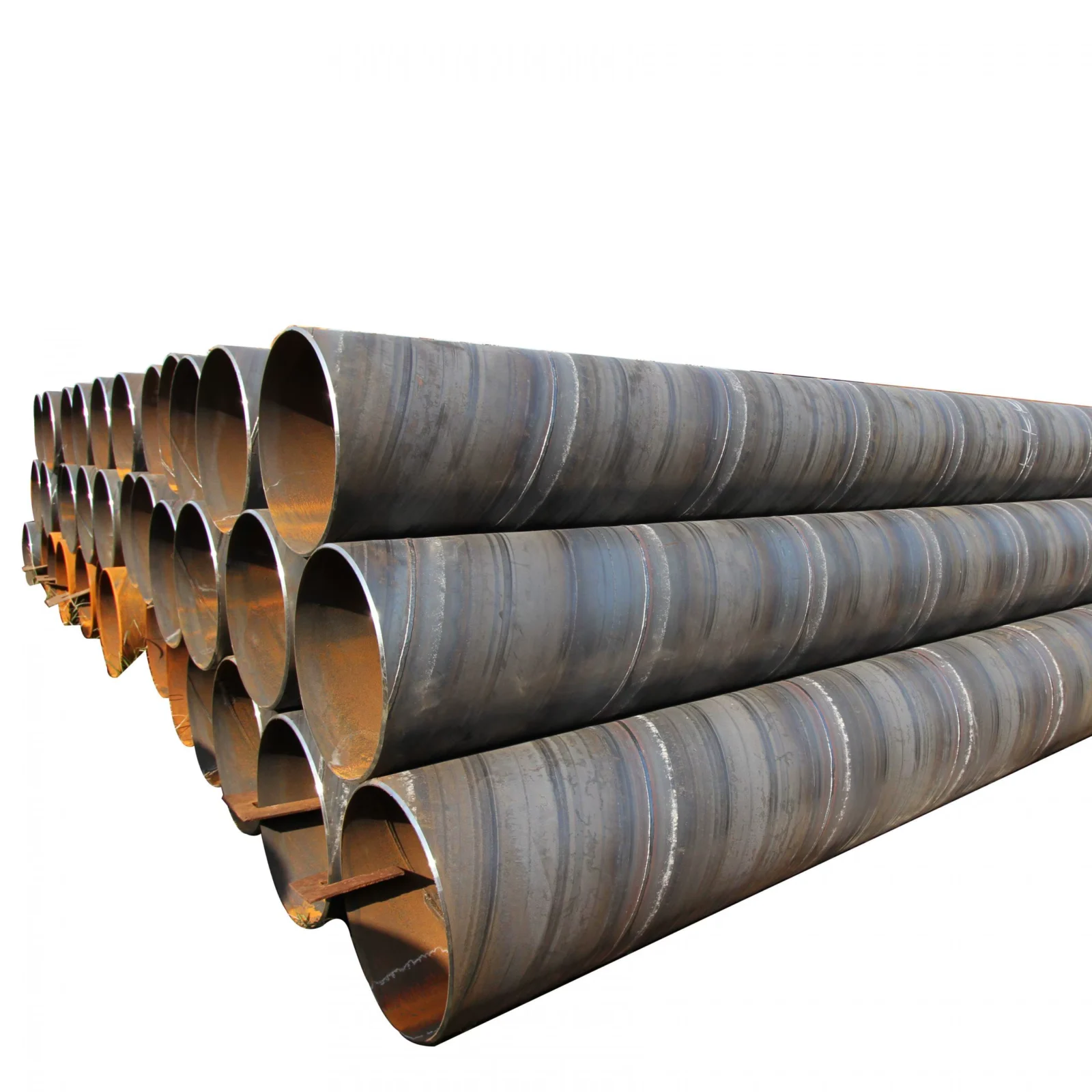

Factory-direct SSAW pipe mill — Own steel production lines supply raw material for Q235, Q345, and API 5L X42–X80 spiral welded pipes without third-party sourcing gaps.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | Q235 Q345 SSAW Spiral Welded Steel Pipe |
| Product Type | Spiral Submerged Arc Welded (SSAW) Steel Pipe |
| Steel Grade | Q235, Q345, St37, St52, X42, X52, X56, X60, X70, X80 |
| Standard | ASTM, BS, DIN, JIS, API 5L, GB |
| Section Shape | Round |
| Outer Diameter | 219mm – 3050mm |
| Wall Thickness | 4.0mm – 30mm |
| Length | 6m – 12m (or as required) |
| Technique | SSAW (Spiral Submerged Arc Welded) |
| Surface Treatment | Bare / Oiled / Coating / Painting / 3PE Anti-corrosion |
| Tolerance | ±5% |
| Ends | Plain / Beveled (processing available) |
| Application | Piling, fluid transportation, bridge structure, ocean pile driving |
| MOQ | 5 Tons |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Infrastructure & Piling | Foundation piles, ocean pile driving, port dock structures |
| Petrochemical & Power | Process piping, steam lines, cooling water systems |
| Water Engineering | Municipal water supply, drainage networks, agricultural irrigation |
| Bridge & Structural | Bridge columns, structural supports, dock framework |
| Oil & Gas Transmission | Gas distribution, LPG transport, crude oil flow lines |
Where Negative Wall Tolerance Triggers Site Rejection on API 5L SSAW Spiral Welded Steel Pipe Orders
A single heat of pipe failing ultrasonic wall-thickness check can hold an entire piling campaign.
Outsourced fabrication buyers regularly encounter dimensional drift when the mill tolerates wall thickness to the lower edge of ±5%. On a 3050mm OD pile driving pipe, even marginal thinning across the spiral seam compounds — third-party inspectors flag it, customs holds the shipment, and the project schedule slips. [NEED_CITE: API 5L dimensional tolerance requirements for spiral welded pipe] Material traceability gaps worsen the problem: when fabricators source blanks from unknown mills, heat-number chains break and MTCs become unreliable. I have seen containers of SSAW pipe turned back at Jebel Ali because wall-thickness readings fell below API 5L minimums on multiple joints — the cost of re-inspection and air-freighting replacements wiped out the original price advantage.
Matching OD 219–3050mm SSAW Pipe to Piling and Fluid Transmission Engineering

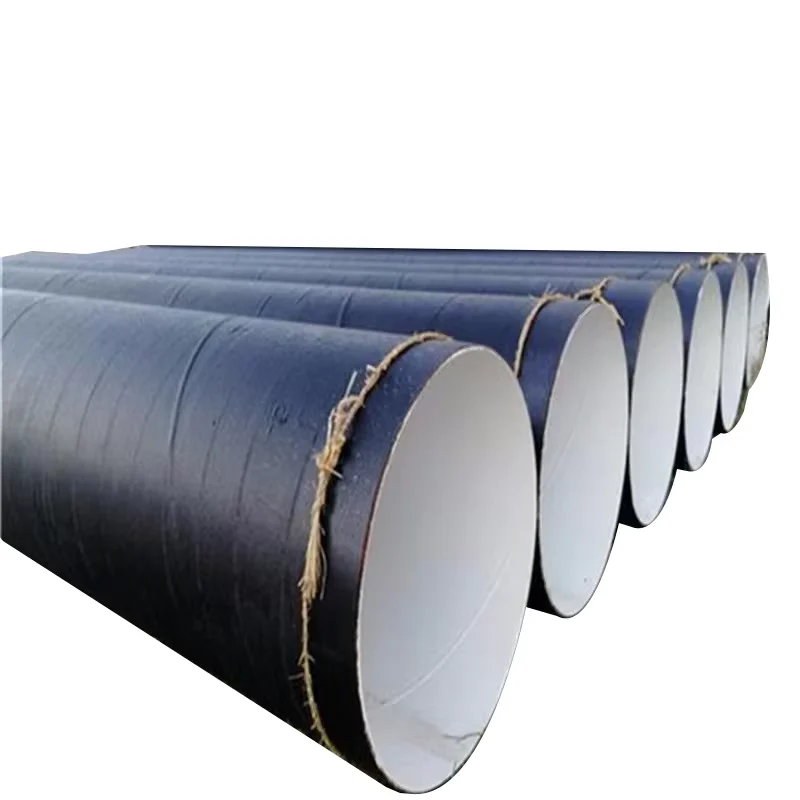

Spiral welded geometry gives SSAW pipe a structural advantage in large-diameter piling: the helical seam distributes load more evenly than longitudinal welds under axial compression, which matters when driving 3050mm OD pipes into marine substrates. For fluid transmission — water supply, drainage, gas — the same diameter range covers municipal mains to industrial trunk lines. API 5L SSAW spiral welded steel pipe in X52 or X60 grades handles moderate-pressure gas distribution, while Q235 and Q345 serve structural and low-pressure water applications. Where pipes encounter buried or submerged conditions, 3PE anti-corrosion coating extends service life without现场 rework.
Engineering Compliance and Certification Requirements for Structural SSAW Pipe
Load-bearing applications demand conformity with recognized structural codes. Piling and bridge columns typically require material certification per API 5L or ASTM standards, with full chemical and mechanical test data traceable to the original heat. [NEED_CITE: EN 10219 cold-formed hollow section requirements for structural steel] For projects entering EU markets, CE marking and EN compliance documentation become customs prerequisites — not optional extras. Surface treatment selection follows environment: bare or oiled pipe suits indoor structural use, while 3PE coating is specified for aggressive marine or underground exposure. Wall thickness tolerance must be verified against design calculations — theoretical weight assumptions based on nominal dimensions can mislead if actual production runs at the lower tolerance band.
Steel Grade Selection and SSAW Welding Process Fundamentals
The Q-series (Q235, Q345) follows the Chinese GB standard system, where the number indicates minimum yield strength in MPa. Q235 serves general structural and low-pressure fluid applications; Q345 offers higher strength for load-bearing frames and bridge components. API line pipe grades — X42 through X80 — follow a different designation logic tied to specified minimum yield strength in ksi multiples of 1,000. X52, for instance, suits moderate-pressure transmission; X70 and X80 serve high-pressure gas and oil trunk lines. The SSAW process itself forms the pipe by helically winding steel coil and submerged-arc welding both inner and outer seams — this method excels in large diameters above 508mm where seamless or ERW alternatives become cost-prohibitive. [NEED_CITE: comparison of SSAW vs LSAW vs seamless pipe manufacturing methods] The spiral seam also allows production of non-standard lengths from a single coil setup, reducing field welds on site.
Hidden Costs of Sourcing API 5L SSAW Spiral Welded Steel Pipe Without Verified Certification
Purchasing pipe based on price alone invites three categories of downstream cost. First, material substitution — a supplier delivering Q235 against an X52 order passes visual inspection but fails ultrasonic testing and chemical analysis at the project site, triggering full-batch rejection. Second, documentation gaps — missing or forged MTCs delay customs clearance and void project insurance coverage. [NEED_CITE: material certification requirements for international steel pipe procurement] Third, tolerance abuse — pipes manufactured at the extreme negative end of wall-thickness tolerance pass mill inspection but fail engineering calculations when designers assumed nominal dimensions. Each scenario forces re-procurement, schedule delays, and potential structural re-engineering — costs that dwarf the initial price saving.
Why Procure API 5L SSAW Spiral Welded Steel Pipe From an Integrated Mill-Fabricator
Vertical integration eliminates the sourcing gap that causes most quality disputes. Our own steel production lines manufacture the raw plate and coil, then our fabrication division forms and welds the SSAW pipe — one facility controls chemistry, rolling temperature, seam welding, and final inspection. This means every heat number on the MTC traces directly to our mill records, not a purchased blank from an unknown supplier. The integrated model also compresses lead times: material procurement, forming, welding, coating, and loading happen under one roof with unified quality oversight. For EPC contractors managing multi-package projects, this single-point accountability simplifies documentation, reduces RFI cycles, and provides a clear chain of responsibility from raw steel to shipped product.
Documentation & Compliance
- Mill Test Certificate documenting Q235/Q345/X42–X80 chemical composition and mechanical properties per API 5L and GB standards, traceable to original heat number
- API 5L certification confirming compliance with specified minimum yield strength and dimensional tolerance for spiral welded pipe
- Third-party inspection reports from SGS or BV covering wall-thickness ultrasonic testing, weld seam radiographic examination, and coating thickness measurement
- Material traceability records linking each pipe joint to its heat number, coil batch, and production date for full audit chain
- Export documentation package including commercial invoice, packing list, bill of lading, and certificate of origin for customs clearance
- Welding procedure specifications (WPS) and procedure qualification records (PQR) for SSAW submerged-arc welding parameters
Packaging, Loading & Delivery
- SSAW pipes bundled with steel strip ties and edge protectors to prevent coating damage during handling and ocean transit
- Bare or oiled pipes wrapped in waterproof cloth; 3PE-coated pipes receive additional foam padding at contact points to preserve anti-corrosion layer integrity
- Loading plans optimized for 219mm–3050mm OD range: smaller diameters nested for container efficiency; large OD pipes shipped on flat racks or breakbulk with wooden cradle supports
- Custom cutting to project-specified lengths within the 6m–12m range, with beveled ends prepared per drawing requirements to reduce on-site welding preparation
- Heat number and steel grade stenciled on each pipe end alongside protective coating, ensuring site identification matches MTC documentation
- FOB, CIF, and DDP shipping terms available with professional oversized cargo handling and complete export documentation for global delivery
Starting Your API 5L SSAW Spiral Welded Steel Pipe Inquiry
Submit project drawings, required steel grades, diameter and wall-thickness specifications, surface treatment preferences, and destination port to receive a detailed quotation including material, fabrication, coating, and logistics costs. Our engineering team reviews shop drawings within 24 hours and confirms compliance with API 5L, ASTM, or project-specific standards before production begins.
Request Quotation and Mill Test Certificate
Send your SSAW pipe specifications, quantities, and delivery requirements to receive pricing, MTC samples, and production timelines.
