Description
Factory-Direct Galvanized RHS/SHS — Vertically integrated steel mill and fabrication workshop eliminate the material traceability gap between raw steel and finished hot-dip galvanized tubes.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | Q235 / S235 / SS400 Galvanized Square & Rectangular Steel Tube |
| Product Type | Galvanized Square and Rectangular Steel Tube (RHS / SHS) |
| Steel Grade | Q195, Q215, Q235, Q345, S235, SS400 |
| Standard | GB / ASTM A53 Gr. B |
| Section Shape | Square / Rectangular / Round |
| Size Range | 8 – 1240 mm |
| Wall Thickness | 0.5 – 80 mm |
| Length | 5.8 – 14 m (custom upon request) |
| Technique | ERW (Electric Resistance Welded) |
| Surface Treatment | Hot-Dip Galvanized (Zn coating 30 – 650 g/m²) |
| Tolerance | ±1% |
| Ends | Plain / Beveled |
| Application | Steel structures, construction frames, scaffolding, machinery, fencing, industrial platforms, greenhouse structures |
| MOQ | 25 Tons (one 20ft container) |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| EPC & General Contracting | Structural frames for warehouses, logistics centers, and industrial plants across West Africa and Middle East |
| Commercial Construction | Building columns, beam assemblies, and mezzanine support structures |
| Infrastructure | Scaffolding systems, bridge handrails, and utility pole bases |
| Industrial Facilities | Machinery frames, conveyor supports, and equipment platforms in processing plants |
| Agricultural & Greenhouse | Greenhouse skeleton structures and irrigation frame supports |
What Negative Tolerance Really Costs on a Hot-Dip Galvanized Frame Order
A 12% wall-thickness deviation on a galvanized square tube can trigger full-batch rejection at the project site.
When overseas buyers source galvanized steel tubes through fragmented trading channels, the distance between the mill and the job site creates a quality blind spot. Traders sourcing from multiple galvanizing plants often accept lower zinc bath temperatures and shorter immersion times to cut costs — the tubes look bright on arrival but fail coating-thickness tests under West African humidity or Middle East salt-air conditions. Material certificates become unverifiable, heat numbers do not match, and the project engineer has no traceable chain from raw steel to finished galvanized RHS. [NEED_CITE: material traceability requirements for structural steel in EN 1090 execution classes]
Matching Galvanized RHS and SHS to Structural Frame Demands
Hot-dip galvanized square and rectangular steel tubes in Q235 and S235 grades carry structural frames where corrosion resistance and load-bearing precision must coexist. The zinc coating at 30 – 650 g/m² shields ERW-welded seams and corner zones from rust propagation — critical for warehouse purlins and industrial platform supports exposed to tropical rainfall. Our vertically integrated production line controls wall thickness within ±1% tolerance, so the galvanized RHS arriving at a Lagos construction site matches the shop drawing dimensions the engineer approved.
Engineering Compliance and Certification Pathways
Structural frames for EPC projects must satisfy both load-bearing codes and corrosion-environment specifications. Q235 (GB) and S235 (EN) serve as direct equivalents for general construction frames, while Q345 steps up yield capacity for heavier industrial platforms. Hot-dip galvanizing at 650 g/m² meets C4–C5 corrosion category requirements for coastal and industrial zones, whereas lighter coatings suit indoor greenhouse structures. For EU-bound shipments, EN 10219 cold-formed hollow section compliance determines whether customs accepts the consignment or holds it for re-inspection. [NEED_CITE: EN 10219 cold-formed structural hollow section dimensional and technical requirements]
Steel Grade Selection and ERW Welding Process
The Q-series (Q195, Q235, Q345) follows the Chinese GB system where the number indicates minimum yield strength in MPa — Q235 delivers adequate capacity for standard building frames, while Q345 handles heavier industrial loads. S235 (EN) and SS400 (JIS) map to similar yield tiers in European and Japanese specifications, giving procurement teams flexibility across project standards. ERW welding produces a clean longitudinal seam with tight dimensional control, making it the dominant process for square and rectangular tubes in the 8 – 1240 mm range. Hot-dip galvanizing after forming coats both external and internal surfaces uniformly, unlike pre-galvanized strip which leaves the weld zone exposed. Wall thickness tolerance of ±1% ensures that theoretical weight calculations used for invoicing stay aligned with actual delivered weight — a frequent dispute point when negative tolerance exceeds acceptable limits.
The Hidden Cost of Unverified Galvanized Tubes
Specifying Q235 but receiving off-grade material with undocumented chemical composition leads to weld cracking during on-site fabrication. Coating thickness below 45 μm on hot-dip galvanized tubes fails project specifications in humid climates, forcing full re-galvanization at the destination — a cost that dwarfs the original purchase price difference. Missing mill test certificates or mismatched heat numbers trigger customs holds at destination ports, delaying project timelines by weeks. [NEED_CITE: steel grade equivalence between GB Q-series and EN S-series standards]
Why Procurement Teams Choose Our Galvanized Square Rectangular Steel Tube Supply
Our own steel mill produces the raw ERW tubes, and our fabrication workshop handles hot-dip galvanizing — one facility, one quality system, one point of accountability. Every batch carries a mill test certificate traceable to heat number, with chemical composition and mechanical properties verified by our in-house laboratory. The product range covers over 2,800 specifications in square, rectangular, and round sections, so project teams sourcing mixed-size frame packages consolidate under a single purchase order. Third-party inspection through SGS or BV confirms coating thickness and dimensional accuracy before container loading. Professional loading plans handle oversized RHS lengths up to 14 m with zinc-coating protection during ocean transit.
Documentation & Compliance
- Mill test certificate documenting Q235 chemical composition and mechanical properties per GB standard, traceable by heat number
- CE certificate confirming EN 10219 compliance for cold-formed structural hollow sections exported to EU markets
- ISO 9001 quality management certificate covering the full production chain from ERW welding to hot-dip galvanizing
- SGS or BV third-party inspection report verifying zinc coating thickness (30 – 650 g/m²) and dimensional tolerance (±1%)
- Material traceability report linking each galvanized RHS/SHS bundle to its original heat number and production batch
- Customs documentation package including packing list, bill of lading, and certificate of origin for destination port clearance
Packaging, Loading & Delivery

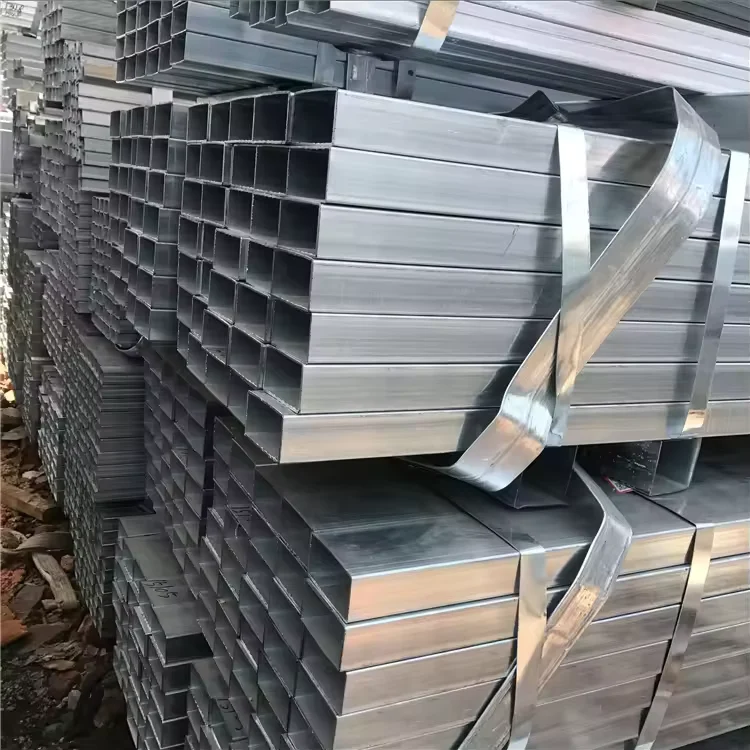

- Hot-dip galvanized Q235 and S235 tubes bundled with steel strips and edge protectors to preserve the zinc coating during ocean transit
- Seaworthy packaging with waterproof wrapping for galvanized RHS/SHS in 5.8 – 14 m lengths, suited for container and break-bulk shipment
- Loading optimization plans for mixed-size galvanized square and rectangular tubes within 25-ton MOQ, maximizing 20ft and 40ft container capacity
- Heat number and steel grade markings stenciled on each bundle for on-site identification and traceability verification
- FOB, CIF, and DDP delivery terms available with professional oversized cargo loading for 14 m galvanized RHS lengths
Start Your Galvanized Tube Procurement
Share your project drawings, steel grade requirements (Q235, S235, SS400, or Q345), section dimensions, and destination port — we respond within 24 hours with a detailed quotation covering material, hot-dip galvanizing, packaging, and shipping costs. Our engineering team prepares shop drawing reviews and confirms mill test certificate packages before production begins.
Request a Quotation with Mill Test Certificates
Submit your specifications, steel grades, and quantities to receive pricing and full quality documentation.
Contact: admin@xjystructure.com | WhatsApp: +86 188 5315 7756
Frequently Asked Questions
Q: What is the difference between hot-dip galvanized and electro-galvanized square tubes?
A: Hot-dip galvanizing produces a zinc coating of 30 – 650 g/m² by immersing the formed ERW tube in a molten zinc bath, coating both external and internal surfaces. Electro-galvanizing applies a thinner zinc layer (typically under 30 g/m²) through electrolysis, suitable for indoor use but insufficient for outdoor structural applications in humid or coastal environments.
Q: How do Q235, S235, and SS400 steel grades compare?
A: Q235 (GB), S235 (EN), and SS400 (JIS) are equivalent structural steel grades with similar yield strength levels, widely used for general construction frames, scaffolding, and industrial platforms. The choice depends on the project specification standard required by the engineer or destination country regulations.
Q: What is the minimum order quantity for galvanized square and rectangular tubes?
A: The MOQ is 25 tons, which fits one 20ft container. Mixed sizes of galvanized RHS and SHS can be combined within a single order to meet project requirements.
Q: Can you provide third-party inspection for coating thickness and dimensions?

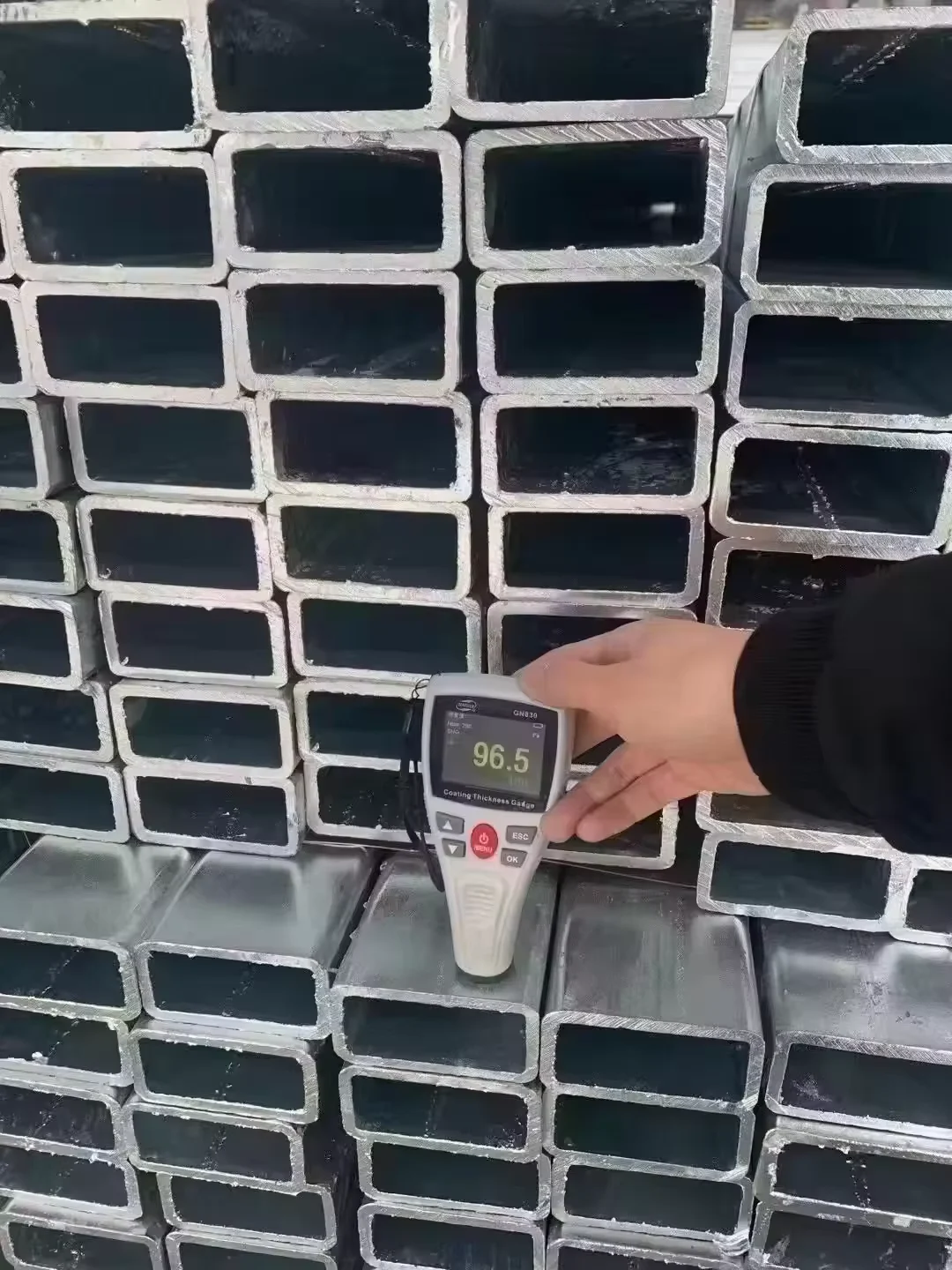

A: Yes. SGS and BV third-party inspections are available to verify hot-dip galvanized zinc coating thickness, dimensional tolerance (±1%), and surface quality before shipment. Inspection reports are included in the export documentation package.
Q: What quality documents are provided with each shipment?
A: Each shipment includes mill test certificates with chemical composition and mechanical properties traceable by heat number, along with packing lists, bills of lading, certificates of origin, and optional CE or third-party inspection reports depending on destination requirements.
